As a prestigious platform offering practice material for all the IT candidates, Dumpcollection experts try their best to research the best valid and useful F5CAB2 exam dumps to ensure you 100% pass. The contents of F5CAB2 exam training material cover all the important points in the F5CAB2 Actual Test, which can ensure the high hit rate. You can instantly download the F5CAB2 practice dumps and concentrate on your study immediately.
| Certification Vendor: | F5 |
|---|---|
| Exam Name: | BIG-IP Administration Data Plane Concepts |
| Exam Number: | F5CAB2 |
| Exam Format: | Scenario-based, Multiple Choice |
| Related Certifications: | F5 Certified Administrator, BIG-IP (F5-CA) |
| Real Exam Qty: | 30 |
| Available Languages: | English |
| Exam Price: | $50 USD |
| Passing Score: | Pass/Fail (Scaled scoring, specific threshold not publicly disclosed per sub-exam) |
| Exam Duration: | 30 minutes |
| Sample Questions: | F5 F5CAB2 Sample Questions |
| Exam Way: | Online (Pearson VUE) |
| Pre Condition: | None specified. It is one of five exams required for the F5 Certified Administrator, BIG-IP credential. |
| Official Syllabus URL: | https://education.f5.com/courses/1089 |
>> F5 F5CAB2 Reliable Test Book <<
As is known to us, the quality is an essential standard for a lot of people consuming movements, and the high quality of the F5CAB2 guide questions is always reflected in the efficiency. We are glad to tell you that the F5CAB2 actual dumps from our company have a high quality and efficiency. If you decide to choose F5CAB2 Actual Dumps as you first study tool, it will be very possible for you to pass the exam successfully, and then you will get the related certification in a short time.
| Topic | Details |
|---|---|
| Topic 1 |
|
| Topic 2 |
|
| Topic 3 |
|
| Topic 4 |
|
NEW QUESTION # 45
Which virtual server type is being configured in the screenshot? (Choose one answer.)
Answer: A
Explanation:
The configuration shown matches a Performance Layer 4 virtual server because it is explicitly using a FastL4 profile:
The screenshot shows Protocol: TCP and Protocol Profile (Client): fastL4.
In BIG-IP data plane terms, FastL4 is the hallmark of a Performance (Layer 4) virtual server, designed to process connections at Layer 4 with minimal overhead (high throughput/low latency) compared to full proxy L7 processing.
The screenshot also shows HTTP Profile (Client): None (and HTTP server profile effectively not in use).
A Standard virtual server commonly uses full-proxy features and frequently includes L7 profiles (like HTTP) when doing HTTP-aware load balancing, header manipulation, cookie persistence, etc. In contrast, a Performance L4 virtual server typically does not use an HTTP profile because it is not doing HTTP-aware (Layer 7) processing.
It is not a Forwarding IP virtual server:
A Forwarding (IP) virtual server is used to route/forward packets (often without load balancing to pool members in the same way as Standard/Performance VS) and is selected by choosing a forwarding type. The presence of a TCP protocol with a FastL4 client profile aligns with a Layer 4 load-balancing style virtual server, not a packet-forwarding virtual server type.
Conclusion: Because the configuration is TCP-based and explicitly uses fastL4 with no HTTP profile, the expected BIG-IP virtual server type is Performance Layer 4 (Option C).
NEW QUESTION # 46
The owner of a web application asks the BIG-IP Administrator to change the port that the BIG-IP device sends traffic to. This change must be made for each member in the server pool named app_pool for the Virtual Server named app_vs. In which area of the BIG-IP Configuration Utility should the BIG-IP Administrator make this change?
Answer: D
Explanation:
In the BIG-IP object hierarchy, the destination port for backend traffic is defined at the Pool Member level. While a Virtual Server listens on a specific port, the Pool determines where that traffic is directed after the load balancing decision is made.
Pools and Pool Members: A pool is a collection of devices, often called pool members, to which the BIG-IP system passes traffic. Each pool member is defined by an IP address and a service port.
Port Translation: When an administrator needs to change the port the BIG-IP uses to communicate with backend servers, they must navigate to the specific Pool and modify the service port for each member within that pool.
Logical Separation:
Virtual Servers define the "front-end" port where clients connect.
Pools define the "back-end" port where the application resides.
Nodes represent the physical server's IP address and do not contain port-specific configuration.
NEW QUESTION # 47
A virtual server is listening at 10.10.1.100:80 and has the following iRule associated with it:
when HTTP_REQUEST { if { [HTTP::header UserAgent] contains "MSIE" }
{ pool MSIE_pool }
else { pool Mozilla_pool }
If a user connects to http://10.10.1.100/foo.html and their browser does not specify a UserAgent, which pool will receive the request?
Answer: C
NEW QUESTION # 48
To increase available bandwidth of an existing Trunk, the BIG-IP Administrator is adding additional interfaces. Which command should the BIG-IP Administrator run from within bash shell?
Answer: C
Explanation:
Configuring networking objects in BIG-IP requires using the correctTMSH module pathandverb.
* Module Path:Trunks are networking objects, so they reside under the /net module, not /sys.
* Verb:Since the trunk already exists, the modify verb must be used to update its properties rather than create.
* Syntax:The correct syntax to append physical interfaces to an existing trunk is tmsh modify /net trunk
[name] interfaces add { [port list] }.
* Data Plane Impact:Adding interfaces to a trunk (Link Aggregation) increases the total aggregate bandwidth available to the system and provides additional hardware redundancy.
NEW QUESTION # 49

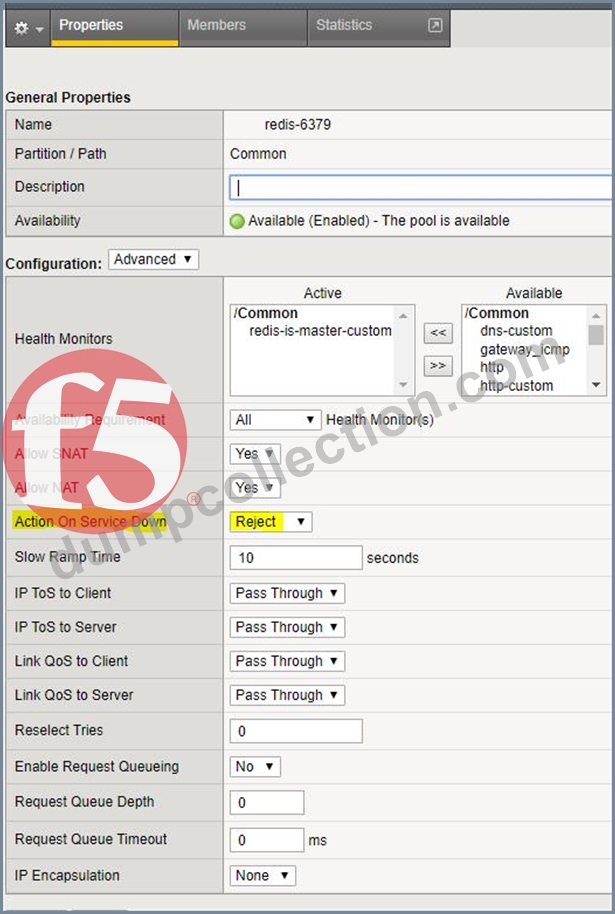

Refer to the exhibit.
The BIG-IP Administrator needs to avoid overloading any of the pool members with connections when they become active. What should the BIG-IP Administrator configure to meet this requirement? (Choose one answer)
Answer: D
Explanation:
This question focuses on connection behavior when pool members transition from down to up, which is a classic data plane consideration in BIG-IP environments.
What problem is being solved?
When a pool member:
Recovers from a failure
Is enabled after maintenance
Transitions from inactive to active
...it can suddenly receive a large burst of new connections, especially when using load-balancing methods such as Least Connections. This sudden surge can overload the server.
Why Slow Ramp Time is the correct solution:
Slow Ramp Time is a pool-level setting that:
Gradually increases the number of connections sent to a newly available pool member Prevents sudden spikes in traffic Allows the server to warm up (application cache, JVM, DB connections, etc.) From BIG-IP Administration Data Plane Concepts:
Slow Ramp Time controls the rate at which BIG-IP increases load to a pool member that has just become available During the ramp period, BIG-IP artificially increases the member's connection count, making it appear "busier" and therefore less attractive for new connections This directly satisfies the requirement to avoid overloading pool members when they become active.
Why the Other Options Are Incorrect:
B . Different Ratio for each member
Ratios control relative distribution under normal operation
They do not prevent a sudden surge when a member becomes active
C . Action On Service Down to Reselect
Controls persistence behavior when a member goes down
Has no impact on connection ramp-up when a member comes back online
D . Same Priority Group to each member
Affects failover logic between priority groups
Does not control connection rate or ramp-up behavior
Key Data Plane Concept Reinforced:
To protect backend servers during recovery events, BIG-IP provides Slow Ramp Time, ensuring graceful reintroduction of traffic and preventing connection storms that can occur during high-load scenarios.
NEW QUESTION # 50
......
