NEW QUESTION # 136
Which authentication option can you not configure under config user radius on FortiOS?
Answer: B
Explanation:
According to the official Fortinet administration guide for FortiOS 7.6.4 under the section " Configuring a RADIUS server, " the supported RADIUS authentication methods you can configure via the CLI with config user radius are:
pap
chap
mschap
mschapv2
auto
The relevant CLI syntax is set auth-type {auto | ms_chap_v2 | ms_chap | chap | pap}. You can confirm this directly in the configuration table and from real CLI sessions.
EAP (Extensible Authentication Protocol) is NOT an authentication option you can directly set under config user radius. EAP methods (such as EAP-TLS, EAP-PEAP, EAP-TTLS) are negotiated between the RADIUS client and server but are not configurable as an explicit auth-type option in FortiOS. EAP authentication is typically used automatically by features like 802.1X, not through the user radius object authentication-type setting, and always requires proper backend workings between supplicant and RADIUS server
NEW QUESTION # 137
Which three common FortiGate-to-collector-agent connectivity issues can you identify using the FSSO real- time debug? (Choose three.)
Answer: B,D,E
Explanation:
The diagnose debug authd fsso server command is the primary tool for troubleshooting communication between the FortiGate and the FSSO Collector Agent. This debug output reveals the status of the connection and the reasons for failure. The three most common connectivity issues identified by this debug are:
FortiGate cannot reach the IP address of the collector agent (Option C): The debug will show connection timeouts or " host unreachable " errors if the Layer 3 connectivity is missing.
The connection was refused / Port mismatch (Option B): If the FortiGate can reach the IP but the Collector Agent is not listening on the specified port (default 8000), the debug will display " Connection refused. " This often happens if the port configured on the FortiGate does not match the listening port on the agent.
The pre-shared key does not match (Option D): If the IP and Port are correct, the next step is authentication. If the password configured on the FortiGate does not match the one on the Collector Agent, the debug will explicitly show an " Authentication failed " or " password mismatch " error during the handshake.
Note on other options: Option A (SSL) is less common than basic connectivity/auth mismatches. Option E (Group filters) relates to user processing logic, which occurs after connectivity is established.
Reference:
FortiGate Security 7.6 Study Guide (FSSO Troubleshooting): " Troubleshooting FSSO... Check connectivity (IP/Port) and authentication (Password). "
NEW QUESTION # 138
Refer to the exhibit.

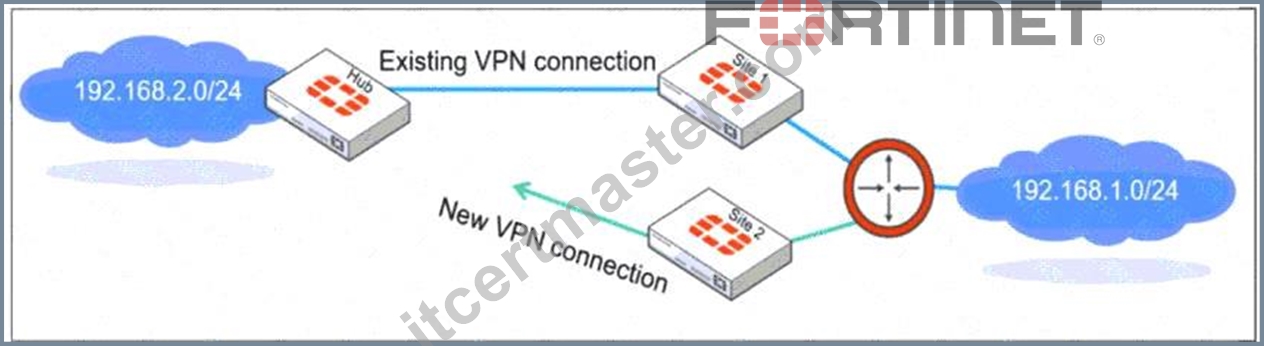

The network diagram shows the addition of Site 2 with an overlapping network segment to the existing IPsec VPN connection between the hub and Site 1.
Which IPsec phase 2 configuration must you make on the FortiGate hub to enable equal-cost multipath (ECMP) routing when multiple remote sites connect with overlapping subnets?
Answer: C
Explanation:
Comprehensive and Detailed 100 to 150 words of Explanation From Secure Networking Architect Study Guides topics:
Fortinet documents three values for the phase 2 route-overlap setting: use-new, use-old, and allow. The required value for simultaneous VPNs advertising overlapping remote subnets is allow.
With route-overlap allow, FortiGate keeps the existing dial-up VPN active and also accepts the newly connected VPN. The Enterprise Firewall 7.6 Administrator Study Guide explicitly states that traffic from the central FortiGate is then load-balanced using equal-cost multipath across both VPNs. This directly satisfies the scenario and makes C correct.
The default use-new setting disconnects the existing VPN and accepts the new one, while use-old keeps the existing VPN and rejects the new connection. Neither produces ECMP. multipath enable and net-device ecmp are not the phase 2 commands FortiOS uses to permit overlapping dial-up VPN routes.
NEW QUESTION # 139
Refer to the exhibit.

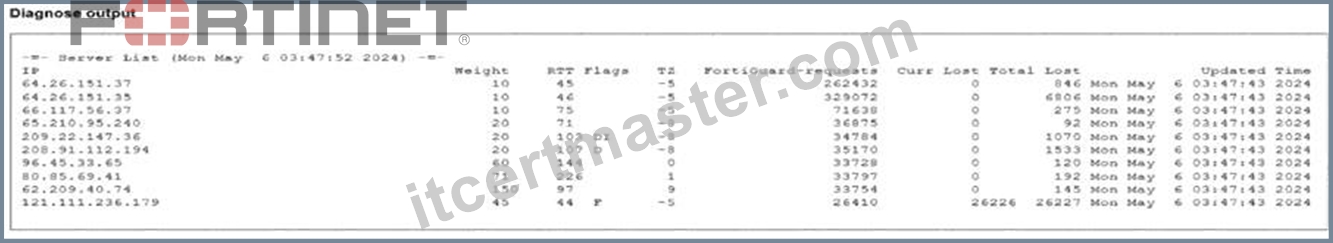

Partial output of command diagnose debug rating is shown. Which FDS server will the FortiGate algorithm choose?
Answer: D
Explanation:
The correct answer is C. 64.26.151.37 .
The study guide explains the FortiGuard flags shown by diagnose debug rating:
* D = Default
* I = Initial
* T = Timing
* F = Failed and specifically: "F = The server is down"
So even though 121.111.236.179 has the lowest RTT in the exhibit, it has the F flag, meaning FortiGate considers that server failed/down , so it will not be chosen.
To determine which active server is selected, the FortiOS administration guide states:
"The server list is sorted first by weight. The server with the smallest RTT appears at the top of the list regardless of weight. ... Therefore the top position in the list is selected based on RTT while the other positions are based on weight." Among the valid, non-failed choices in the exhibit:
* 64.26.151.37 # RTT 45
* 209.22.147.36 # RTT 103
* 96.45.33.65 # RTT 144
* 208.91.112.194 # RTT 107
The active server with the lowest RTT is 64.26.151.37 , so that is the server FortiGate will choose.
So the verified answer is: C .
NEW QUESTION # 140

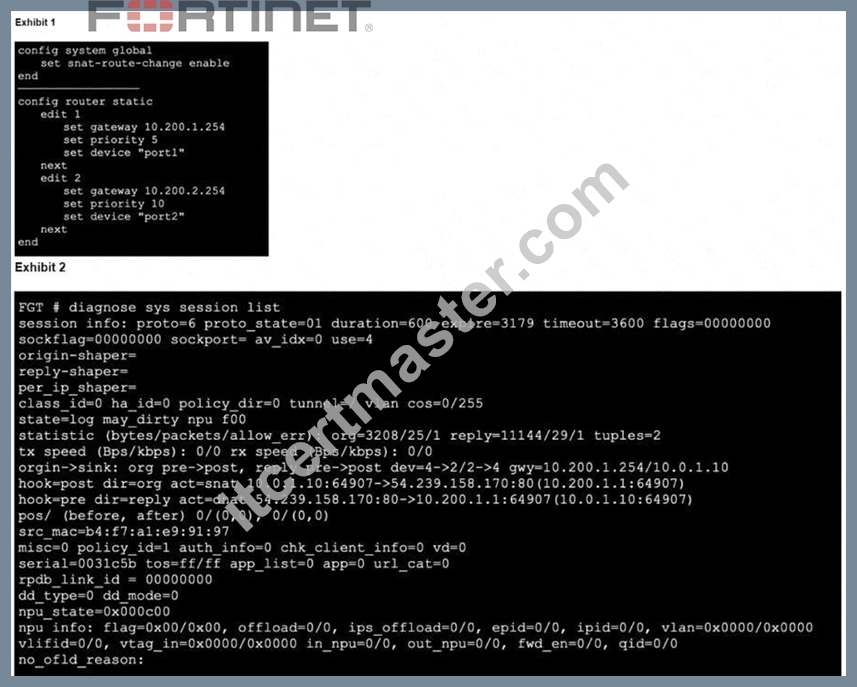

Refer to the exhibits,
which show the configuration on FortiGate and partial session information for internet traffic from a user on the internal network. If the priority on route ID 2 were changed from 10 to 0, what would happen to traffic matching that user session? (Choose one answer)
Answer: A
Explanation:
The correct answer is A. This behavior is dictated by the configuration command set snat-route-change enable shown in Exhibit 1 under config system global.
Routing Change: By changing the priority of route ID 2 from 10 to 0, it becomes lower than route ID 1 (priority 5). In FortiOS, a lower priority value indicates a more preferred route. Consequently, the active route for the destination changes from port1 to port2.
SNAT Implication: The existing session (shown in Exhibit 2) is using Source NAT (SNAT) with the IP address associated with port1 (10.200.1.1). If the traffic were simply switched to port2, the source IP would be incorrect for that interface and the return traffic would likely fail or be dropped.
snat-route-change enable: This specific setting instructs the FortiGate on how to handle established SNAT sessions when a routing change occurs that alters the preferred outgoing interface. When enabled, if a route change forces an SNAT session to a new interface, FortiGate flushes (deletes) the session from the session table. This is necessary because a live TCP session cannot survive a change in its source IP address. The client must initiate a new session, which will then be created using the new correct route (port2) and the corresponding new SNAT IP.
If this setting were disabled, the session would likely remain " sticky " to the original interface (port1) until it closed, provided the route still existed. However, the explicit configuration forces the deletion.
