NEW QUESTION # 34

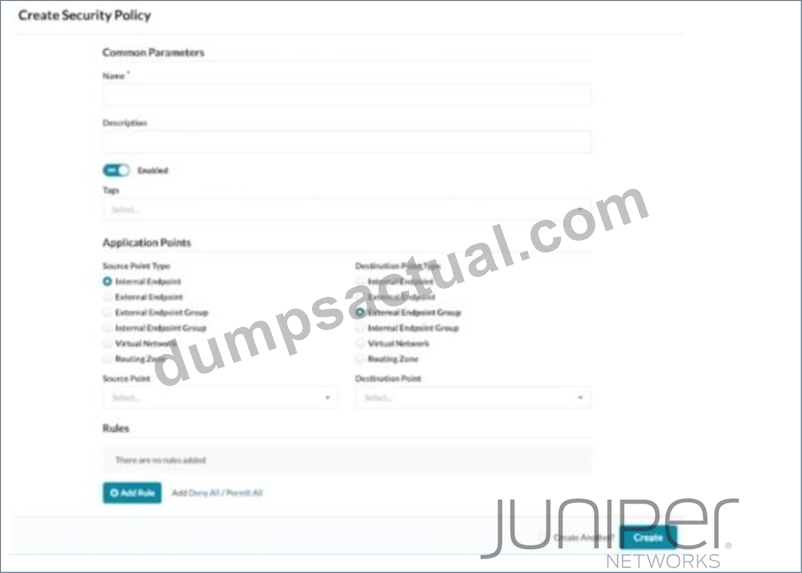

You are creating a new security policy using Juniper Apstra.
Referring to the exhibit, which application point should you select to allow or deny traffic to or from a particular VRF?
Answer: A
Explanation:
In Apstra 5.1, multitenancy is modeled using routing zones, which map directly to the network operating system concept of a VRF. A VRF is an isolated Layer 3 routing instance with its own routing table and forwarding context, and Apstra's routing zone is the intent-based abstraction used to define and manage that isolation consistently across the fabric. Therefore, if your goal is to allow or deny traffic to or from a particular VRF, you must select Routing Zone as the security policy application point.
This choice enables you to express policy at the tenant boundary (VRF boundary) rather than at a single segment boundary. In EVPN-VXLAN data center fabrics, a tenant VRF commonly contains multiple virtual networks (VXLAN segments) and their associated IRB gateways on the leaf switches. Applying policy at the routing-zone level allows Apstra to compile intent and deploy enforcement consistently where traffic enters or exits that VRF context-typically as ACL constructs rendered as Junos firewall filters on the appropriate interfaces (for example, IRB interfaces for east-west controls or border interfaces for north-south controls).
By contrast, selecting Virtual Network targets a single segment (not the whole VRF), and Internal/External Endpoint targets specific endpoints or endpoint groups rather than the VRF-wide policy boundary. Hence, Routing Zone is the correct application point when policy scope is the VRF.
NEW QUESTION # 35
Which statement correctly describes the relationship between Virtual Networks and Routing Zones in Juniper Apstra?
Answer: A
Explanation:
In Juniper Apstra, every Virtual Network (VLAN or VXLAN-based) must be assigned to a Routing Zone, which acts as the VRF providing Layer 3 context and isolation. Multiple Virtual Networks can be assigned to the same Routing Zone, allowing them to share a common Layer 3 domain while remaining isolated from Virtual Networks in other Routing Zones.
NEW QUESTION # 36
How does Apstra use Fabric Device Management to ensure consistency across the network?
Answer: D
NEW QUESTION # 37

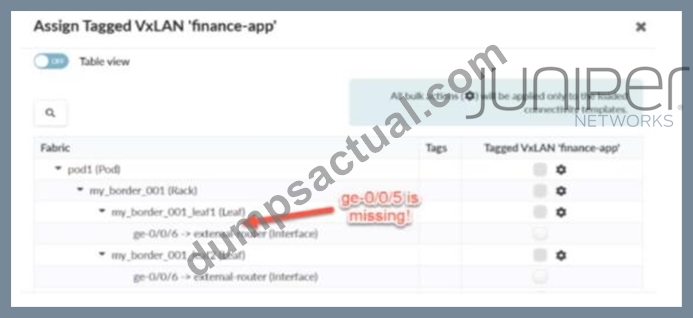

You are attempting to attach the server connected to the my_border_001_leaf1 node's ge-0/0/5 interface to the finance-app virtual network.
Referring to the exhibit, what would you do to solve the problem?
Answer: C
Explanation:
In Apstra 5.1, servers are modeled as Generic Systems and must be represented in the blueprint topology so that Apstra can bind an endpoint (the server) to a specific switch interface and then apply the intended connectivity template / virtual network attachment. In the exhibit, the interface ge-0/0/5 on my_border_001_leaf1 is shown as missing from the assignment workflow, which indicates that Apstra does not currently have an endpoint object connected to that port in the blueprint's staged physical topology (or that the port is not presented as an eligible connectivity point for server attachment).
The correct remediation is to add a Generic System connected to my_border_001_leaf1 ge-0/0/5 in Staged > Physical > Topology, thereby creating a modeled server link on that interface. Once the Generic System exists and the interface is a recognized server-facing connectivity point, you can assign the Tagged VXLAN "finance-app" connectivity template (or the VN assignment action driven by that template) to the server-facing interface and then commit the staged changes.
Changing "deploy mode" may affect whether Apstra actively configures a generic system-facing link, but it does not solve a missing interface in the topology model. Likewise, allocating an IP pool is unrelated to making the port available for attachment, and assigning the VN to the switch node is not how server interfaces are attached in this workflow.
Verified Juniper sources (URLs):
https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/topic-map/internal-generic-system-create.html
https://www.juniper.net/documentation/us/en/software/apstra5.0/apstra-user-guide/topics/topic-map/virtual-network-assignment-update.html
https://cloudlabs.apstra.com/labguide/Cloudlabs/6.0.0/test-drive-guide/lab1-junos-11_adding-gs.html
NEW QUESTION # 38
In the case of IP Clos data center five-stage fabric design, what are two rotes of the super spines? (Choose two.)
Answer: A,C
Explanation:
In the case of IP Clos data center five-stage fabric design, the super spines are the devices that provide the highest level of aggregation in the network. They have two main roles:
Super spines are used to interconnect two different data center pods. A pod is a cluster of leaf and spine devices that form a 3-stage Clos topology. A 5-stage Clos topology consists of multiple pods that are connected by the super spines. This allows for scaling the network to support more devices and bandwidth.
Super spines connect to all spine devices within the five-stage architecture. The spine devices are the devices that provide the second level of aggregation in the network. They connect to the leaf devices, which are the devices that provide access to the end hosts. The super spines connect to all the spine devices in the network, regardless of which pod they belong to. This provides any-to-any connectivity between the pods and enables optimal routing and load balancing.
