Fortinet FCSS_SDW_AR-7.6 Exam Overview:

Certification Vendor:	Fortinet
Exam Name:	FCSS - SD-WAN 7.6 Architect
Exam Number:	FCSS_SDW_AR-7.6
Passing Score:	70%
Certificate Validity Period:	2 years
Related Certifications:	FCSS - LAN Edge Architect FCSS - Network Security Support Engineer FCSS - Enterprise Firewall Administrator
Real Exam Qty:	38
Exam Format:	Multiple choice
Available Languages:	English
Exam Price:	$200 USD
Exam Duration:	75 minutes
Recommended Training:	Fortinet Training: SD-WAN Architect 7.6
Exam Registration:	Pearson VUE Registration
Sample Questions:	Fortinet FCSS_SDW_AR-7.6 Sample Questions
Exam Way:	Online proctored or onsite at Pearson VUE test centers
Pre Condition:	Recommended: NSE 4 or equivalent knowledge; experience with FortiOS, FortiManager, and SD-WAN deployments
Official Syllabus URL:	https://training.fortinet.com/local/staticpage/view.php?page=fcss_network_security

>> FCSS_SDW_AR-7.6 Testantworten <<

Die seit kurzem aktuellsten Fortinet FCSS_SDW_AR-7.6 Prüfungsinformationen, 100% Garantie für Ihen Erfolg in der Prüfungen!

Sie können im Inernet kostenlos die Lerntipps und einen Teil der Prüfungsfragen und Antworten zur Fortinet FCSS_SDW_AR-7.6 Zertifizierungsprüfung von It-Pruefung als Probe herunterladen.

Fortinet FCSS_SDW_AR-7.6 Prüfungsplan:

Thema	Einzelheiten
Thema 1	SD-WAN Basic Setup: This domain covers initial SD-WAN configuration, member and zone setup, and Performance SLA creation for link monitoring.
Thema 2	Rules and Routing: This section focuses on configuring SD-WAN rules for traffic steering and routing policies for path selection and failover.
Thema 3	SD-WAN Troubleshooting: This domain focuses on diagnosing SD-WAN rule behavior, routing issues, and ADVPN tunnel problems.
Thema 4	Centralized Management: This domain addresses FortiManager-based SD-WAN deployment, branch configuration implementation, and overlay orchestration using SD-WAN Manager.
Thema 5	Advanced IPsec: This section covers hub-and-spoke topologies, ADVPN configuration, and scalable multihub and multiregion IPsec deployments.

Fortinet FCSS - SD-WAN 7.6 Architect FCSS_SDW_AR-7.6 Prüfungsfragen mit Lösungen (Q57-Q62):

57. Frage

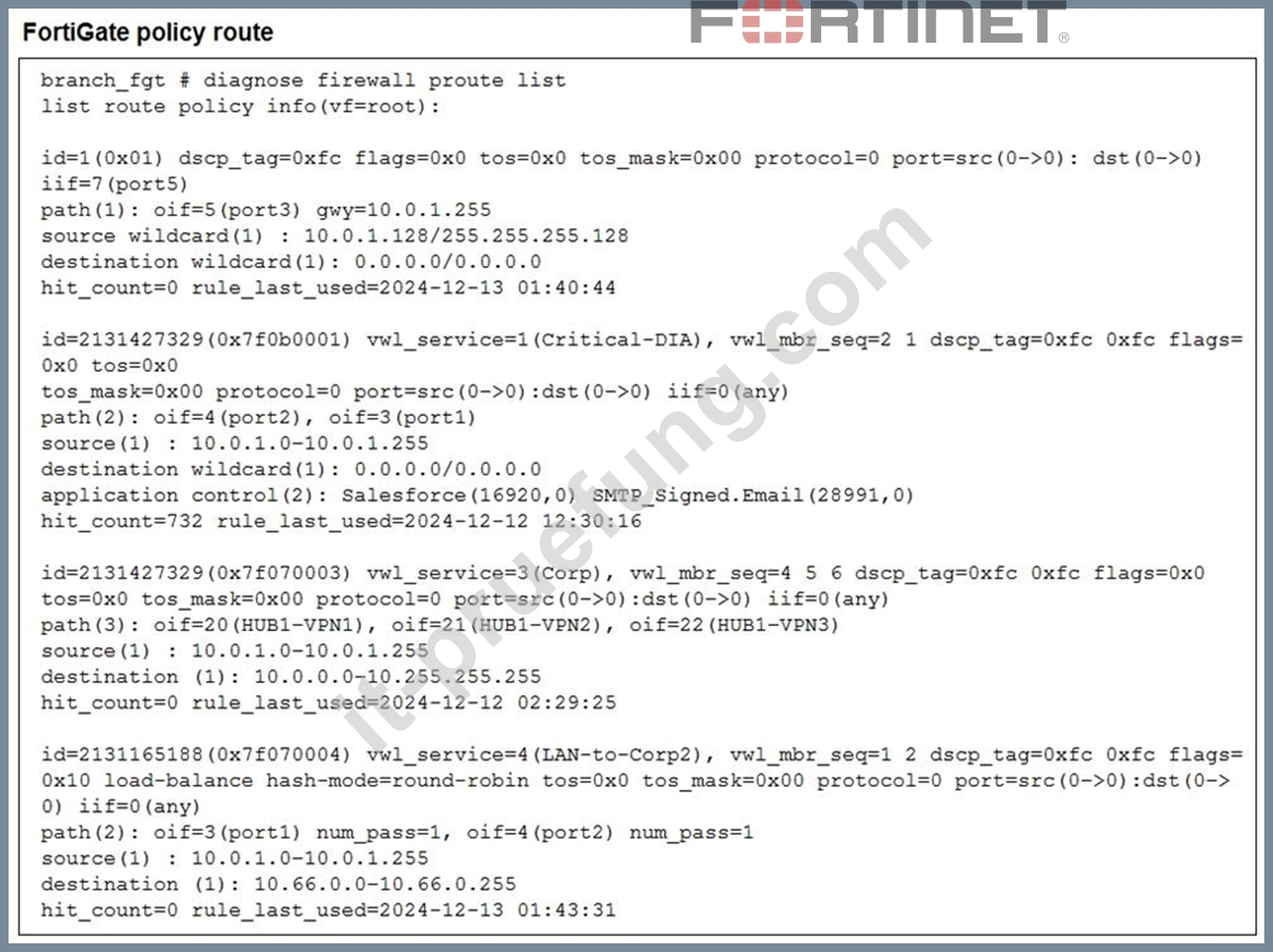

Refer to the exhibit.

What conclusions can you draw about the traffic received by FortiGate originating from the source LAN device 10.0.1.133 and destined for the company's SMTP mail server at 10.66.0.125?

A. FortiGate steers the traffic from the LAN device 10.0.1.133 to the company SMTP mail server 10.66 0.125 through port3.
B. FortiGate steers the traffic from the LAN device 10.0.1.133 to the SMTP mail server 10.66.0.125 through the SD-WAN member ID 1 or 2.
C. ForliGate steers the traffic from the LAN device 10.0.1.133 to the company SMTP mail server 10.66.0.125 through port2.
D. FortiGate steers the traffic from the LAN device 10.0.1.133 to the company SMTP mail server 10.66.0.125 through the SD-WAN member ID 4.

Antwort: B

Begründung:
The policy-route output shows the matching SD-WAN service for destination 10.66.0.0/24 is vwl_service=4 (LAN-to-Corp2) with vwl_mbr_seq=1 2 and paths oif=3(port1) and oif=4(port2). Therefore, traffic from 10.0.1.133 to 10.66.0.125 is steered via SD-WAN member ID 1 or 2.

58. Frage

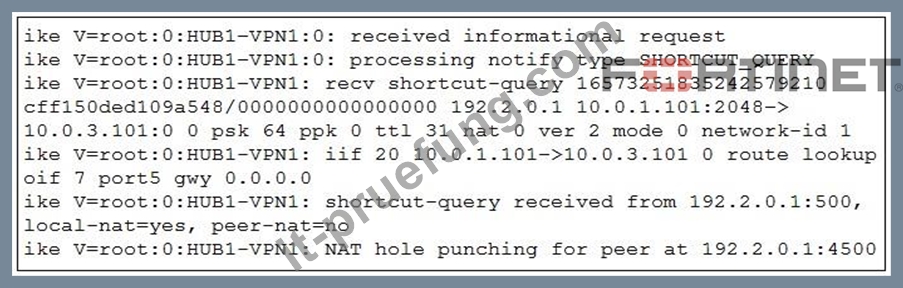

Refer to the exhibit.

Which statement best describe the role of the ADVPN device in handling traffic?

A. This is a spoke that has received a direct shortcut query from a remote spoke.
B. This is a spoke that has received a shortcut query from a remote hub.
C. This is a hub that has received a shortcut query from a spoke and has forwarded it to another spoke.
D. This is a hub, and two spokes, 192.2.0.1 and 10.0.3.101, establish a shortcut.

Antwort: D

Begründung:
The log shows messages on HUB1-VPN1 where the device processes a SHORTCUT_QUERY and performs NAT hole punching (peer at 192.2.0.1:4500). This indicates that the device is acting as a hub, helping two spokes (192.2.0.1 and 10.0.3.101) establish a direct ADVPN shortcut tunnel between each other, instead of routing their traffic through the hub.

59. Frage
You configured an SD-WAN rule with the best quality strategy and selected the predefined health check, Default_FortiGuard, to check the link performances against FortiGuard servers.
For the quality criteria, you selected Custom-profile-1.
Which factors does FortiGate use, and in which order. to determine the link that it should use to steer the traffic?

A. Latency - Jitter - Packet loss - Bibandwidth - Member configuration order
B. Links that meet the SLA targets - Member configuration order - Member local cost
C. Link quality index - Member configuration order - Link cost threshold
D. Latency - Member configuration order - Link cost threshold

Antwort: C

Begründung:
FortiGate determines the member with the best quality using three factors: member configuration order, the link-cost-threshold setting, and the value of the metric measured for the member.

60. Frage

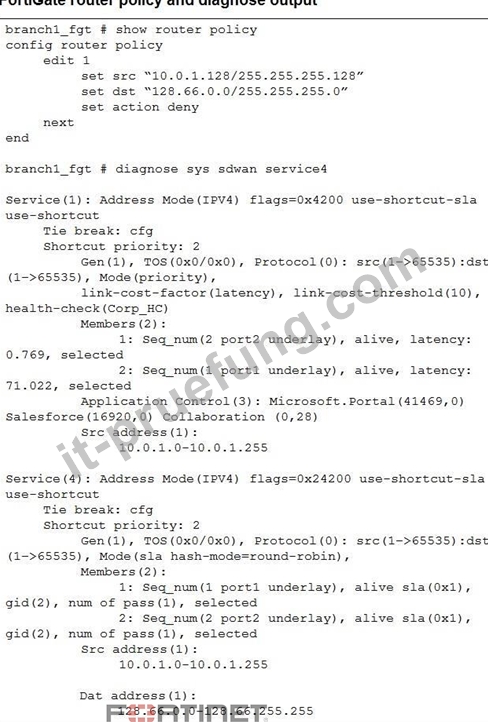

Refer to the exhibit. How does FortiGate handle the traffic with the source IP 10.0.1.130 and the destination IP 128.66.0 125?

A. FortiGate routes the traffic flow according to the FIB.
B. FortiGate drops the traffic flow.
C. FortiGate load balances the traffic flow through port1 and port2.
D. FortiGate steers the traffic flow through port2.

Antwort: A

Begründung:
On FortiGate, a policy route (PBR) with action deny does not drop the traffic outright. Instead, it prevents the traffic from being steered by that policy route, and the packet is then handed back to the regular routing lookup (FIB):
Source 10.0.1.130 matches 10.0.1.128/25
Destination 128.66.0.125 matches 128.66.0.0/24
Router policy says action deny → do not use this policy route
Result: FortiGate falls back to the FIB (normal routing table).

61. Frage
Refer to the exhibit.

An SD-WAN zone configuration on the FortiGate GUI is shown.
What can you conclude about the zone and member configuration on this device? Choose one answer.)

A. You can add the member B-125 to the WAN3 zone and keep it as a member of the Test zone.
B. You can delete the virtual-wan-link zone.
C. The WAN2 zone contains no member.
D. You can delete the WAN1 zone.

Antwort: C

Begründung:
From the SD-WAN Zones view in the FortiGate GUI:
virtual-wan-link is the default SD-WAN zone. This zone is system-defined and cannot be deleted, which makes option A incorrect.
The WAN2 zone is displayed without any expandable members beneath it, indicating that no SD-WAN members are currently assigned to the WAN2 zone. This directly supports option B.
A zone can be deleted only if it has no members and is not system-defined, but the exhibit does not indicate that WAN1 is eligible for deletion. Therefore, option C cannot be concluded from the information shown.
In FortiOS SD-WAN, an SD-WAN member can belong to only one SD-WAN zone at a time. A member such as B-125 cannot be assigned to both the WAN3 zone and the Test zone simultaneously, which makes option D incorrect.

62. Frage
......
