NEW QUESTION # 90
Refer to the exhibits.

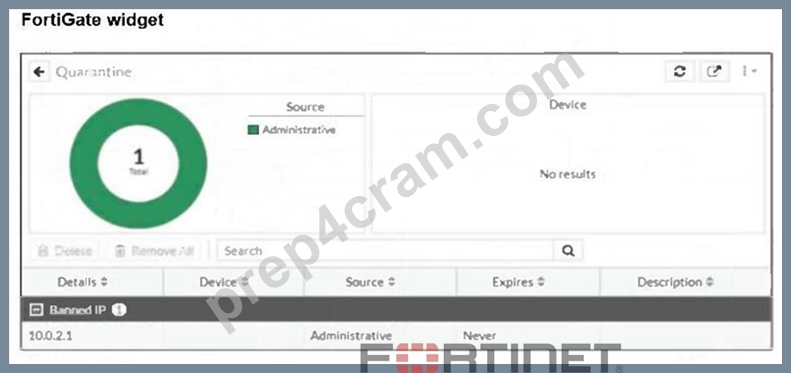

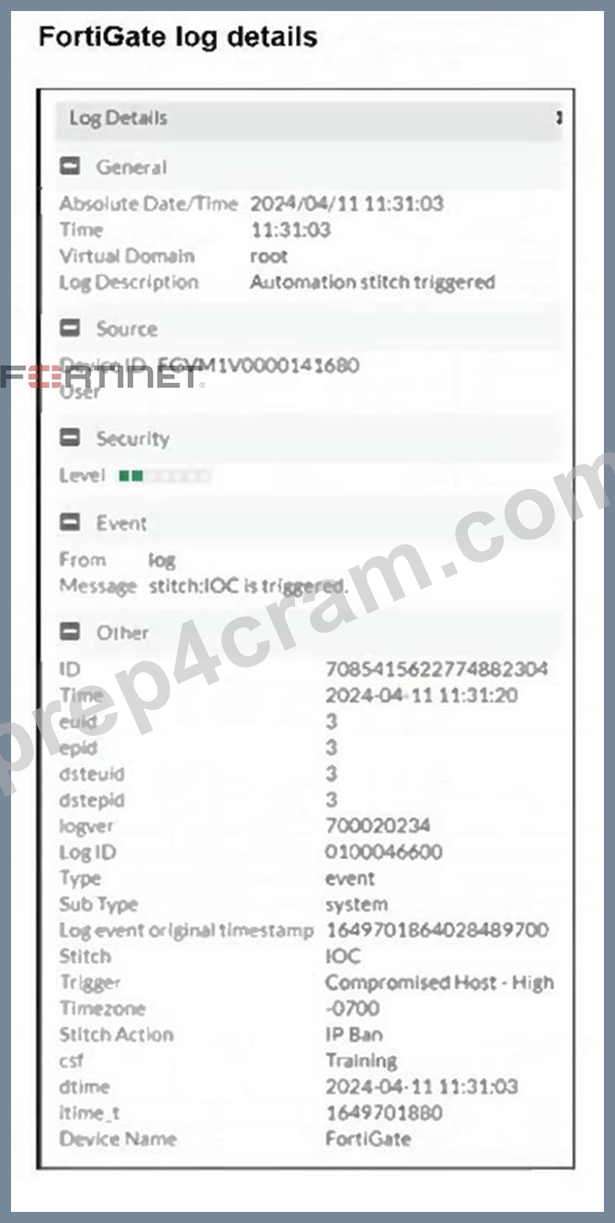

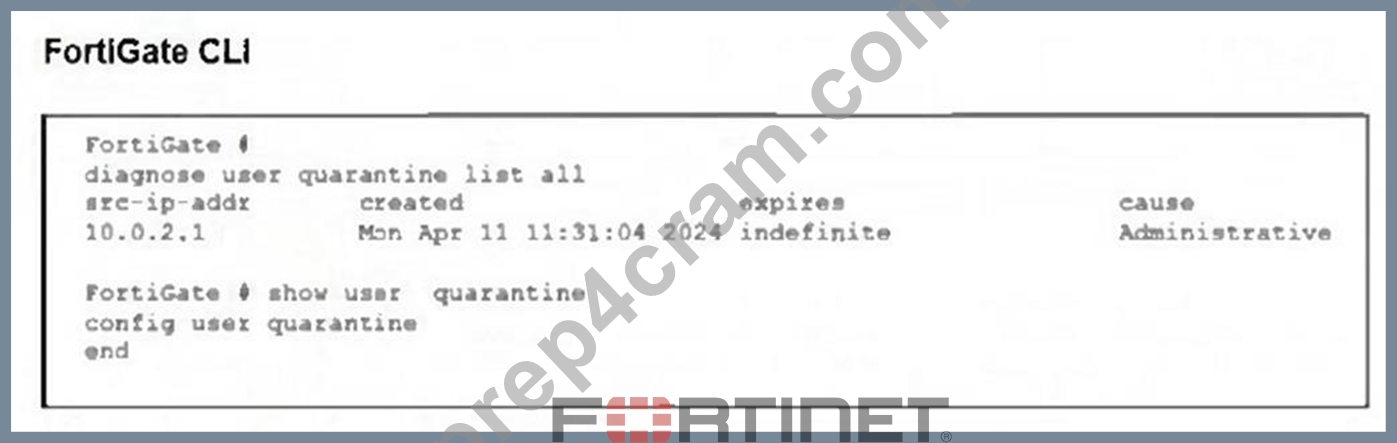

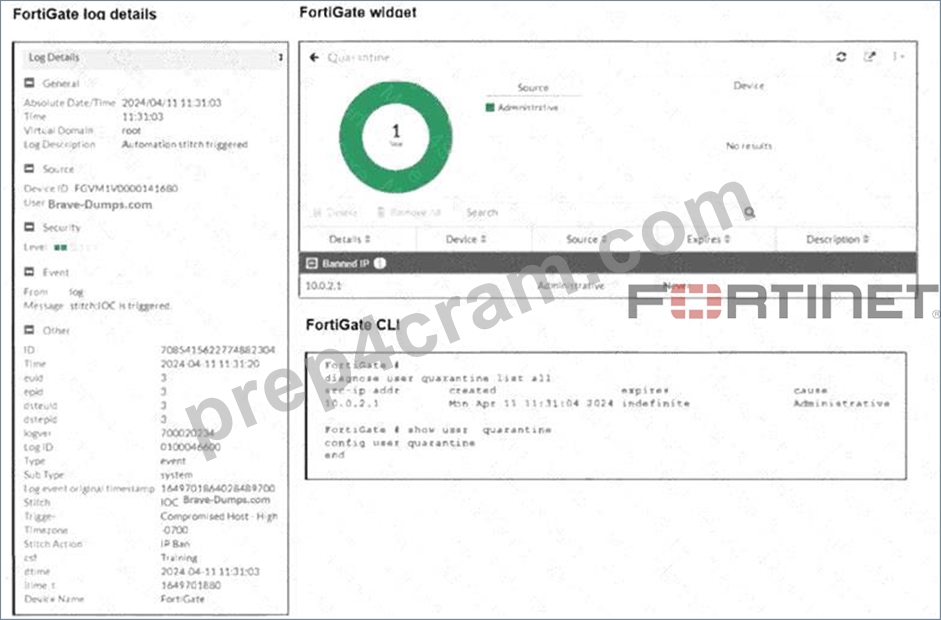

The exhibits show the FortiGate logs, widget, and CLI. Security Fabric quarantine automation is being tested using a device with the IP address 10.0.2.1, which is connected to a managed FortiSwitch. Shortly after attempting to access a malicious website, the device loses access to the internet and other VLANs within the network. However, it can still communicate with other devices within the same VLAN. Which configuration change is required to fix the issue?
Answer: D
Explanation:
The correct answer is A.
The LAN Edge 7.6 Architect study guide explicitly explains the difference between the two quarantine actions:
"IP ban: Traffic from the compromised device IP address is blocked on FortiGate, but intra-VLAN traffic is still allowed." It also states:
"Access-layer quarantine: Inter-VLAN and intra-VLAN traffic from the compromised device MAC address is blocked using FortiGate and FortiSwitch." That exactly matches the symptom in the question. The device has lost internet and inter-VLAN access, but it can still communicate with devices in the same VLAN. That behavior is the expected result of an IP Ban action, not full access-layer quarantine.
The study guide further explains MAC-based quarantine behavior:
"Isolation means that a quarantined device can communicate only with FortiGate. If the device tries to communicate with any other host on the network, the communication is blocked." And it adds:
"In both modes: Intra-VLAN traffic is blocked automatically by FortiGate." So to block same-VLAN communication as well, the automation action must use Access Layer Quarantine instead of IP Ban.
Why the other options are incorrect:
B). Incorrect. There is no separate "IP Ban settings to the Quarantine action" correction described in the study guide. The fix is to use the correct automation action type, which is Access Layer Quarantine C). Incorrect. The IOC has already worked well enough to trigger the stitch. The issue is not IOC detection, but the wrong quarantine action being used, as shown by the behavior and the log/widget evidence.
D). Incorrect. The study guide does not describe a separate setting to "enable intra-VLAN traffic blocking" for Security Fabric quarantine. Instead, intra-VLAN blocking is achieved by using Access Layer Quarantine, not IP Ban Final verified conclusion:
Because the current behavior matches IP Ban, and same-VLAN traffic is still allowed, the required fix is to replace the IP Ban action with Access Layer Quarantine.
So the correct answer is A.
NEW QUESTION # 91
Refer to the exhibits to analyze a network topology and SSID settings.
FortiGate is configured to use an external captive portal for authentication to grant access to a wireless network. Testing detected that users attempting to access the SSID are not able to access the captive portal login page.
Which configuration change should fix this issue?
Answer: B
Explanation:
With an external captive portal, clients must be allowed to reach the portal (and any required services like DNS/AD) before authentication. Add the portal servers (FortiAuthenticator and Windows AD) to the SSID's exempt destinations/services so unauthenticated users can be redirected and load the login page.
NEW QUESTION # 92
Refer to the exhibit.

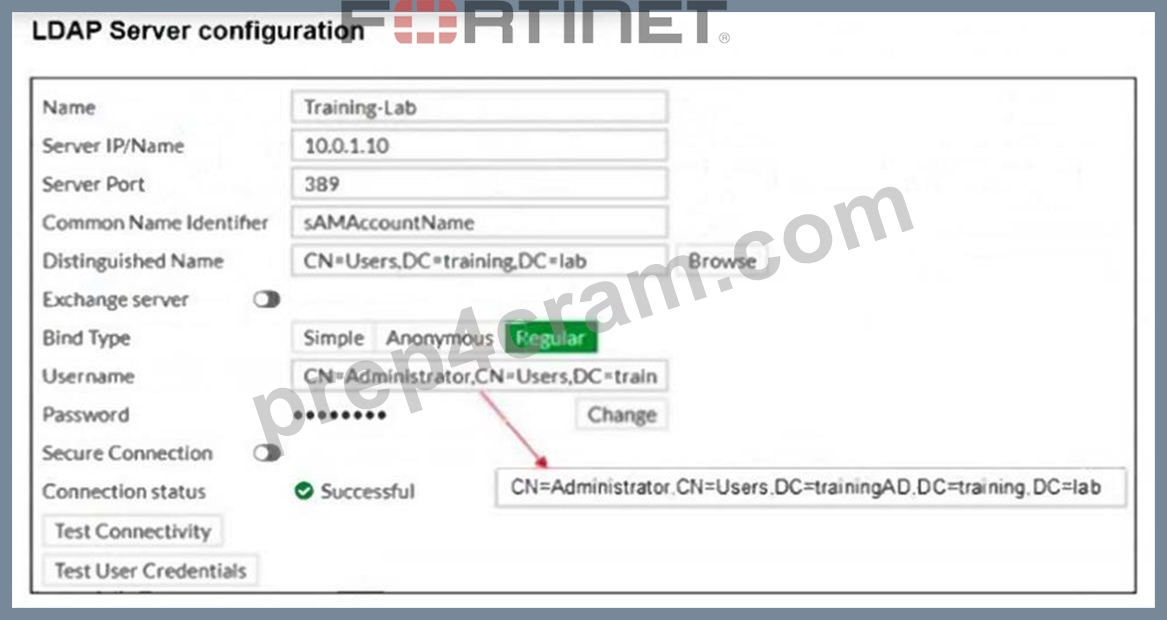

The exhibit shows an LDAP server configuration with the Username setting has been expanded to display its full content.
The administrator has configured the LDAP settings on FortiGate and is troubleshooting for authentication issues.
As part of the troubleshooting steps, the administrator runs the command dsquery user -samid student on the Windows Active Directory (AD) server with an IP address 10.0.1.10 and received the output CN=student, CN=Users, DC=trainingAD, DC=training, DC=lab.
Based on the dsquery output, which LDAP setting on FortiGate is misconfigured?
Answer: D
Explanation:
The Distinguished Name (DN) is misconfigured. In the FortiGate LDAP settings, it is set as CN=Users,DC=training,DC=lab, but the dsquery output shows the correct DN path should include DC=trainingAD (CN=Users,DC=trainingAD,DC=training,DC=lab). Because of this mismatch, FortiGate cannot properly search for or authenticate AD users.
NEW QUESTION # 93
Refer to the exhibits.
Which include debug output and SSL VPN configuration details.
An SSL VPN has been configured on FortiGate. To enhance security, the administrator enabled Required Client Certificate in the SSL VPN settings. However, when a user attempts to connect, authentication fails.
Which configuration change is needed to fix the issue and allow the user to connect?
Answer: D
Explanation:
The SSL-VPN configuration hasRequire Client Certificateenabled. When this is enabled, FortiOS performs two checks:
* Normal user authentication(username/password or PKI user)
* Additional client certificate check- the client certificatemust be signed by a CA that FortiGate trusts FortiOS documentation for "SSL VPN with certificate authentication" states:
* "The client certificate only needs to be signed by a known CA in order to pass authentication."
* "The CA certificate is the certificate that signed both the server certificate and the user certificate...
The CA certificate is available to be imported on the FortiGate."
The debug output shows key lines:
* __quick_check_peer-CA does not match.
* Issuer of cert depth 0 is not detected in CMDB.
This tells us:
* FortiGatedoes see the user's certificate,
* Butcannot find the issuing CAin its local CA certificate store ("CMDB" = configuration database).
This means theCA that signed the user certificate has not been importedinto FortiGate.
Now evaluate the options:
* A. Enable Redirect HTTP to SSL-VPN- affects only redirection from HTTP to HTTPS; it has nothing to do with certificate validation.
* B. Import the CA that signed the SSL VPN Server Certificate- the server certificate is already working (the portal comes up) and its CA is not what the debug complains about; the error is about the peer (user) certificate. Often the same CA signs both, but the failing check specifically says the issuer of the client cert is not in CMDB.
* C. Set the user certificate as the Server Certificate- incorrect; server and client certificates serve different roles.
* D. Import the CA that signed the user certificate to FortiGate- this directly addresses the debug error and aligns with the documented requirement that the CA which issued the user certificate must be known to FortiGate.
NEW QUESTION # 94
Refer to the exhibits.
A NAC policy has been configured to apply traffic that flows through FortiSwitch port 2. Traffic that meets the NAC policy criteria will be assigned to the Students VLAN. However, the NAC policy does not seem to be taking effect.
Which configuration is missing?
Answer: D
Explanation:
From the exhibits:

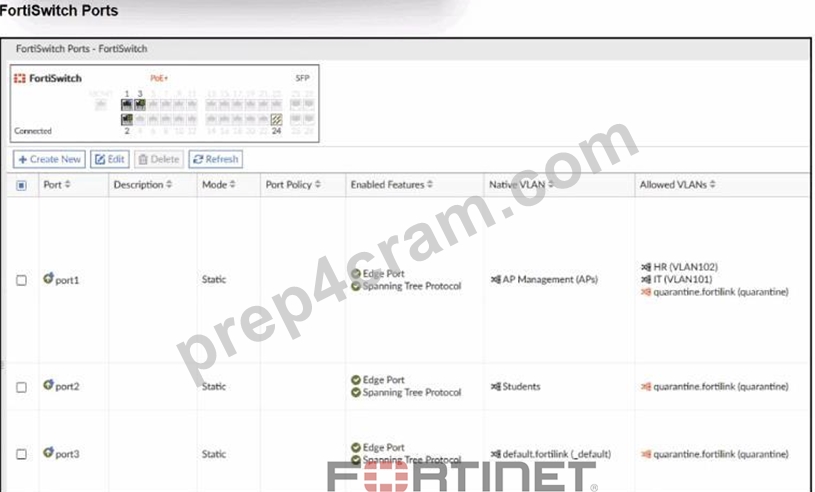

* FortiSwitch Ports viewshows:
* port2
* Mode: Static
* Native VLAN: Students
* Allowed VLANs: quarantine.fortilink (quarantine)
* NAC policy "Training":

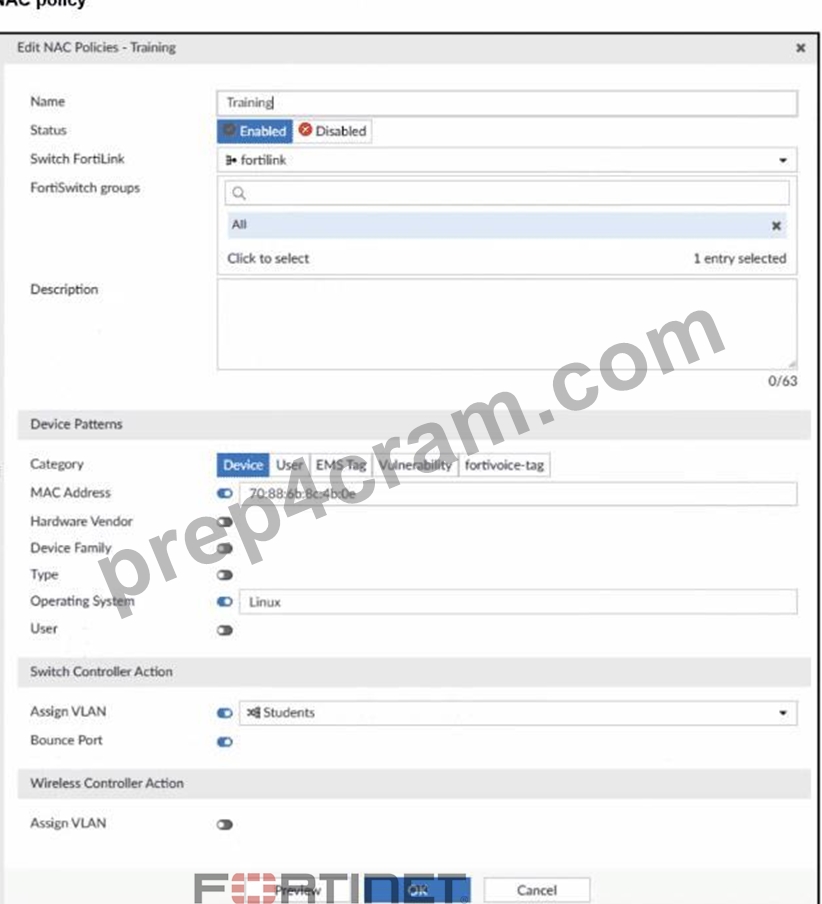

* Switch FortiLink: fortilink
* Category:Device
* Matching criteria:
* MAC Address: 70:88:6b:8c:4b:0e (enabled)
* Operating System:Linux(enabled)
* Switch Controller Action:
* Assign VLAN = Students
* Bounce Port = enabled
Design intent:
Device with that MAC + OS Linux, when plugged intoport2, should be dynamically moved to VLAN Studentsby the NAC policy.
Why it doesn't work now
On FortiLink NAC,dynamic NAC decisions only apply on ports whose "Access Mode" is set to NAC:
* NAC mode = FortiGate controls theonboarding VLAN, evaluates NAC policies, and then dynamically reassigns the switch port VLAN (access, quarantine, etc.).
* Static mode(what we see on port2) means the port just uses its configurednative/allowed VLANs, and no NAC classificationhappens.
Right now:
* port2 is astatic access portwith Native VLAN = Students.
* The NAC policy exists, butFortiSwitch is not in NAC enforcement mode on that port, so the policy is never evaluated for traffic on port2.
Therefore, themissing configurationis:
Setport2toNAC mode(sometimes called "Access mode: NAC" or "NAC LAN edge port").
Once port2 is changed to NAC mode:
* Device initially lands in the onboarding/quarantine VLAN.
* FortiGate collects device info (MAC, OS, etc.).
* NAC policy "Training" matches MAC + Linux.
* Switch controller actionAssign VLAN = Studentsis applied.
* Port is bounced (if configured), bringing the device back up in VLAN Students.
Why the other options are wrong
* B. MAC or OS misconfigured
* Possible in general, but the question asks forwhich configuration is missing, and the exhibits clearly focus on port mode. Also, even with wrong MAC/OS, the port would still be in NAC mode; here NAC isn't even active.
* C. Port Policy mode
* Port policy (edge/trunk) is separate from NAC; NAC requires the specificNAC access mode.
* D. Students VLAN should be Allowed VLANs instead of Native VLAN
* For an access port, having Students as thenative VLANis correct. NAC policy's Assign VLAN will set that as access VLAN; no need to make it an allowed trunk VLAN.
NEW QUESTION # 95
......
