| Section | Objectives |
|---|---|
| Topic 1: Tall Mass Timber Building Code Provisions | - Applicable Codes and References
- Type IV Construction
|
>> 93-Tall-Mass-Timber-Buildings Answers Real Questions <<
One of the biggest challenges of preparing for a International Code Council 93-Tall-Mass-Timber-Buildings certification exam is staying motivated. It is easy to get bogged down by all the material you need to learn and lose sight of your goal. That is why our International Code Council 93-Tall-Mass-Timber-Buildings PDF and practice tests are designed to be engaging and easy to understand.
NEW QUESTION # 11
What fire-resistance rating is required for Type IV-C exterior and interior bearing walls?
Answer: D
Explanation:
IBC Table 601 requires both exterior and interior bearing walls in Type IV-C construction to have a minimum two-hour fire-resistance rating. Option B is correct.
For exterior bearing walls, the Table 601 rating is not the only applicable criterion. Section 602.1 also requires exterior walls to satisfy Table 705.5 based on occupancy and fire separation distance. Where Table 705.5 or another provision imposes a more restrictive rating, the higher requirement governs.
The two-hour rating may be achieved through the calculated structural fire resistance of the mass timber, approved noncombustible protection, or an approved combination of the two. Connections, intersections, penetrations, and abutting edges must not create a premature failure path or compromise the rated assembly.
A one-hour reduction can be permitted for bearing walls supporting a roof only under Table 601, Footnote
"a," but that exception does not apply to a wall carrying floors or other qualifying structural loads. The inspector must confirm the actual load path before accepting any reduced protection at the uppermost level.
References/Topics: 2021 IBC Sections 601, 602.1 and 602.4; Tables 601 and 705.5; Type IV-C bearing walls.
NEW QUESTION # 12
Which of the following requires continuous special inspection?
Answer: A
Explanation:
Adhesive anchors installed horizontally to resist sustained tension loads require continuous special inspection.
Therefore, option D is correct.
Continuous special inspection means that the special inspector must be present during the performance of the regulated work. This heightened oversight is necessary because horizontal or upwardly inclined adhesive- anchor installations resisting sustained tension are sensitive to installation variables such as borehole cleaning, adhesive proportioning, mixing, placement, embedment depth, temperature, cure time, and prevention of adhesive loss before curing. A concealed installation defect can substantially reduce long-term tension capacity.
The other listed activities are generally subject to periodic inspection under the mass timber special-inspection provisions. Periodic inspection allows the inspector to observe the work intermittently at appropriate stages rather than remaining present throughout the entire operation. Bolted connections, concealed mass timber connections, and anchorage of mass timber construction to deep foundation systems must still be inspected, but the code does not automatically designate each of those activities as continuous.
The inspector should also verify installer certification where required, approved adhesive-anchor evaluation documentation, expiration dates, storage conditions, drilling method, hole dimensions, and compliance with the approved structural documents.
References/Topics: 2021 IBC Sections 1705.3 and 1705.5.3; Table 1705.3; continuous inspection of adhesive anchors under sustained tension.
NEW QUESTION # 13
Refer to the figure by clicking on the EXHIBIT button above.

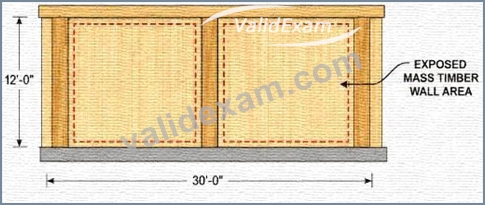

In Type IV-B construction, unprotected portions of mass timber as shown in the Figure is limited to an area equal to not more than what percentage of the base floor area?
Answer: D
Explanation:
The highlighted exposed surfaces in this figure are mass timber wall surfaces . Under 2021 IBC Section
602.4.2.2.2, Exception 1.2, unprotected portions of Type IV-B mass timber walls, including attached columns, are permitted up to an area equal to 40 percent of the floor area in the applicable dwelling unit or fire area.
Option D is therefore correct.
This should be distinguished from the corresponding ceiling limitation. Unprotected mass timber ceilings, including attached beams, are limited to 20 percent of floor area. The larger 40-percent allowance applies specifically to wall exposure.
Where only wall surfaces are exposed, the allowable wall area is calculated directly from the base floor area.
For example, a 1,000-square-foot fire area would permit up to 400 square feet of exposed wall surface under this exception. However, Section 602.4.2.2.4 additionally requires unprotected wall portions to maintain the prescribed 15-foot separation from other applicable exposed wall or ceiling portions.
Where exposed walls and exposed ceilings occur together, the individual 40- and 20-percent limits cannot simply be maximized simultaneously; the mixed-exposure equation in Section 602.4.2.2.3 governs.
References/Topics: 2021 IBC Sections 602.4.2.2.2 through 602.4.2.2.4; Type IV-B wall exposure.
NEW QUESTION # 14
Refer to the figure by clicking on the EXHIBIT button above.

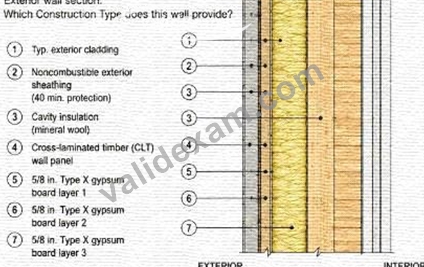

The exterior wall section shown in the Figure provides the prescribed noncombustible protection required by which Construction Type?
Answer: D
Explanation:
The illustrated wall corresponds to Type IV-A construction , making option A correct. The key indicator is the extensive Type X gypsum protection provided on the interior face of the CLT wall. Figure 63 shows multiple layers of 5/8-inch Type X gypsum board protecting the interior mass timber, together with the required exterior-side protection.
Type IV-A is the most comprehensively protected of the three tall mass timber construction classifications.
IBC Section 602.4.1.2 requires the interior faces of all mass timber elements , including the inside face of exterior mass timber walls, to be protected with qualifying noncombustible material. Section 602.4.1.2.1 requires the protection contribution to satisfy Table 722.7.1(1) and never be less than 80 minutes. Type IV-A exterior walls also require at least 40 minutes of noncombustible protection on the outside face.
The three interior layers shown are consistent with a heavily protected Type IV-A rated wall. By contrast, Type IV-B permits limited exposed interior mass timber, while Type IV-C expressly permits mass timber interior elements to remain unprotected. Type IV-HT operates under fundamentally different heavy-timber provisions.
References/Topics: 2021 IBC Sections 602.4.1.1, 602.4.1.2 and 602.4.1.2.1; Tables 601 and 722.7.1(1)-(2).
NEW QUESTION # 15
Given: Sealants or adhesives need not be provided where they are not a required component of a tested fire resistance rated assembly.
If a sealant is required, it must meet the requirement of ASTM:
Answer: C
Explanation:
A sealant required to resist air passage between qualifying mass timber elements must comply with ASTM C920. Therefore, option C is correct. ASTM C920 is the recognized specification for elastomeric joint sealants and establishes requirements for properties such as movement capability, adhesion, cohesion, hardness, weathering, and durability.
IBC Section 703.7 differentiates between the two materials: sealants must meet ASTM C920, while adhesives must meet ASTM D3498. Option D therefore applies to an adhesive rather than a sealant. ASTM E119 is the standard fire test used to establish the fire-resistance rating of structural members and assemblies; it does not serve as the product specification for the sealant. ASTM E114 is not the applicable standard under this provision.
The stated exception is important. Section 703.7 does not require an additional sealant or adhesive where it is not a required component of the tested fire-resistance-rated assembly. Where the approved assembly or code provision does require it, however, the specified product, location, joint preparation, backing material, depth, width, and tooling must match the approved construction documents.
References/Topics: 2021 IBC Section 703.7; ASTM C920 sealants; ASTM D3498 adhesives; tested fire- resistance-rated assemblies.
NEW QUESTION # 16
......
