| Section | Objectives |
|---|---|
| Tall Mass Timber Building Code Provisions | - Mass Timber Products and Definitions - Special Inspection Requirements
|
>> Exam 93-Tall-Mass-Timber-Buildings Experience <<
Using DumpsFree's 93-Tall-Mass-Timber-Buildings test certification training materials to pass 93-Tall-Mass-Timber-Buildings certification exam is easy. Our 93-Tall-Mass-Timber-Buildings test certification training materials is made up of senior IT specialist team through their own exploration and continuous practice and research. Our DumpsFree's 93-Tall-Mass-Timber-Buildings test certification training materials can help you in your first attempt to pass 93-Tall-Mass-Timber-Buildings exam easily.
NEW QUESTION # 76
Buildings of Types IV-A, IV-B, and IV-C construction designed to be greater than six stories above grade plane shall meet which of the following requirements for fire safety practices during construction?
Answer: A
Explanation:
The 2021 IFC specifically requires standpipes to be provided in accordance with Section 3313 for Type IV-A, IV-B, and IV-C buildings designed to exceed six stories above grade plane. Therefore, option A is correct.
The code also requires a water supply for fire department operations, but it must be approved by the fire code official and fire chief; it is not described as a mandatory "portable water supply." This makes option B inaccurate. Where noncombustible protection is required, at least one layer-not two layers-must be installed on applicable building elements more than four levels below active mass timber construction before additional levels are erected. Option D therefore overstates the number of layers.
Required exterior wall coverings must similarly be installed more than four levels below active mass timber construction. Option C incorrectly substitutes two levels for the prescribed four-level threshold.
These provisions limit the amount of unprotected combustible construction exposed at one time and provide the fire department with usable suppression infrastructure as erection progresses. Inspection coordination should verify standpipe extension, hose-connection accessibility, water availability, the progression of passive protection, and exterior-wall covering installation.
References/Topics: 2021 IFC Section 3308.4 and Section 3313; fire safety during construction of tall mass timber buildings.
NEW QUESTION # 77

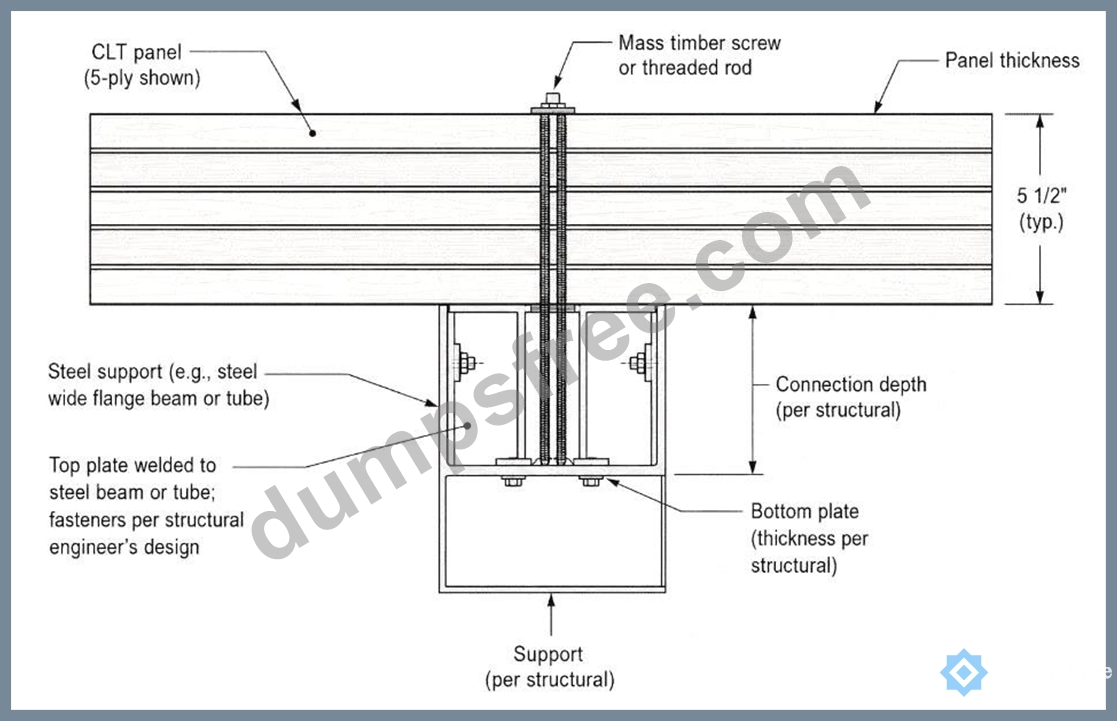

Refer to the exhibit by clicking on the EXHIBIT button above.
If the glulam beam and CLT panels all require a fire-resistance rating of 2 hours, what is the required fire- resistance rating in hours for the structural connections between the glulam and CLT?
Answer: A
Explanation:
The structural connections must maintain a fire-resistance rating corresponding to the required rating of the structural elements they connect. Because both the glulam beam and CLT panels require a two-hour fire- resistance rating, their connections must also provide two hours of fire resistance. Therefore, option C is correct.
Concealing steel hardware inside a timber member does not eliminate the fire-resistance requirement. Steel rapidly conducts heat and can lose strength, while timber surrounding a concealed connector can char, split, or withdraw from fasteners. The connection must consequently be protected through sufficient wood cover, noncombustible protection, tested assemblies, or an approved engineering analysis demonstrating acceptable connection temperatures and capacity for the entire required duration.
A three-hour rating is not required merely as a generalized safety factor; the code requires correspondence with the connected elements unless the approved design establishes another condition. A one-hour connection would create a premature weak point in the load path, and a zero-hour rating would be unacceptable simply because the hardware is hidden.
References/Topics: 2021 IBC Section 2304.10.1; fire-resistance rating of mass timber connections; protected concealed steel hardware.
NEW QUESTION # 78
One code-recognized method for calculating the fire-resistance rating of exposed wood members and decking is:
Answer: B
Explanation:
The intended answer is ANSI/AWC NDS Chapter 16. The video option uses "AWS," but the correct standards organization is the American Wood Council-AWC . Option D is therefore correct based on its intended reference.
IBC Section 722.1 expressly permits exposed wood members and wood decking to have their calculated fire resistance determined in accordance with Chapter 16 of the ANSI/AWC National Design Specification for Wood Construction. The method evaluates charring, the effective char depth, the reduced residual cross section, elevated-temperature effects, loading, and the remaining structural capacity for the required exposure period.
ACI 216.1 applies to concrete and masonry fire resistance. TMS 0216 addresses masonry assemblies. ASCE
29 Chapter 5 provides procedures for calculating the fire resistance of structural steel assemblies. Those references are code-recognized methods, but they apply to different construction materials.
For mass timber inspection, the approved calculations should identify the exposed surfaces, required rating, timber species or product, member dimensions, design loads, protective contribution, and connection treatment. Field reductions in member dimensions can invalidate the calculated fire resistance.
References/Topics: 2021 IBC Section 722.1; ANSI/AWC NDS Chapter 16; calculated fire resistance of exposed wood members and decking.
NEW QUESTION # 79
Each of the following is true regarding the fire-resistance rating for exterior bearing walls except:
Answer: D
Explanation:
Option A is the incorrect statement and therefore the required answer. Under 2021 IBC Table 601, an exterior bearing wall in Type IV-C construction requires a two-hour fire-resistance rating , not one hour.
The tall mass timber classifications progressively vary the degree of noncombustible protection and allowable exposure, but the structural fire-resistance requirements remain substantial. Type IV-A exterior bearing walls require three hours. Type IV-B exterior bearing walls require two hours. Type IV-C exterior bearing walls also require two hours. Thus, options B, C, and D correctly reproduce the Table 601 values.
The special inspector must also recognize that Table 601 is not necessarily the only rating criterion affecting an exterior wall. Exterior walls are additionally subject to the requirements associated with fire separation distance, particularly Table 705.5. Where another IBC provision requires a higher rating, that more restrictive condition controls.
For mass timber construction, compliance also depends on the prescribed protective system, member dimensions, connections, joints, intersections, and exterior-side protection. A wall cannot be accepted as compliant solely because the timber cross section appears substantial; it must conform to the approved rated design.
References/Topics: 2021 IBC Section 601; Table 601; Section 602.4; Table 705.5.
NEW QUESTION # 80
Adhesives used to resist passage of air in construction Type IV-C, shall be in accordance with which of the following standards?
Answer: D
Explanation:
Adhesives installed to resist air passage at qualifying mass timber interfaces must comply with ASTM D3498.
Therefore, option C is correct. IBC Section 703.7 applies this requirement to Types IV-A, IV-B, and IV-C at prescribed abutting edges and intersections of building elements that require fire-resistance ratings.
ASTM D3498 addresses adhesives used for field-gluing wood-based structural components. Compliance is significant because the adhesive must retain adequate bond performance under the environmental and service conditions associated with the approved application. The special inspector should verify product identification, compatibility with the timber substrate, manufacturer instructions, storage conditions, shelf life, surface preparation, application temperature, coverage, and curing.
UL 263 is a fire-resistance test standard for building assemblies and structural elements; it is not the product standard for the adhesive. ASTM A653 applies to metallic-coated steel sheet. ASTM F1575 concerns pressure-sensitive safety glazing films and is unrelated to sealing mass timber interfaces.
Where the adhesive is required by Section 703.7, its installation is subject to periodic special inspection under Section 1705.20 unless the applicable code exception removes the sealing requirement.
References/Topics: 2021 IBC Sections 703.7 and 1705.20; ASTM D3498; Type IV-C sealing requirements.
NEW QUESTION # 81
......
