NEW QUESTION # 50
A set of servers is used for an FTP application as well as an HTTP website via separate BIG-IP Pools. The server support team reports that some servers are receiving a lot more traffic than others. Which Load Balancing Method should the BIG-IP Administrator apply to even out the connection count?
Answer: C
Explanation:
Similar to the logic required for managing multi-service backend environments, the issue described-where servers hosting multiple protocols like FTP and HTTP are experiencing uneven distribution-stems from the BIG-IP's default behavior of treating each pool independently. If the administrator uses a member-based load balancing method, the BIG-IP distributes HTTP traffic regardless of how much FTP traffic that same physical server is currently processing.
To resolve this, the administrator must utilize the Least Connections (Node) method. By switching both the HTTP and FTP pools to this algorithm, the BIG-IP begins to make load balancing decisions based on the total combined connection count for the IP address of each server. When a new HTTP request arrives, the BIG-IP checks which server has the fewest total connections (including existing FTP sessions). This prevents a server that is already busy with long-lived FTP transfers from being overwhelmed by a sudden burst of HTTP requests.
Ratio methods (Options A and C) are static and rely on the administrator manually assigning weights to servers based on their perceived capacity; they do not adapt to real-time fluctuations in traffic volume across different pools. Least Connections (Member) (Option B) remains blind to the "cross-pool" traffic on the same hardware. Only the Node-based Least Connections approach provides the global visibility necessary to "even out" the total resource utilization across servers supporting multiple distinct applications.
NEW QUESTION # 51
A configuration change is made on the standby member of a device group. What is displayed as " Recommended Action " on the Device Management Overview screen?
Answer: D
Explanation:
The BIG-IP system uses a centralized management framework to ensure that all devices within a Sync- Failover group share a consistent configuration. When an administrator makes a change on any member of the group-whether it is the active or the standby device-the system detects a " ConfigSync " mismatch. The " Device Management > > Overview " screen tracks these changes by comparing the commit ID and timestamps of the configurations across all peers.
If a change is made on the standby member, that device now possesses a more recent configuration than the other members of the group. Consequently, the BIG-IP GUI will display a status of " Changes Pending " and suggest a Recommended Action to resolve the discrepancy. In this scenario, the correct action is to Synchronize the standby member configuration to the group. This push operation will copy the updated configuration from the standby device to the active device (and any other peers), bringing the entire cluster back into a " In Sync " status. It is important to note that BIG-IP allows bi-directional synchronization; you do not have to be on the active device to push a configuration. However, administrators must be cautious:
choosing Option C (Synchronizing the active member to the group) would overwrite the changes just made on the standby device with the older configuration from the active device, effectively reverting the changes. The Recommended Action always points toward the direction that propagates the most recent change to the rest of the group.
NEW QUESTION # 52

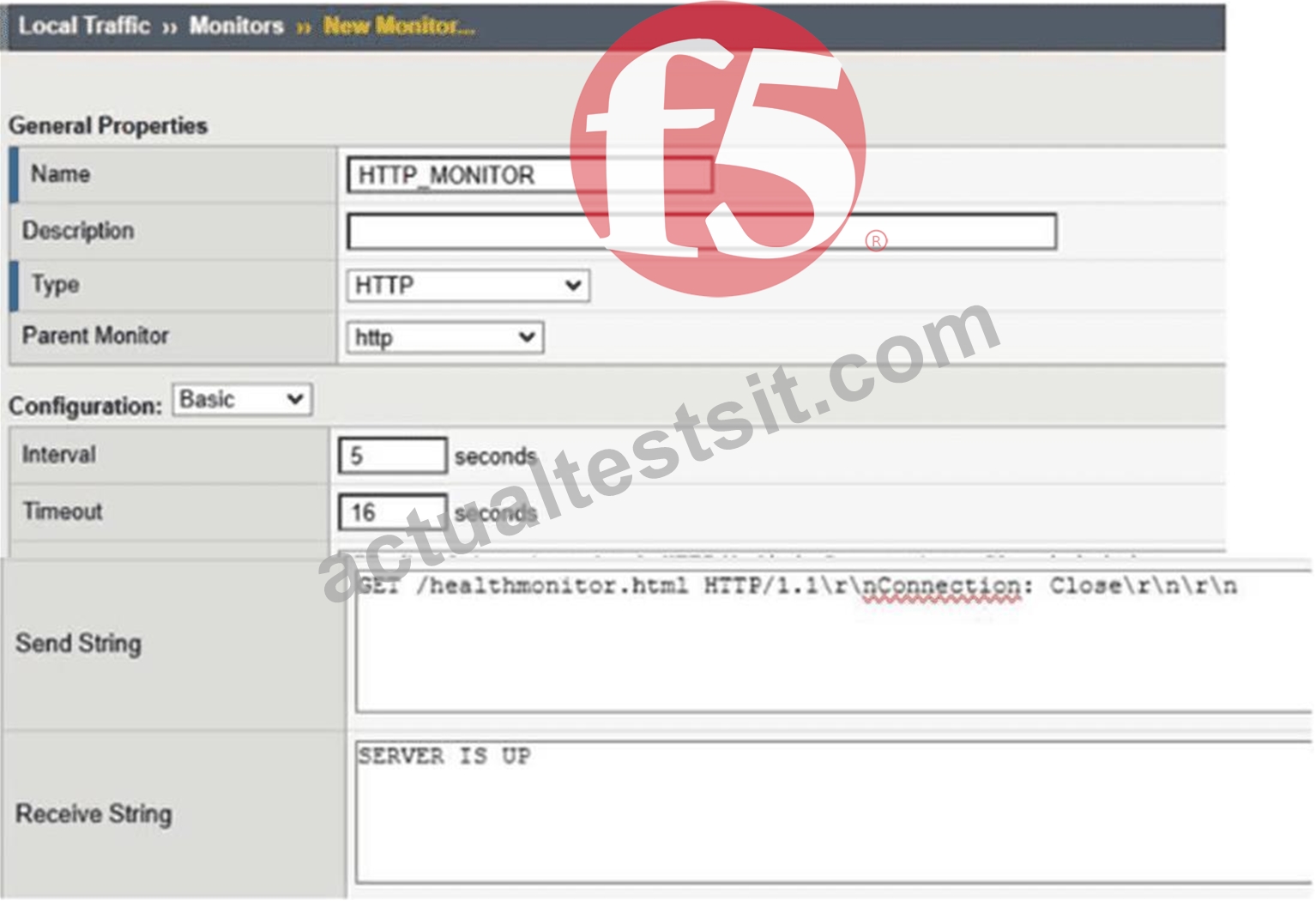

Refer to the exhibit.
The BIG-IP Administrator has configured an HTTP health monitor and applied it to a pool of HTTP web servers that host the website www.f5.com , but all pool members show a "DOWN" status. From the monitor logging on the LTM, the BIG-IP Administrator notices that the web server is returning a response of "400 Bad Request." What would be the correct monitor Send string?
Answer: A
Explanation:
Comprehensive and Detailed Explanation From BIG-IP Administration Data Plane Configuration
/Course Guide/topics:
The monitor is explicitly sending an HTTP/1.1 request. For HTTP/1.1, the request must contain a valid Host header identifying the intended virtual host. The configured monitor sends the URI and Connection: Close header but omits Host: www.f5.com. A web server using name-based virtual hosting can therefore reject the request with HTTP 400 Bad Request , which explains why every pool member is marked down.
F5 ' s official BIG-IP monitor documentation gives the HTTP/1.1 convention in the form " GET / HTTP/1.
1\r\nHost: server.com\r\nConnection: close\r\n\r\n " .
Option A follows that required structure: the request line identifies HTTP/1.1, Host: www.f5.com selects the correct hosted site, Connection: Close requests connection termination after the response, and the final \r\n\r\n properly terminates the HTTP header section. F5 also specifies that when HTTP/1.0 or HTTP/1.1 is used, the monitor evaluates the HTTP status code; a non-200 response such as 400 causes the monitored resource to be considered unavailable.
Reference Topics: BIG-IP LTM Monitors Reference # HTTP Monitor Send String , HTTP/1.1 request formatting , pool-member health monitoring .
NEW QUESTION # 53
A BIG-IP Administrator is configuring an SSH Pool with five members. Which Health Monitor should be applied to ensure that available pool members are monitored accordingly?
Answer: D
Explanation:
SSH (Secure Shell) operates over TCP port 22 , making the TCP health monitor the appropriate and correct choice for monitoring pool members in an SSH pool. The TCP monitor establishes a basic Layer 4 connection to each pool member on the designated port, verifying that the server is reachable and actively accepting TCP connections. A successful three-way handshake confirms the pool member is available; a failure marks it down and removes it from load balancing rotation.
The remaining monitor types are inappropriate for this use case:
* UDP monitor operates at Layer 4 but uses the connectionless UDP protocol, which is incompatible with SSH since SSH exclusively uses TCP as its transport.
* HTTP monitor sends a Layer 7 GET request expecting an HTTP response - irrelevant for an SSH service that does not speak the HTTP protocol.
* HTTPS monitor functions identically to HTTP but over TLS - again, completely misaligned with SSH traffic and port behaviour.
For application-specific SSH validation beyond basic TCP connectivity, an external monitor or custom monitor could be used; however, TCP remains the standard and correct built-in monitor for SSH pool verification within the BIG-IP platform.
Reference: BIG-IP Administration - Data Plane Configuration, Module: Health Monitors - Monitor Types and Protocol Alignment.
NEW QUESTION # 54
A BIG-IP Administrator finds the following log entry after a report of user issues connecting to a virtual server:
01010201: Intercept exhaustion on 10.70.110.112 to 192.28.123.250:80 (proto 6) How should the BIG-IP Administrator modify the SNAT pool that is associated with the virtual server?
(Choose one answer)
Answer: D
Explanation:
The log message "Intercept exhaustion" indicates that the BIG-IP system has exhausted the available source port translations for one or more SNAT addresses. This occurs when too many concurrent client connections are being translated through a limited number of SNAT IP addresses, and all ephemeral source ports (typically ~64,000 per SNAT IP) are in use.
According to the BIG-IP Administration: Data Plane Configuration documentation:
* Each SNAT IP address provides a finite number of available source ports.
* When the number of concurrent connections exceeds the available port space, the BIG-IP logs an Intercept exhaustion error and new connections fail.
* The recommended resolution is to increase the available SNAT resources by adding additional IP addresses to the SNAT pool.
Why the other options are incorrect:
* A. Increase the timeout of the SNAT addressesIncreasing timeouts may actually worsen the problem by keeping ports allocated longer, accelerating port exhaustion.
* B. Remove the SNAT pool and apply SNAT AutomapSNAT Automap uses the Self IP addresses on the egress VLAN, which may not provide additional capacity and can introduce routing or design issues.
This is not a direct or recommended fix for SNAT exhaustion.
* C. Remove an IP address from the SNAT poolThis would reduce the number of available source ports and further exacerbate the intercept exhaustion condition.
Correct Resolution:
By adding an IP address to the SNAT pool, the BIG-IP increases the total number of available source ports, alleviating intercept exhaustion and restoring successful client connections.
