NEW QUESTION # 96
Refer to the exhibit.
Which shows the WTP profile configuration.
The AP profile is assigned to two FAP-231F APs that are installed in an open plan area.
The first AP has 32 clients associated with the 5 GHz radios and 22 clients associated with the 2.4 GHz radio.
The second AP has 12 clients associated with the 5 GHz radios and 20 clients associated with the 2.4 GHz radio.
A dual-band-capable client enters the area near the first AP and the first AP measures the new client at - 3 3 dBm signal strength. The second AP measures the new client at -43 dBm signal strength.
If the new client attempts to conned to the student 01 wireless network, which AP radio will the client be associated with?
Answer: D
Explanation:

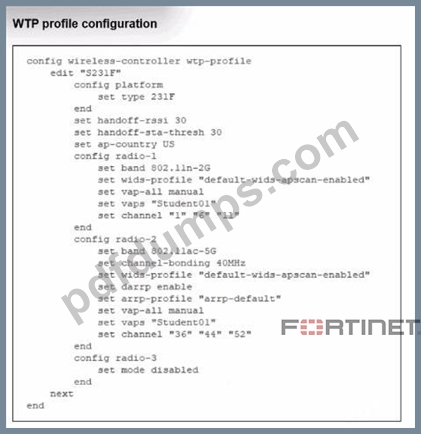

From theWTP profile:
set handoff-rssi 30
set handoff-sta-thresh 30
config radio-1
set band 802.11n-2G
set vaps "Student01"
config radio-2
set band 802.11ac-5G
set darrp enable
set arrp-profile "arrp-default"
set vaps "Student01"
Key points:
* Same SSID (Student01)is broadcast onboth APsand onboth bands(2.4 and 5 GHz).
* handoff-sta-thresh 30 enablesclient load-balancingbetween APs:
* When an AP radio hasmore than 30 associated clients, it starts rejecting new associations so that clients connect to a neighboring AP instead (as long as RSSI is still acceptable).
* Current client counts:
* AP1:32 clients on 5 GHz, 22 on 2.4 GHz
* AP2:12 clients on 5 GHz, 20 on 2.4 GHz
So on 5 GHz:
* AP1's 5-GHz radioexceedsthe 30-client threshold (32 > 30) # it will try topush new clients away.
* AP2's 5-GHz radio iswell belowthe threshold (12 clients) and will happily accept new clients.
The new dual-band client is seen at:
* -33 dBmby AP1
* -43 dBmby AP2
Even though AP1 has the stronger signal, its 5-GHz radio is already overloaded according to the configured threshold, so AP1 will refuse association attempts from that client. The client will then associate toAP2's 5- GHz radio, which:
* Hasfewer clients(better airtime per device), and
* Still has an acceptable signal (-43 dBm is easily usable on 5 GHz).
That matches optionCexactly.
Other options are incorrect because they ignore the configuredclient-load-balancing thresholdsand assume association based purely on RSSI or prefer 2.4 GHz, which is not what this profile is tuned to do.
NEW QUESTION # 97
Refer to the exhibits.

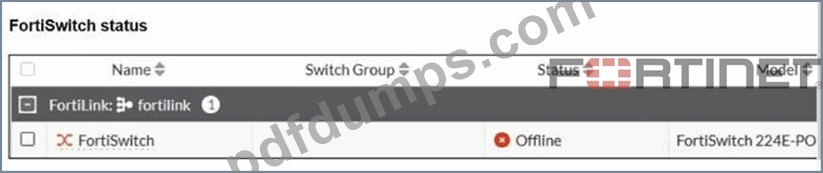

You are adding a new FortiSwitch to FortiGate for management. All necessary settings have been configured on FortiGate, but FortiSwitch remains offline. The cabling has been verified and is correctly connected.
Which misconfiguration might be preventing FortiGate from detecting FortiSwitch?
Answer: D
Explanation:
On FortiLink, FortiGate's built-in DHCP server is what gives FortiSwitch its IP so it can come under management. For automatic FortiSwitch onboarding, the DHCP server is usually set with:
set vci-match enable
set vci-string "FortiSwitch" "FortiExtender"

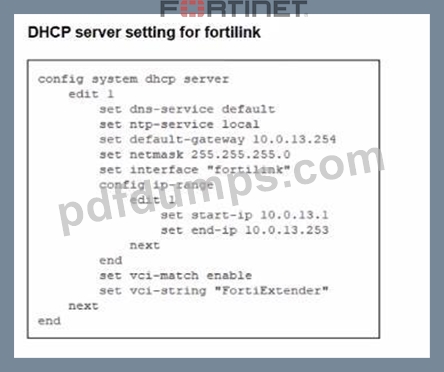

In the exhibit, the DHCP server for fortilink has:
set vci-match enable
set vci-string "FortiExtender"
Because theVCI string doesn't include "FortiSwitch", DHCP offers are only sent to clients whose Vendor Class Identifier matchesFortiExtender. The FortiSwitch never receives an IP, so it staysOffline.

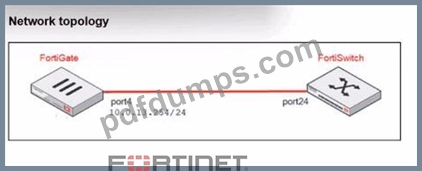

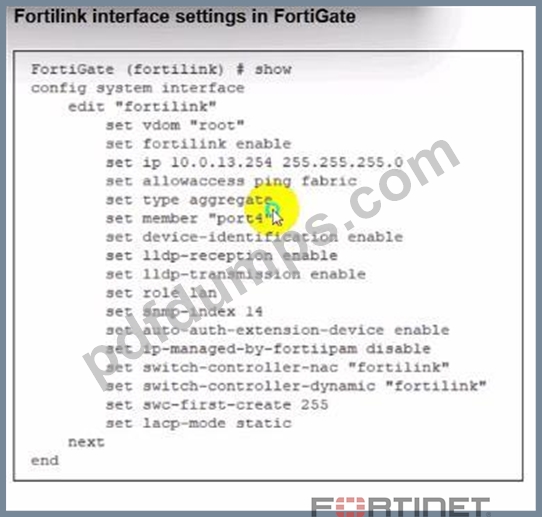

* OptionBis wrong: member "port4" matches the physical cabling in the topology.
* OptionCis fine: FortiLink can be anaggregateinterface, not only physical.
* OptionA(ip-managed-by-fortiipam) is unrelated; FortiIPAM isn't required here.
NEW QUESTION # 98
Refer to the exhibits.
Examine the FortiManager configuration and FortiGate CLI output shown in the exhibit.
The NAC feature is being tested with a device connected to port2 on managed FortiSwitch S224SPTF19005867. The NAC policy has been applied to port2, and traffic was generated from the test device. However, the traffic from the test device does not match the NAC policy and remains in the onboarding VLAN.
What are two possible reasons why the test device is not being correctly classified by the NAC policy? (Choose two.)
Answer: B,D
Explanation:

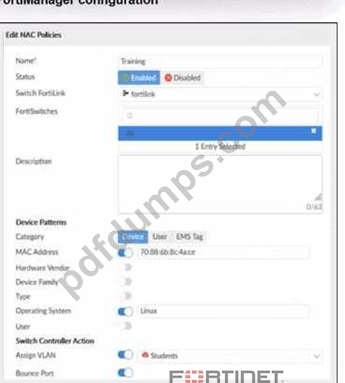

From the FortiManager NAC policy:
Category =Device
Match criteria includeMAC addressandOperating System = Linux
Action =Assign VLAN "Students"

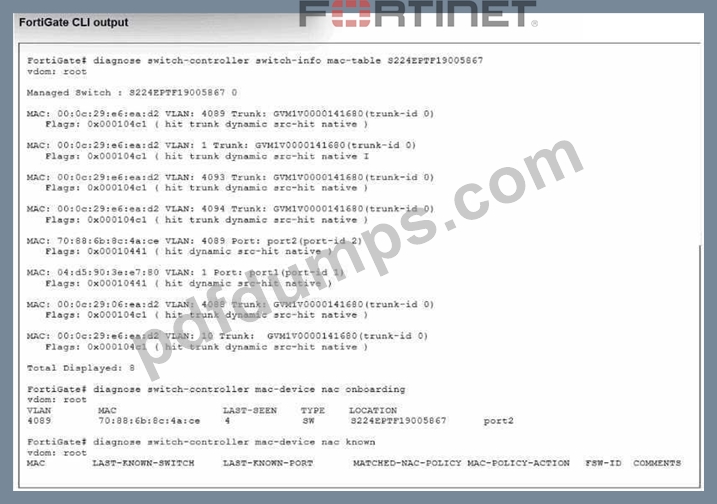

From the FortiGate CLI:
diagnose switch-controller switch-info mac-table ...
MAC: 70:88:6b:8c:4a:ce VLAN: 4089 Port: port2
diagnose switch-controller mac-device mac onboarding
VLAN 4089 MAC 70:88:6b:8c:4a:ce
So the device is stuck inVLAN 4089, which is theonboarding VLAN. No NAC policy is matched.
For a NAC policy to match, FortiGate needsdevice-identity information, which comes fromdevice detection on the VLAN / FortiLink interfaceplus theattributes that the policy expects(OS, MAC, etc.).
NEW QUESTION # 99
A network administrator wants a newly deployed FortiGate to automatically discover its FortiManager without manual configuration. Which of the following must be correctly configured for this process to work?
Response:
Answer: A
NEW QUESTION # 100
APs have been manually configured to connect to FortiGate over an IPsec network, and FortiGate successfully detects and authorizes them. However, the APs remain unmanaged because FortiGate is unable to establish a CAPWAP tunnel with them. What configuration change can resolve this issue and enable FortiGate to establish the CAPWAP tunnel over the IPsec connection?
Answer: A
Explanation:
When FortiAP devices connect across an IPsec network, FortiGate must treat them as being reached over an indirect Layer 3 transport rather than a local CAPWAP path. Enabling the mpls- connection option in the AP profile allows CAPWAP management traffic to operate correctly across that routed IPsec path, which lets FortiGate fully manage the remote APs.
