NEW QUESTION # 51
A BIG-IP Administrator finds the following log entry after a report of user issues connecting to a virtual server:
01010201: Intercept exhaustion on 10.70.110.112 to 192.28.123.250:80 (proto 6) How should the BIG-IP Administrator modify the SNAT pool that is associated with the virtual server?
(Choose one answer)
Answer: C
Explanation:
The log message "Intercept exhaustion" indicates that the BIG-IP system has exhausted the available source port translations for one or more SNAT addresses. This occurs when too many concurrent client connections are being translated through a limited number of SNAT IP addresses, and all ephemeral source ports (typically ~64,000 per SNAT IP) are in use.
According to the BIG-IP Administration: Data Plane Configuration documentation:
Each SNAT IP address provides a finite number of available source ports.
When the number of concurrent connections exceeds the available port space, the BIG-IP logs an Intercept exhaustion error and new connections fail.
The recommended resolution is to increase the available SNAT resources by adding additional IP addresses to the SNAT pool.
Why the other options are incorrect:
A). Increase the timeout of the SNAT addressesIncreasing timeouts may actually worsen the problem by keeping ports allocated longer, accelerating port exhaustion.
B). Remove the SNAT pool and apply SNAT AutomapSNAT Automap uses the Self IP addresses on the egress VLAN, which may not provide additional capacity and can introduce routing or design issues. This is not a direct or recommended fix for SNAT exhaustion.
C). Remove an IP address from the SNAT poolThis would reduce the number of available source ports and further exacerbate the intercept exhaustion condition.
Correct Resolution:
By adding an IP address to the SNAT pool, the BIG-IP increases the total number of available source ports, alleviating intercept exhaustion and restoring successful client connections.
NEW QUESTION # 52
A Standard Virtual Server for a web application is configured with SNAT Automap. The original client IP must be known by backend servers.
What should the BIG-IP Administrator configure?
Answer: C
Explanation:
X-Forwarded-For inserts the original client IP into HTTP headers while SNAT is enabled.
NEW QUESTION # 53
A Standard Virtual Server reports poor network performance for Internet-based clients.
What configuration should be applied?
Answer: C
Explanation:
WAN TCP profiles are optimized for high latency and packet loss typical of Internet clients, while LAN profiles are ideal for backend servers.
NEW QUESTION # 54
Refer to the exhibit.
A BIG-IP Administrator creates a new Virtual Server to load balance SSH traffic. Users are unable to log on to the servers.
What should the BIG-IP Administrator do to resolve the issue?
Answer: D
Explanation:
The virtual server is intended to process SSH traffic on TCP port 22 , but the exhibit shows that the standard
http HTTP profile is assigned. This is the configuration error. An HTTP profile enables BIG-IP Layer 7 HTTP processing and is appropriate only when the virtual server is expected to process HTTP protocol traffic.
F5 documentation defines its purpose directly: "An HTTP profile defines the way that you want the BIG- IP system to manage HTTP traffic." SSH is not HTTP. It is an independent application protocol transported over TCP , conventionally using port
22 . Therefore, an ordinary SSH load-balancing virtual server should retain the TCP protocol/profile while having HTTP Profile set to None . F5 ' s SSH virtual-server configuration guidance specifically uses service port 22 for SSH and does not require an HTTP profile.
Options B, C, and D do not address the fault. The destination address 10.1.1.2 correctly identifies the virtual server, while source 0.0.0.0/0 appropriately permits clients from any source. Changing the protocol to UDP would be incorrect because SSH requires TCP.
Reference Topics: Virtual Server configuration; HTTP profiles; TCP profiles; application-protocol profile assignment; SSH traffic handling.
NEW QUESTION # 55

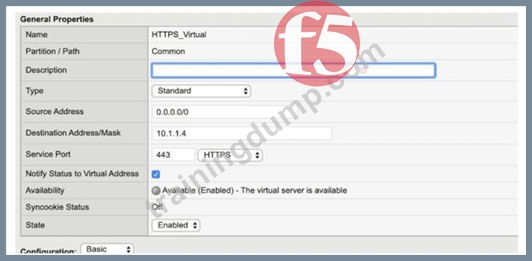

Refer to the exhibit.
A BIG-IP Administrator configures a Virtual Server to handle HTTPS traffic. Users report that the application is NOT working. Which additional configuration is required to resolve this issue?
Answer: D
Explanation:
According to the provided exhibit, the " SSL Profile (Client) " section in the Virtual Server configuration is empty. For a BIG-IP system to process HTTPS traffic, it must act as an SSL/TLS endpoint. This process, known as SSL Termination or SSL Offload, requires the assignment of a Client SSL Profile to the Virtual Server. Without this profile, the BIG-IP does not have the necessary certificate and private key information to perform the SSL handshake with the client ' s browser. Consequently, when a user attempts to connect via HTTPS, the TCP connection may establish, but the SSL handshake will fail because the BIG-IP will not know how to decrypt the incoming encrypted packets.
A Client SSL profile defines the ciphers, certificates, and keys that the BIG-IP uses to communicate securely with the client. In a standard HTTPS deployment, the BIG-IP decrypts the traffic and can then send it to the backend pool members either as plain text (header insertion/manipulation) or re-encrypt it using a Server SSL profile. While a Server SSL profile (Option C) is needed if the backend servers themselves require HTTPS, the initial failure for a user reaching a Virtual Server is almost always the lack of a Client SSL profile to terminate the user ' s connection. Changing the Service Port to HTTP (Option D) would be incorrect because the goal is to handle HTTPS traffic (typically port 443). Assigning the " clientssl " or a custom client-side profile from the " Available " list to the " Selected " list in the GUI is the mandatory step to make the Virtual Server operational for secure web traffic.
NEW QUESTION # 56
......
