NEW QUESTION # 46

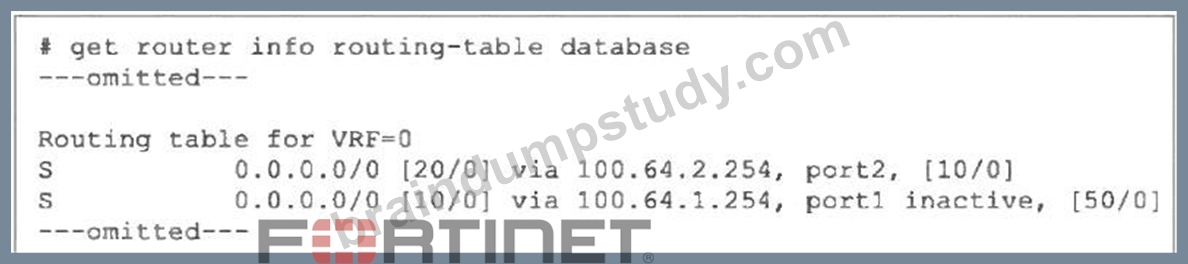

Refer to the exhibit, which shows a partial output from the get router info routing-table database command.
The administrator wants to configure a default static route for port3 and assign a distance of 50 and a priority of 0.
What will happen to the port1 and port2 default static routes after the port3 default static route is created?
Answer: B
NEW QUESTION # 47
Refer to the exhibit.
Which route will traffic take to get to the 100.65.0.0/24 network considering the routes are all configured with the same distance?
Answer: C
Explanation:
To determine the path the traffic will take, we must look at the FortiGate Route Lookup Precedence (Packet Processing Flow) and the specific configurations shown in the exhibit Analyze the Routing Precedence:
In FortiOS, when a packet arrives (and is not part of an existing session), the FortiGate performs route lookups in a specific order:
Policy Routes: Configured under config router policy (or diagnose firewall proute list). These are checked first. If a packet matches the criteria (Source, Destination, Protocol, Incoming Interface), the Policy Route is used immediately, bypassing the standard routing table.
FIB (Forwarding Information Base): If no Policy Route matches, the device looks at the standard routing table (Static, Connected, Dynamic).
Analyze the Exhibit:

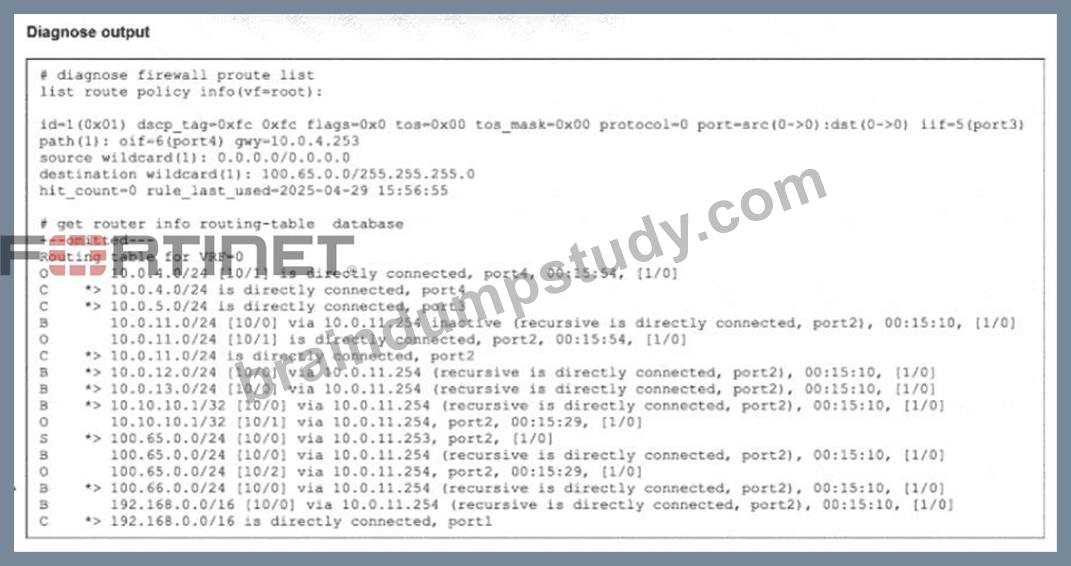

Policy Route Section: The output of diagnose firewall proute list shows an active policy route (id=1).
Destination: 100.65.0.0/255.255.255.0 (Matches the network in the question).
Action: It directs traffic to gateway 10.0.4.253 via oif=6(port4).
Routing Table Section: The output of get router info routing-table database shows multiple routes for
100.65.0.0/24 (Static, OSPF, BGP) all with distance 10. The Static route (S) is currently selected (*>) in the FIB.
Conclusion:
Because Policy Routes take precedence over the standard routing table (FIB), the FortiGate will forward the traffic using the instructions in Policy Route ID 1. It will not use the Static, BGP, or OSPF routes visible in the routing table for any traffic that matches the policy route's criteria (ingress port 3).
Reference:
FortiGate Security 7.6 Study Guide (Routing): "Policy routes take precedence over entries in the routing table.
If a packet matches a policy route, the FortiGate routes the packet according to the specified interface and gateway."
NEW QUESTION # 48
Refer to the exhibit.
An IPsec VPN tunnel using IKEv2 was brought up successfully, but when the tunnel rekey takes place the tunnel goes down.
The debug command for IKE was enabled and, in the exhibit, you can review the partial output of the debug IKE while attempting to bring the tunnel up.
What is causing. The tunnel to be down?
Answer: C
Explanation:

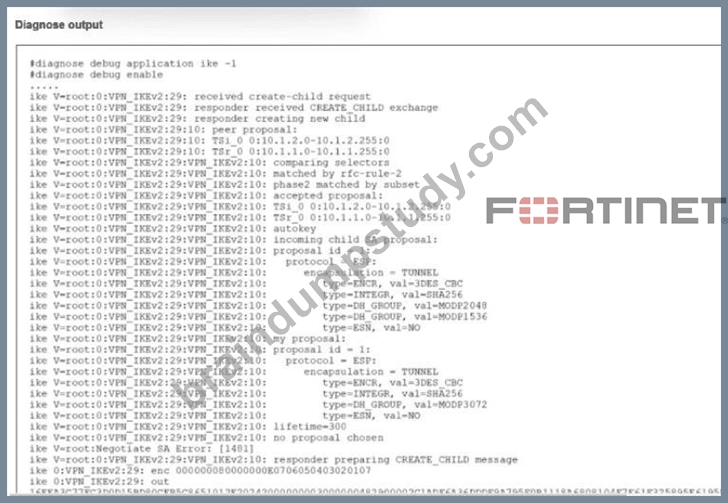

To determine the cause of the failure, we must analyze the IKEv2 debug output provided in the exhibit (image_ad3dc6.jpg):
Identify the Negotiation Phase:
The debug log shows: responder received CREATE_CHILD exchange.
In IKEv2, the CREATE_CHILD_SA exchange is used to create new Child SAs (Phase 2) or to rekey existing ones.
The fact that the tunnel was previously "brought up successfully" implies the initial IKE SA (Phase 1) is stable, and this error is occurring specifically during a rekey event, which often involves Perfect Forward Secrecy (PFS).
Analyze the Proposals (The Mismatch):
Incoming Proposal (Remote Peer):
The remote peer sends a proposal containing two Diffie-Hellman groups: type=DH_GROUP, val=MODP2048 (Group 14) and type=DH_GROUP, val=MODP1536 (Group 5).
My Proposal (Local FortiGate):
The local FortiGate configuration expects: type=DH_GROUP, val=MODP3072 (Group 15).
Result of the Negotiation:
The debug output concludes with: no proposal chosen and Negotiate SA Error.
This error occurs because the local FortiGate cannot find a common Diffie-Hellman group between what it requires (Group 15) and what the peer is offering (Groups 14 or 5).
While this is technically a mismatch occurring during the Phase 2 (Child SA) creation, "A Diffie-Hellman mismatch" (Option A) is the precise root cause identified in the logs.
Why other options are incorrect:
B: The log shows received create-child request, confirming that UDP traffic is reaching the device and is not blocked.
C: The failure is in the CREATE_CHILD exchange (Phase 2/Rekey), not the IKE_SA_INIT or IKE_AUTH (Phase 1) exchanges.
D: While the mismatch is occurring within the Phase 2 definitions, Option A is the specific technical reason for the no proposal chosen error shown in the DH_GROUP lines.
Reference:
FortiGate Security 7.6 Study Guide (IPsec VPN): "Phase 2 parameters... if Perfect Forward Secrecy (PFS) is enabled, a Diffie-Hellman exchange is performed again. Both peers must match the DH Group."
NEW QUESTION # 49
Refer to the exhibit.
Which route will traffic take to get to the 100.65.0.0/24 network considering the routes are all configured with the same distance?
Answer: C
Explanation:
To determine the path the traffic will take, we must look at the FortiGate Route Lookup Precedence (Packet Processing Flow) and the specific configurations shown in the exhibit
* Analyze the Routing Precedence:
* In FortiOS, when a packet arrives (and is not part of an existing session), the FortiGate performs route lookups in a specific order:
* Policy Routes: Configured under config router policy (or diagnose firewall proute list).
These are checked first. If a packet matches the criteria (Source, Destination, Protocol, Incoming Interface), the Policy Route is used immediately, bypassing the standard routing table.
* FIB (Forwarding Information Base): If no Policy Route matches, the device looks at the standard routing table (Static, Connected, Dynamic).
* Analyze the Exhibit:
* Policy Route Section: The output of diagnose firewall proute list shows an active policy route ( id=1).
* Destination: 100.65.0.0/255.255.255.0 (Matches the network in the question).
* Action: It directs traffic to gateway 10.0.4.253 via oif=6(port4).
* Routing Table Section: The output of get router info routing-table database shows multiple routes for 100.65.0.0/24 (Static, OSPF, BGP) all with distance 10. The Static route (S) is currently selected (*>) in the FIB.
* Conclusion:
* Because Policy Routes take precedence over the standard routing table (FIB), the FortiGate will forward the traffic using the instructions in Policy Route ID 1. It will not use the Static, BGP, or OSPF routes visible in the routing table for any traffic that matches the policy route's criteria (ingress port 3).
Reference:
FortiGate Security 7.6 Study Guide (Routing): "Policy routes take precedence over entries in the routing table. If a packet matches a policy route, the FortiGate routes the packet according to the specified interface and gateway."
NEW QUESTION # 50
While troubleshooting a FortiGate web filter issue, users report that they cannot access any websites, even though those sites are not explicitly blocked by any web filter profiles that are applied to firewall policies.
What are the three most likely reasons for this behavior? (Choose three answers)
Answer: B,C,E
Explanation:
Comprehensive and Detailed 150 to 200 words of Explanation From Exact Extract of Network Security
7.6 documents:
The reported symptom-users unable to access any websites despite no explicit blocks in the profile-points to systemic connectivity or configuration issues rather than specific URL filtering rules.
* Option B (SSL/TLS Inspection): When Deep Inspection is enabled, the FortiGate acts as a Man-in- the-Middle (MitM) and re-signs server certificates using its own CA. If the clients (browsers) do not trust this CA (i.e., the certificate is not installed in their Trusted Root store), they will reject the connection with certificate errors, effectively preventing access to all HTTPS websites.
* Option D (DNS): Web browsing relies on DNS resolution. If the configured DNS server is unreachable or failing, the FortiGate (or the client) cannot resolve FQDNs to IP addresses.
Consequently, browsers will fail to load any page, resulting in a total loss of web access.
* Option E (License): If the FortiGuard Web Filtering license expires, the FortiGate can no longer query the FortiGuard Distribution Network (FDN) for ratings. By default, or if the allow-when-rating- error setting is disabled (a common security practice), the FortiGate will block all web traffic that it cannot rate, often displaying a "Web Filter Service Error" or invalid license page.
Option A is incorrect because clearing the cache only increases latency, it does not block traffic. Option C is incorrect because webfilter-force-off is typically used to disable the service (often allowing traffic to bypass checks if the service is down), rather than blocking it.
