NEW QUESTION # 108
Exhibit.
port1 and port2 are the only ports configured with the same native VLAN 10.
What are two reasons that can trigger port1 to shut down? (Choose two.)
Answer: A,B
NEW QUESTION # 109

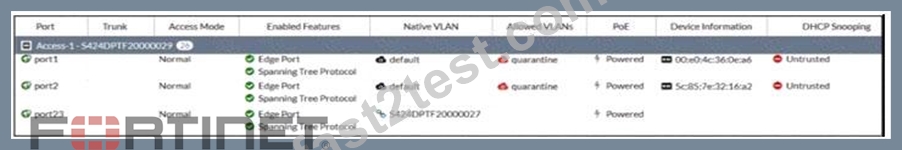

Refer to the exhibit.
The exhibit shows the current status of the ports on the managed FortiSwitch. Access-1.
Why would FortiGate display a serial number in the Native VLAN column associated with the port23 entry?
Answer: A
Explanation:
The information in the " Native VLAN " column for port23 on the FortiSwitch indicates that a standalone switch is connected to it. This is because the column displays " $424MPTF20000027, " which matches the format of a Fortinet device serial number.
Here ' s a breakdown of the evidence in the image:
* Native VLAN:The " Native VLAN " column typically displays the VLAN ID for untagged traffic on a trunk port. However, in this case, it shows a serial number format ( " $424MPTF20000027 " ).
* No Trunk Information:The " Trunk " column is blank for port23, indicating it ' s not configured as a trunk member.
* Other Ports:Port1 and port2 show " default " in the " Native VLAN " column, which is the expected behavior for access ports.
Fortinet FortiSwitch devices typically don ' t display the serial number of adjacent FortiSwitch devices in the " Native VLAN " column. This column is reserved for VLAN information on trunk ports.
NEW QUESTION # 110

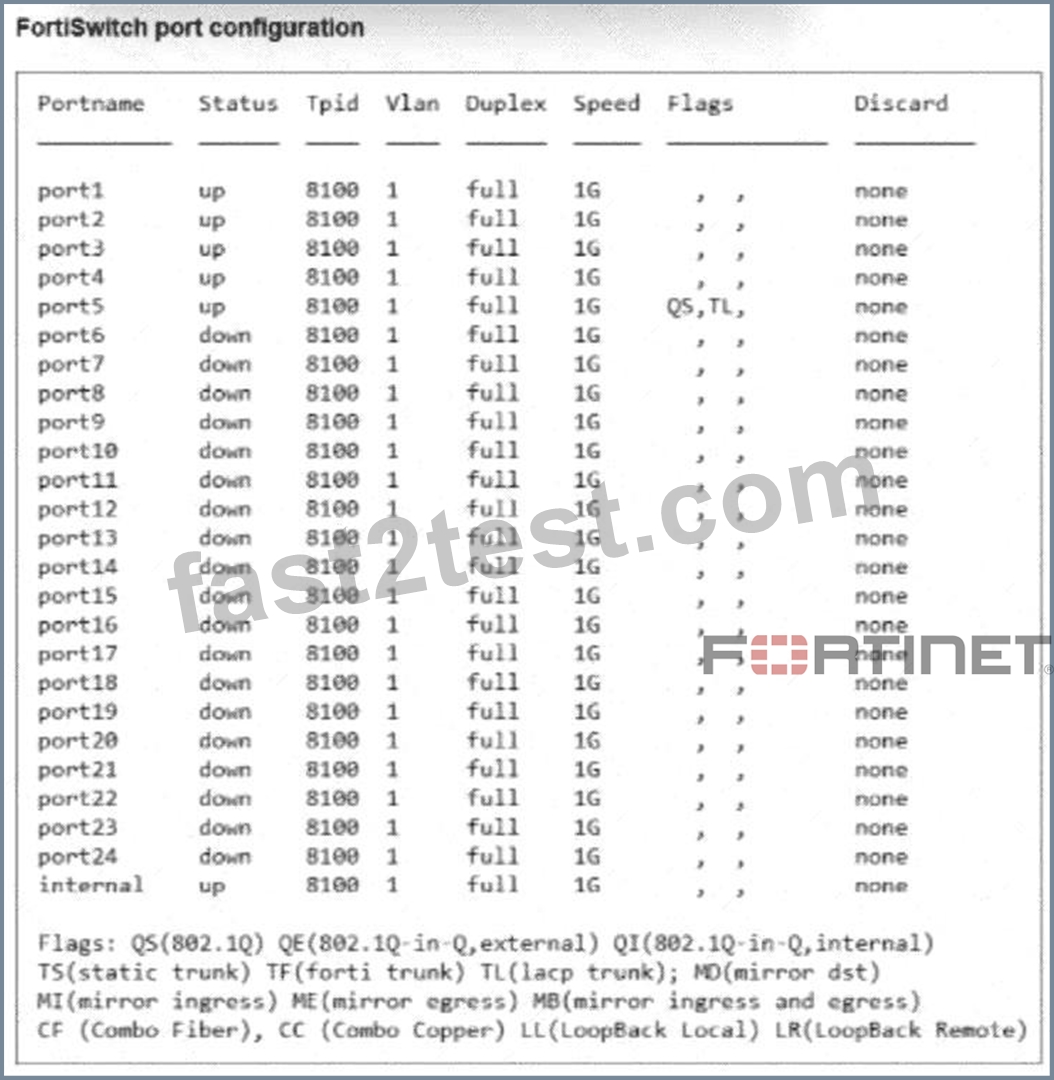

Refer to the exhibit.
You run the command diagnose switch physical-ports summary on FortiSwitch.
Based on exhibit, what does the output indicate to about the FortiSwitch mode? (Choose one answer)
Answer: C
Explanation:
According to the FortiSwitchOS 7.6 Administration Guide and the FortiSwitch 7.6 Study Guide , the diagnose switch physical-ports summary command provides an overview of physical interface states, VLAN memberships, duplex/speed parameters, and port encapsulation flags.
When a FortiSwitch operates in managed mode via FortiLink, two distinct characteristics appear in this command output:
* Management VLAN Assignment: The FortiLink control plane automatically establishes a dedicated management VLAN-by default, VLAN 4094 -and assigns it to the internal discovery interfaces and uplinks.
* Encapsulation Flags: Interfaces participating in the FortiLink fabric or Inter-Switch Links (ISLs) are assigned the TF (Forti Trunk) flag to indicate proprietary FortiLink management framing.
In the provided exhibit, every single interface (from port1 through port24, as well as the virtual internal interface) is assigned to default Vlan 1 . Furthermore, looking at the Flags column, port5 has QS (standard
802.1Q) and TL (standard LACP trunk), but no TF (Forti Trunk) flag is present on any interface. The absence of VLAN 4094, the complete absence of the TF flag, and the presence of the default factory VLAN 1 mapping confirm that this device is operating in standalone mode (Option C) .
Regarding the incorrect options: Option A is incorrect because port5 is bundled into a standard LACP 802.1Q trunk (QS, TL), not configured purely as an access port. Option B is incorrect because this output reflects Layer 2 switchport properties rather than Layer 3 routing interfaces. Option D is incorrect because managed mode would display FortiLink-specific VLANs and TF trunk flags.
NEW QUESTION # 111
(Full question statement start from here)

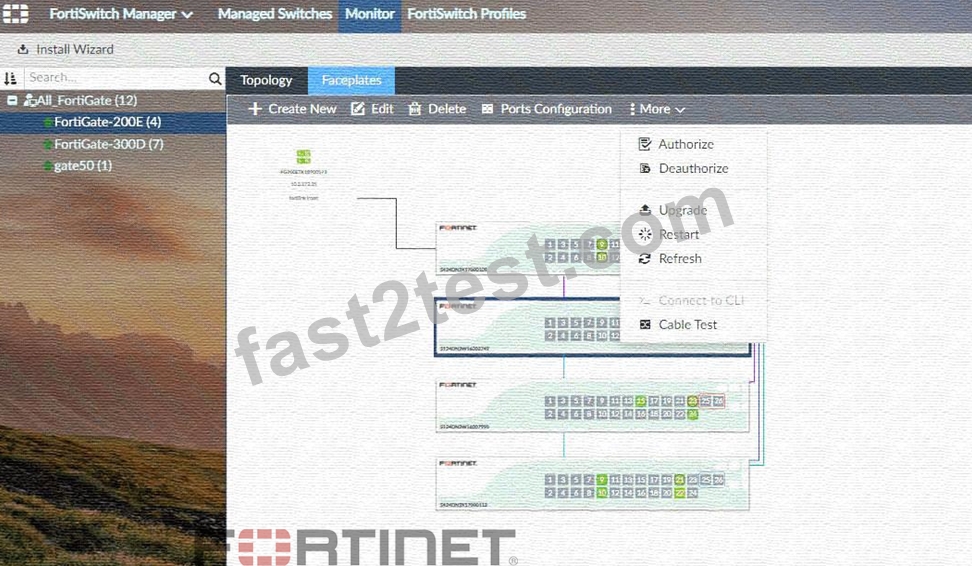

Refer to the exhibit.
Which information does FortiGate use to generate the port details in the FortiSwitch Faceplates view?
(Choose one answer)
Answer: A
Explanation:
In a FortiLink-managed switching architecture, the FortiGate firewall acts as the centralized controller for downstream FortiSwitch devices. TheFortiSwitch Faceplatesview in the FortiGate GUI provides a physical- style representation of switch ports, including port numbers, operational status, link state, speed, duplex, and connected neighbor information. According to FortiOS 7.6 and FortiSwitchOS 7.6 documentation from Fortinet, this port-level intelligence is derived fromLink Layer Discovery Protocol (LLDP)advertisements received from the FortiSwitch.
LLDP is an IEEE 802.1AB standard protocol used for vendor-neutral Layer 2 neighbor discovery.
FortiSwitch periodically sends LLDP frames that include detailed port descriptors such as chassis ID, port ID, port description, system name, system capabilities, and VLAN-related attributes. When FortiGate receives these LLDP advertisements over the FortiLink interface, it correlates the information with the managed FortiSwitch inventory and renders accurate port details in the Faceplates view.
Other options are incorrect for the following reasons. The FortiSwitch model alone is insufficient to populate per-port operational details. Cisco Discovery Protocol (CDP) is a Cisco-proprietary protocol and is not used by FortiGate for Faceplates visualization. FortiLink discovery frames are used to establish and maintain the FortiLink management relationship, but they do not carry the granular per-port metadata required for the Faceplates display.
Therefore, the Faceplates view relies specifically onLLDP advertisements received from the FortiSwitch, making optionCthe correct and fully verified answer based on FortiOS 7.6 and FortiSwitchOS 7.6 behavior.
NEW QUESTION # 112

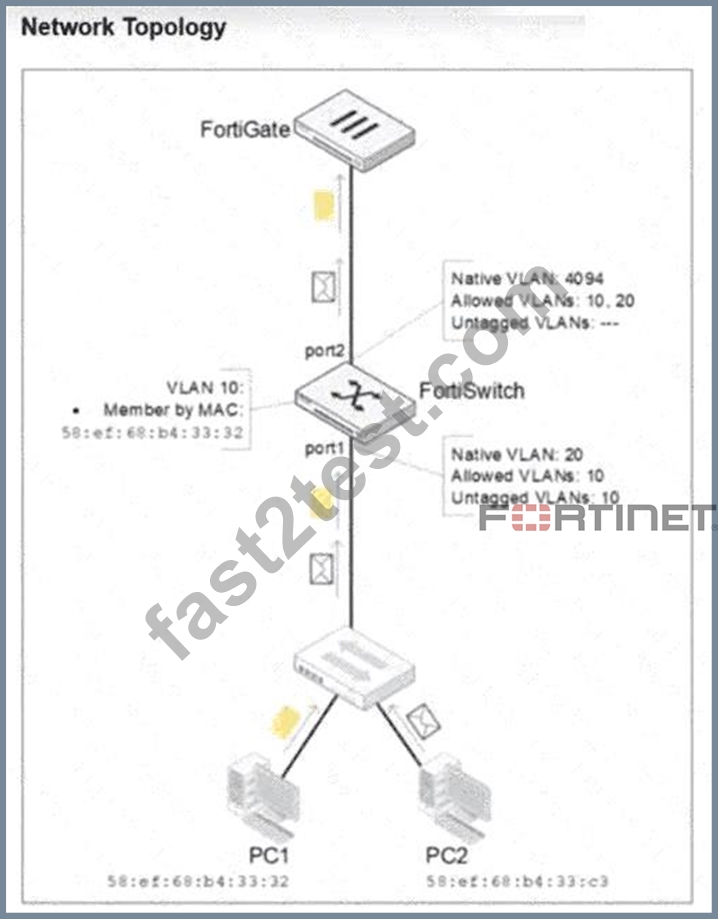

Refer to the exhibit.
PC1 and PC2 are connected to port1 on FortiSwitch. Which VLAN tags will FortiSwitch apply when forwarding PC1 and PC2 traffic out of port2? (Choose one answer)
Answer: A
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the classification of untagged traffic entering a switch port is determined by the port's hierarchy of VLAN assignment rules.
For the traffic arriving atport1:
* PC1 (MAC 58:ef:68:b4:33:32):The exhibit shows an explicitMAC-based VLAN assignmentrule for this specific MAC address, placing it intoVLAN 10. In FortiSwitchOS, dynamic assignments like MAC-based or protocol-based rules take precedence over the port's static native VLAN. Therefore, PC1's traffic is internally associated with VLAN 10.
* PC2 (MAC 58:ef:68:b4:33:c3):There is no MAC-based rule for this device. As a result, the switch falls back to the default behavior and assigns the traffic to the port'sNative VLAN, which isVLAN 20.
For the traffic exiting port2:
The egress behavior depends on the VLAN tagging configuration of the outgoing interface. On port2, the Native VLAN is 4094, and VLANs 10 and 20 are listed as Allowed VLANs. According to Fortinet documentation, any traffic belonging to an allowed VLAN that does not match the native VLAN ID of the egress port must be sent as tagged 802.1Q frames. Since neither VLAN 10 nor VLAN 20 matches the native ID of 4094, the FortiSwitch will apply a VLAN 10 tag to PC1's traffic and a VLAN 20 tag to PC2's traffic as they are forwarded to the FortiGate.
