Sie können Prüfungsfragen und Antworten zur Juniper JN0-352 Zertifizierungsprüfung teilweise umsonst als Probe herunterladen. Sobald Sie ZertFragen wählen, würden wir alles tun, um Ihnen bei der Prüfung zu helfen. Wenn Sie später finden, dass die von uns gebotenen Juniper JN0-352 Prüfungsfragen und Antworten den echten Prüfungsfragen und Antworten nicht entsprechen und Sie somit die Prüfung nicht bestehen, dann erstatten wir Ihnen die an uns geleisteten Zahlung.
| Section | Weight | Objectives |
|---|---|---|
| Topic 1: High Availability and Resiliency | 5-10% | - Redundancy protocols and failover mechanisms - Graceful restart and non-stop routing - Network resiliency design and troubleshooting |
| Topic 2: Tunnels and Overlays | 5-10% | - Tunnel types, encapsulation and operation - GRE, IP-IP and dynamic tunnel configuration - Overlay network design and connectivity |
| Topic 3: Layer 2 Switching and VLANs | 15-20% | - VLAN concepts, configuration, trunking and tagging - Link Aggregation Groups (LAG) and Virtual Chassis - Spanning Tree Protocol (STP, RSTP, MSTP) operation and configuration |
| Topic 4: BGP | 15-20% | - Routing policies, filtering and common troubleshooting - Neighbor relationships and session establishment - Route advertisement, attributes and path selection |
| Topic 5: Protocol Independent Routing | 10-15% | - Basic routing policy and filter operation - Routing instances and route selection criteria - Routing tables, static routes and route preference |
| Topic 6: IP Multicast | 5-10% | - Multicast routing monitoring and troubleshooting - IGMP operation and configuration - PIM Dense Mode, Sparse Mode and RP mechanisms |
| Topic 7: IS-IS | 10-15% | - Adjacency establishment, levels and metrics - Scalable enterprise deployment and troubleshooting - Configuration and route exchange |
| Topic 8: Layer 2 Security | 10-15% | - Port security, MAC limiting and storm control - DHCP snooping, Dynamic ARP Inspection and IP Source Guard - Layer 2 firewall filters and security features |
| Topic 9: OSPF | 15-20% | - Neighbor formation, area design and LSA types - Configuration, verification and troubleshooting - Route summarization and redistribution |
Um in der IT-Branche große Fortschritte zu machen, entscheiden sich viele ambitionierte IT-Profis dafür, die Juniper JN0-352 Zertifizierungsprüfung abzulegen und somit das IT-Zertifikat zu bekommen. Wegen des schwierigkeitsgrades der Juniper JN0-352 Zertifizierungsprüfung ist die Erfolgsquote sehr niedrig. Aber es ist doch eine weise Wahl, an der Juniper JN0-352 Zertifizierungsprüfung teilzunehmen, denn in der heutigen konkurrenzfähigen IT-Branche muss man sich immer noch verbessern. Und Sie können auch viele Methoden wählen, die Ihnen beim Bestehen der Prüfung helfen.
119. Frage

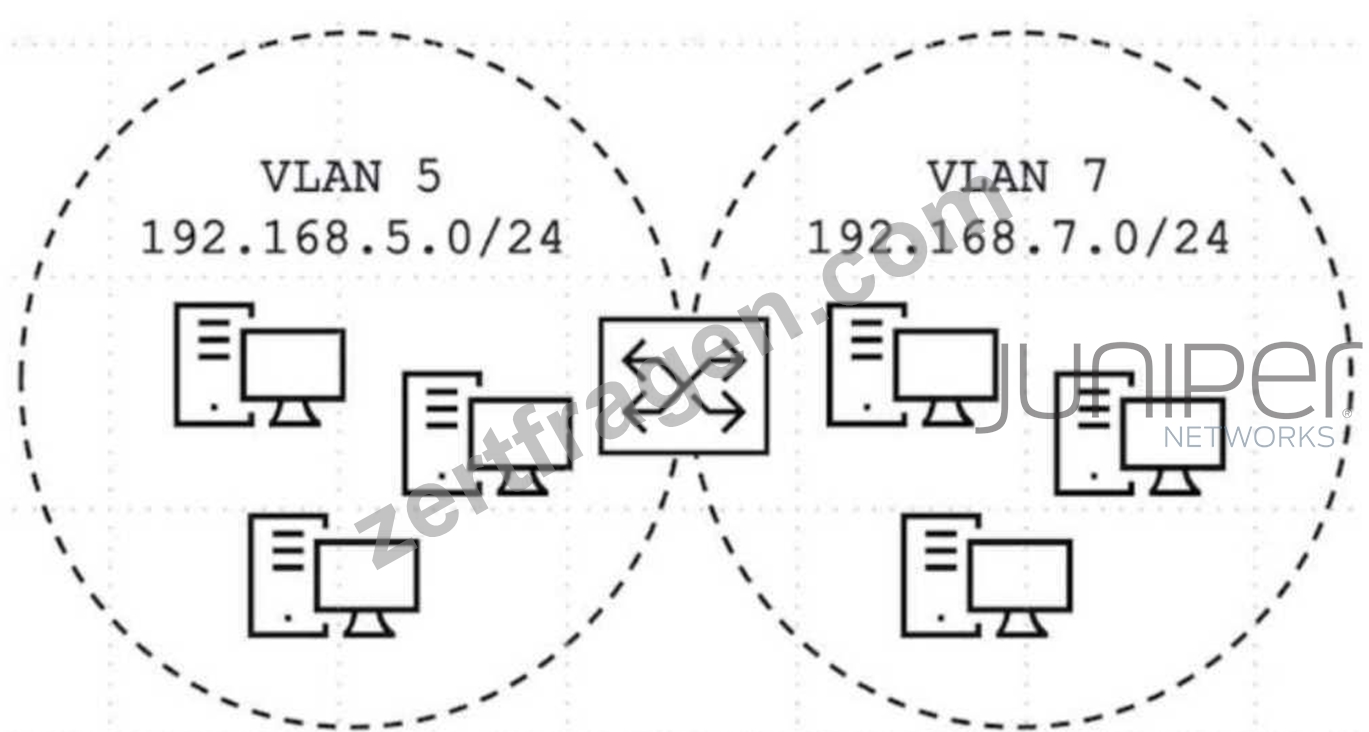

Click the Exhibit button. Devices on VLAN 5 and VLAN 7 need to communicate with each other.
Referring to the exhibit, what will satisfy this requirement?
Antwort: A
Begründung:
VLAN 5 and VLAN 7 are two entirely separate Layer 2 broadcast domains, each with its own distinct IP subnet, and devices in one VLAN can never reach devices in the other through switching alone -- Layer 3 routing between the two subnets is mandatory for any inter-VLAN communication to occur, regardless of how the VLANs are configured at Layer 2. On a single EX Series switch, the correct and standard mechanism for enabling this routing without an external router is to create one integrated routing and bridging (IRB) logical interface for each VLAN, assign each IRB the appropriate gateway IP address for its respective subnet (192.168.5.1 for VLAN 5's irb.5 and 192.168.7.1 for VLAN 7's irb.7, for example), and ensure routing is active on the switch so that traffic arriving at one IRB's gateway address destined for the other VLAN's subnet is routed internally between the two IRB interfaces. Attempting to bind a single family inet interface with two distinct subnet addresses via secondary addressing conflates two separate broadcast domains onto one Layer 3 interface incorrectly and is not how VLAN routing is architected in Junos. Spanning tree exists purely to prevent Layer 2 loops and has no routing function whatsoever, so configuring it cannot enable inter-VLAN reachability. Placing both VLANs on a single trunk with Multiple VLAN Registration Protocol (MVRP) only automates VLAN membership propagation across trunk links; it does not provide any Layer 3 routing capability between the VLANs either.
120. Frage
Click the Exhibit button.

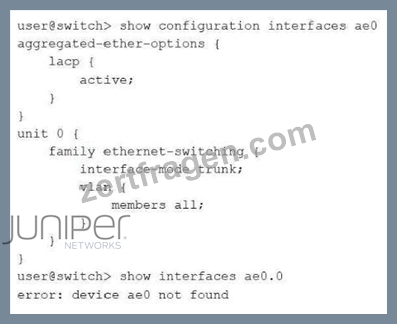

You are troubleshooting an aggregated Ethernet interface on a Juniper Networks EX Series Switch. The aggregated Ethernet interface does not appear in the output shown in the exhibit.
Which action will solve this problem?
Antwort: C
Begründung:
On EX Series switches, aggregated Ethernet (ae) interfaces do not exist by default; before any ae interface can be created, referenced, or brought into service, an administrator must first reserve the desired number of aggregated Ethernet device slots by configuring set chassis aggregated-devices ethernet device-count number at the [edit chassis] hierarchy. This statement allocates the internal resources needed for that many ae interfaces to exist as valid, configurable objects; until it is committed, any interface-level configuration referencing ae0 (such as the aggregated-ether-options and family ethernet-switching stanzas shown in the exhibit) is accepted syntactically by the CLI but never actually instantiates a live ae0 device, which is exactly why show interfaces ae0.0 returns 'device ae0 not found' despite the interface appearing fully configured.
Increasing the device-count to at least 1 (or higher, to cover the number of LAG bundles planned) immediately resolves this and allows ae0 to appear as an operational interface once its member links are also associated with it. This is a foundational and frequently overlooked prerequisite step in LAG deployment on Juniper switches. There is no separate licensing requirement for aggregated Ethernet functionality on EX Series switches, a reboot is not needed since the chassis statement takes effect upon commit, and the LACP mode (active versus passive) is unrelated to whether the ae interface object itself exists in the first place.
Reference topics: Junos Enterprise Switching - Link Aggregation, Configuring the Aggregated Ethernet Device Count.
121. Frage
Which statement is correct about IP-IP tunnels?
Antwort: A
Begründung:
"The ENCAPSULATOR does not change the inner IP header, except to decrement the TTL and it remains unchanged during its deliver to the endpoint" - only router that encapsulates the inner packet decrements its TTL - during transit, the inner packet is unchanged.
122. Frage

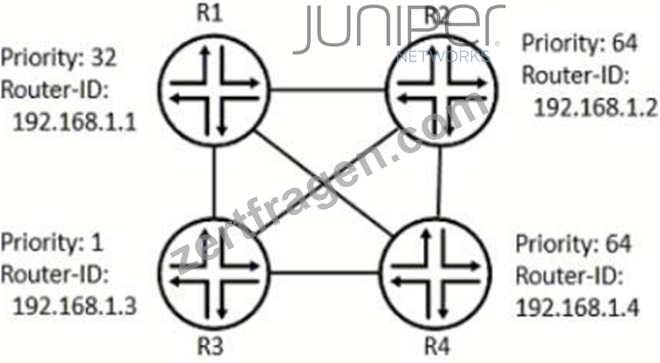

R1 was started at 4:00 PM. R2 and R3 were started at 6:00 PM. R4 was started at 10:00 PM. All routers are in Area 0 and there are no point-to-point links.
Referring to the exhibit, which router is the designated router?
Antwort: B
123. Frage
You are asked to change the setting for the LSAs age out back to the default value. In this scenario, which time interval will accomplish this task?
Antwort: A
124. Frage
......
Wir sollen die Schwierigkeiten ganz gelassen behandeln. Obwohl die Juniper JN0-352 Zertifizierungsprüfung ganz schwierig ist, sollen die Kandidaten alle Schwierigkeiten ganz gelassen behandeln. Denn ZertFragen wird Ihnen helfen, die Juniper JN0-352 Zertifizierungsprüfung zu bestehen. Mit ihm brauchen wir uns nicht zu fürchten und nicht verwirrt zu sein. Die Schulungsunterlagen zur Juniper JN0-352 Zertifizierungsprüfung von ZertFragen sind den Kandidaten die beste Methode.
