| Section | Weight | Objectives |
|---|---|---|
| Topic 1: Design and implement private access to Azure services | 10-15% | - Design and implement private endpoints and Private Link
|
| Topic 2: Design and implement Azure network security services | 15-20% | - Design and implement application security groups
|
| Topic 3: Design and implement core networking infrastructure | 25-30% | - Design and implement routing
|
| Topic 4: Design and implement application delivery services | 15-20% | - Design and implement Azure Application Gateway
|
| Topic 5: Design, implement, and manage connectivity services | 20-25% | - Design and implement Virtual WAN
|
JPNTestの専門家チームは彼らの経験と知識を利用して長年の研究をわたって多くの人は待ちに待ったMicrosoftのAZ-700「Designing and Implementing Microsoft Azure Networking Solutions」認証試験について教育資料が完成してから、大変にお客様に歓迎されます。JPNTestの模擬試験は真実の試験問題はとても似ている専門家チームの勤労の結果としてとても値打ちがあります。
質問 # 98

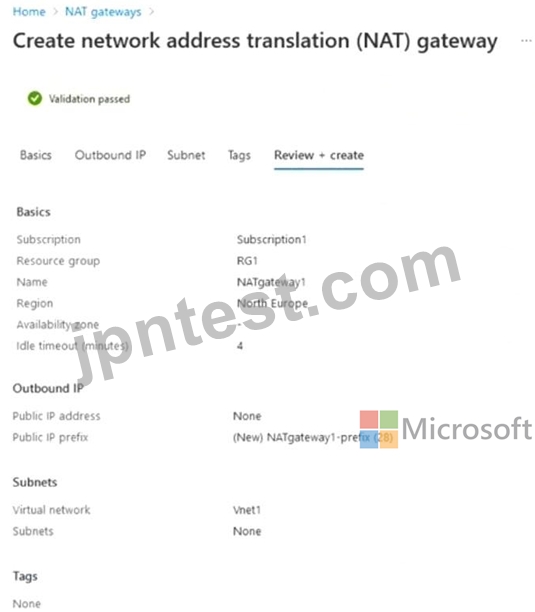

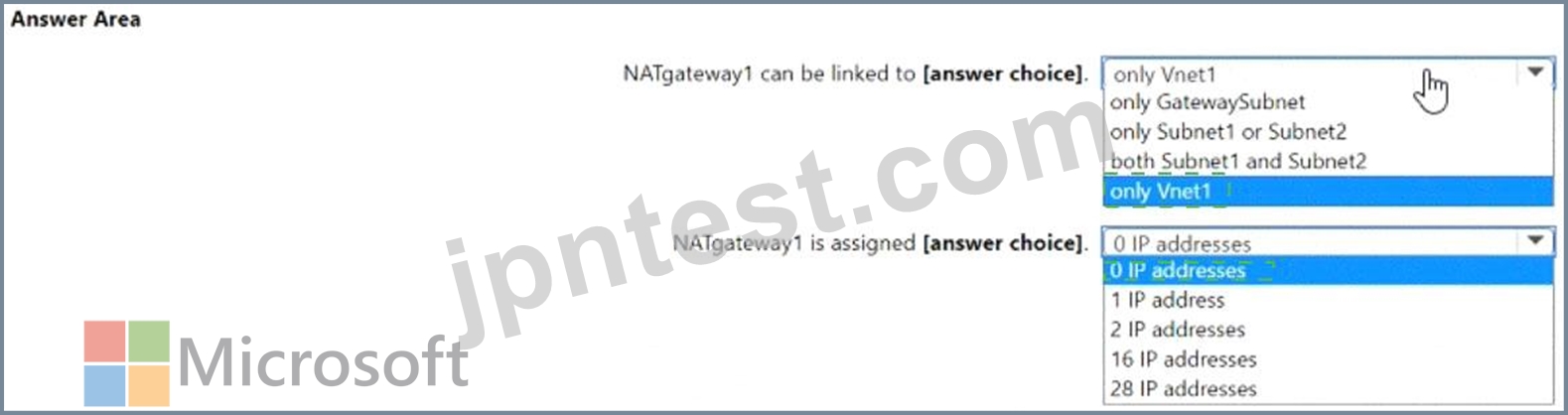

You have an Azure virtual network named Vnet1 that contains two subnets named Subnet1 and Subnet2. Both subnets contain virtual machines. You create a NAT gateway named NATgateway1 as shown in the following exhibit.

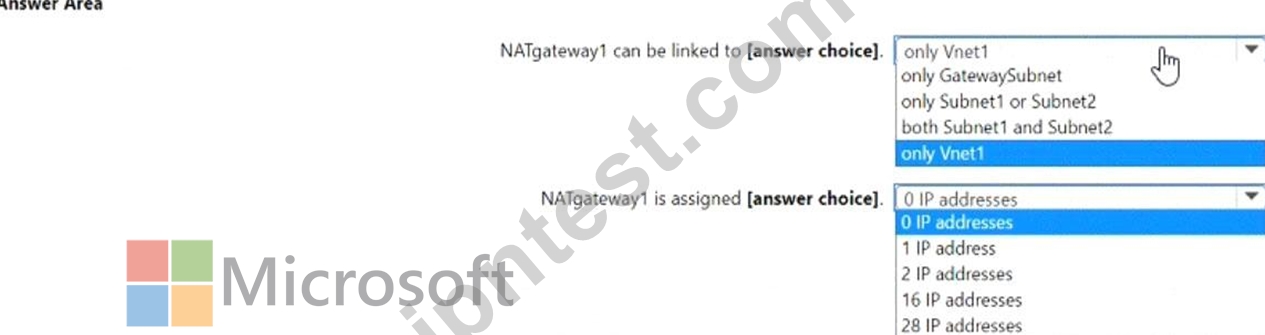

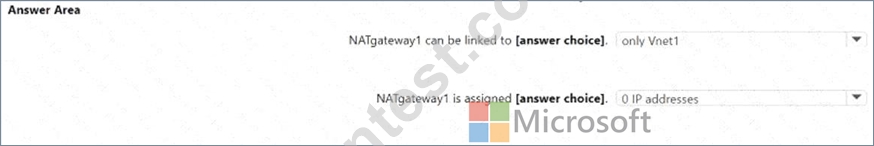

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic. NOTE: Each correct selection is worth one point.
正解：
解説：
Explanation:
質問 # 99
SIMULATION
Task 6
You need to ensure that all hosts deployed to subnet3-2 connect to the internet by using the same static public IP address. The solution must minimize administrative effort when adding hosts to the subnet.
正解：
解説：
See the Explanation below for step by step instructions
Explanation:
Here are the steps and explanations for ensuring that all hosts deployed to subnet3-2 connect to the internet by using the same static public IP address:
To use the same static public IP address for multiple hosts, you need to create a NAT gateway and associate it with subnet3-2. A NAT gateway is a resource that performs network address translation (NAT) for outbound traffic from a subnet1. It allows you to use a single public IP address for multiple private IP addresses2.
To create a NAT gateway, you need to go to the Azure portal and select Create a resource. Search for NAT gateway, select NAT gateway, then select Create3.
On the Create a NAT gateway page, enter or select the following information and accept the defaults for the remaining settings:
Subscription: Select your subscription name
Resource group: Select your resource group
Name: Type a unique name for your NAT gateway
Region: Select the same region as your virtual network
Public IP address: Select Create new and type a name for your public IP address. Select Standard as the SKU and Static as the assignment method4.
Select Review + create and then select Create to create your NAT gateway3.
To associate the NAT gateway with subnet3-2, you need to go to the Virtual networks service in the Azure portal and select your virtual network.
On the Virtual network page, select Subnets under Settings, and then select subnet3-2 from the list.
On the Edit subnet page, under NAT gateway, select your NAT gateway from the drop-down list. Then select Save.
質問 # 100

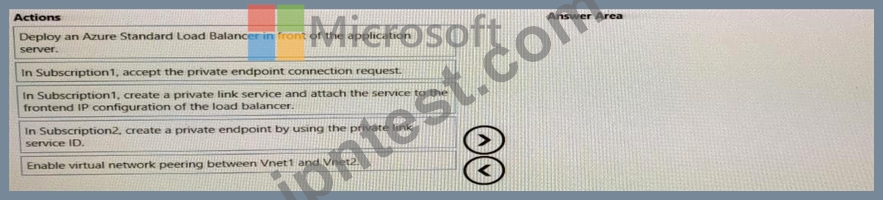

You have two Azure subscriptions named Subscnption1 and Subscription2. Subscription1 contains a virtual network named Vnet1. Vnet1 contains an application server. Subscription2 contains a virtual network named Vnet2.
You need to provide the virtual machines in Vnet2 with access to the application server in Vnet1 by using a private endpoint.

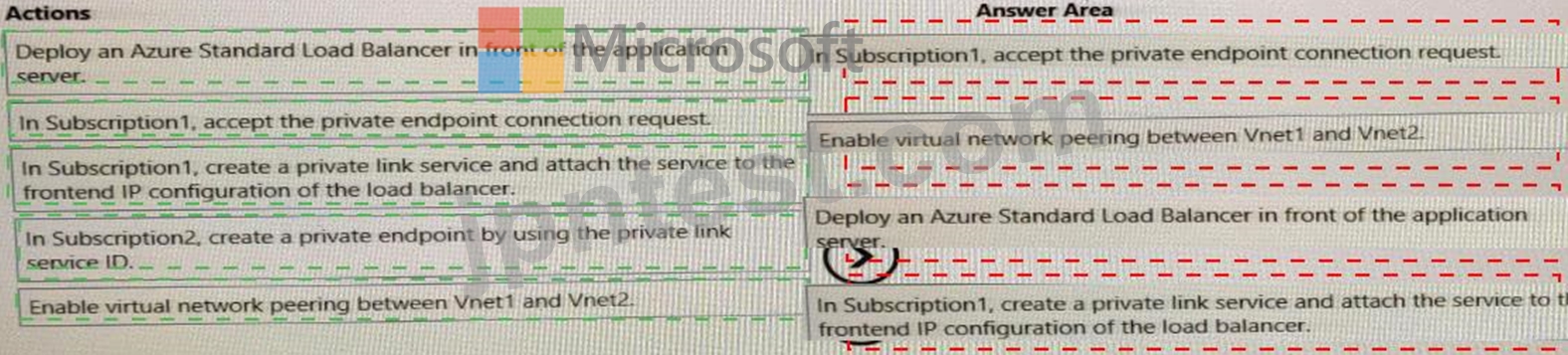

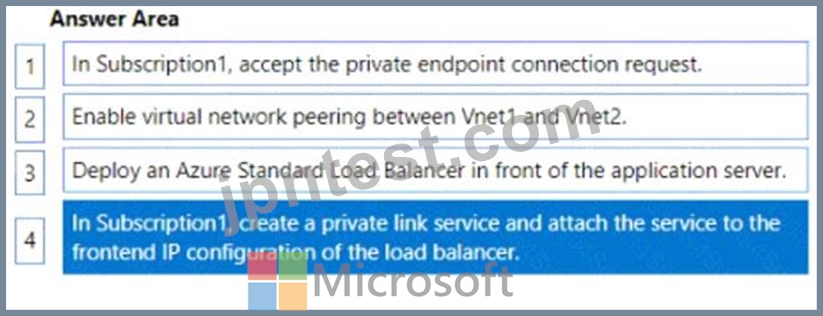

Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
正解：
解説：
Explanation:
質問 # 101

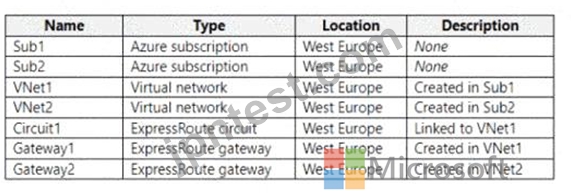

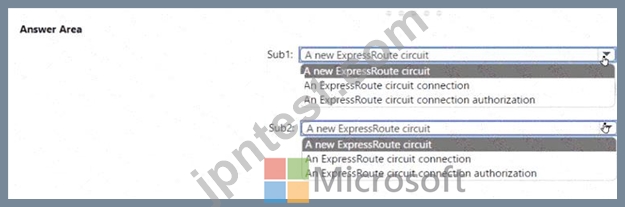

You have the Azure resources shown in the following table.
You need to link VNei2 to Circuit1

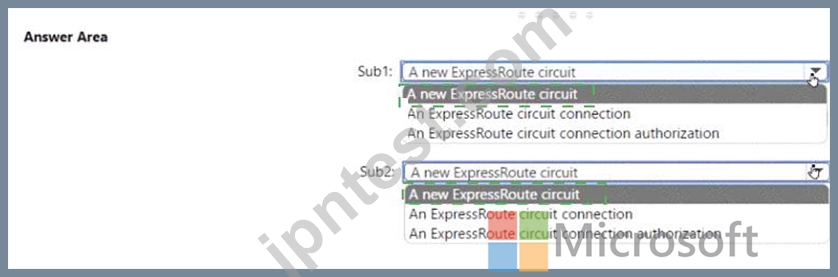

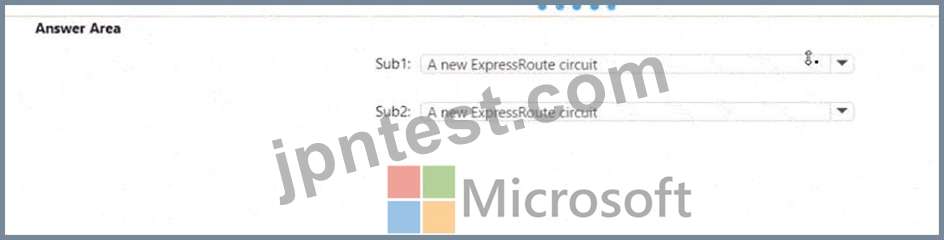

What should you create in each subscription? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
正解：
解説：
Explanation:
質問 # 102
Task 7
You need to ensure that hosts on VNET2 can access hosts on both VNET1 and VNET3. The solution must prevent hosts on VNET1 and VNET3 from communicating through VNET2.
正解：
解説：
See the Explanation below for step by step instructions.
Explanation:
Here are the steps and explanations for ensuring that hosts on VNET2 can access hosts on both VNET1 and VNET3, but hosts on VNET1 and VNET3 cannot communicate through VNET2:
* To connect different virtual networks in Azure, you need to use virtual network peering. Virtual network peering allows you to create low-latency, high-bandwidth connections between virtual networks without using gateways or the internet1.
* To create a virtual network peering, you need to go to the Azure portal and select your virtual network. Then select Peerings under Settings and select + Add2.
* On the Add peering page, enter or select the following information:
* Name: Type a unique name for the peering from the source virtual network to the destination virtual network.
* Virtual network deployment model: Select Resource manager.
* Subscription: Select the subscription that contains the destination virtual network.
* Virtual network: Select the destination virtual network from the list or enter its resource ID.
* Name of the peering from [destination virtual network] to [source virtual network]: Type a unique name for the peering from the destination virtual network to the source virtual network.
* Configure virtual network access settings: Select Enabled to allow resources in both virtual networks to communicate with each other.
* Allow forwarded traffic: Select Disabled to prevent traffic that originates from outside either of the peered virtual networks from being forwarded through either of them.
* Allow gateway transit: Select Disabled to prevent either of the peered virtual networks from using a gateway in the other virtual network.
* Use remote gateways: Select Disabled to prevent either of the peered virtual networks from using a gateway in the other virtual network as a transit point to another network.
* Select Add to create the peering2.
* Repeat the previous steps to create peerings between VNET2 and VNET1, and between VNET2 and VNET3. This will allow hosts on VNET2 to access hosts on both VNET1 and VNET3.
* To prevent hosts on VNET1 and VNET3 from communicating through VNET2, you need to use network security groups (NSGs) to filter traffic between subnets. NSGs are rules that allow or deny inbound or outbound traffic based on source or destination IP address, port, or protocol3.
* To create an NSG, you need to go to the Azure portal and select Create a resource. Search for network security group and select Network security group. Then select Create4.
* On the Create a network security group page, enter or select the following information:
* Subscription: Select your subscription name.
* Resource group: Select your resource group name.
* Name: Type a unique name for your NSG.
* Region: Select the same region as your virtual networks.
* Select Review + create and then select Create to create your NSG4.
* To add rules to your NSG, you need to go to the Network security groups service in the Azure portal and select your NSG. Then select Inbound security rules or Outbound security rules under Settings and select + Add4.
* On the Add inbound security rule page or Add outbound security rule page, enter or select the following information:
* Source or Destination: Select CIDR block.
* Source CIDR blocks or Destination CIDR blocks: Enter the IP address range of the source or destination subnet that you want to filter. For example, 10.0.1.0/24 for VNET1 subnet 1, 10.0.2.0
/24 for VNET2 subnet 1, and 10.0.3.0/24 for VNET3 subnet 1.
* Protocol: Select Any to apply the rule to any protocol.
* Action: Select Deny to block traffic from or to the source or destination subnet.
* Priority: Enter a number between 100 and 4096 that indicates the order of evaluation for this rule.
Lower numbers have higher priority than higher numbers.
* Name: Type a unique name for your rule.
* Select Add to create your rule4.
* Repeat the previous steps to create inbound and outbound rules for your NSG that deny traffic between VNET1 and VNET3 subnets. For example, you can create an inbound rule that denies traffic from
10.0.1.0/24 (VNET1 subnet 1) to 10.0.3.0/24 (VNET3 subnet 1), and an outbound rule that denies traffic from 10.0.3.0/24 (VNET3 subnet 1) to 10.0.1.0/24 (VNET1 subnet 1).
* To associate your NSG with a subnet, you need to go to the Virtual networks service in the Azure portal and select your virtual network. Then select Subnets under Settings and select the subnet that you want to associate with your NSG5.
* On the Edit subnet page, under Network security group, select your NSG from the drop-down list. Then select Save5.
* Repeat the previous steps to associate your NSG with the subnets in VNET1 and VNET3 that you want to isolate from each other.
質問 # 103
......
