P.S. Free & New F5CAB5 dumps are available on Google Drive shared by Exam4Tests: https://drive.google.com/open?id=1_WtOM7mHshIL0vQzqLiTCeLjR3xVkoln
The Exam4Tests acknowledges that F5 aspirants are continuously juggling a couple of responsibilities, so F5CAB5 questions are ideal for short practise. Candidates can access those questions everywhere and at any time, the usage of any clever device, which allows them to examine at their very own tempo. The F5CAB5 Questions are portable and you can also print them.
| Section | Weight | Objectives |
|---|---|---|
| Architecture and Components | 15% | - Device service clustering (DSC) - Traffic flow and packet processing - High availability (HA) configurations - BIG-IP system architecture |
| Initial Setup and Configuration | 20% | - Initial provisioning (Provisioning, License) - Network configuration (VLANs, Self IPs, Routes) - Network failover setup - User management and role-based access - NTP and DNS configuration |
| Security and Access | 10% | - Role-based access control (RBAC) - Packet filtering - SSL/TLS configuration - User authentication (Remote Auth, LDAP, RADIUS) |
| Local Traffic Management (LTM) | 30% | - Health monitors and monitory types - SSL profiles and offloading - Virtual servers (Standard, Performance L4, Forwarding) - Pools and pool members - Load balancing modes - iRules and persistence profiles |
| Troubleshooting and Support | 25% | - Performance and resource monitoring - iRules debugging - Common troubleshooting scenarios - SNMP and monitoring - tcpdump and network capture - Logging and log configuration |
Whereas the other two F5 F5CAB5 practice test software are concerned both are the mock F5 F5CAB5 exam and give you real-time F5 F5CAB5 exam environment for quick and complete F5 F5CAB5 Exam Preparation. Our F5CAB5 test dumps pdf can help you clear exam and obtain exam at the first attempt.
NEW QUESTION # 14
A BIG-IP Administrator uses backend servers to host multiple services per server. There are multiple virtual servers and pools defined, referencing the same backend servers. Which load balancing algorithm is most appropriate to have an equal number of connections on each backend server?17
Answer: B
Explanation:
When load balancing is not working as 23expected and connections appear skewed across physical hardware, the administrator must distinguish between "member"24 and "node" level balancing. A "member" refers to a specific IP and Port combination (e.g., 10.1.1.1:80), whereas a "node" refers to the underlying IP address (10.1.1.1) regardless of the port25. If a single server hosts multiple services (Web, FTP, API) across different pools, using "Least Connections (member)" would only balance connections within each individual pool26. This could lead to a scenario where one server is overwhelmed because it is winning the "least connections" count in three different pools simultaneously. By selecting "Least Connections (node)," the BIG-IP tracks the total number of concurrent connections to the physical IP address across all pools it belongs to27. This ensures that the administrator can maintain an equal distribution of work across the hardware, preventing performance degradation on backend servers that host multiple application services.
NEW QUESTION # 15
In the BIG-IP Configuration Utility, a user requests a single screen view to determine the status of all Virtual Servers and associated pool members, as well as any iRules in use. Where should the BIG-IP Administrator instruct the user to find this view?
Answer: A
Explanation:
To confirm functionality across a complex environment, the "Network Map" is the most efficient troubleshooting tool in the Configuration Utility. It provides a hierarchical, visual representation of the traffic management objects. A single glance allows the administrator to see the status of a Virtual Server (Green/Red/Yellow), the status of its associated pool, the health of individual pool members, and which iRules are currently attached. This view is superior to the standard "Virtual Server List" for troubleshooting because it maps the dependencies between objects. For example, if a Virtual Server is "Red," the Network Map will show if that status is inherited from a failed pool or a specific monitor failing on a pool member. Reviewing these basic stats in the Network Map helps the administrator quickly isolate whether a failure is at the service level (Virtual Server), the logic level (iRule), or the hardware level (Pool Member).
NEW QUESTION # 16
A BIG-IP Administrator notices that one of the servers that runs an application isNOTreceiving any traffic.
The BIG-IP Administrator examines the configuration status of the application and observes the displayed monitor configuration and affected pool member status.
What is the possible cause of this issue? (Choose one answer)
Answer: B
Explanation:
The key clue in the exhibit is the pool member's availability showing"Offline (Enabled) - Parent down". In BIG-IP terminology, a pool member inherits the status of itsparent node. If thenodeis marked down (for example, by a node-level monitor or a default "node is down" condition), thenall pool members using that node IPwill also be marked down and will not receive any traffic, even if the application service on the member port might be healthy.
While the HTTPS monitor configuration (send/receive strings) is displayed, the statusspecificallyindicates anode (parent) failure, not a service-level failure. If the problem were the application not matching the receive string, you would typically see the member down due to themember's monitorfailing (and the status would reflect monitor failure details), rather than "parent down." Option D is too broad; BIG-IP can generally reach the subnet (other servers work), and this symptom points to a specific node condition. Option C is incorrect because HTTP/1.1 is commonly used for monitoring and is valid when properly formatted (especially with a Host header). Therefore, the most likely cause is that thenode health monitor is not responding, causing the node-and consequently the member-to be marked down.
NEW QUESTION # 17

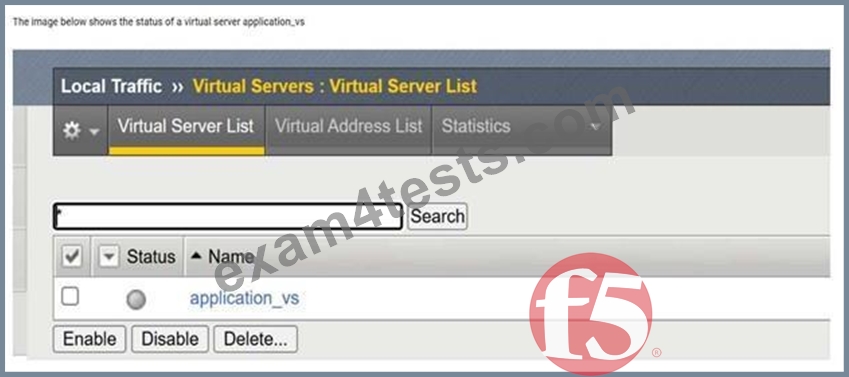

Refer to the exhibit.
The image shows the status of a virtual server namedapplication_vsin the BIG-IP Configuration Utility.
What is the cause of the status shown? (Choose two answers)
Answer: B,C
Explanation:
The exhibit shows the virtual serverapplication_vswith a status indicating it isoffline but enabled.
In BIG-IP terminology, this status means the virtual server itself is administratively enabled, but it is unable to pass traffic becauseno usable pool members are available.
Two common and documented causes for this condition are:
Pool member(s) administratively disabled (Option A):When all pool members are administratively disabled, BIG-IP removes them from load-balancing decisions. Even though the virtual server remains enabled, it has no available pool members to send traffic to, resulting in an offline status.
Node(s) administratively disabled (Option C):Pool members inherit the status of their parent nodes. If a node is administratively disabled, all associated pool members are also marked unavailable. This condition causes the virtual server to show as offline, even though the virtual server configuration itself is correct.
NEW QUESTION # 18
The BIG-IP Administrator is investigating disk utilization on the BIG-IP device. (Exhibit shows /dev/md4 mounted on / at 100% utilization). What should the BIG-IP Administrator check next?
Answer: C
Explanation:
Comprehensive and Detailed Explanation From BIG-IP Administration Support and Troubleshooting documents: Monitoring resource utilization is essential for maintaining system stability. If the root (/) file system reaches 100% capacity, the BIG-IP may become unresponsive, fail to save configuration changes, or experience daemon crashes83. When the / partition is full, the immediate troubleshooting step is to identify large or unnecessary files-such as old log files, core dumps, or temporary installer files-located specifically within that file system84. In the provided exhibit, /dev/md4 is explicitly listed at 100% usage for the / mount point85. Checking other partitions like /usr (which is at 82% in the exhibit) would not resolve the immediate
"Full" status of the root directory86. Administrators often use the du (disk usage) command via the CLI to find the problematic files. Managing disk space is a proactive task; however, when utilization hits 100%, it becomes a reactive troubleshooting emergency that must be resolved to restore the management plane's functionality.
NEW QUESTION # 19
......
The F5 F5CAB5 Dumps PDF File material is printable, enabling your off-screen study. This format is portable and easily usable on smart devices including laptops, tablets, and smartphones. F5 F5CAB5 dumps team of professionals keeps an eye on content of the F5 F5CAB5 Exam and updates its product accordingly. Our pdf is a very handy format for casual and quick preparation of the F5 certification exam.
