| Section | Weight | Objectives |
|---|---|---|
| Topic 1: Centralized Management | 20% | - Policy packages & object templates - FortiManager 7.6 deployment & role assignment - Configuration provisioning & version control - FortiAnalyzer logging & reporting |
| Topic 2: Security Policy & Services | 10% | - NAT & IP pool optimization - Advanced firewall & security profile design - Identity-based policies |
| Topic 3: High Availability & Redundancy | 15% | - Cross-data center redundancy - FGCP/FGSP/vCluster deployment - Session synchronization & failover |
| Topic 4: Advanced Routing & VPN | 25% | - OSPF, BGP, IS-IS configuration & optimization - Route redistribution & filtering - SD-WAN design & SLA management - IPsec VPN & ADVPN architecture |
| Topic 5: Monitoring & Troubleshooting | 10% | - Connectivity & performance troubleshooting - Fabric synchronization issues - Diagnostic tools & CLI analysis |
| Topic 6: System Architecture & Design | 20% | - FortiOS 7.6 architecture & components - Security Fabric integration & scaling - VDOM design & multi-tenant deployment - Hardware sizing & resource planning |
>> NSE7_FSN_AR-7.6 Latest Test Sample <<
If you still worried about whether or not you pass exam; if you still doubt whether it is worthy of purchasing our software, what can you do to clarify your doubts that is to download free demo of NSE7_FSN_AR-7.6. Once you have checked our demo, you will find the study materials we provide are what you want most. Our target is to reduce your pressure and improve your learning efficiency from preparing exam. NSE7_FSN_AR-7.6 effective exam dumps are significance for studying and training. As a rich experienced exam dump provider, we will provide you with one of the best tools available to you for pass NSE7_FSN_AR-7.6 exam. You can find different types of NSE7_FSN_AR-7.6 dumps on our website, which is a best choice.
NEW QUESTION # 101
In the context of SD-WAN, the terms underlay and overlay are commonly used to categorize links.
Which two statements about underlay and overlay links are correct? (Choose two.)
Answer: A,B
Explanation:
The SD-WAN 7.6 Enterprise Administrator Study Guide explicitly defines the relationship between underlays and overlays:
"Overlays are virtual links built on top of physical links-called underlay links." It further explains that the overlay topology consists of VPN tunnels and "adds flexible routing options." Therefore, option B is directly supported.
Option D is also correct. An overlay is not restricted to a particular physical transport. Fortinet identifies ISP, MPLS, and 4G/5G cellular connectivity as possible WAN transports. Consequently, a wireless WAN connection can provide the underlying transport over which an IPsec, GRE, or IP-in-IP overlay tunnel is established.
Option C is incorrect because underlay connectivity is not limited to wired links; cellular 4G/5G is a valid WAN transport.
Option A is incorrect because FortiLink is primarily the proprietary connectivity used between FortiGate and managed LAN extensions such as FortiSwitch and FortiAP. It is not inherently an SD-WAN WAN underlay.
Option E is incorrect because Fortinet identifies VPN tunnels-principally IPsec, but also GRE and IP-in-IP- as SD-WAN overlay links. A VLAN is a Layer 2 logical segmentation mechanism, not an SD-WAN overlay tunnel.
Reference: SD-WAN Overlay Design and Best Practices - Overlay Fundamentals , page 94.
NEW QUESTION # 102
Which two observations can you make from the output? (Choose two.)
Answer: A,C
Explanation:
We must analyze the specific CLI output provided in the exhibit to determine the observations.
Analyze the Command and Output:

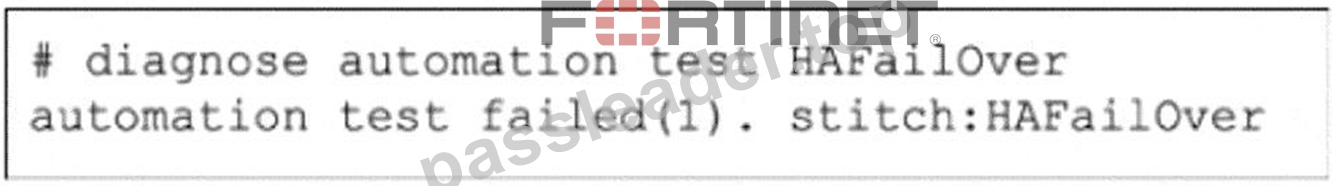

Command: # diagnose automation test HAFailOver
This command is used to manually trigger an automation stitch (named " HAFailOver " ) to verify its configuration and action execution. It simulates the trigger event to run the defined actions.
Output: automation test failed(1). stitch:HAFailOver
The output explicitly states that the test failed. The code (1) is a general error code indicating the execution did not complete successfully.
Evaluate the Options:
A). The configuration was backed up:
Incorrect. Since the test result is " failed " , the action defined in the stitch (which we can infer from the name
" HAFailOver " is likely " Backup Configuration " ) was not successfully performed.
B). A high availability (HA) failover occurred:
Incorrect. The command diagnose automation test is a simulation tool. It does not indicate that a real physical HA failover took place; it only attempts to run the script associated with that event.
C). The test was unsuccessful:
Correct. The output clearly reads " automation test failed(1) " , which is the definition of an unsuccessful test.
D). The automation stitch test is not being logged:
Correct. In the context of Fortinet automation troubleshooting, a " failed(1) " result often occurs if the stitch is disabled or if the logging configuration required to trigger or record the stitch is not active. Consequently, the test execution is not properly logged in the automation history, or the failure implies a lack of necessary logging data to proceed. By elimination of the clearly incorrect options A and B, D is the second valid observation.
Reference:
FortiGate Security 7.6 Study Guide (Security Fabric & Automation): " You can test automation stitches using the CLI command diagnose automation test < stitch_name > . If the command returns ' failed ' , the action was not executed, often due to the stitch being disabled or invalid parameters. "
NEW QUESTION # 103
During the SAML negotiation process, in which section does the Identity Provider (IdP) provide the SAML attributes used in the authentication process to the Service Provider (SP)?
Answer: C
Explanation:
The correct answer is B. Assertion dump.
The study guide states: "SAML attributes are pieces of information about a user that are exchanged between IdPs and SPs during the SAML authentication process. These attributes are included in the SAML assertion, which is built by the IdP as part of the authentication process." The same study guide page for real-time SAML troubleshooting shows the section labeled **** Assertion Dump ****, and inside that assertion it displays the actual user attributes, such as:
< saml:Attribute Name= " username " >
< saml:Attribute Name= " groups " >
It also explicitly marks this part as "Attributes sent by IdP"
Why the other options are wrong:
A). Bindings HTTP post is incorrect because bindings define how SAML messages are transported, not the section that contains the attributes. The study guide says: "Bindings: Define how SAML protocol messages are transmitted over different communication channels." C). Authentication request is incorrect because that is built by the SP and sent toward the IdP, not where the IdP's user attributes are shown. The study guide's flow says the SP "Builds auth request" and the IdP later
"Builds auth response."
D). Authentication response is broader than the exact section being asked. The exact section in the study guide where the IdP-provided attributes are shown is the Assertion dump.
So the verified answer is: B.
NEW QUESTION # 104
Refer to the exhibit.

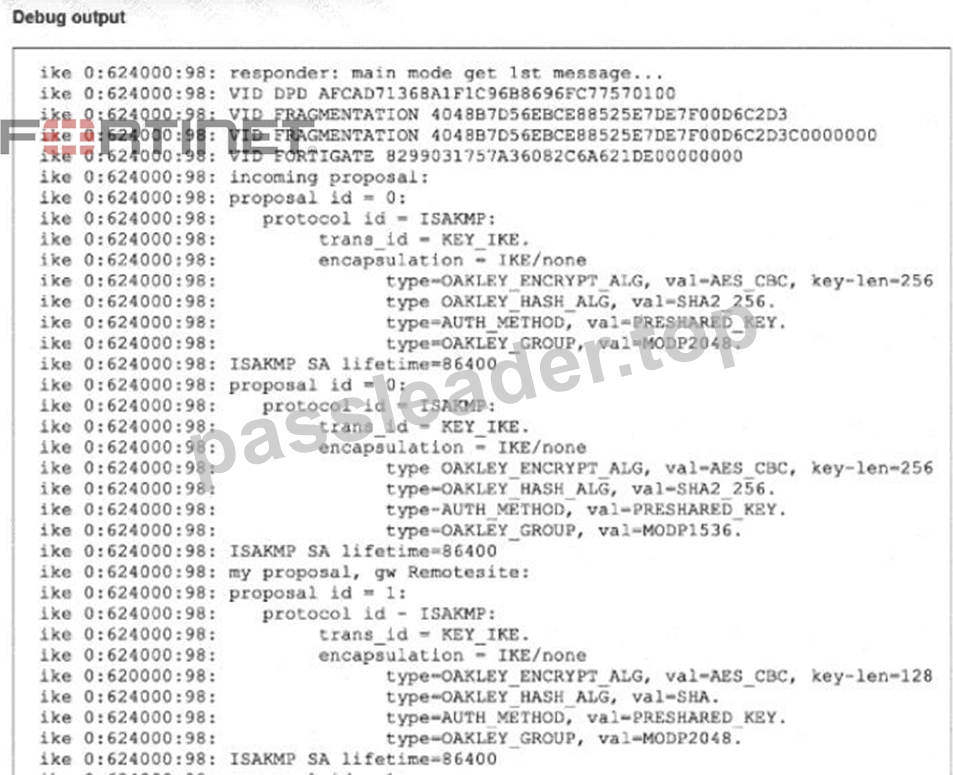

A partial output from an IKE real-time debug is shown
The administrator does not have access to (he remote gateway
Based on the debug output, which two conclusions can you draw? (Choose two.)
Answer: A,B
Explanation:
To determine the correct conclusions, we analyze the specific lines in the IKE real-time debug output provided in the exhibit:
Analysis for Option A (The remote peer is the initiating peer):
Evidence: The very first line of the debug output reads: ike 0:624000:98: responder: main mode get 1st message...
The keyword responder indicates that this local FortiGate is receiving the connection request. Consequently, the remote peer must be the initiator sending the request. The phrase " get 1st message " confirms the local unit is receiving the initial packet of the negotiation sequence.
Conclusion: This statement is True.
Analysis for Option B (This is a phase 1 negotiation):
Evidence: The same line mentions main mode.
In IPsec VPNs, Main Mode and Aggressive Mode are exclusively used for Phase 1 (IKE SA) negotiations.
Phase 2 (Child SA) negotiations use Quick Mode. The presence of " main mode " definitively identifies this as a Phase 1 exchange.
Conclusion: This statement is True.
Analysis for Option C (There is a Diffie-Hellman group mismatch):
Evidence:
Incoming proposal (Remote): Lists type=OAKLEY_GROUP, val=MODP2048 (Group 14) in the first proposal proposal.
My proposal (Local): Lists type=OAKLEY_GROUP, val=MODP2048 (Group 14).
Since both the remote peer and the local gateway support and are proposing MODP2048 (Group 14), there is no Diffie-Hellman group mismatch. The actual mismatch visible in the logs is between the Encryption/Hash algorithms (Remote proposes AES-256/SHA2-256, while Local proposes AES-128/SHA), but the DH groups match.
Conclusion: This statement is False.
Analysis for Option D (This is a phase 2 negotiation):
As established in the analysis for Option B, " Main Mode " is a Phase 1 protocol. If this were Phase 2, the debug would show " Quick Mode " .
Conclusion: This statement is False.
Reference:
FortiGate Security 7.6 Study Guide (IPsec VPN): " Phase 1 modes: Main mode and Aggressive mode. " FortiOS Debugging documentation: Explains that " responder " indicates the device receiving the IKE initialization.
NEW QUESTION # 105
Refer to the exhibit.

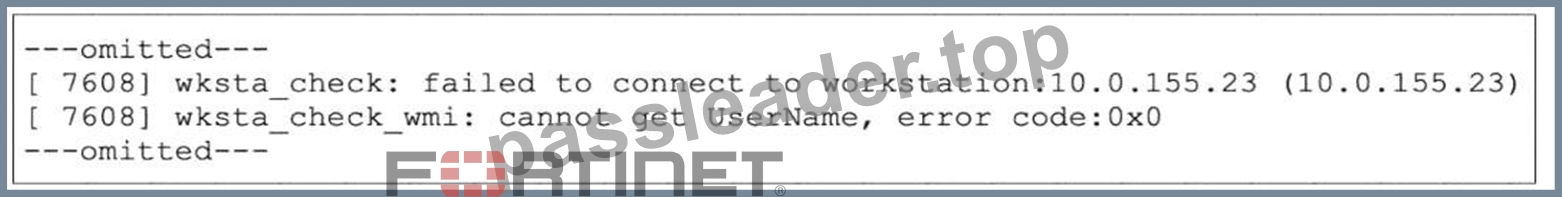

The output from a collector agent log is shown. The collector agent is showing the status of a workstation as Not Verified. What are two common causes for this message? (Choose two.)
Answer: C,D
Explanation:
The correct answers are B and C.
The study guide has a section titled "Not Verified Status on the Collector Agent" and states:
"The collector agent cannot verify if the user is still logged in" and lists these common causes:
"A firewall is blocking traffic to port 139 and 445"
"The workstation remote registry service is not running"
The guide also explains the verification method:
"For WMI polling mode, the collector agent checks the WMI service. For all the other modes, the collector agent checks the HKEY_USERS hive through remote registry services." If the workstation does not respond to these checks, the status can become not verified An additional requirements slide in the same study guide confirms:
"TCP ports 139 and 445 must be open between the collector agent and all workstations"
"Remote registry service must be up and running on each workstation"
Why the other options are wrong:
A is wrong because the study guide mentions a workstation coming out of hibernate mode under a different problem: "No Internet After IP Address Change", not as a common cause of Not Verified status D is wrong because DNS resolution issues are also discussed under the IP address change scenario, where the collector agent uses DNS to resolve the workstation name after an IP change. That is separate from the Not Verified causes listed for this log message So the verified answers are: B, C.
NEW QUESTION # 106
......
