NEW QUESTION # 50

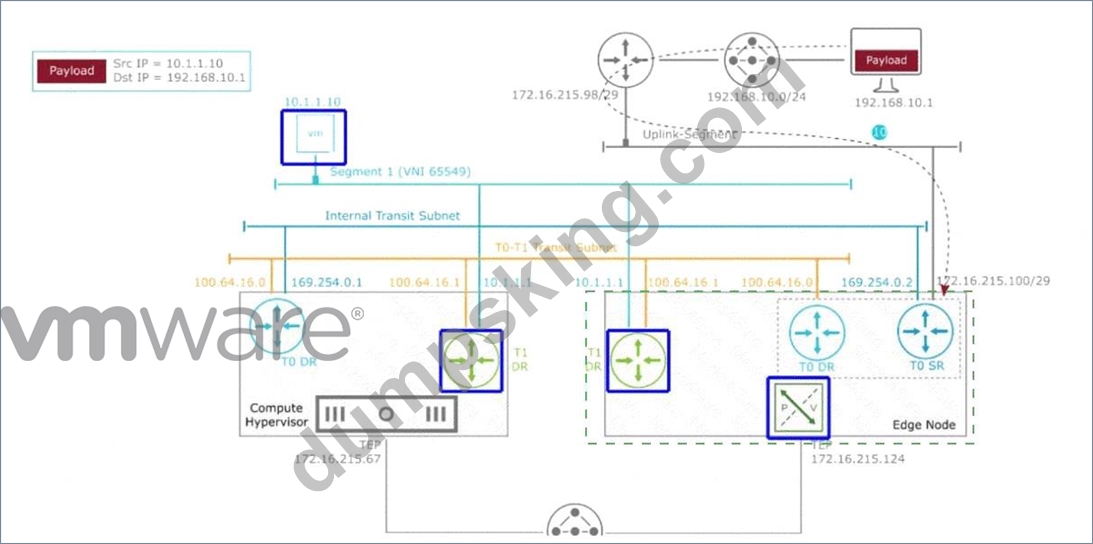

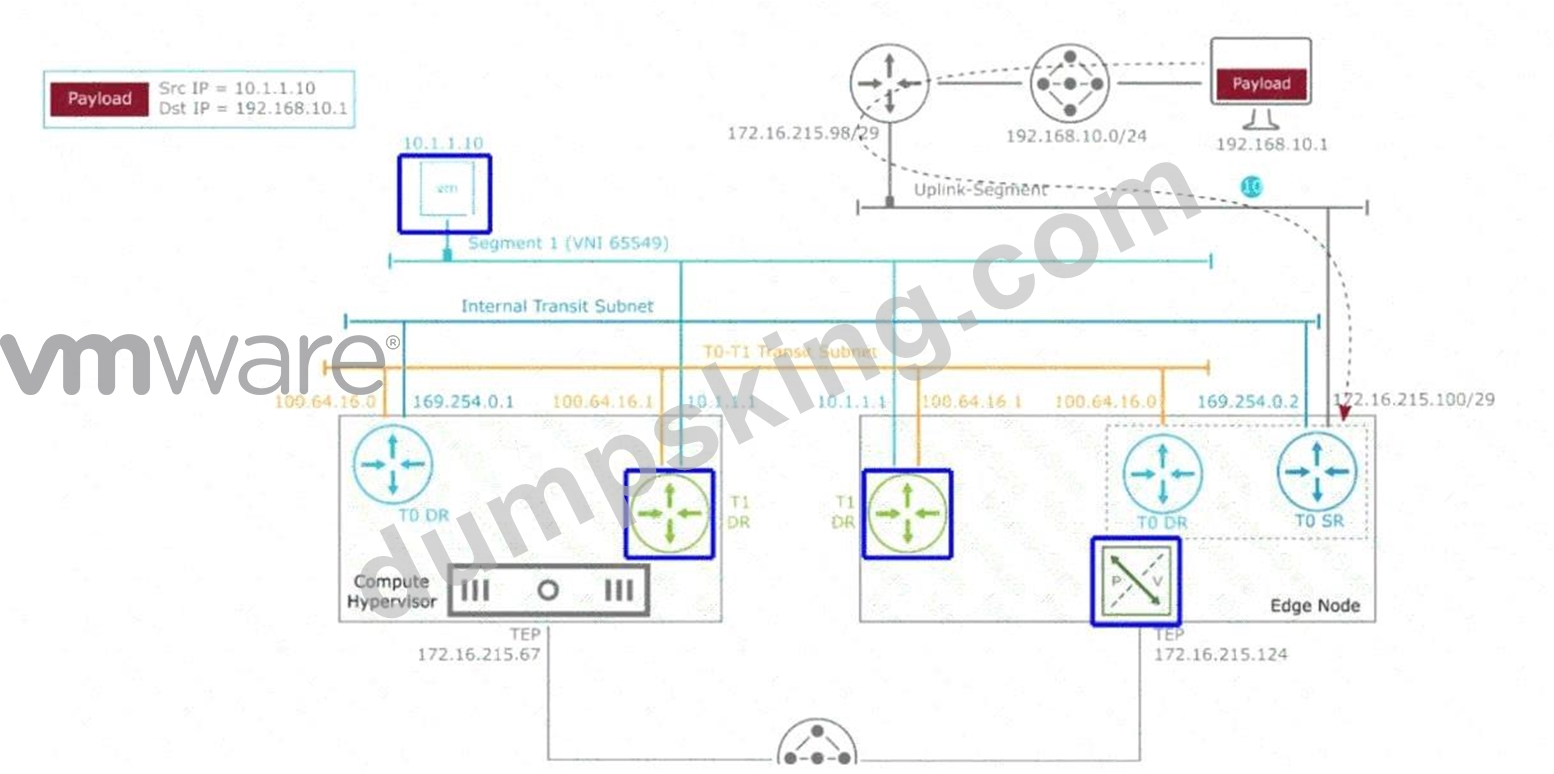

An administrator is troubleshooting the packet flow of an incoming response to an ICMP Reply payload destined for 10.1.1.10 in the diagram.
The packet arrived at the Tier-0 SR at 172.16.215.100/29.
Which highlighted location identifies the next hop in the path to the destination?
Answer:
Explanation:
Explanation:
the administrator should click theTier-1 DR iconlocated within theEdge Node.
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:In aVMware Cloud Foundation (VCF)environment, North-South traffic flows through a hierarchical routing structure composed ofTier-0andTier-1 Gateways. Each gateway is further divided into a Distributed Router (DR)component, which runs as a kernel module on all Transport Nodes (ESXi and Edges), and aService Router (SR), which provides centralized services and resides on the Edge Nodes.
According to the packet walk logic for an incoming (North-to-South) packet, once the traffic arrives from the physical router at theTier-0 Service Router (SR)on the Edge Node, it must be routed toward the destination virtual machine (10.1.1.10). In a multi-tier NSX architecture, the Tier-0 SR identifies that the destination subnet belongs to a connectedTier-1 Gateway. The communication between the Tier-0 and Tier-1 gateways occurs over an internal transit subnet, often referred to as theRouter Link(in this diagram, represented by the
100.64.16.0/31 subnet).
The "Next Hop" for the packet currently residing at the Tier-0 SR on the Edge Node is theTier-1 Distributed Router (DR)instance located on that same Edge Node. This is because the Edge Node participates as a Transport Node in the overlay and maintains local instances of all Distributed Routers to ensure efficient path processing. After the packet is processed by the local Tier-1 DR on the Edge Node, it determines that the destination VM is residing on a remote host (Compute Hypervisor). Only then is the packet encapsulated in a Geneveheader and sent via theTunnel Endpoints (TEP)from the Edge Node (172.16.215.124) to the Compute Hypervisor (172.16.215.67). Therefore, the Tier-1 DR on the Edge Node is the immediate logical next step in the routing pipeline before any host-to-host encapsulation occurs.
NEW QUESTION # 51
An administrator encountered a failure with one of the NSX Managers in a VCF Fleet. The administrator has successfully re-deployed an NSX Manager from SFTP backups. However, after replacing the failed manager node, the new node joins successfully, but the cluster status remains "Degraded".
* The get cluster status command on the leader still shows the old UUID with state "REMOVED".
What is the command to resolve the issue?
Answer: D
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In aVMware Cloud Foundation (VCF)environment, the NSX Management Cluster consists of three nodes to ensure high availability and quorum. When a single node fails and is subsequently replaced-either through a manual deployment or an orchestrated recovery viaSDDC Manager-the internal database (Corfu) and the cluster manager must be updated to reflect the current members of the cluster.
When a node is lost or manually deleted from vCenter without being properly decommissioned through the NSX API or CLI, the remaining "Leader" node retains the metadata and theUUIDof that missing member.
Even after a new node joins the cluster and synchronizes data, the cluster state often remains in a"Degraded" status because the control plane still expects a response from the original, failed UUID.
According to NSX troubleshooting and recovery guides, the specific command to purge a stale or defunct member from the cluster configuration isdetach node <UUID>. This command must be executed from the CLI of the current Cluster Leader. By running detach node <old-uuid>, the administrator instructs the cluster manager to permanently remove the record of the failed node from the management plane's membership list.
Option B and C are incorrect because "delete node" is not the primary CLI command used for cluster membership cleanup; "detach" is the specific primitive required to break the logical association. Option A would remove the healthy new node, worsening the situation. Once the stale UUID is detached, the cluster status should transition from "Degraded" to "Stable" as it no longer tries to communicate with the non- existent entity. This process is essential in VCF operations to maintain a healthy "green" status in both the NSX Manager and the SDDC Manager dashboard.
NEW QUESTION # 52
An administrator is configuring NSX resource sharing to allow shared access to multiple resources in the default space.
By default, which user role owns the shared resources for the default space?
Answer: C
Explanation:
In NSX Multi-Tenancy (Projects), theEnterprise Adminacts as the provider-level administrator who owns global objects in the default space. This ensures central control over resources that are shared across different projects.
NEW QUESTION # 53

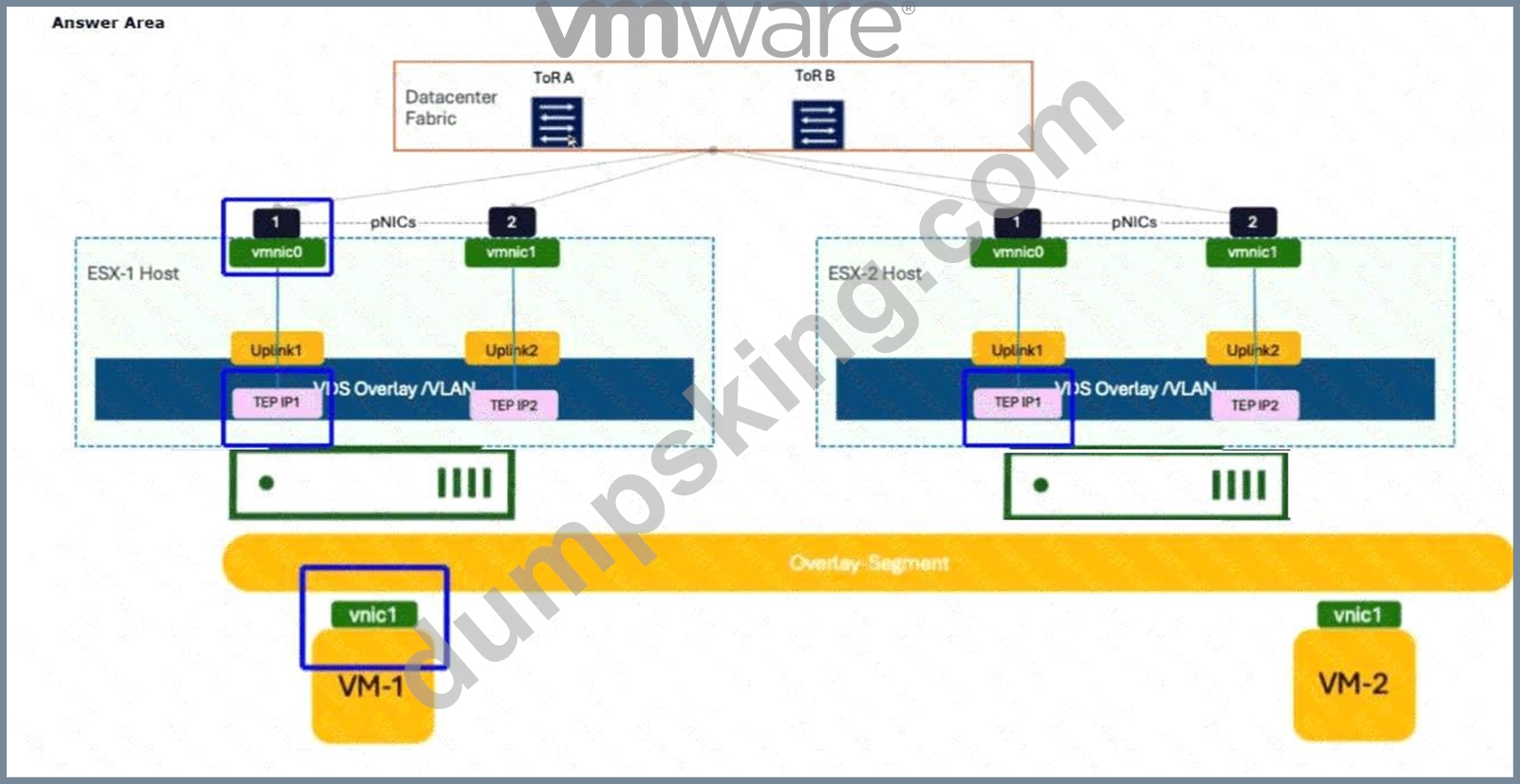

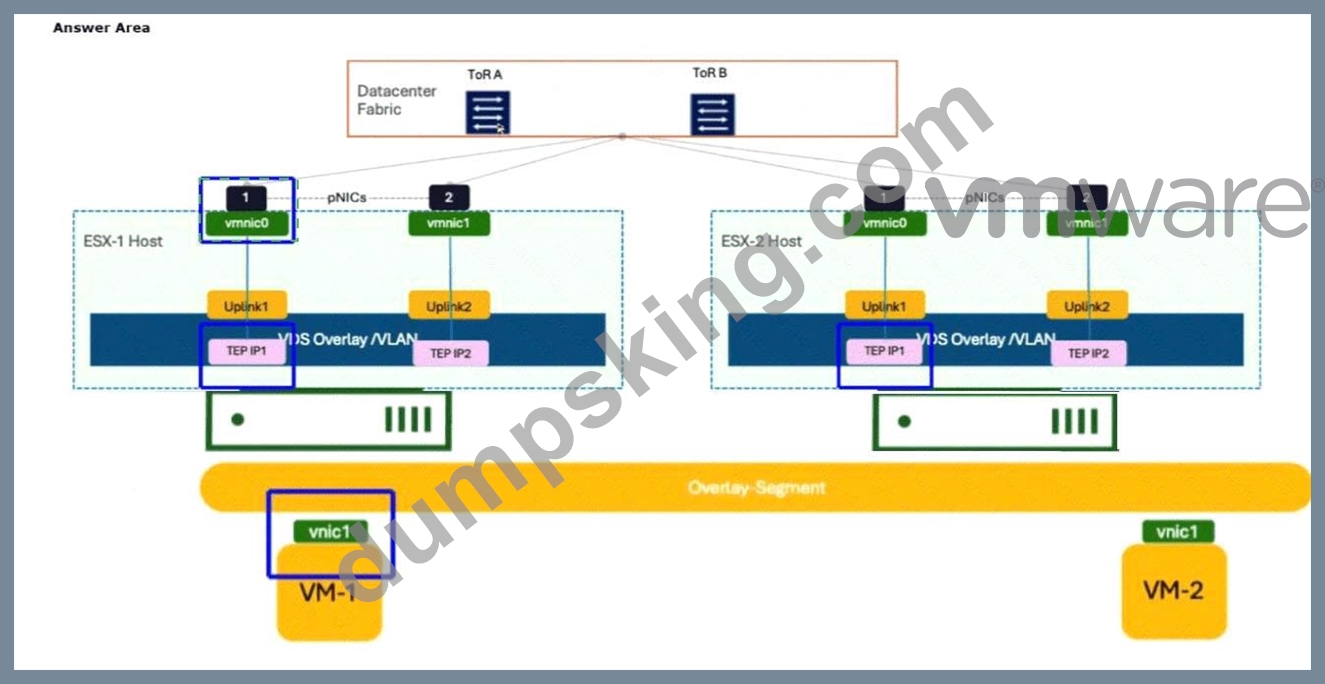

The administrator is working to ascertain the encapsulation of GENEVE by reviewing the capture on Wireshark.
The administrator instructed VM-1 to send a continuous ICMP request directed at VM-2.
Click to highlight where the administrator should observe the GENEVE encapsulated packet.
Answer:
Explanation:
Explanation:
The administrator should click thevmnic0interface on theESX-1 Host.
In aVMware Cloud Foundation (VCF)environment, theGENEVE (Generic Network Virtualization Encapsulation)protocol is the industry-standard tunnel format used by NSX to create an overlay network.
This protocol allows Layer 2 traffic from virtual machines to be "tunneled" over a Layer 3 physical IP fabric, enabling workloads to communicate as if they were on the same segment even when separated by physical routers.
When VM-1 on ESX-1 sends an ICMP request to VM-2 on ESX-2, the packet starts as a standard Ethernet frame at the virtual machine'svnic1. At this stage, the packet contains no encapsulation. As the frame enters theVirtual Distributed Switch (VDS)and hits theTunnel End Point (TEP), the host's kernel performs the encapsulation process. The TEP adds a GENEVE header, a UDP header (port 6081), and an outer IP header.
Thevmnic0(physical NIC) on the source host (ESX-1) is the specific "egress" point where this transformation is complete. A packet capture taken at this physical interface will show the "Outer IP" address of the source TEP and destination TEP, with the original ICMP packet hidden inside the GENEVE payload. If the administrator were to click on the VM's vnic, they would only see standard ICMP. By selecting thevmnic0, the administrator captures the traffic as it is placed onto the physical wire, which is the verified location to troubleshoot MTU issues, encapsulation errors, or physical fabric connectivity in a VCF environment.
NEW QUESTION # 54
An administrator is troubleshooting intermittent connectivity failures between two workloads connected to NSX VLAN segments using Traceflow. In-band Network Telemetry (INT) has been enabled in the NSX Global Configuration. How does Traceflow identify issues in a VLAN network?
Answer: A
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
InVMware Cloud Foundation (VCF)and NSX,Traceflowis a powerful diagnostic tool designed to provide visibility into the logical and physical path of a packet as it traverses the SDDC. Unlike standard ping or traceroute utilities that use real ICMP traffic from the Guest OS, Traceflow operates byinjecting synthetic trafficdirectly into the data plane at the source point (usually the vNIC of a Virtual Machine).
When Traceflow is initiated, the NSX Manager creates a "trace packet" that mimics the characteristics of the traffic being investigated (such as TCP, UDP, or ICMP with specific headers). This synthetic packet is marked with a special metadata tag. As the packet moves through the virtual switches (VDS), logical routers (DR/SR), and distributed firewalls (DFW) on the ESXi Transport Nodes, each component recognizes the tag and reports an "observation" back to theCentral Control Plane (CCP). The CCP then aggregates these observations and presents them in the NSX Manager UI.
ForVLAN-backed segments, Traceflow functions similarly to how it works on Overlay segments. It tracks the packet as it is switched at Layer 2 and processed by any applicable distributed services. The inclusion of In-band Network Telemetry (INT)in modern VCF versions (5.x and 9.0) enhances this by allowing the synthetic packet to collect telemetry data from INT-capable physical switches in the fabric. This provides a
"hop-by-hop" view that includes both the virtual and physical segments of the journey.
Option A is incorrect because Traceflow is not limited to ICMP; it can simulate various protocols. Option C is incorrect as Traceflow fully supports VLAN segments. Option D is incorrect as it describes a state- comparison mechanism rather than the active injection process that defines Traceflow. Therefore, the injection of synthetic traffic to observe data plane behavior via the control plane is the verified mechanism.
NEW QUESTION # 55
......
