| Section | Objectives |
|---|---|
| General & Construction Types | - Construction Classification โ Type IV-A, IV-B, IV-C
|
| Inspection Duties & Documentation | - Statement of Special Inspections - Inspection Reporting and Compliance Verification |
| Fire-Resistance & Protection | - Fire-Resistance-Rated Assemblies - Concealed Spaces Protection - Noncombustible Protection & Encapsulation |
| Structural & Connection Inspection | - Framing and Structural Elements - Connection Design and Protection |
| Construction Fire Safety | |
| Mass Timber Materials | - CLT, Glulam, NLT, SCL and Engineered Wood Products |
>> Valid 93-Tall-Mass-Timber-Buildings Exam Materials <<
In today's competitive technology sector, the International Code Council 93-Tall-Mass-Timber-Buildings certification is a vital credential. Many applicants, however, struggle to obtain up-to-date and genuine International Code Council 93-Tall-Mass-Timber-Buildings exam questions in order to successfully prepare for the exam. If you find yourself in this circumstance, don't worry since UpdateDumps has you covered with their real International Code Council 93-Tall-Mass-Timber-Buildings Exam Questions. Let's look at the characteristics of these International Code Council 93-Tall-Mass-Timber-Buildings test Questions and how they can help you pass the International Code Council 93-Tall-Mass-Timber-Buildings certification exam on the first try.
NEW QUESTION # 46
Disregarding footnotes, which of the following is true regarding fire-resistance ratings of building elements per the International Building Code Table 601?
Answer: B
Explanation:
When the footnotes are disregarded, the fire-resistance ratings assigned to the principal building elements of Type IV-A construction correspond to those of Type I-A construction . Option A is therefore correct.
IBC Table 601 assigns both Type I-A and Type IV-A a 3-hour rating for the primary structural frame , 3 hours for exterior and interior bearing walls, 2 hours for floor construction and associated secondary structural members , and 1ยฝ hours for roof construction and associated secondary structural members
. Interior nonbearing walls and partitions are generally rated zero by Table 601 unless another code provision requires a rating. Exterior nonbearing walls are governed separately based on fire separation distance.
The similarity in Table 601 ratings does not mean Type I-A and Type IV-A are otherwise equivalent construction types. Type I-A relies principally on noncombustible structural construction, whereas Type IV-A permits mass timber subject to the substantial noncombustible protection requirements of Section 602.4.1.
Types II-A, III-A, IV-C, and IV-HT have materially different Table 601 requirements, so options B, C, and D do not provide a complete rating match.
References/Topics: 2021 IBC Section 601 and Table 601; Types I-A and IV-A fire-resistance ratings.
NEW QUESTION # 47
Refer to the exhibit by clicking on the EXHIBIT button above.
In the detail shown, if the connections at the glulam beam and the steel plate required a fire-resistance rating of one (1) hour and the wood cover is designed per AWC Technical Report 10 to provide the entire one (1) hour of protection, the minimum required thickness for the wood block member providing protection for the bolt connections is _____ inches.
Answer: C
Explanation:
The required minimum wood protection thickness is 1.75 inches , making option B correct. AWC Technical Report No. 10 establishes a thermal-separation methodology for protecting steel connectors and fasteners with sacrificial wood cover. Because the question specifies that the wood cover itself must provide the entire 60- minute fire-protection period, the protection thickness must be calculated using the thermal-separation provisions rather than relying on residual fire resistance from the connector or steel plate.
TR10 applies a reduction to the protection contribution of the base wood layer. Its connection examples use the relationship in Section 4.4.1.3, with the required thermal protection time divided by 0.85. For a 60-minute requirement, back-calculating the prescribed nonlinear wood charring equation gives approximately 1.71 inches of required wood thickness. The practical minimum corresponding to the available choices is therefore
1.75 inches.
The principle is critical for special inspection: steel connection components have high thermal conductivity and must remain below the temperature limits assumed by the connection fire design. The inspector must verify actual wood-cover thickness, fastening, continuity, and any gaps before concealment.
References/Topics: AWC Technical Report No. 10, Sections 4.4.1.3 and 4.5; connection thermal separation; wood protection of steel connectors. TR10 demonstrates the same calculation methodology for wood-covered steel connections.
NEW QUESTION # 48

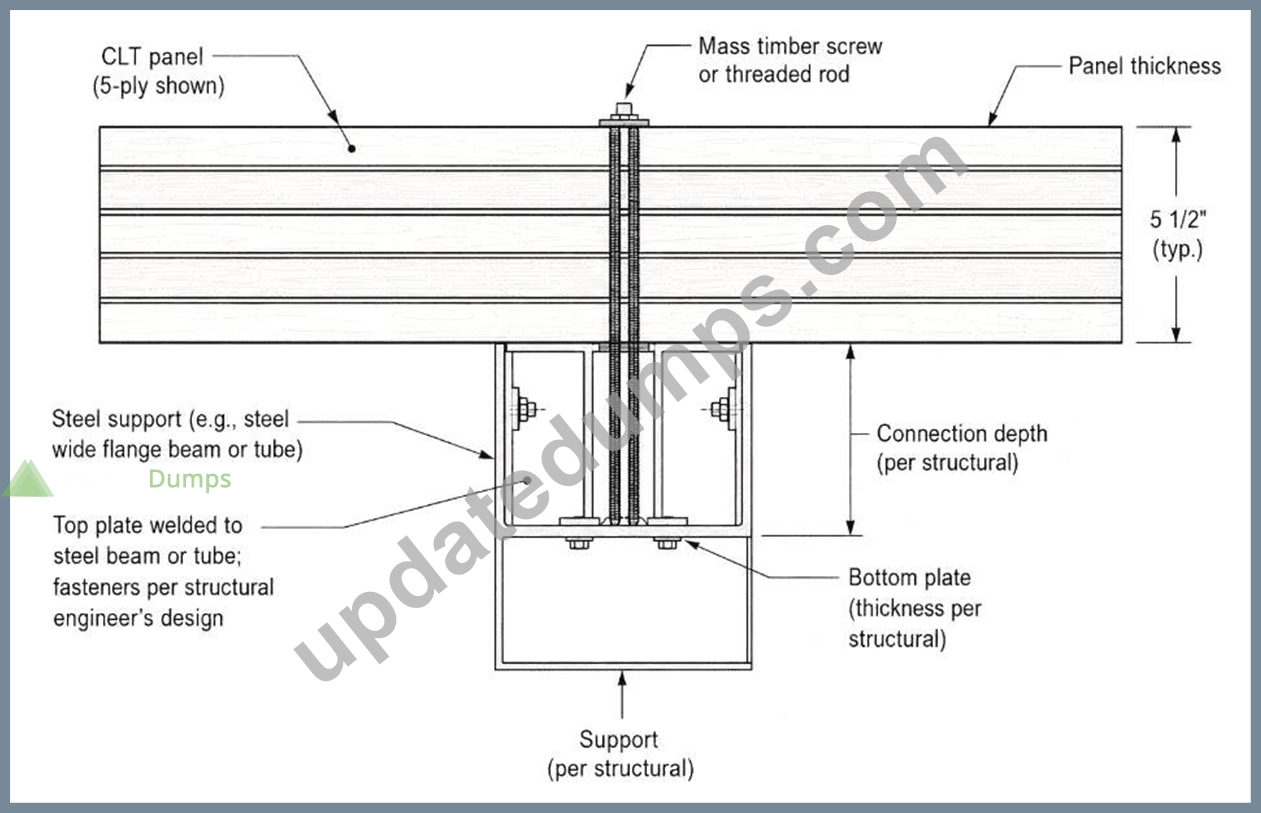

Refer to the exhibit by clicking on the EXHIBIT button above.
If the glulam beam and CLT panels all require a fire-resistance rating of 2 hours, what is the required fire- resistance rating in hours for the structural connections between the glulam and CLT?
Answer: A
Explanation:
The structural connections must maintain a fire-resistance rating corresponding to the required rating of the structural elements they connect. Because both the glulam beam and CLT panels require a two-hour fire- resistance rating, their connections must also provide two hours of fire resistance. Therefore, option C is correct.
Concealing steel hardware inside a timber member does not eliminate the fire-resistance requirement. Steel rapidly conducts heat and can lose strength, while timber surrounding a concealed connector can char, split, or withdraw from fasteners. The connection must consequently be protected through sufficient wood cover, noncombustible protection, tested assemblies, or an approved engineering analysis demonstrating acceptable connection temperatures and capacity for the entire required duration.
A three-hour rating is not required merely as a generalized safety factor; the code requires correspondence with the connected elements unless the approved design establishes another condition. A one-hour connection would create a premature weak point in the load path, and a zero-hour rating would be unacceptable simply because the hardware is hidden.
References/Topics: 2021 IBC Section 2304.10.1; fire-resistance rating of mass timber connections; protected concealed steel hardware.
NEW QUESTION # 49
The maximum allowable height for a Group E building of Type IV-A construction with an automatic sprinkler system in accordance with Section 903.3.1.1 is _____ stories.
Answer: C
Explanation:
The controlling provision is 2021 IBC Section 504.4 and Table 504.4, which establish the allowable number of stories above grade plane according to occupancy classification, construction type, and sprinkler protection.
The question identifies three controlling variables: Group E occupancy, Type IV-A construction, and an NFPA 13 automatic sprinkler system installed in accordance with Section 903.3.1.1.
In the Group E row, the sprinklered "S" value for Type IV-A construction is nine stories above grade plane.
Therefore, option D is correct. The three-story value applies to the nonsprinklered Type IV-A condition and must not be used because the question expressly states that the building is sprinklered. The six-story value corresponds to Type IV-B construction under the same sprinklered Group E condition, while the four-story value-although not listed as an answer-would apply to Type IV-C.
The special inspector should distinguish the story limitation in Table 504.4 from the separate building-height- in-feet limitation in Table 504.3. Both requirements apply concurrently; compliance with one does not permit the other to be exceeded.
References/Topics: 2021 IBC Section 504.4; Table 504.4, Group E, sprinklered Type IV-A construction; Section 903.3.1.1.
NEW QUESTION # 50
Which of the following best describes circumstances for which a separate inspection by a building official would be required for the fire protection of structural connections in buildings of Type IV-B construction?
Answer: C
Explanation:
A separate inspection by the building official is required where the fire resistance of a structural connection in Type IV-A, IV-B, or IV-C construction is provided by wood cover calculated in accordance with Section
2304.10.1. Therefore, option C is correct.
The required inspection occurs after the calculated wood cover has been installed but before additional coverings or finishes conceal the connection. This sequencing allows the building official to verify the actual cover thickness, geometry, continuity, fit, fastening, and correspondence with the approved fire-resistance design.
The requirement is distinct from routine Chapter 17 special inspection. Although a qualified special inspector may observe connection installation and mass timber erection, Section 110.3.5 expressly identifies a required building-department inspection for this calculated wood-cover condition. The inspection cannot be bypassed merely because the connection was observed during structural installation.
A rated joint system under Section 715 is governed by its tested or listed assembly requirements but is not the circumstance identified by this specific inspection provision. The other options do not state the code trigger.
Inspectors should therefore coordinate notification before the connection is enclosed because subsequent destructive exposure may otherwise be necessary.
References/Topics: 2021 IBC Sections 110.3.5 and 2304.10.1; inspection of calculated wood cover protecting mass timber connections.
