Cisco 300-515 Exam Syllabus Topics:

Section	Objectives
Advanced VPN Technologies	- Inter-AS VPN architectures - Segment routing integration with VPNs - Multicast VPN (MVPN)
MPLS VPN Services Implementation	- L3VPN configuration 1. PE-CE routing protocols 2. MP-BGP for VPNv4 routes - L2VPN services 1. VPWS and VPLS concepts 2. EVC-based services
VPN Fundamentals in Service Provider Networks	- MPLS VPN architecture 1. VRF concepts and implementation 2. Route distinguisher and route target usage - VPN models 1. Layer 2 VPN basics 2. Layer 3 VPN basics
Service Provider VPN Operations	- Troubleshooting VPN connectivity - QoS in MPLS VPN environments - Performance and scalability considerations

>> 300-515 Study Materials <<

300-515 Questions Exam | 300-515 Reliable Dumps Sheet

No doubt the Implementing Cisco Service Provider VPN Services (300-515) certification is one of the most challenging certification exams in the market. This Cisco 300-515 certification exam gives always a tough time to Implementing Cisco Service Provider VPN Services (300-515) exam candidates. The PracticeVCE understands this hurdle and offers recommended and real Cisco 300-515 exam practice questions in three different formats.

Cisco Implementing Cisco Service Provider VPN Services Sample Questions (Q98-Q103):

NEW QUESTION # 98
SIMULATION 2
Guidelines
This is a lab item in which tasks will be performed on virtual devices.
Refer to the Tasks tab to view the tasks for this lab item

Refer to the Topology tab to access the device console(s) and perform the tasks.

Console access is available for all required devices by clicking the device icon or using the

tab(s) above the console window.
All necessary pre-configurations have been applied.

Do not remove any existing configurations from the devices, only those necessary to make the

appropriate changes required to fulfill the listed tasks.
Do not change the enable password or hostname for any device.

Save your configurations to NVRAM before moving to the next item.

Click Next at the bottom of the screen to submit this lab and move to the next question.

When Next is clicked, the lab closes and cannot be reopened.

Tasks
CE1 and CE2 are IPv6 Customer Premise Equipment of two customers that communicate with each other through the MPLS L3VPN core comprising Provide Edge PE1, PE2, and route- reflector RR.
Perform the below configuration and verification tasks as noted.
1. Modify the PEs to allow the CEs to communicate with each other over their Loopback 0 addresses.
2. Modify PE1 to receive CE2's loopback1 address and advertise to CE1.
Initial configuration with IPv6 addressing has been completed. Do not change the configurations except to fulfill the abovementioned tasks. Apply the solution with the minimum configuration.
Topology

PE1

CE1

CE2

Answer:

Explanation:

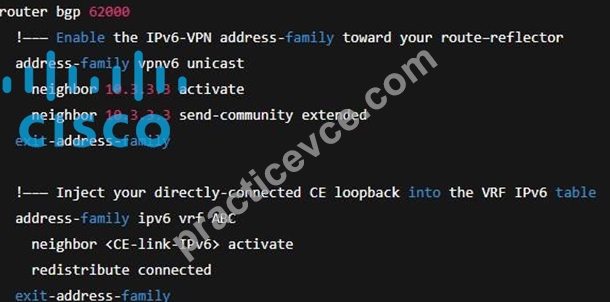

On PE1 and PE2:

1. Under address-family vpnv6
neighbor 10.3.3.3 activate

Brings up the MP-BGP session to RR for IPv6 routes.
neighbor 10.3.3.3 send-community extended

Ensures the Route Distinguisher/RT are carried so remote PEs know which VRF to install these routes into.
2. Under address-family ipv6 vrf ABC
neighbor <CE-link-IPv6> activate

(If not already present) activates the PE-CE IPv6 BGP neighbor so the PE will receive the CE's Loopback-0/32.
redistribute connected

Picks up the CE's directly-connected loopback subnet on the PE and advertises it into the MP- BGP IPv6-VPN (vpnv6) table.

NEW QUESTION # 99
In Layer 3 MPLS VPN implementations, if some of the VPNv4 routes on one PE router do not appear on another PE router, what could be the problem?

A. RT export and import configuration errors
B. RD mismatch between the PE routers
C. VRF name mismatch between the PE routers
D. RD export and import configuration errors

Answer: A

NEW QUESTION # 100
Which condition about MPLS-based IP VPNs must a network architect consider when developing a network solution for customers who run different routing protocols in their LANs?

A. If the PE-CE routing protocol is BGP, redistribution of local VPN routes into MP-IBGP is required on the CE router.
B. If the PE router is configured with BGP and the CE router is configured with RIP, the asoverride attribute must be configured on the PE router.
C. If the PE-CE routing protocol is any protocol other than BGP, redistribution of local VPN routes into MP-IBGP is required on the PE router.
D. If the BGP routing protocol is used between the PE and the CE, the asoverride attribute must be configured on the CE router.

Answer: C

Explanation:
In an MPLS IP-VPN, routes learned from a CE via OSPF, EIGRP, RIP, or static must be redistributed by the PE into the MP-iBGP address family so they can be carried across the backbone to remote PEs. When PE-CE runs BGP, that BGP session itself carries the VPN routes into MP-iBGP and no additional redistribution is required.

NEW QUESTION # 101
How does an EVPN manage data plane learning?

A. When a C-MAC moves within the EVPN service, the PE router relearns its new B-MAC after a defined timer expires.
B. When the core device learns the MAC address of a remote site, it also learns the Ethernet bundle MAC address for the customer VLAN.
C. When remote PEs in the core network receive label-encapsulated traffic, they learn the destination IP address.
D. When customer traffic arrives at the PE router, the MAC table learns the source C-MACs.

Answer: D

Explanation:
In EVPN, data plane MAC learning occurs when customer frames arrive at the PE. The PE inspects the source MAC (C-MAC) of the incoming frame and installs it in its MAC-VRF table.
This enables proper forwarding within the EVPN service, complementing the control-plane MAC learning done via BGP.

NEW QUESTION # 102
Which two BGP attributes prevent loops in a route reflector environment? (Choose two.)

A. AS_PATH
B. local preference
C. cluster ID
D. originator ID
E. origin

Answer: C,D

Explanation:
Reference:
https://www.ciscopress.com/articles/article.asp?p=2756480&seqNum=10

NEW QUESTION # 103
......
