In today's society, the number of college students has grown rapidly. Everyone has their own characteristics. How do you stand out? Obtaining NSE7_FSN_AR-7.6 certification is a very good choice. Our NSE7_FSN_AR-7.6 study materials can help you pass test faster. You can take advantage of the certification. Many people improve their ability to perform more efficiently in their daily work with the help of our NSE7_FSN_AR-7.6 Exam Questions and you can be as good as they are.
| Section | Weight | Objectives |
|---|---|---|
| High Availability & Redundancy | 15% | - Cross-data center redundancy - Session synchronization & failover - FGCP/FGSP/vCluster deployment |
| Security Policy & Services | 10% | - Identity-based policies - Advanced firewall & security profile design - NAT & IP pool optimization |
| Monitoring & Troubleshooting | 10% | - Connectivity & performance troubleshooting - Fabric synchronization issues - Diagnostic tools & CLI analysis |
| Advanced Routing & VPN | 25% | - Route redistribution & filtering - OSPF, BGP, IS-IS configuration & optimization - IPsec VPN & ADVPN architecture - SD-WAN design & SLA management |
| Centralized Management | 20% | - FortiManager 7.6 deployment & role assignment - FortiAnalyzer logging & reporting - Policy packages & object templates - Configuration provisioning & version control |
| System Architecture & Design | 20% | - Hardware sizing & resource planning - FortiOS 7.6 architecture & components - VDOM design & multi-tenant deployment - Security Fabric integration & scaling |
>> NSE7_FSN_AR-7.6 Certification Sample Questions <<
Test4Engine provides a clear and superior solutions for each Fortinet NSE7_FSN_AR-7.6 Exam candidates. We provide you with the Fortinet NSE7_FSN_AR-7.6 exam questions and answers. Our team of IT experts is the most experienced and qualified. Our test questions and the answer is almost like the real exam. This is really amazing. More importantly, the examination pass rate of Test4Engine is highest in the worldwide.
NEW QUESTION # 68
In which two ways does FortiGate utilize the Internet Service Database (ISDB) within firewall policies and SD-WAN rules? (Choose two.)
Answer: A,D
Explanation:
Comprehensive and Detailed 100 to 150 words of Explanation From Secure Networking Architect Study Guides topics:
ISDB provides FortiGate with FortiGuard-maintained definitions of well-known internet services. These definitions associate services and applications with the IP address ranges, protocols, and ports required to identify their traffic. Administrators can reference ISDB objects directly in firewall policies instead of manually maintaining changing address and service definitions, supporting actions such as allowing or blocking traffic. Thus, C and D describe valid uses.
ISDB information can also be referenced by SD-WAN routing and steering decisions. It is not a URL/domain categorization mechanism; that functionality belongs primarily to web filtering, eliminating A. ISDB is also not restricted to proxy inspection mode. Its matching information participates in firewall-policy and routing
/SD-WAN processing using network and service attributes, eliminating B. FortiGuard updates keep the predefined internet-service definitions current.
NEW QUESTION # 69
Refer to the exhibit.

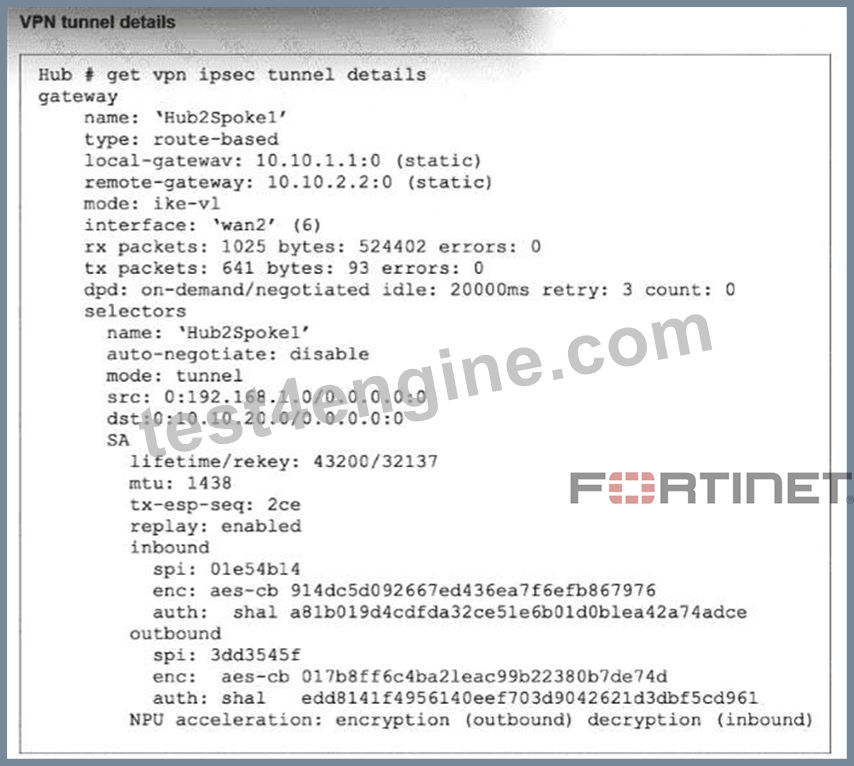

Partial output of the get vpn ipsec tunnel details command is shown. Based on the output, which two statements are correct? (Choose two.)
Answer: B,C
Explanation:
The correct answers are C and D.
The study guide's get vpn ipsec tunnel details example shows:
replay: enabled
inbound and outbound sections with separate SPIs
NPU acceleration: encryption(outbound) decryption(inbound)and it labels these as "Phase 2 SAs for each direction" and "Hardware acceleration" This directly proves D. Anti-replay is enabled, because the output explicitly says replay: enabled For the NPU status, the study guide explains the exact npu_flag meanings:
npu_flag=00 = both IPsec SAs loaded to the kernel
npu_flag=01 = outbound IPsec SA copied to NPU
npu_flag=02 = inbound IPsec SA copied to NPU
npu_flag=03 = both outbound and inbound IPsec SAs copied to NPU
Because the exhibit shows hardware acceleration in both directions - encryption(outbound) and decryption (inbound) - the matching npu_flag is 03, not 02. That makes C correct and A incorrect.
Why B is wrong:
The same study guide output labels the tunnel as having Phase 2 SAs for each direction, so different inbound and outbound SPIs are normal for the two SAs. Also, the FortiOS administration guide explains that auto- negotiate controls whether phase 2 SA negotiation is initiated automatically, not whether inbound and outbound SPIs are different: "By default the phase 2 security association (SA) is not negotiated until a peer attempts to send data... Auto-negotiate initiates the phase 2 SA negotiation automatically..." So the verified answers are: C, D.
NEW QUESTION # 70
Refer to the exhibits.

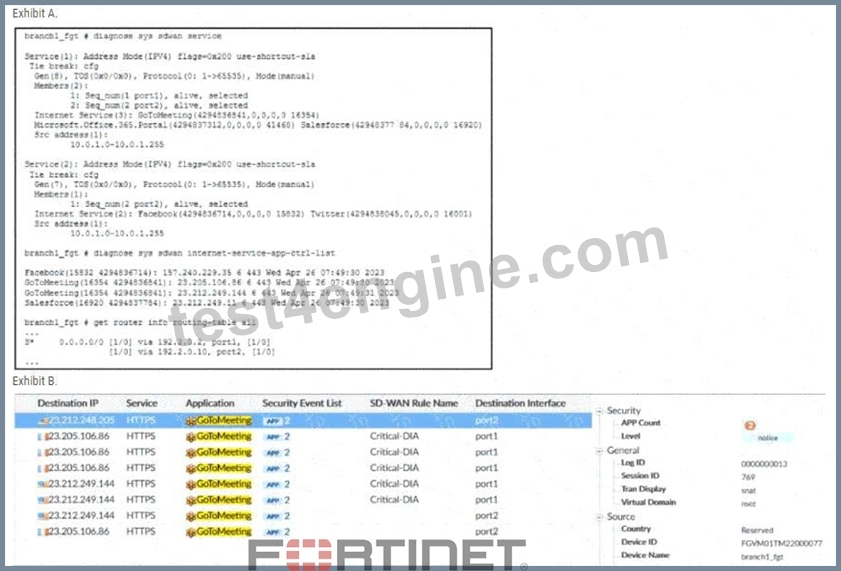

An administrator is testing application steering in SD-WAN. Before generating test traffic, the administrator collected the SD-WAN service and ISDB application-cache information shown in the first exhibit. After generating GoToMeeting test traffic, the administrator examined the corresponding traffic logs on FortiAnalyzer.
The administrator noticed that some traffic matched the implicit SD-WAN rule, but expected the traffic to match rule ID 1.
Which two reasons explain why some log messages show that the traffic matched the implicit SD-WAN rule?
(Choose two.)
Answer: A,B
Explanation:
Comprehensive and Detailed 100 to 150 words of Explanation From Secure Networking Architect Study Guides topics:
Application-based SD-WAN steering depends on FortiGate being able to associate the new session with an already identified application. The SD-WAN 7.6 guide explains that the ISDB application cache contains an application ID, ISDB application ID, and 3-tuple, and FortiGate uses these values when matching an SD- WAN rule. If the new session ' s 3-tuple is absent from the cache, FortiGate cannot initially identify it as GoToMeeting for rule 1, so normal processing can select the implicit rule.
Application identification can occur only after traffic has already entered the session. That identification does not retroactively change the initial routing decision for packets already associated with the session.
GoToMeeting belongs to the Collaboration criteria shown for rule 1, so A is false. Full SSL inspection is not intrinsically required for this SD-WAN application-cache mechanism, eliminating D.
NEW QUESTION # 71
Refer to the exhibit.
Which route will traffic take to get to the 100.65.0.0/24 network considering the routes are all configured with the same distance?
Answer: C
Explanation:
To determine the path the traffic will take, we must look at the FortiGate Route Lookup Precedence (Packet Processing Flow) and the specific configurations shown in the exhibit Analyze the Routing Precedence:
In FortiOS, when a packet arrives (and is not part of an existing session), the FortiGate performs route lookups in a specific order:
Policy Routes: Configured under config router policy (or diagnose firewall proute list). These are checked first. If a packet matches the criteria (Source, Destination, Protocol, Incoming Interface), the Policy Route is used immediately, bypassing the standard routing table.
FIB (Forwarding Information Base): If no Policy Route matches, the device looks at the standard routing table (Static, Connected, Dynamic).
Analyze the Exhibit:

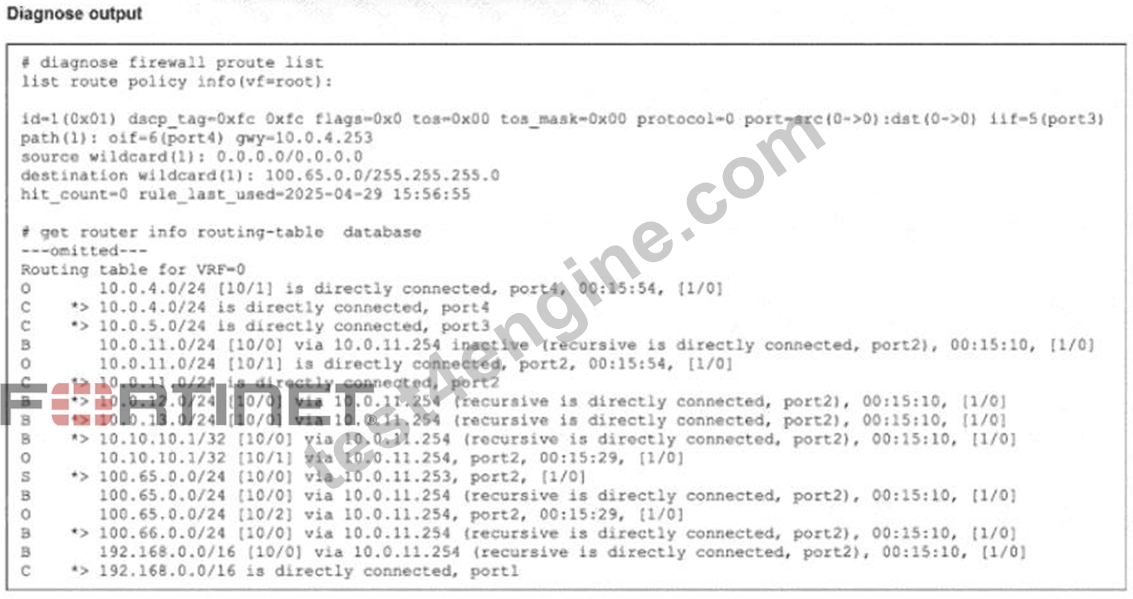

Policy Route Section: The output of diagnose firewall proute list shows an active policy route (id=1).
Destination: 100.65.0.0/255.255.255.0 (Matches the network in the question).
Action: It directs traffic to gateway 10.0.4.253 via oif=6(port4).
Routing Table Section: The output of get router info routing-table database shows multiple routes for
100.65.0.0/24 (Static, OSPF, BGP) all with distance 10. The Static route (S) is currently selected (* > ) in the FIB.
Conclusion:
Because Policy Routes take precedence over the standard routing table (FIB), the FortiGate will forward the traffic using the instructions in Policy Route ID 1. It will not use the Static, BGP, or OSPF routes visible in the routing table for any traffic that matches the policy route ' s criteria (ingress port 3).
Reference:
FortiGate Security 7.6 Study Guide (Routing): " Policy routes take precedence over entries in the routing table. If a packet matches a policy route, the FortiGate routes the packet according to the specified interface and gateway. "
NEW QUESTION # 72
You must use FortiManager to standardize the deployment of the same FortiGate model across multiple branches with consistent interface roles and policy packages.
In this scenario, what is the recommended best practice for interface assignment?
Answer: C
Explanation:
Comprehensive and Detailed 100 to 150 words of Explanation From Secure Networking Architect Study Guides topics:
FortiManager normalized interfaces are specifically designed for sharing policy packages across multiple FortiGate devices whose physical interface names or layouts may differ. The FortiManager 7.6 guide states that interfaces can be mapped per device, per platform, or by both methods. Default normalized interfaces already include per-platform mapping rules covering FortiGate models.
For a deployment using the same FortiGate model with consistent interface roles, a per-platform normalized- interface mapping is therefore the appropriate scalable design. When FortiManager installs the policy package, it translates the normalized interface into the corresponding physical interface on each target FortiGate. CLI scripts are unnecessary for normal policy interface assignment. Metadata variables provide device-specific values but are not the primary mechanism for policy interface mapping. The Install On setting controls policy installation targets; it does not perform interface-role mapping.
NEW QUESTION # 73
......
Our NSE7_FSN_AR-7.6 exam cram has been revised for lots of times to ensure all candidates can easily understand all knowledge parts. In the meantime, the learning process is recorded clearly in the system, which helps you adjust your learning plan. On the one hand, our company has benefited a lot from renovation. Customers are more likely to choose our products. On the other hand, the money we have invested is meaningful, which helps to renovate new learning style of the NSE7_FSN_AR-7.6 Exam. So, why not buy our NSE7_FSN_AR-7.6 test guide?
Test NSE7_FSN_AR-7.6 Answers: https://www.test4engine.com/NSE7_FSN_AR-7.6_exam-latest-braindumps.html
