当社Topexamは、製品の品質が非常に重要であることを深く知っているため、JN0-352テストトレントの高品質の開発に注力しています。当社の製品を購入したすべてのお客様は、JN0-352ガイド急流に深い印象を残しています。もちろん、顧客は製品の高品質だけでなく、製品の効率性にも深い印象を残しています。 JN0-352試験の質問は多くの時間を節約するのに役立ちます。JN0-352試験準備を使用する場合、学習に20〜30時間を費やすだけで、JN0-352試験に合格できます。
| Section | Weight | Objectives |
|---|---|---|
| Protocol Independent Routing | 10-15% | - Routing instances and route selection criteria - Basic routing policy and filter operation - Routing tables, static routes and route preference |
| Tunnels and Overlays | 5-10% | - GRE, IP-IP and dynamic tunnel configuration - Tunnel types, encapsulation and operation - Overlay network design and connectivity |
| BGP | 15-20% | - Routing policies, filtering and common troubleshooting - Neighbor relationships and session establishment - Route advertisement, attributes and path selection |
| IP Multicast | 5-10% | - PIM Dense Mode, Sparse Mode and RP mechanisms - IGMP operation and configuration - Multicast routing monitoring and troubleshooting |
| IS-IS | 10-15% | - Scalable enterprise deployment and troubleshooting - Adjacency establishment, levels and metrics - Configuration and route exchange |
| Layer 2 Switching and VLANs | 15-20% | - VLAN concepts, configuration, trunking and tagging - Link Aggregation Groups (LAG) and Virtual Chassis - Spanning Tree Protocol (STP, RSTP, MSTP) operation and configuration |
| High Availability and Resiliency | 5-10% | - Redundancy protocols and failover mechanisms - Network resiliency design and troubleshooting - Graceful restart and non-stop routing |
| OSPF | 15-20% | - Configuration, verification and troubleshooting - Neighbor formation, area design and LSA types - Route summarization and redistribution |
| Layer 2 Security | 10-15% | - DHCP snooping, Dynamic ARP Inspection and IP Source Guard - Port security, MAC limiting and storm control - Layer 2 firewall filters and security features |
我々Topexamが数年以来商品の開発をしている目的はIT業界でよく発展したい人にJuniperのJN0-352試験に合格させることです。JuniperのJN0-352試験のための資料がたくさんありますが、Topexamの提供するのは一番信頼できます。我々の提供するソフトを利用する人のほとんどは順調にJuniperのJN0-352試験に合格しました。その中の一部は暇な時間だけでJuniperのJN0-352試験を準備します。
質問 # 148

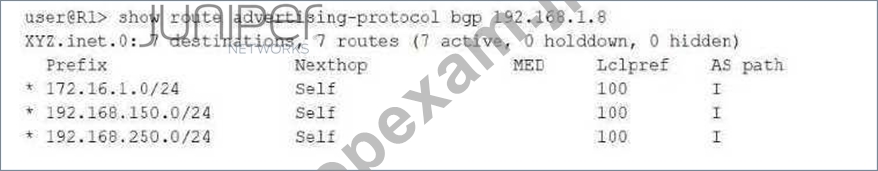

Click the Exhibit button. Which three statements about this BGP session are correct? (Choose three.)
正解：A、C、E
解説：
The show route advertising-protocol bgp command displays exactly what would be transmitted to a specific BGP neighbor after all configured export routing policy has already been evaluated and applied, meaning any prefixes shown in this output have successfully passed through the export policy chain -- confirming the export routing policy has been processed. The command header explicitly states '7 destinations, 7 routes (7 active, ...)' and every listed prefix is preceded by an asterisk, Junos's standard marker for an active route, confirming all seven displayed routes are active in the local routing table. The routing table name shown, XYZ.inet.0, indicates these routes reside in a named routing instance called XYZ rather than the default master routing instance, whose table would instead be labeled simply inet.0; this rules out the statement claiming the routes belong to the default instance. The AS path column shows only the origin code 'I' (IGP) with no AS numbers prepended ahead of it, meaning the AS path is empty, which indicates these prefixes were originated locally within R1's own AS (through redistribution or local origination) rather than having been learned from and passed through an external AS, ruling out that statement as well. Finally, the Nexthop column explicitly shows 'Self' for every route rather than an actual peer or learned address, confirming R1 is rewriting the next-hop attribute to its own address before advertising -- a deliberate next-hop-self policy action typically applied toward IBGP peers.
質問 # 149

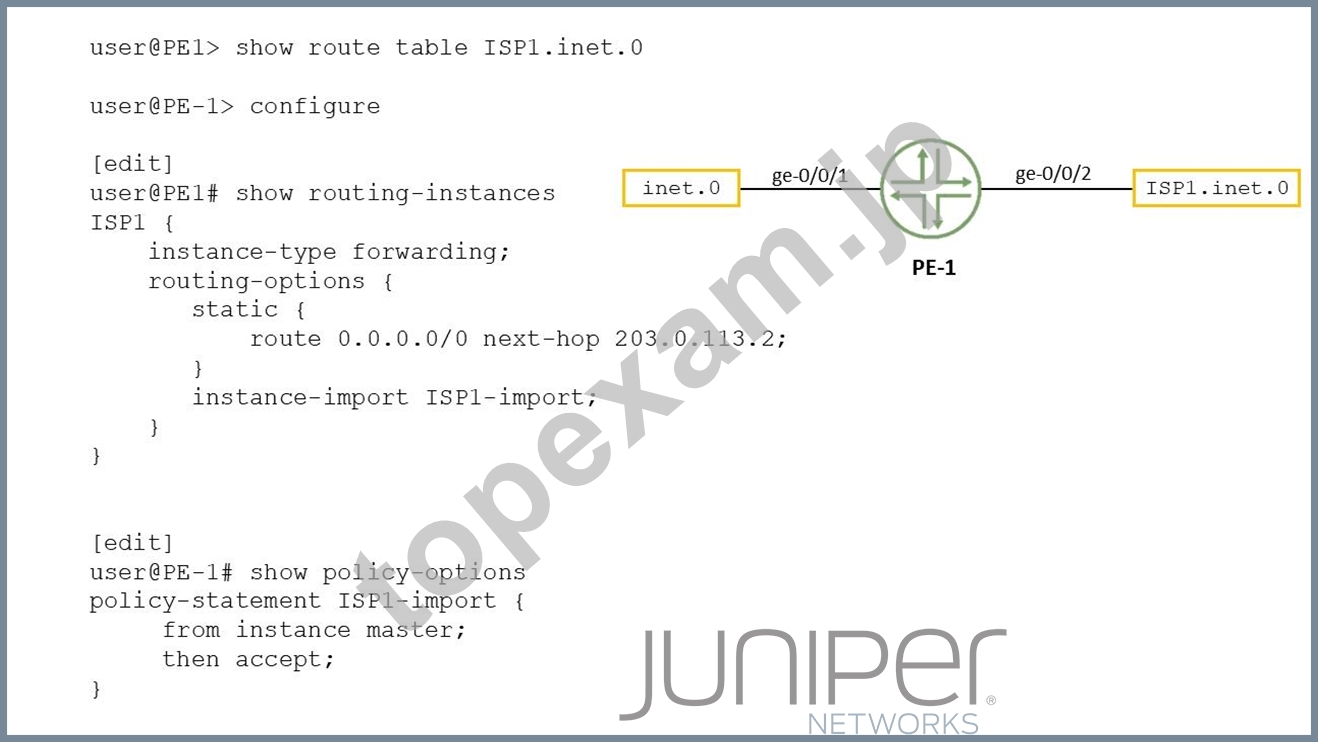

The ISP1.inet.0 route table has currently no routes in it.
What will happen when you commit the configuration shown on the exhibit?
正解：C
解説：
The configuration shown in the exhibit is an example of a routing instance of type virtual-router. A routing instance is a collection of routing tables, interfaces, and routing protocol parameters that create a separate routing domain on a Juniper device. A virtual-router routing instance allows administrators to divide a device into multiple independent virtual routers, each with its own routing table.
The configuration also includes a rib-group statement, which is used to import routes from one routing table to another. A rib-group consists of an import-rib statement, which specifies the source routing table, and an export-rib statement, which specifies the destination routing table. In this case, the rib-group name is inet-to-ispi, and the import-rib statement specifies inet.0 as the source routing table. The export-rib statement specifies ispi.inet.0 as the destination routing table.
This means that the routes from inet.0 will be imported into ispi.inet.0.
質問 # 150
Which statement describes how Rapid Spanning Tree Protocol (RSTP) identifies an alternate port?
正解：C
解説：
RSTP, as defined in IEEE 802.1w, introduces explicit, well-defined port roles that go beyond legacy 802.1D STP's simpler root/designated/blocking model, and the alternate port role is one of RSTP's key refinements.
An alternate port is a port that receives BPDUs from a bridge other than the one through which the local switch's actual root port reaches the root bridge - in other words, it represents a second, redundant path toward the root bridge learned from a different upstream bridge than the one currently providing the best (root port) path. Because the existing root port already provides the lowest-cost, actively used path to the root, the alternate port is deliberately held in the discarding (non-forwarding) state during normal, stable operation, functioning purely as a pre-computed, ready-to-use backup; critically, RSTP's major performance advantage over legacy STP is that if the current root port fails, the switch can transition its alternate port directly and almost instantly into the forwarding root port role without needing to pass through the lengthy listening and learning timer-based states that classic STP required, since the alternate port's suitability as a backup was already continuously verified through ongoing BPDU reception. It is not simply 'not receiving BPDUs' (an alternate port receives BPDUs continuously, just inferior ones relative to the current root port), it is not itself the least-cost path (that describes the root port), and it does not forward based on designated-port overload, which is not a concept that exists in RSTP's port-role logic at all. Reference topics: Junos Enterprise Switching - Spanning Tree Protocols, RSTP Port Roles: Alternate and Backup Ports.
質問 # 151
Referring to the exhibit, what will be the IS-IS adjacency result of the configurations?
正解：C
質問 # 152
You are deploying a trunk port with multiple VLANs. In this scenario, which statement is true about the native VLAN?
正解：A
質問 # 153
......
他人の気付いていないときに、だんだんJuniperのJN0-352試験成功したいのですか？我が社はIT資格認証試験資料の販売者として、いつまでもできご客様に相応しく信頼できるJN0-352問題集を提供できます。あなたのすべての需要を満たすためには、一緒に努力します。躊躇われずに我々の模試験を利用してみてください。全力を尽くせば、JN0-352試験の合格も可能となります。
