| Section | Objectives |
|---|---|
| Topic 1: Construction Fire Safety | - Construction-phase fire safety requirements - Protection of mass timber during construction - International Fire Code requirements |
| Topic 2: Special Inspection Requirements | - Inspection of connections and protective materials - Special inspection procedures for tall mass timber buildings - Inspector duties and responsibilities |
| Topic 3: Fire Protection and Fire-Resistance | - Fire-resistance requirements - Fire protection systems and related provisions - Noncombustible protection and protection of mass timber elements |
| Topic 4: Structural Inspection | - Structural loads and related code requirements - Mass timber structural elements - Connections and fastening systems |
| Topic 5: Code Compliance and Related Requirements | - Documentation and verification of compliance - Sound transmission requirements - Energy code requirements applicable to mass timber buildings |
| Topic 6: Tall Mass Timber Building Code Provisions | - Mass timber materials and construction requirements - Types IV-A, IV-B and IV-C construction - International Building Code requirements for tall mass timber construction |
>> Reliable 93-Tall-Mass-Timber-Buildings Exam Guide <<
We have brought in an experienced team of experts to develop our 93-Tall-Mass-Timber-Buildings study materials, which are close to the exam syllabus. With the help of our 93-Tall-Mass-Timber-Buildings study materials, you don't have to search all kinds of data, because our products are enough to meet your needs. You also don't have to spend all your energy to the exam because our 93-Tall-Mass-Timber-Buildings Study Materials are very efficient. Only should you spend a little time practicing them can you pass the exam successfully.
NEW QUESTION # 67
The building owner shall be responsible for each of the following for fire safety during construction except:
Answer: A
Explanation:
Option C is not an IFC requirement. The 2021 IFC requires inspection records to be maintained on-site, but it does not require those records to be secured in a fire- and water-resistant safe.
Section 3303.2 requires the owner to designate a site safety director. Section 3303.3 then makes that director responsible for completing a daily fire safety inspection of the project site. Every day, building and outdoor construction areas must be evaluated against the prescribed fire-safety inspection items.
The results of each inspection must be documented and retained on-site until a certificate of occupancy has been issued . The records must also be immediately available at the site for presentation to the fire code official upon request. Options A, B, and D therefore accurately reflect the code requirements.
The daily inspection program covers practical hazards such as hot work, temporary heating, combustible debris, temporary electrical wiring, hazardous-material storage, fire apparatus access, hydrants, fire department connections, standpipe availability, and portable extinguishers.
For tall mass timber projects, this documentation is particularly important because substantial combustible construction may be present before permanent fire protection systems are complete.
References/Topics: 2021 IFC Sections 3303.2 and 3303.3; site safety director; daily fire-safety inspection and documentation.
NEW QUESTION # 68
In mass timber construction of Type IV-C, the fire-resistance ratings of bearing walls are permitted to be reduced by _____ where supporting a roof only.
Answer: B
Explanation:
IBC Table 601, Footnote "a," permits a one-hour reduction in the required fire-resistance rating of the primary structural frame and bearing walls where those elements support a roof only. Option C is therefore correct.
For Type IV-C construction, the normal Table 601 requirement for bearing walls is two hours. Where a bearing wall qualifies as supporting only roof construction, application of the footnote permits that rating to be reduced from two hours to one hour.
The limitation "supporting a roof only" is critical. The reduction cannot be applied simply because a wall is located at the uppermost occupied level. If the wall carries a floor, mezzanine, transfer load, occupied rooftop structure, or another structural element beyond qualifying roof construction, the condition for the reduction is not satisfied.
Options A and B are not reductions prescribed by Table 601. Option D would effectively eliminate the entire normal two-hour Type IV-C bearing-wall rating, which the footnote does not permit.
For inspection purposes, the approved construction documents and structural load path must substantiate use of the reduction. The fire-protection installation should then be checked against the actual reduced rating specifically authorized by the design.
References/Topics: 2021 IBC Table 601, Footnote "a"; Type IV-C bearing walls supporting roof construction only.
NEW QUESTION # 69
A proprietary field-glued mass timber beam splice will require which of the following:
Answer: B
Explanation:
A proprietary field-glued mass timber beam splice requires special inspection because the connection relies on a field-applied adhesive process that is not covered as a routine prescriptive mass timber connection in Table
1705.5.3. The controlling mechanism is IBC Section 1705.1.1, which authorizes the building official to require special inspection for unusual materials, systems, or installation procedures, particularly where compliance depends on additional manufacturer installation instructions.
The ICC code-development rationale for the tall mass timber provisions specifically identifies field-glued mass timber beam or panel splices as an example of work for which special inspection can be required.
Inspection must address the approved evaluation report and manufacturer's instructions, including substrate preparation, moisture and temperature limits, adhesive storage and expiration, mixing or proportioning, application quantity, open time, member alignment, clamping or pressure, and curing conditions.
Approval by the permit applicant has no regulatory significance. Verification by the registered design professional may supplement the inspection program but does not replace the approved special inspector. A building official may observe the work, but routine field verification by that official is not the prescribed quality-control procedure.
References/Topics: 2021 IBC Sections 1704.2, 1704.3 and 1705.1.1; special cases; proprietary field-glued mass timber splices.
NEW QUESTION # 70
The fire-resistance of a protected mass timber assembly is equivalent to the fire resistance time of the:
Answer: C
Explanation:
The fire resistance of a protected mass timber element is determined by adding the inherent fire resistance of the mass timber to the protection time contributed by the approved noncombustible protection. Therefore, option D is correct.
The mass timber component provides structural endurance through its large cross section and predictable charring behavior. The noncombustible protection delays heating, ignition, and charring of the protected timber surfaces. Its contribution may be established by testing or by assigned values permitted under IBC Section 722.7. The combined value must equal or exceed the rating required for the building element.
Option A ignores the additional protection contribution. Option B ignores the structural endurance provided by the timber after the protective membrane has performed its assigned function. Option C incorrectly substitutes "finish rating time." A finish rating measures temperature rise behind a protective membrane and is not automatically the same as the added fire-resistance contribution established for protected mass timber.
Inspection must confirm that the protection system matches the approved calculation or tested configuration, including material type, thickness, layer count, fastening, edge treatment, joints, penetrations, and continuity.
References/Topics: 2021 IBC Sections 703.6, 703.8 and 722.7; protected mass timber performance method and noncombustible protection contribution.
NEW QUESTION # 71

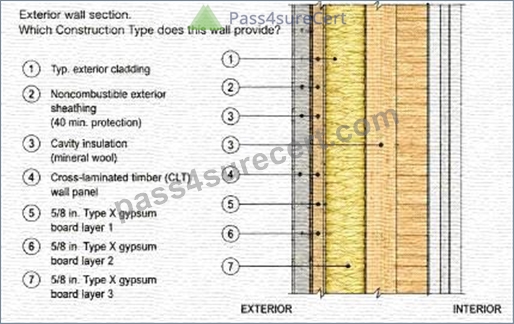

Refer to the figure by clicking on the EXHIBIT button above.
The exterior wall section shown in the Figure provides the prescribed noncombustible protection required by which Construction Type?
Answer: A
Explanation:

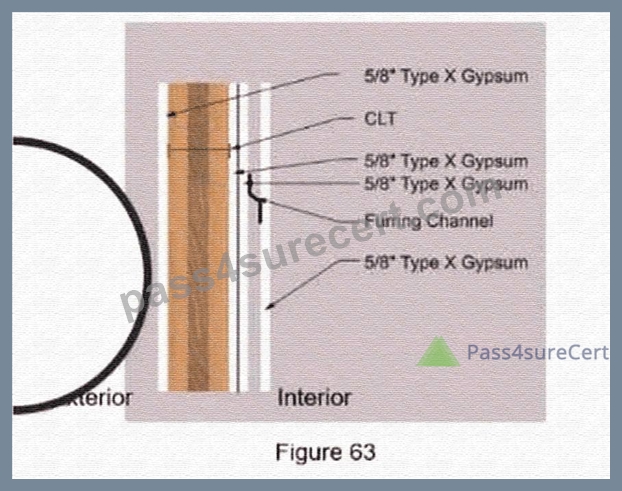

The illustrated wall corresponds to Type IV-A construction , making option A correct. The key indicator is the extensive Type X gypsum protection provided on the interior face of the CLT wall. Figure 63 shows multiple layers of 5/8-inch Type X gypsum board protecting the interior mass timber, together with the required exterior-side protection.
Type IV-A is the most comprehensively protected of the three tall mass timber construction classifications.
IBC Section 602.4.1.2 requires the interior faces of all mass timber elements , including the inside face of exterior mass timber walls, to be protected with qualifying noncombustible material. Section 602.4.1.2.1 requires the protection contribution to satisfy Table 722.7.1(1) and never be less than 80 minutes. Type IV-A exterior walls also require at least 40 minutes of noncombustible protection on the outside face.
The three interior layers shown are consistent with a heavily protected Type IV-A rated wall. By contrast, Type IV-B permits limited exposed interior mass timber, while Type IV-C expressly permits mass timber interior elements to remain unprotected. Type IV-HT operates under fundamentally different heavy-timber provisions.
References/Topics: 2021 IBC Sections 602.4.1.1, 602.4.1.2 and 602.4.1.2.1; Tables 601 and 722.7.1(1)-(2).
