Our Data Center, Professional (JNCIP-DC) (JN0-683) web-based practice exam software also simulates the Data Center, Professional (JNCIP-DC) (JN0-683) environment. These Juniper JN0-683 mock exams are also customizable to change the settings so that you can practice according to your preparation needs. ITExamSimulator web-based Data Center, Professional (JNCIP-DC) (JN0-683) practice exam software is usable only with a good internet connection.
| Section | Objectives |
|---|---|
| Data Center Multitenancy and Security | - Architectures
|
| Layer 3 Fabrics | - IP Fabric Concepts
|
| Data Center Deployment and Management | - Data Center Management Concepts
|
| Data Center Interconnect | - Configuration and Troubleshooting
|
| EVPN-VXLAN Signaling | - EVPN Concepts
|
| VXLAN | - VXLAN Concepts
|
>> JN0-683 Latest Test Experience <<
With the advent of knowledge times, we all need some professional certificates such as JN0-683 to prove ourselves in different working or learning condition. So making right decision of choosing useful practice materials is of vital importance. Here we would like to introduce our JN0-683 practice materials for you with our heartfelt sincerity. With passing rate more than 98 percent from exam candidates who chose our JN0-683 study guide, we have full confidence that your JN0-683 actual test will be a piece of cake by them.
NEW QUESTION # 43
You are designing a DCI solution and want to prevent the extension of BUM traffic and Ethernet Segment information between data centers while still allowing IP prefix reachability. Which EVPN seamless stitching type should you use?
Answer: D
Explanation:
When only Layer 3 reachability between data centers is desired, and Layer 2 extension along with associated BUM traffic and Ethernet Segment routes should not cross the DCI, a Type 5 (IP Prefix route) only interconnect is used. Border leaf devices exchange only EVPN Type 5 routes across the DCI, providing inter-subnet routing between data centers while keeping each data center's Layer 2 broadcast domain isolated.
NEW QUESTION # 44

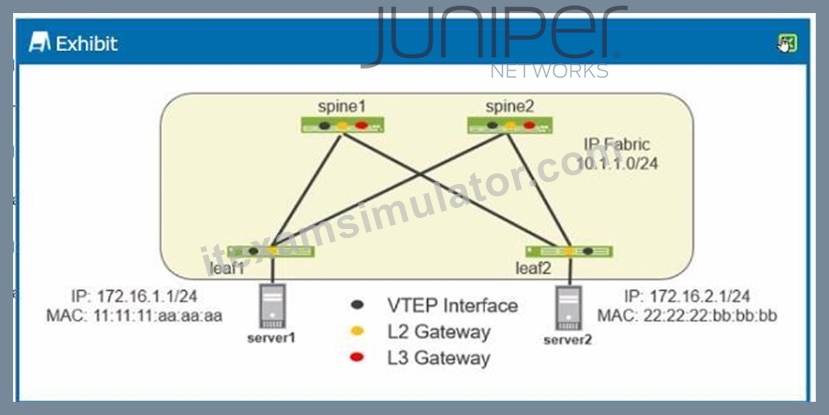

Exhibit.
You have implemented an EVPN-VXLAN data center. Device served must be able to communicate with device server2.
Referring to the exhibit, which two statements are correct? (Choose two.)
Answer: B,C
Explanation:
* Understanding the Exhibit Setup:
* The network diagram shows an EVPN-VXLAN setup, a common design for modern data centers enabling Layer 2 and Layer 3 services over an IP fabric.
* Leaf1 and Leaf2 are the leaf switches connected to Server1 and Server2, respectively, with each server in a different subnet (172.16.1.0/24 and 172.16.2.0/24).
* Spine1 and Spine2 are part of the IP fabric, interconnecting the leaf switches.
* EVPN-VXLAN Basics:
* EVPN (Ethernet VPN) provides Layer 2 and Layer 3 VPN services using MP-BGP.
* VXLAN (Virtual Extensible LAN) encapsulates Layer 2 frames into Layer 3 packets for transmission across an IP network.
* VTEP (VXLAN Tunnel Endpoint) interfaces on leaf devices handle VXLAN encapsulation and decapsulation.
* Integrated Routing and Bridging (IRB):
* IRB interfaces are required on leaf1 and leaf2 (where the endpoints are directly connected) to route between different subnets (in this case, between 172.16.1.0/24 and 172.16.2.0/24).
* The IRB interfaces provide the necessary L3 gateway functions for inter-subnet communication.
* Traffic Flow Analysis:
* Traffic from Server1 (172.16.1.1) destined for Server2 (172.16.2.1) must traverse from leaf1 to leaf2.
* The traffic will be VXLAN encapsulated on leaf1, sent over the IP fabric, and decapsulated on leaf2.
* Since the communication is between different subnets, the IRB interfaces on leaf1 and leaf2 are crucial for routing the traffic correctly.
* Correct Statements:
* C. An IRB Interface must be configured on leaf1 and leaf2:This is necessary to perform the inter-subnet routing for traffic between Server1 and Server2.
* D. Traffic from server1 to server2 will transit the VXLAN tunnel between leaf1 and leaf2:
This describes the correct VXLAN operation where the traffic is encapsulated by leaf1 and decapsulated by leaf2.
Data Center References:
* In EVPN-VXLAN architectures, the leaf switches often handle both Layer 2 switching and Layer 3 routing via IRB interfaces. This allows for efficient routing within the data center fabric without the need to involve the spine switches for every routing decision.
* The described traffic flow aligns with standard EVPN-VXLAN designs, where direct VXLAN tunnels between leaf switches enable seamless and scalable communication across a data center network.
NEW QUESTION # 45
You are designing an IP fabricfora large data center, and you are concerned about growth and scalability.
Which two actions would you take to address these concerns? (Choose two.)
Answer: B,C
NEW QUESTION # 46

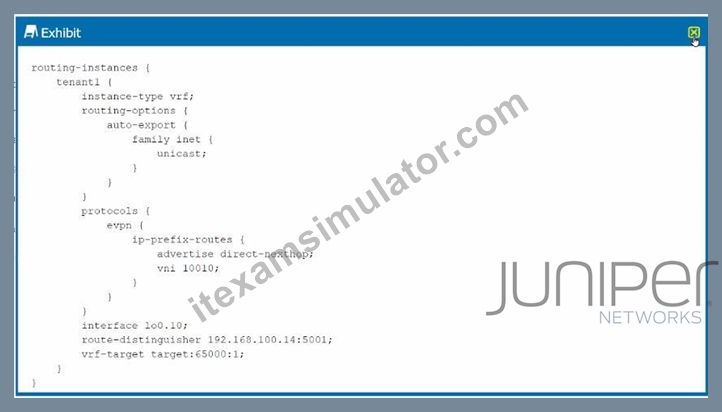

Exhibit.
You want to enable the border leaf device to send Type 5 routes of local networks to the border leaf device in another data center. What must be changed to the configuration shown in the exhibit to satisfy this requirement?
Answer: B
Explanation:
In this scenario, you want the border leaf device to advertise Type 5 EVPN routes to another border leaf in a different data center. Type 5 routes in EVPN are used to advertise IP prefixes, which means that for proper route advertisement, you need to configure the correct settings within the evpn hierarchy.
Step-by-Step Analysis:
* Understanding EVPN Type 5 Routes:
* EVPN Type 5 routes are used to advertise IP prefixes across EVPN instances, which allow different data centers or networks to exchange routing information effectively.
* VRF Target Setting:
* The vrf-target configuration is crucial because it defines the export and import policies for the VRF within the EVPN instance. For EVPN Type 5 routes to be advertised to other border leaf devices, the vrf-target needs to be correctly configured under the evpn hierarchy, not just within the routing instance.
Command to solve this:
move vrf-target target:65000:1 to evpn
* Other Options:
* Option B:Adding a VLAN configuration would not address the requirement to advertise Type 5 routes.
* Option C:Adding VXLAN encapsulation may be necessary for other scenarios but does not directly address the Type 5 route advertisement.
* Option D:Changing the route-distinguisher will differentiate routes but does not impact the advertisement of Type 5 routes to other data centers.
By moving the vrf-target to the evpn hierarchy, you enable the proper route advertisement, ensuring that the Type 5 routes for local networks are shared with other data center border leaf devices. This is aligned with best practices for multi-data center EVPN implementations, which emphasize the correct placement of routing policies within the EVPN configuration.
NEW QUESTION # 47

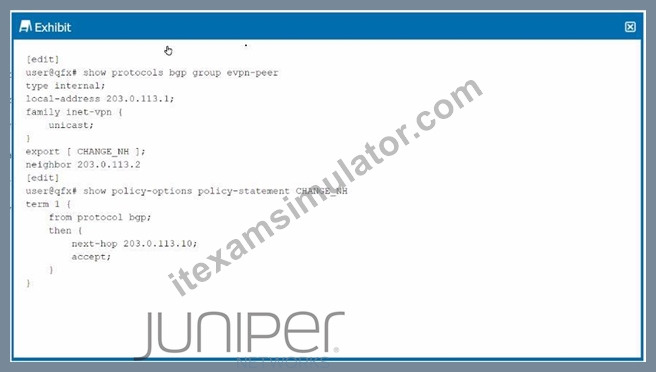

Exhibit.
Given the configuration shown in the exhibit, why has the next hop remained the same for the EVPN routes advertised to the peer 203.0.113.2?
Answer: B
Explanation:
* Understanding the Configuration:
* The configuration shown in the exhibit involves an EVPN (Ethernet VPN) setup using BGP as the routing protocol. The export policy named CHANGE_NH is applied to the BGP group evpn- peer, which includes a rule to change the next hop for routes that match the policy.
* Issue with Next Hop Not Changing:
* The policy CHANGE_NH is correctly configured to change the next hop to 203.0.113.10 for the matching routes. However, the next hop remains unchanged when advertising EVPN routes to the peer 203.0.113.2.
* Reason for the Issue:
* In Junos OS, when exporting routes for VPNs (including EVPN), the next-hop change defined in a policy will not take effect unless the vpn-apply-export parameter is used inthe BGP configuration. This parameter ensures that the export policy is applied specifically to VPN routes.
* The vpn-apply-export parameter must be included to apply the next-hop change to EVPN routes.
* Correct Answer Explanation:
* D. The vpn-apply-export parameter must be applied to this peer:This is the correct solution because the next hop in EVPN routes won't be altered without this parameter in the BGP configuration. It instructs the BGP process to apply the export policy to the EVPN routes.
Data Center References:
* This behavior is standard in EVPN deployments with Juniper Networks devices, where the export policies applied to VPN routes require explicit invocation using vpn-apply-export to take effect.
NEW QUESTION # 48
......
