| Section | Weight | Objectives |
|---|---|---|
| Topic 1: Deployment and FortiLink Integration | 25% | - Provisioning and deployment topologies - High availability and redundancy - FortiLink architecture and integration with FortiGate - Multi-tenancy and centralized management |
| Topic 2: FortiSwitch Concepts and Fundamentals | 20% | - FortiSwitch product overview and deployment modes - Port configuration, VLANs, and interfaces - QoS, LLDP-MED, and PoE management - STP, link aggregation, and stacking - Switching fundamentals and architecture |
| Topic 3: Monitoring, Maintenance and Troubleshooting | 30% | - Firmware management, backup and restore - FortiLink and connectivity troubleshooting - Diagnostic tools and packet capture - System monitoring, logs and alerts |
| Topic 4: Layer 2 Control and Security | 25% | - Security profiles and access control - VLAN security and segmentation - ACL, antispoofing, and filtering - Port security and MAC address control |
>> Simulations NSE5_FSW_AD-7.6 Pdf <<
About your blurry memorization of the knowledge, our NSE5_FSW_AD-7.6 learning materials can help them turn to very clear ones. We have been abiding the intention of providing the most convenient services for you all the time on NSE5_FSW_AD-7.6 study guide, which is also the objection of us. We also have high staff turnover with high morale after-sales staff offer help 24/7. So our customer loyalty derives from advantages of our NSE5_FSW_AD-7.6 Preparation quiz.
NEW QUESTION # 59
You are designing a FortiSwitch backbone where every FortiSwitch device must connect to every other FortiSwitch for maximum redundancy. To maintain connectivity while preventing loops, which protocol or feature must you configure on the switches? (Choose one answer)
Answer: D
Explanation:
According to theFortiSwitchOS 7.6 Administration Guide(specificallyPage 178) and theFortiSwitch 7.6 Study Guide, the Spanning Tree Protocol (STP) is the fundamental protocol used to manage redundant paths in a Layer 2 network. In the scenario described, where every FortiSwitch connects to every other FortiSwitch, afull Layer 2 meshis created. This architecture inherently produces multiple physical switching loops that, if left unmanaged, would cause catastrophic broadcast storms.
STP is responsible for detecting these loops by exchangingBridge Protocol Data Units (BPDUs). It then mathematically calculates a loop-free logical topology by placing redundant ports into ablocking (discarding) state while keeping primary paths in aforwardingstate. WhileMCLAG (Option A)provides node-level redundancy and eliminates STP delays by allowing two switches to appear as one, it is not a standalone solution for a global full-mesh topology. In fact, Fortinet MCLAG explicitly relies on STP through the mclag- stp-aware feature to detect and prevent loops caused by connections outside the Inter-Chassis Link (ICL).
Therefore, although MCLAG and LAG increase bandwidth and availability,STPremains the required underlying mechanism to maintain network stability in any highly redundant mesh environment. "Full mesh HA" (Option C) is not a defined feature in FortiSwitchOS 7.6.
NEW QUESTION # 60
Refer to the exhibit.

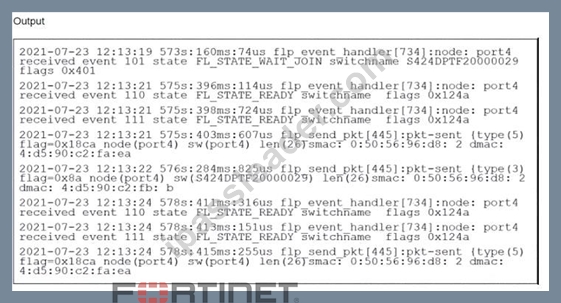

Which two statements best describe what is displayed in the FortiLink debug output shown in the exhibit?
(Choose two.)
Answer: A,C
Explanation:
The provided debug output indicates that the FortiSwitch is sending FortiLink heartbeats to the FortiGate and is currently waiting to join the stack group. Here's a breakdown of the relevant lines:
* Line 1:Shows the date, time, elapsed time since boot, and process ID for the FortiLink event handler.
* 573s:160ms: 74ustranslates to roughly 573 seconds, 160 milliseconds, and 74 microseconds since uptime.
* Event 101:This indicates the FortiSwitch is in a "wait join" state (FL_STATE_WAIT_JOIN). This means it's discovered by the FortiGate and is awaiting further instructions to join the FortiLink stack group.
* switchname S424DPTF20000029:This displays the serial number of the FortiSwitch.
* flags 0x401:The specific flag meaning might depend on the FortiSwitch model and version, but it likely indicates general communication between the switch and FortiGate.
Lines 2 and onward:These lines show subsequent events with similar timestamps, suggesting a regular heartbeat interval. There are also instances of the FortiSwitch sending packets to the FortiGate (indicated bypkt-sent).
Why the Other Options Are Less Likely:
* C. FortiSwitch is discovered and authorized by FortiGate.While discovery might have happened before these lines, the "wait join" state suggests authorization hasn't necessarily completed yet.
* D. FortiSwitch is ready to push its new hostname to FortiGate.There's no explicit indication of hostname changes in this excerpt.The focus is on joining the stack group.
In Summary:
The key point is the "FL_STATE_WAIT_JOIN" state, which signifies the FortiSwitch is ready to be fully integrated but is waiting for further commands from the FortiGate to complete the process.
NEW QUESTION # 61
Refer to the configuration:
Which two conditions does FortiSwitch need to meet to successfully configure the options shown in the exhibit above? (Choose two.)
Answer: A,B
NEW QUESTION # 62
Refer to the exhibit.

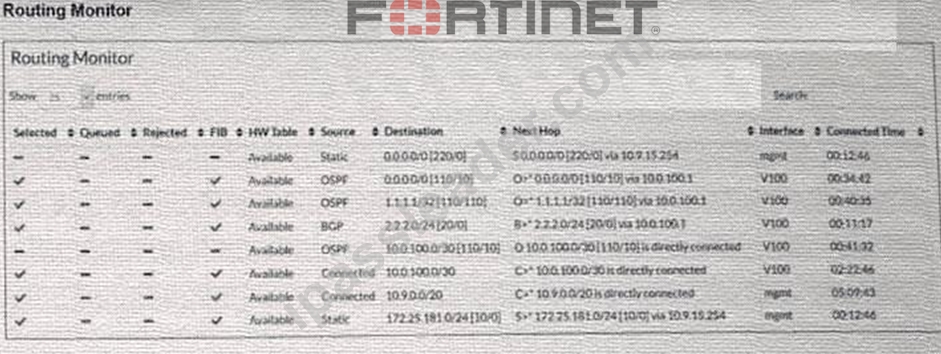

Two routes in the routing monitor are marked as available but are not installed in the forwarding information base (FIB). Which statement correctly explains why the routes have this status? (Choose one answer)
Answer: C
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the Routing Monitor provides a comprehensive view of the Routing Information Base (RIB), which includes all routes learned via static configuration or dynamic protocols (OSPF, BGP, etc.). However, not every route present in the RIB is active for traffic forwarding. The switch must select the "best" path for any given destination to be installed into theForwarding Information Base (FIB).
The provided exhibit shows a routing table with multiple sources for the same destination. Specifically, there is aStaticdefault route ($0.0.0.0/0$) with an administrative distance of 220, and anOSPFdefault route ($0.0.0.0/0$) with an administrative distance of 110. In FortiSwitchOS routing logic, when multiple routes to the exact same destination exist, the system compares theirAdministrative Distance (AD). The route with the lowest AD is considered the most "preferred" or "trustworthy".
In this case, the OSPF route ($AD 110$) is more preferred than the Static route ($AD 220$). Consequently, the OSPF route is marked with a green checkmark in theFIBcolumn, while the Static route-despite being
"Available" in the RIB-is excluded from the FIB. The same logic applies to the $10.0.100.0/30$ subnet, where theConnectedroute is preferred over the OSPF learned route for the same destination. Therefore, the status reflects standard route selection behavior where less-preferred routes remain in the RIB as backups but are not used for active forwarding.
NEW QUESTION # 63
Refer to the exhibit.

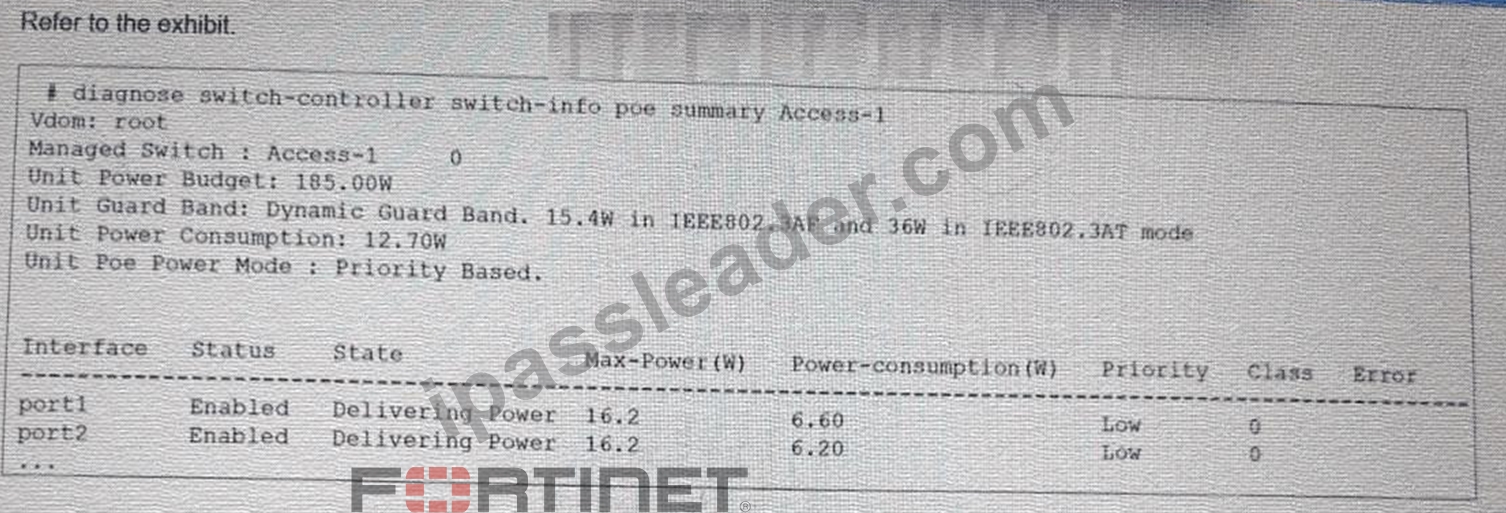

The FortiSwitch CLI output of the diagnose switch-controller switch-info poe summary command for the switch Access-1 is shown. It shows that two ports have Power over Ethernet (PoE) enabled and are already in use. What is the most important consideration if you want to connect additional PoE devices to FortiSwitch?
(Choose one answer)
Answer: A
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the primary physical constraint when deploying PoE devices is the total power capacity of the switch's internal power supply unit (PSU). The provided exhibit shows the PoE status forAccess-1, highlighting three critical metrics: theUnit Power Budget (185.00W), the currentUnit Power Consumption (12.70W), and theUnit Guard Band.
TheUnit Power Budgetrepresents the maximum amount of power the switch can provide to all connected Powered Devices (PDs) simultaneously. As more devices (such as access points, VoIP phones, or cameras) are connected, the cumulative power draw increases. The most important consideration is ensuring that the total PoE consumption does not exceed this budget. If the budget is exceeded, the switch will stop providing power to new devices or, depending on the configuration, may shut down lower-priority ports to protect the system hardware.
In this specific exhibit, theUnit Poe Power Modeis set toPriority Based. This means that if the power consumption approaches the budget limit, the switch will use the configured port priorities (seen as "Low" for port1 and port2) to decide which devices to keep powered. TheGuard Band(set to a dynamic value) also plays a role by reserving a small amount of power to handle spikes when devices initialize, further emphasizing that the power budget is a hard limit that must be actively managed by the administrator.
NEW QUESTION # 64
......
