質問 # 23
Which two statements about DHCP snooping enabled on a FortiSwitch VLAN are true? (Choose two.)
正解：A、D
解説：
* Switch-controller-dhcp-snooping-verify-mac verifies the destination MAC address to protect against DHCP exhaustion attacks (B): This feature of DHCP snooping helps prevent DHCP exhaustion attacks by ensuring that the destination MAC addresses in DHCP packets match the MAC addresses learned by the switch. This check helps prevent attackers from overwhelming the DHCP server with requests from spoofed MAC addresses.
* Settings related to DHCP option 82 are only configurable through the CLI (D): DHCP Option 82 is used for "agent information," and it's typically used in network environments where additional information between DHCP clients and servers is necessary for policy and billing purposes.
Configuration of these settings in FortiSwitch is only available through the Command Line Interface (CLI), not the Graphical User Interface (GUI).
質問 # 24

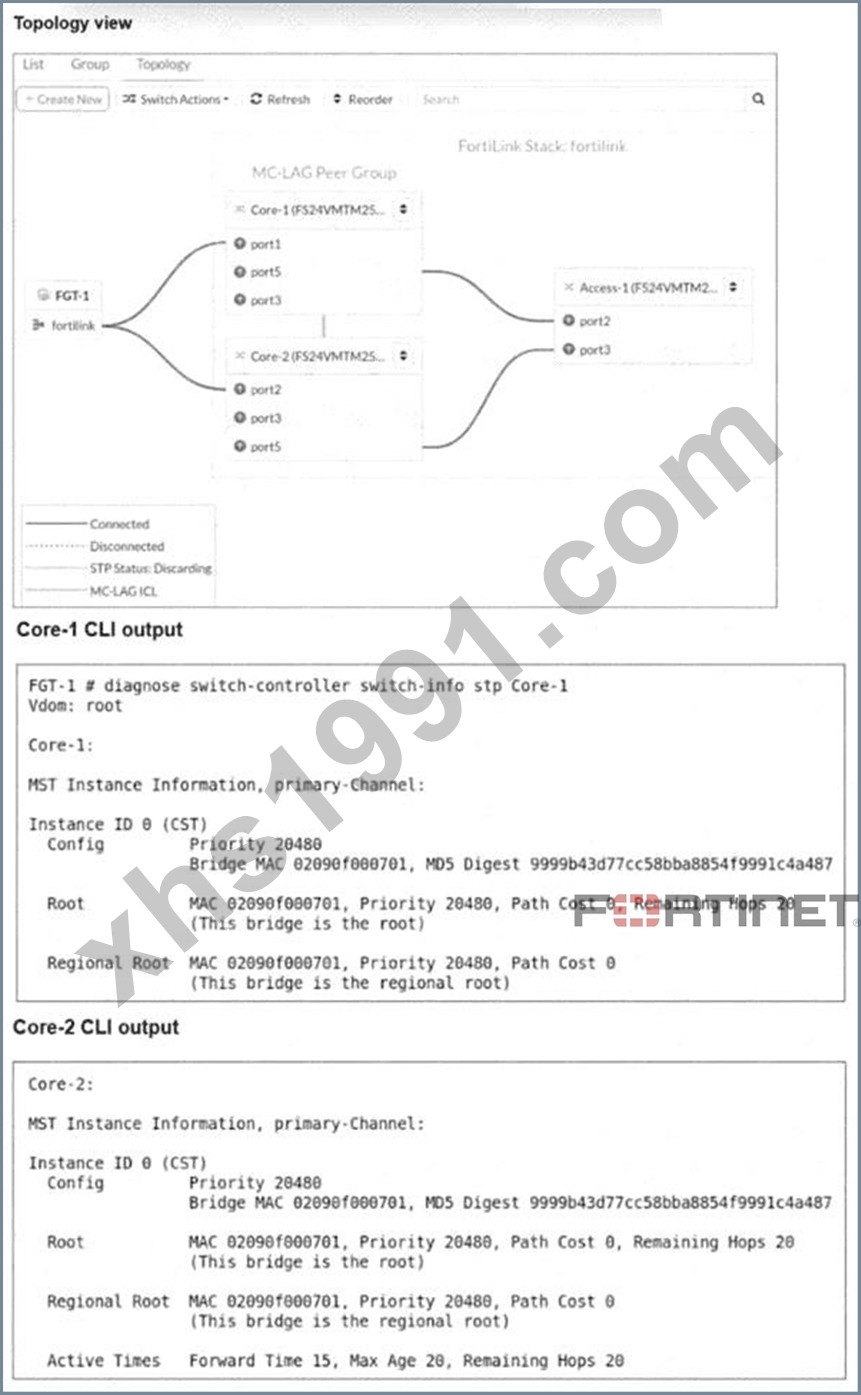

Refer to the exhibits.
An administrator has deployed two FortiSwitch devices, Core-1 and Core-2, as multichassis link aggregation group (MCLAG) peers. These switches are connected to FortiGate for FortiLink and to an access switch (Access-1) using an inter-switch link (ISL). After configuration, the administrator notices that both Core-1 and Core-2 are claiming to be the root bridge in the Multiple Spanning Tree Protocol (MSTP) topology. What explains this behavior? (Choose one answer)
正解：C
解説：
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Multichassis Link Aggregation (MCLAG) provides node-level redundancy by grouping two physical switches together so that theyappear as a single logical switchto the rest of the network. This logical representation is critical for preventing Spanning Tree Protocol (STP) from blocking redundant uplinks from downstream client switches.
To achieve this "single switch" appearance, the MCLAG peer switches synchronize their STP state andshare the same Bridge ID, which consists of a synchronized bridge MAC address and the same bridge priority. As shown in the exhibits for Core-1 and Core-2, both switches are configured with aBridge MAC of
02090f000701and aPriority of 20480. Because they possess identical identification parameters, each physical switch in the peer group locally recognizes itself as part of the root bridge entity for the MSTP region.
This behavior is intentional and is a fundamental characteristic of MCLAG design in FortiSwitchOS. It ensures that any downstream device, such as Access-1, receives BPDUs with the same bridge ID from both Core-1 and Core-2, thereby treating them as a single high-availability neighbor rather than two separate devices. Option A is incorrect as FortiGate typically does not participate in STP calculations. Option B is incorrect because this "duplicate" root behavior is the expected sign of acorrectlyfunctioning MCLAG control plane. Option D is incorrect as STP remains active to prevent loops elsewhere in the fabric; it is merely logically simplified for the MCLAG domain.
質問 # 25
To enhance service in emergency situations, to which LLDP-MED Type-Length-Values does Forti-Switch advertise to IP phones?
正解：D
解説：
Location (C): FortiSwitch uses LLDP-MED (Link Layer Discovery Protocol - Media Endpoint Discovery) to advertise various attributes to IP phones, among which "Location" is crucial in emergency situations. This information helps emergency responders to determine the physical location of the calling device, which is vital for prompt response in critical situations.
質問 # 26

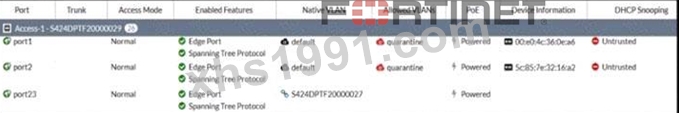

Refer to the exhibit.
The exhibit shows the current status of the ports on the managed FortiSwitch. Access-1.
Why would FortiGate display a serial number in the Native VLAN column associated with the port23 entry?
正解：C
解説：
The information in the "Native VLAN" column for port23 on the FortiSwitch indicates that a standalone switch is connected to it. This is because the column displays "$424MPTF20000027," which matches the format of a Fortinet device serial number.
Here's a breakdown of the evidence in the image:
* Native VLAN:The "Native VLAN" column typically displays the VLAN ID for untagged traffic on a trunk port. However, in this case, it shows a serial number format ("$424MPTF20000027").
* No Trunk Information:The "Trunk" column is blank for port23, indicating it's not configured as a trunk member.
* Other Ports:Port1 and port2 show "default" in the "Native VLAN" column, which is the expected behavior for access ports.
Fortinet FortiSwitch devices typically don't display the serial number of adjacent FortiSwitch devices in the
"Native VLAN" column. This column is reserved for VLAN information on trunk ports.
質問 # 27

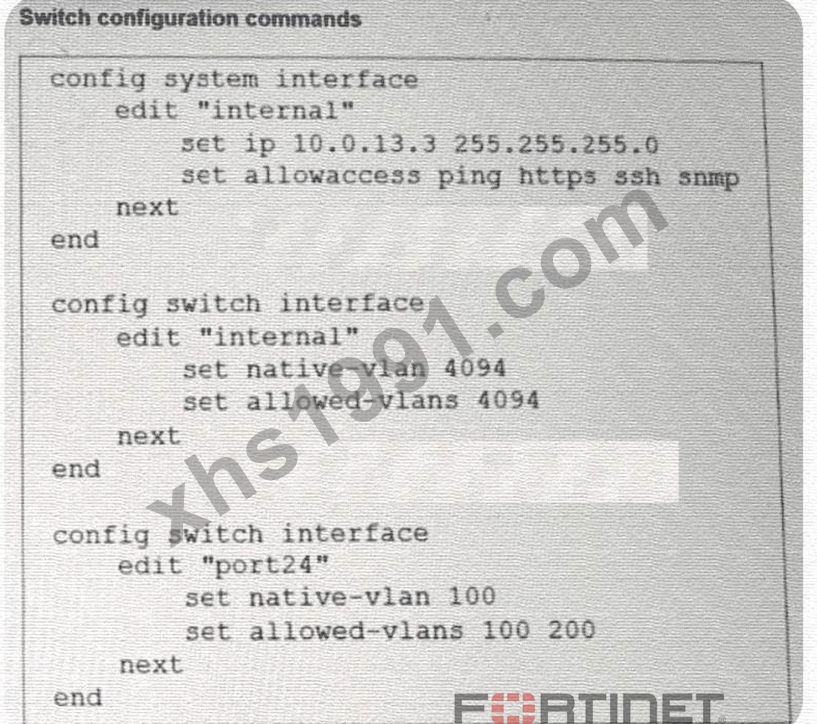

Refer to the exhibit.
Port24 is the only uplink port connected to the network where you need access to FortiSwitch management services. However, FortiSwitch is not accessible on its management interface with IP address 10.0.13.3.
Based on the configuration shown in the exhibit, which two actions should you take to fix the issue and access FortiSwitch? (Choose two answers)
正解：C、D
解説：
According to theFortiSwitchOS 7.6 Administration Guide (Page 320), management traffic on a FortiSwitch is associated with a specific logical interface, which in this case is the " internal " interface. The exhibit shows that the " internal " interface is configured onVLAN 4094(both as native and allowed). This means that for any management traffic (such as HTTPS, SSH, or SNMP) to reach the switch CPU, it must be able to traverse the physical uplink on VLAN 4094.
However, the configuration forport24(the uplink) is currently restricted. It is set withnative VLAN 100and an allowed-vlans list that only includes100 and 200. Because VLAN 4094 is not included in the allowed list of port24, all frames belonging to the management VLAN (4094) are dropped by the switch ' s ingress/egress filters on the uplink.
To resolve this and restore management access, the administrator has two valid configuration paths based on the provided options:
* Option B:Change thenative VLAN on port24 to VLAN 4094. By making 4094 the native VLAN, untagged management traffic can traverse the port, effectively allowing the " internal " interface to communicate with the network.
* Option D:Add VLAN 4094 to the allowed VLANs on port24. This ensures that VLAN 4094 is no longer filtered out, allowing management frames to pass through the uplink while maintaining the current native VLAN for other traffic.
Option C is irrelevant as removing a working VLAN (200) does not help the management traffic. While Option A describes an alternate architectural approach (moving management into an already-allowed VLAN), Options B and D represent the direct fixes for the mismatch described in the 7.6 administration documentation.
質問 # 28
......
