NEW QUESTION # 47
A user needs to determine known security vulnerabilities on an existing BIG-IP appliance and how to remediate these vulnerabilities. Which action should the BIG-IP Administrator recommend?
Answer: D
Explanation:
F5 recommends using the iHealth diagnostic tool to identify security vulnerabilities and receive specific remediation guidance.
* QKView and iHealth: A QKView file is a comprehensive diagnostic snapshot of the BIG-IP system.
When this file is uploaded to the F5 iHealth portal, it is automatically parsed against a database of known issues and security advisories.
* Vulnerability Diagnosis: The iHealth platform includes automated checks specifically designed to surface security gaps and "Heuristics" that match the system's current configuration and software version to known CVEs (Common Vulnerabilities and Exposures).
* Remediation Guidance: For every identified vulnerability, iHealth provides direct links to the relevant F5 Security Advisory (K-article), which contains detailed remediation steps, such as specific software versions that contain a fix or temporary mitigation commands.
* UCS vs. QKView: While a UCS (User Configuration Set) file is a backup of the system configuration, it is not the format used by the iHealth diagnostic engine for automated vulnerability scanning; the QKView is the required format for this process.
NEW QUESTION # 48
A BIG-IP Administrator creates a new Virtual Server. The end user is unable to access the page.
During troubleshooting, the administrator learns that the connection between the BIG-IP system and server is NOT set up correctly. What should the administrator do to solve this issue?
Answer: D
Explanation:
When a virtual server is not working as expected despite the pool members being marked "UP" (Green), the issue is frequently a return-path routing failure. If the BIG-IP forwards a request with the original client's source IP address, the backend server will try to respond directly to that client.
If the server does not have its default gateway pointed back to the BIG-IP, the response packet will be routed elsewhere (or dropped), resulting in a connection timeout for the user. To resolve this, the administrator must configure "Source Address Translation" (SNAT). By setting SNAT to
"Automap" or a specific SNAT address, the BIG-IP replaces the client's IP with its own internal self-IP. The backend server then sees the BIG-IP as the source and sends the response back to it locally. This troubleshooting step ensures a functional, symmetric traffic flow. Identifying the need for SNAT is one of the most common troubleshooting tasks for new virtual server deployments where the BIG-IP is not the default gateway for the backend servers.
NEW QUESTION # 49
The BIG-IP appliance fails to boot. The BIG-IP Administrator needs to run the End User Diagnostics (EUD) utility to collect data to send to F5 Support. Where can the BIG-IP Administrator access this utility?
Answer: A
Explanation:
The End User Diagnostics (EUD) utility is a hardware-level testing suite used to verify the integrity of the physical components of a BIG-IP appliance.
* Access Requirements: Because the EUD must be run while the TMOS operating system is not loaded (typically when the device cannot boot or requires hardware validation), it cannot be accessed via network-based interfaces like the Management Port or VLANs.
* Console Connection: The administrator must connect a terminal to the physical Console Port (using a serial cable) to interact with the boot menu.
* Execution Process: Upon restarting the appliance, the administrator must intercept the boot process at the GRUB menu and select the "End User Diagnostics" option. All output and menu selections are then handled through the serial console session.
NEW QUESTION # 50

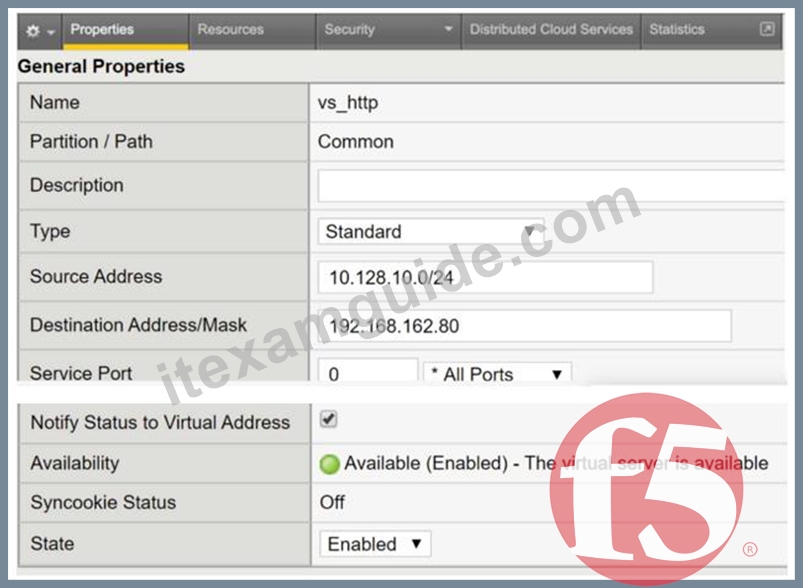

Refer to the exhibit.
A user with IP address 192.168.162.70 is unable to connect to an HTTP application. What is a possible cause within the Virtual Server configuration?
Answer: C
Explanation:
The failure to connect is caused by a restrictive Source Address filter configured on the Virtual Server.
Source Address Filtering: In the BIG-IP system, the Source Address field on a Virtual Server acts as an implicit Access Control List (ACL). Only traffic originating from a client IP address that matches the specified network range will be accepted and processed by the Virtual Server.
Analyzing the Exhibit: The provided configuration for vs_http shows the Source Address is set to 10.128.10.0/24. This means the Virtual Server will only accept connections from the subnet ranging from 10.128.10.1 to 10.128.10.254.
Identifying the Conflict: The user trying to connect has the IP address 192.168.162.70. Since 192.168.162.70 does not fall within the allowed 10.128.10.0/24 range, the BIG-IP system will not match this traffic to the Virtual Server, effectively blocking the connection attempt.
Evaluation of Other Options:
All Ports (Option A): Configuring a Virtual Server for "All Ports" (port 0) allows it to handle traffic for any destination port, which would not block a standard HTTP application.
Destination Address (Option B): The destination address 192.168.162.80 is the Virtual IP (VIP) users should be connecting to; this is a standard configuration and not the cause of the failure for a user reaching out to it.
Standard Type (Option C): A "Standard" Virtual Server is the most common type used for HTTP applications as it allows for Layer 7 profiles and full proxy capabilities.
NEW QUESTION # 51
In an F5 BIG-IP system, a pool is configured with a health monitor and the "ManualResume" feature is Enabled. If a poolmember is marked Offline(Red) due to a health monitor failure, what will be the status of the member once the health monitor successfully passes again?
Answer: D
Explanation:
The "Manual Resume" feature is a safety mechanism used when a pool is not working as expected due to flapping services or unstable backend applications. Normally, when a health monitor fails, the pool member is marked "Offline" (Red), and when the monitor passes, it automatically returns to "Available" (Green). However, if "Manual Resume" is enabled, the BIG-IP will not automatically put the member back into rotation after a failure. Even if the health check begins to pass again, the member remains in an "Offline (Disabled)" state. This requires an administrator to manually intervene and re-enable the member. This is a common point of confusion when troubleshooting; a member may show passing health checks but still not receive traffic because it is waiting for a manual administrative "resume" command. This feature is intended to prevent "unhealthy" servers from receiving traffic until an engineer has confirmed the root cause of the initial failure was resolved.
NEW QUESTION # 52
......
