質問 # 23

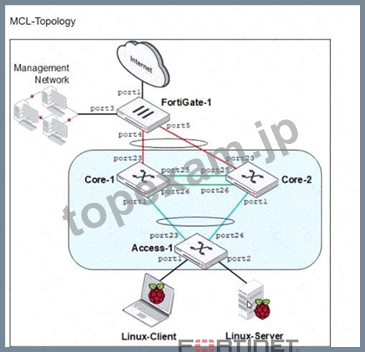

Refer to the exhibit.
Core-1 and Access-1 are managed and authorized by FortiGate-1. which uses port4 as the FortiLink interface.
After FortiGate authorizes and manages Core-2. Port1 status becomes STP discarding.
Why is port1 in the discarding state?
正解：C
解説：
The STP (Spanning Tree Protocol) discarding state on port1 of Core-2, after Core-1 and Access-1 are managed and authorized by FortiGate-1, is likely due to the lack of an MCLAG (Multi-Chassis Link Aggregation Group) configuration between Core-1 and Core-2. In typical network configurations involving STP and MCLAG, the absence of MCLAG can lead to STP blocking one of the redundant paths to prevent loops, which is a critical function of STP. Port1 on Core-2 being in a discarding state suggests that it has been identified as providing a redundant path that could potentially create a network loop, hence STP has placed this port in a blocking (discarding) state to maintain a loop-free topology.
References:
For a deeper understanding of STP operations and MCLAG configurations in FortiGate managed environments, consult the Fortinet knowledge base:Fortinet Knowledge Base.
質問 # 24
(Full question statement start from here)

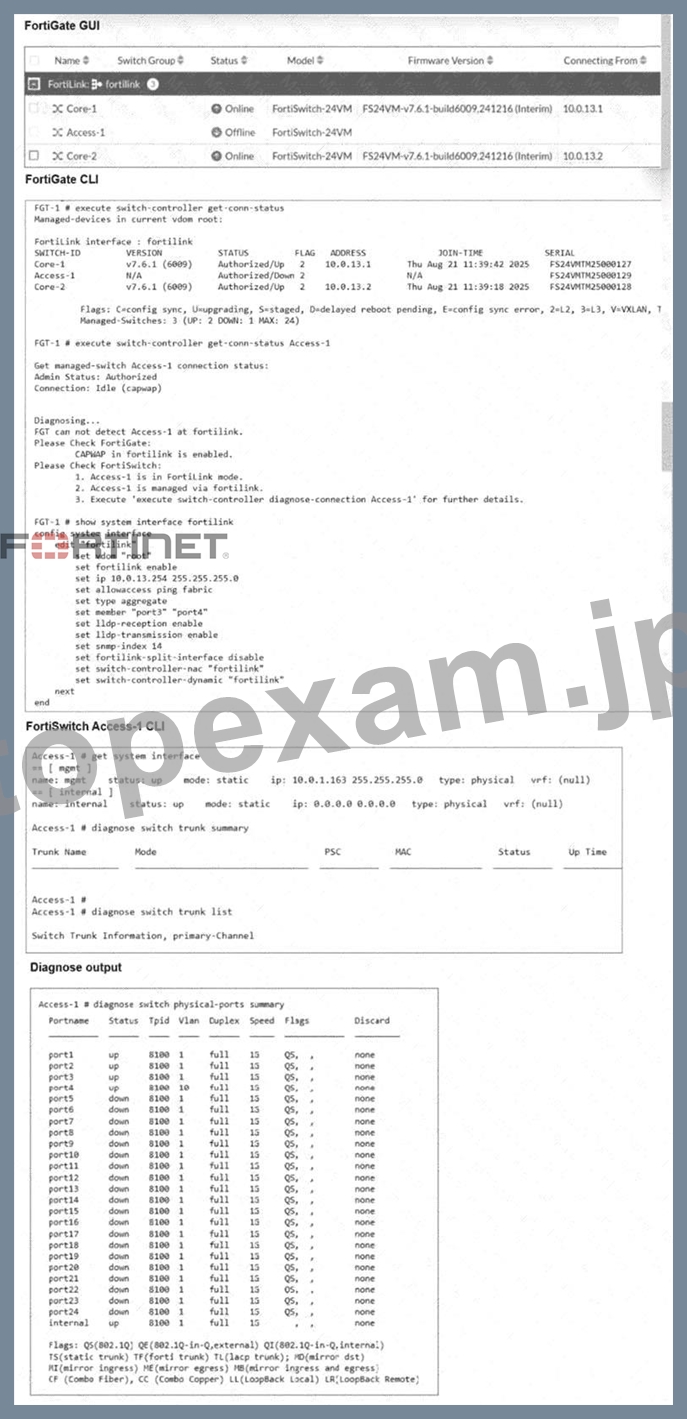

Refer to the exhibits.
Three FortiSwitch devices were recently configured to be managed by FortiGate. Two are managed successfully, butFortiSwitch Access-1is not.
Based on the configuration output, whichinitial changeis required for FortiSwitch Access-1 to be managed?
(Choose one answer)
正解：C
解説：
In a FortiGate-managed switching deployment usingFortiLink, FortiSwitch devices rely on theirinternal interfaceto establish management connectivity with the FortiGate. According to the FortiSwitchOS 7.6 Administrator Guide, when a FortiSwitch operates in FortiLink mode, theinternal interface must obtain an IP address dynamically via DHCPfrom the FortiGate over the FortiLink interface. This IP address is required for control-plane communication, including CAPWAP-based management messaging.
From the exhibit, FortiGate successfully managesCore-1andCore-2, whileAccess-1remains offline. The FortiGate diagnostic output explicitly reports that itcannot detect Access-1 at the FortiLink interface, even though CAPWAP is enabled and the switch is in FortiLink mode. This eliminates CAPWAP configuration (Option B) as the root cause.
Examining the FortiSwitch Access-1 CLI output reveals the key issue:
* Theinternal interfaceis configured withmode: staticand an IP address of0.0.0.0.
This configuration prevents Access-1 from obtaining a valid FortiLink management IP address, which is mandatory for FortiGate discovery and authorization. In contrast, FortiSwitch devices managed by FortiGate must have their internal interface set toDHCP, allowing the FortiGate to automatically assign an address from the FortiLink subnet.
Assigning a static IP (Option A) is not recommended or required in FortiLink-managed mode, NTP configuration (Option D) has no impact on discovery, and CAPWAP is already enabled as shown in the FortiGate output.
Therefore, theinitial and required corrective actionis toset the Access-1 internal interface mode to DHCP
, makingOption Cthe correct and fully verified answer based on FortiOS 7.6 and FortiSwitchOS 7.6 documentation.
質問 # 25
What can an administrator do to maintain a FortiGate-compatible FortiSwitch configuration when changing the management mode from standalone to FortiLinK?
正解：B
解説：
When transitioning the management of a FortiSwitch from standalone mode to being managed by FortiGate via FortiLink, it is critical to ensure that the existing configurations are preserved. The best practice involves:
* FortiGate's Role in Configuration Preservation:FortiGate has the capability to automatically preserve the existing configuration of a FortiSwitch when it is integrated into the network via FortiLink. This feature helps ensure that the transition does not disrupt the network's operational settings.
* Configuration Integration:As FortiSwitch is integrated into FortiGate's management via FortiLink, FortiGate captures and integrates the existing switch configuration, enabling a seamless transition. This process involves FortiGate recognizing the FortiSwitch and its current setup, then incorporating these settings into the centralized management interface without the need for manual reconfiguration or the use of additional tools.
References:For further details on managing FortiSwitch with FortiGate and the capabilities of FortiLink, consult the FortiSwitch and FortiGate integration guide available on:Fortinet Product Documentation
質問 # 26
Which QoS mechanism maps packets with specific class of service (COS) or Differentiated Services Code Point (DSCP) markings to an egress queue? (Choose one answer)
正解：B
解説：
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Quality of Service (QoS) on a FortiSwitch involves several distinct stages to manage traffic priority and bandwidth. The specific process of taking identified packets and placing them into a specific priority buffer for transmission is known asQueuing.1 On FortiSwitch, when a frame enters an ingress port, it is first classified based on its incomingCoS(Layer 2) or DSCP(Layer 3) markings.2However, it is theQueuing for egress traffic (Option B)mechanism that dictates which of the eight available hardware queues the frame will reside in before it is sent out of the destination port. The switch uses a mapping table (such as a CoS-to-queue or DSCP-to-queue map) to ensure that high- priority traffic, like voice or video, is placed in a higher-priority queue to minimize latency and jitter.
Regarding the other options:Classification (Option A)is the initial identification of the packet's priority but does not perform the physical mapping to a buffer.Policing (Option C)is an ingress mechanism used to drop or remark traffic that exceeds a defined rate.Shaping (Option D)is an egress mechanism that smooths out traffic bursts by delaying packets but is separate from the initial queue assignment. Therefore, the act of mapping specific markings to an egress queue is a fundamental function of the queuing mechanism.
質問 # 27

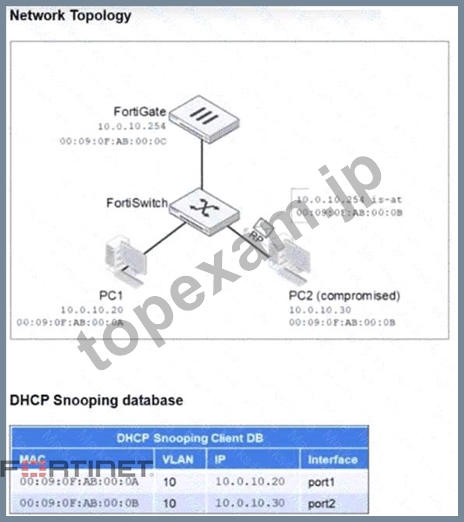

Refer to the exhibits.
All three FortiSwitch-connected ports are configured in VLAN 10. FortiGate acts as the Dynamic Host Configuration Protocol (DHCP) server and is connected to a DHCP snooping trusted trunk port. PC1 and PC2 are connected to ports configured as untrusted for Dynamic ARP Inspection (DAI), and no static bindings are configured in the IP source guard (IPSG) database. PC2 is compromised and attempts to spoof the FortiGate IP address by sending forged Address Resolution Protocol (ARP) replies with its own MAC address. What will FortiSwitch do with the ARP packets from PC2? (Choose one answer)
正解：A
解説：
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Dynamic ARP Inspection (DAI) is a security feature used to intercept, log, and discard ARP packets with invalid IP-to-MAC address bindings. DAI is primarily used to prevent " Man-in-the-Middle " attacks, such as ARP spoofing or ARP cache poisoning.
In this scenario, DAI is active on VLAN 10. When DAI is enabled, the FortiSwitch intercepts all ARP packets on untrusted ports and validates them against a trusted source-most commonly theDHCP snooping database.
As shown in the " DHCP Snooping database " exhibit, PC2 is correctly mapped to IP 10.0.10.30 and MAC 00:
09:0F:AB:00:0B.
When PC2 attempts to send a forged ARP reply claiming that IP 10.0.10.254 (the FortiGate ' s IP) is located at its own MAC address (00:09:0F:AB:00:0B), the FortiSwitch ' s DAI engine inspects the packet. It checks the DHCP snooping database for a binding that matches IP 10.0.10.254 to MAC 00:09:0F:AB:00:0B. Finding no such valid entry (because the database correctly identifies the MAC 00:09:0F:AB:00:0B as belonging to IP
10.0.10.30), the switch identifies the ARP packet as illegitimate.
Consequently, the FortiSwitch willdrop the ARP repliesbecause they fail the DAI validation check against the established DHCP snooping bindings. Option A is incorrect as DAI functions independently of IPSG once the database is populated. Option B is incorrect because " accepting " the spoofed packet is the opposite of DAI ' s purpose. Option C is incorrect because DAI is specifically designed to run on untrusted ports to protect the network from client-side attacks.
質問 # 28
......
