NEW QUESTION # 65
A BIG-IP Administrator is using Secure Copy Protocol (SCP) to transfer a TMOS image to the BIG-IP system in preparation for an upgrade. To what directory should the file be transferred?
Answer: C
Explanation:
BIG-IP systems require all ISO images (base TMOS images and HotFix images) to be stored in a specific directory used for software installation:
/shared/images/
This directory:
Is the only supported location from which the BIG-IP software installation system validates and installs ISO files Is accessible by both the GUI and TMSH installers Has adequate storage space allocated specifically for images Is part of the shared partition that persists across reboots When transferring images via SCP, the administrator must copy them directly into
/shared/images/ so that:
The GUI (System Software Management Available Images) can detect the image TMSH install software image commands can reference it Other directories such as /local/images/ or /var/images/ are not valid storage paths for software images.
NEW QUESTION # 66
When using the tmsh shell of a BIG-IP system, which command will display the management-ip address?
Answer: B
Explanation:
Within the BIG-IP Traffic Management Shell (tmsh), system configuration objects--including the management IP--are organized under the /sys hierarchy. The management IP address is a configurable property stored in the system configuration and can be viewed using the tmsh list command, which displays configuration objects and their currently assigned values.
Why "list /sys management-ip" is correct
The list command in tmsh is used to display configured system values, not runtime statistics.
The object that holds the management IP settings on BIG-IP systems is located at:
/sys management-ip
Running the command:
list /sys management-ip
will reveal the settings for the management IP interface, including the address, netmask, and any associated attributes.
This is the standard method used during system setup and verification to confirm the management IP configuration.
This behavior aligns with BIG-IP administration procedures, where configuration information is retrieved using list, while operational data is retrieved using show.
NEW QUESTION # 67
The BIG-IP Administrator received a ticket that an authorized user is attempting to connect to the Configuration Utility from a jump host and is being denied.
The HTTPD allow list is configured as:
sys httpd {
allow { 172.28.31.0/255.255.255.0 172.28.65.0/255.255.255.0 }
}
The jump host IP is172.28.32.22.
What command should the BIG-IP Administrator use to allow HTTPD access for this jump host?
Answer: B
Explanation:
The HTTPD allow list controls which IP addresses or subnets may access the Configuration Utility (TMUI) on the BIG-IP system. The Administrator already has two subnets allowed and needs to add asingle host IPto the existing list.
* The object/sys httpd allowsupports actions such asadd,delete, andreplace-all-with.
* Because the goal is toaddone more entry without removing the existing permitted subnets, the correct command is:
modify /sys httpd allow add { 172.28.32.22 }
This appends the new host to the existing list while preserving the previously configured networks.
Why the other options are incorrect:
* Option A (replace-all-with)wouldoverwritethe entire allow list, removing existing permitted subnets- unacceptable.
* Option B (delete)wouldremovethe existing networks and not add the required host.
Therefore, the correct administrative action is toaddthe jump host's IP.
NEW QUESTION # 68
Refer to the exhibit.
An organization has purchased a BIG-IP license that includes all available modules but has chosen to provision only the modules they require.
The exhibit displays the current resource allocation from the System # Resource Provisioning page.
Based on the information provided, which F5 modules have been provisioned?
Answer: C
Explanation:

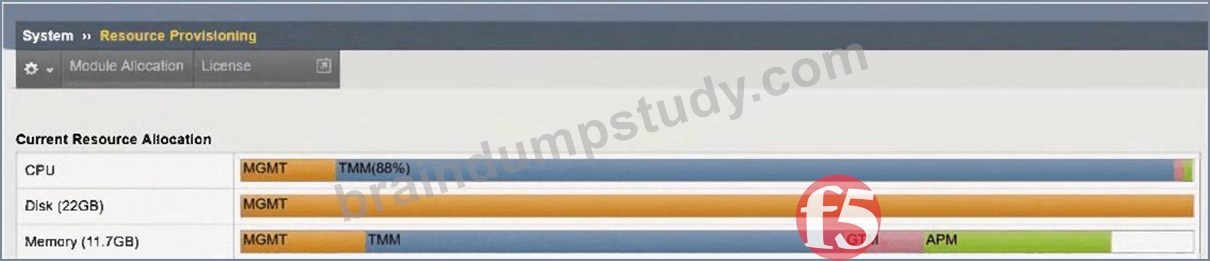

The exhibit shows the Current Resource Allocation for:
* CPU
* Disk
* Memory
In particular, the Memory Allocation bar displays the modules that are currently provisioned.
Memory is the most reliable indicator because BIG-IP allocates memory only to modules that are actively provisioned.
From the exhibit:
* MGMT (Management) - always present
* TMM (Traffic Management Microkernel) - indicates LTM is provisioned
* GTM - this label indicates that the DNS module is provisioned (GTM = Global Traffic Manager, now called DNS)
* APM - explicitly shown, indicating Access Policy Manager is provisioned Therefore, the provisioned modules are:
* LTM (implied by TMM allocation)
* DNS/GTM
* APM
This matches Option C: LTM, DNS, APM .
NEW QUESTION # 69
Refer to the exhibit.
What traffic will be permitted to reach the BIG-IP?
Answer: A
Explanation:

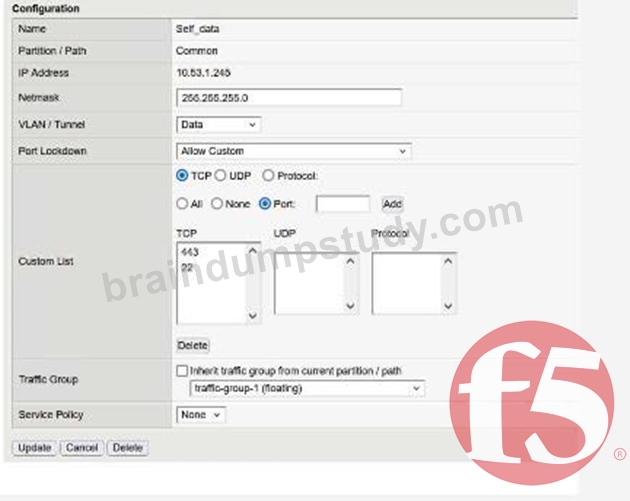

The exhibit shows the configuration of aSelf IPwith:
* Port Lockdown: Allow Custom
* ACustom Listthat includes the following TCP ports:
* 443
* 22
Meaning of these ports:
* TCP 443# HTTPS (TMUI - web-based management)
* TCP 22# SSH (command-line remote access)
No other TCP, UDP, or protocol entries are listed; therefore, only these two services are allowed to reach the BIG-IP via this Self IP.
Evaluating the answer choices:
Option
Service
Port
Allowed?
FTP
TCP 21
Not listed
Not allowed
SSH
TCP 22
Listed
Allowed
Telnet
TCP 23
Not listed
Not allowed
Thus,SSHis the only traffic permitted through this Self IP configuration.
NEW QUESTION # 70
......
