| Section | Objectives |
|---|---|
| Topic 1: SR Linux Architecture and Fundamentals | - SR Linux system architecture and components - Configuration and operational models - Network operating system concepts and containerized routing functions |
| Topic 2: Data Center Interconnect (DCI) | - Redundancy and high availability strategies - L2 and L3 DCI design patterns - EVPN-based interconnect solutions |
| Topic 3: EVPN and VXLAN Data Center Fabric | - VXLAN data plane and encapsulation - EVPN route types and MAC/IP advertisement - EVPN control plane fundamentals |
| Topic 4: Operations, Troubleshooting and Best Practices | - Troubleshooting BGP EVPN and VXLAN issues - Monitoring SR Linux and EVPN environments - Network optimization and scaling considerations |
| Topic 5: BGP and Routing in Data Center Environments | - Interoperability between routing domains - Route reflection and scaling design - BGP EVPN address families |
Nokiaの4A0-D03の初心者なので、悩んでいますか？ Jpexamは君の困難を解決できます。Jpexamの学習教材はいろいろな狙いを含まれていますし、カバー率が高いですから、初心者にしても簡単に身に付けられます。それを利用したら、君はNokiaの4A0-D03試験に合格する鍵を持つことができますし、今までも持っていない自信を持つこともできます。まだ何を待っているのでしょうか？
質問 # 10

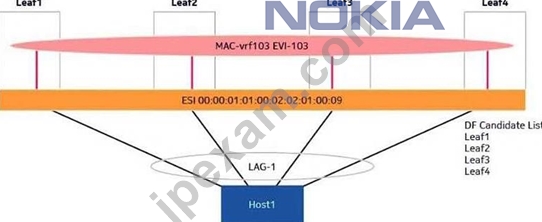

Consider the exhibit.
Leaf1 and Leaf2 have the Ethernet segment configured to use the default election algorithm while Leaf3 and Leaf4 are configured to use the preference-based algorithm with Leaf3 having the higher preference value. The DF candidate list is the same on all leaf routers.
Which of the following leafs is the DF for mac-vrf103?
正解：A
解説：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
Designated Forwarder election determines which PE forwards BUM traffic from the EVPN overlay toward a multi-homed Ethernet Segment for a given service. In this scenario, all leaf routers share the same DF candidate list for mac-vrf103, but the election configuration is not identical. Leaf1 and Leaf2 use the default algorithm, while Leaf3 and Leaf4 use the preference-based algorithm. Under preference-based DF election, the candidate with the highest configured preference is selected over lower-preference candidates, assuming the candidate list is valid and consistent. The question states that Leaf3 has the higher preference value compared with Leaf4. Therefore, Leaf3 becomes the DF for mac-vrf103. This is the correct outcome because the preference-based election explicitly overrides simple default behavior by assigning operator-defined priority to a PE. In production designs, this is useful when the operator wants deterministic forwarding placement, maintenance control, or service-specific primary-path selection rather than relying only on the default modulo-based DF selection process. Reference: EVPN DF election, preference-based algorithm, MAC-VRF service forwarding.
質問 # 11

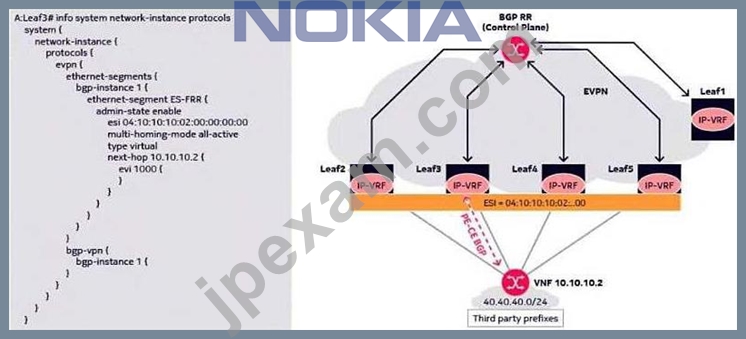

Consider the exhibit.
All connected leaf routers have the same Ethernet segment configuration. The IP-VRF is configured properly and is operational.
Which of the following statements is FALSE?
正解：D
解説：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
The exhibit describes a Layer 3 multi-homing scenario where the Ethernet Segment is associated with an IP-VRF and the configuration references an EVI value of 1000. The segment is configured with all-active multi-homing, allowing multiple attached leaf routers to advertise reachability for the same external L3 next-hop or third-party prefix attachment. In this model, the Ethernet Segment represents the shared L3 attachment and is used by EVPN to associate remote prefix reachability with the multi-homed segment. The incorrect statement is that a LAG must be configured on the connected leaf routers and the host. That requirement is specific to many Layer 2 all-active host attachment designs, where the host commonly uses LACP toward multiple leaf routers and the leaf LAG subinterfaces are associated with the Ethernet Segment. In Layer 3 multi-homing, the attached device can be a router or VNF, and the EVPN ES association can be used for L3 prefix reachability without mandating that the host side be configured as a LAG. Reference: L3 EVPN multi-homing, EVI association, all-active Ethernet Segment behavior.
質問 # 12

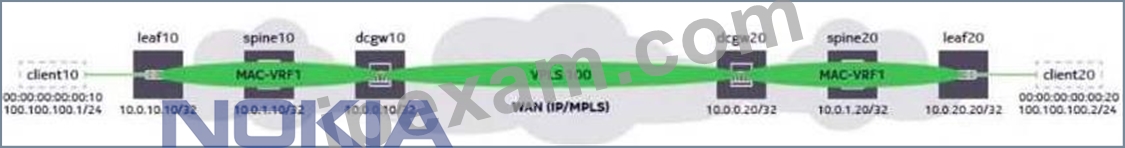

Consider the exhibit.
dcgw10 is a Nokia 7750SR and is used as the integrated gateway.
Which of the following is NOT configured in VPLS 100 on dcgw10?
正解：D
解説：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
For Layer 2 data center interconnect using an integrated gateway, VPLS 100 on the Nokia 7750 SR represents the WAN-side Layer 2 VPN service. The VPLS requires an EVI because EVPN uses the EVI to identify the L2 service instance in the control plane. It also requires BGP EVPN signaling with the appropriate route targets so the local and remote service instances can import the correct EVPN routes. Because the service is transported across the WAN, the BGP/EVPN instance must be associated with the MPLS transport tunnels toward the remote gateway, dcgw20. A VXLAN instance with a VNI is not configured in the 7750 SR VPLS 100 for this integrated WAN gateway service. The VXLAN/VNI mapping is used inside the SR Linux data center fabric where MAC-VRF services are transported over VXLAN. On the WAN side, the VPLS service is carried using MPLS/EVPN mechanisms, not a VXLAN VNI configured directly under the VPLS. Reference: integrated gateway DCI, L2 EVPN/VPLS interworking, EVI and route-target operation.
質問 # 13
Which of the following statements about EVPN PE-CE routing, using BGP as the routing protocol, is FALSE?
正解：C
解説：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
In EVPN PE-CE routing, the PE exchanges ordinary IPv4 or IPv6 unicast routing information with the CE. When the PE learns CE prefixes, it imports them into the tenant IP-VRF and advertises them to other EVPN PEs as EVPN route type 5 IP Prefix routes. Conversely, when the PE receives EVPN routes from remote PEs, it can advertise corresponding IPv4/IPv6 BGP updates toward the CE, subject to policy. Import and export policies are essential because they control which customer routes are accepted, which EVPN-learned routes are advertised, and how attributes are modified. Option C is false because iBGP is not the preferred PE-CE model in this context. eBGP is typically preferred between PE and CE because it creates a clean administrative routing boundary between the provider/data-center edge and the customer or external router. Using eBGP also simplifies route policy, loop prevention, and operational separation. The CE does not need to participate in the EVPN overlay; it speaks standard BGP unicast with the PE, while the PE performs the EVPN RT-5 advertisement into the fabric. Reference: EVPN PE-CE BGP routing, eBGP preference, RT-5 prefix advertisement, import/export policy.
質問 # 14
Which of the following statements about a L3 EVPN network using symmetric routing is FALSE?
正解：B
解説：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
Symmetric L3 EVPN routing uses an IP-VRF-based overlay model in which both ingress and egress PEs participate in routed forwarding. The ingress PE receives the frame from the local MAC-VRF, routes it into the IP-VRF, and sends it across the VXLAN routed interface. The egress PE receives the routed overlay packet, performs the corresponding IP-VRF lookup, and then forwards it into the locally attached destination MAC-VRF. Because the routed overlay is built per IP-VRF, a routed-VXLAN interface is required for that IP-VRF. EVPN route type 5 support is also required because RT-5 carries IP prefix reachability across the EVPN control plane. The false statement is option D. Symmetric routing specifically removes the requirement for every MAC-VRF to exist on every PE. A PE only needs the MAC-VRFs for locally attached subnets, plus the shared IP-VRF and routed overlay state. This is the major scaling advantage of symmetric routing compared with designs that require broad MAC-VRF instantiation across the fabric. Reference: symmetric L3 EVPN routing, routed VXLAN interface, RT-5 prefix reachability, MAC-VRF scaling.
質問 # 15
......
