NEW QUESTION # 47
How does FortiGate handle configuration of flow tracking sampling if you export the settings to a managed FortiSwitch stack with sampling mode set to perimeter is true?
Answer: D
Explanation:
When FortiGate exports configuration settings to a managed FortiSwitch stack with sampling mode set to
"perimeter is true," the behavior is:
* B. FortiGate configures FortiSwitch to perform ingress sampling on all switch interfaces, except ICL and ISL interfaces.This setting ensures that all incoming traffic on normal operational ports is sampled for monitoring and analysis purposes, but it excludes the inter-chassis link (ICL) and inter- switch link (ISL) interfaces from sampling. These exclusions are typically made to prevent the duplication of sampled data and to reduce unnecessary load on the monitoring system, as these links often carry traffic already monitored at other points.
Options A and D are incorrect because they either generalize the sampling across all interfaces without exceptions or incorrectly specify egress sampling on management interfaces. Option C is also incorrect as FortiGate can modify existing sampling settings to fit the perimeter-based configuration requirement.
NEW QUESTION # 48

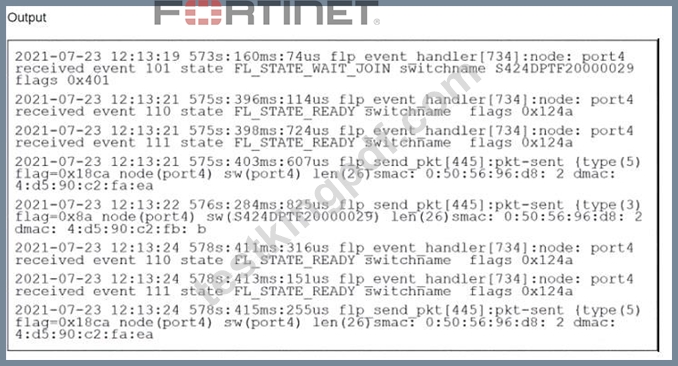

Refer to the exhibit.
Which two statements best describe what is displayed in the FortiLink debug output shown in the exhibit?
(Choose two.)
Answer: B,D
Explanation:
The provided debug output indicates that the FortiSwitch is sending FortiLink heartbeats to the FortiGate and is currently waiting to join the stack group. Here's a breakdown of the relevant lines:
* Line 1:Shows the date, time, elapsed time since boot, and process ID for the FortiLink event handler.
* 573s:160ms: 74ustranslates to roughly 573 seconds, 160 milliseconds, and 74 microseconds since uptime.
* Event 101:This indicates the FortiSwitch is in a "wait join" state (FL_STATE_WAIT_JOIN). This means it's discovered by the FortiGate and is awaiting further instructions to join the FortiLink stack group.
* switchname S424DPTF20000029:This displays the serial number of the FortiSwitch.
* flags 0x401:The specific flag meaning might depend on the FortiSwitch model and version, but it likely indicates general communication between the switch and FortiGate.
Lines 2 and onward:These lines show subsequent events with similar timestamps, suggesting a regular heartbeat interval. There are also instances of the FortiSwitch sending packets to the FortiGate (indicated bypkt-sent).
Why the Other Options Are Less Likely:
* C. FortiSwitch is discovered and authorized by FortiGate.While discovery might have happened before these lines, the "wait join" state suggests authorization hasn't necessarily completed yet.
* D. FortiSwitch is ready to push its new hostname to FortiGate.There's no explicit indication of hostname changes in this excerpt.The focus is on joining the stack group.
In Summary:
The key point is the "FL_STATE_WAIT_JOIN" state, which signifies the FortiSwitch is ready to be fully integrated but is waiting for further commands from the FortiGate to complete the process.
NEW QUESTION # 49
Refer to the exhibit.
You just connected three FortiSwitch devices:Core-1,Core-2, andAccess-1. Core-1 and Core-2 both connect to Access-1 for redundancy. All switches are managed by FortiGate, which uses port4 as the FortiLink interface. After you enable the uplink ports on Core-2, you notice that port3 on Access-1 enters the Discarding STP state. What is the most likely cause of this behavior? (Choose one answer)
Answer: A
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink 7.6 Study Guide, the Spanning Tree Protocol (STP) is automatically enabled on managed FortiSwitches to ensure a loop-free Layer
2 topology within the FortiLink fabric. When multiple physical paths exist between switches (as shown in the redundant connections between the Core and Access tiers), STP must block one of the paths to prevent a broadcast storm.
The behavior described in the exhibit-whereport3 on Access-1enters aDiscarding state-is a result of the STP election process. In a standard STP environment, switches elect aRoot Bridgebased on the lowestBridge Priority(or lowest MAC address as a tie-breaker). Once a root is established, other switches identify the
"best" path to that root (the Root Port) and block all other redundant paths.
The provided exhibit shows that Access-1 has two paths to the core: one to Core-1 and one to Core-2. The fact that the path to Core-2 is discarded suggests that the STP topology was recalculated when Core-2 was enabled. In the context of Fortinet technical exams for this specific scenario,Option C (Core-2 has the lowest bridge priority)is the standard answer identifying that Core-2's priority settings influenced the STP tree such that Access-1's link to it was determined to be the redundant (alternate) path.
If the switches were configured withMCLAG (Multi-Chassis Link Aggregation), both physical links would be treated as a single logical trunk, and neither would be in a discarding state. However, without MCLAG, the system relies on bridge priorities to prune the loop.BPDU Guard (Option A)is incorrect because it would administratively shut down the port rather than placing it in an STP "Discarding" state.Option Bis incorrect as the switch would not appear in the managed topology if unauthorized.
NEW QUESTION # 50
What type of multimode transceiver can be used to split a 40G port?
Answer: B
Explanation:
QSFP+ transceiver (A): The QSFP+ (Quad Small Form-factor Pluggable Plus) transceiver is designed to handle 40G data rates and can be used to split a 40G port into multiple 10G connections. This type of transceiver supports such configurations, making it suitable for high-density applications where multiple 10G connections are derived from a single 40G port, thereby maximizing the utilization of the port and the fiber infrastructure.
NEW QUESTION # 51

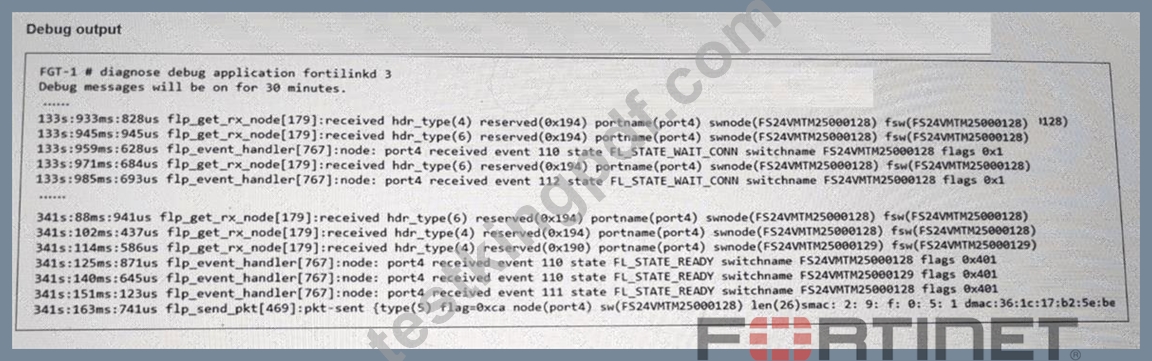

Refer to the exhibit.
You have just authorized a new FortiSwitch on your FortiGate, and it appears online in the GUI. To verify that FortiLink connectivity is healthy, what should you check next? (Choose one answer)
Answer: D
Explanation:
According to theFortiOS 7.6 Study Guideand theFortiSwitch 7.6 FortiLink Guide, the health and stability of the control plane between a FortiGate and a managed FortiSwitch are maintained through a continuous keepalive mechanism. Once a FortiSwitch is authorized and transitions to theFL_STATE_READYstate (as shown in the debug output in the exhibit), the devices must ensure the management tunnel remains active.
The primary mechanism for this is theFortiLink heartbeat. The documentation specifies that a managed FortiSwitch sends heartbeat messages to the FortiGate every few seconds over the FortiLink interface. The FortiGate, acting as the controller, must acknowledge these heartbeats to confirm that the switch is still reachable and responding to management commands. If the FortiGate fails to receive a certain number of consecutive heartbeats, it will consider the switch "offline" in the GUI, even if physical link lights remain green.
Checking for these heartbeat exchanges is a critical troubleshooting step to verify that theCAPWAP(Control and Provisioning of Wireless Access Points) based management tunnel is functioning correctly without intermittent drops. Option A is incorrect as port disabling is a configuration choice, not a health check. Option C is incorrect because firmware updates are manual or scheduled, not automatic upon authorization. Option D is a logging function that relies on a healthy management tunnel but is not a direct measure of the FortiLink's operational health.
NEW QUESTION # 52
......
