NEW QUESTION # 96

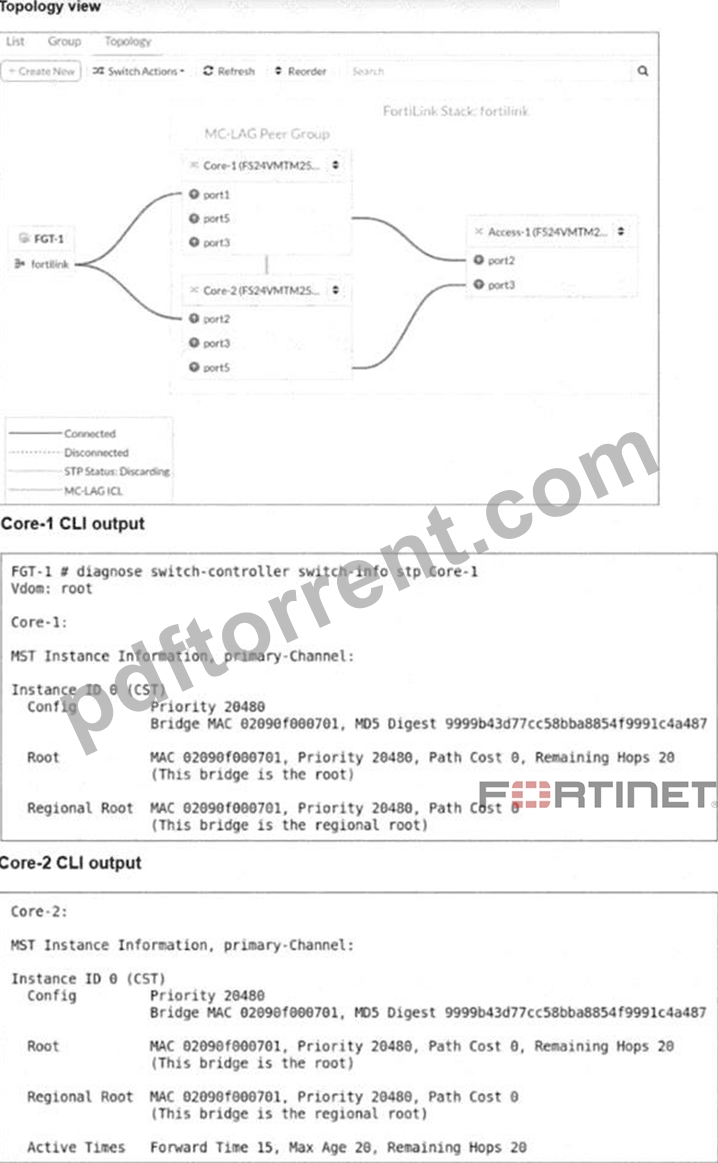

Refer to the exhibits.
An administrator has deployed two FortiSwitch devices, Core-1 and Core-2, as multichassis link aggregation group (MCLAG) peers. These switches are connected to FortiGate for FortiLink and to an access switch (Access-1) using an inter-switch link (ISL). After configuration, the administrator notices that both Core-1 and Core-2 are claiming to be the root bridge in the Multiple Spanning Tree Protocol (MSTP) topology. What explains this behavior? (Choose one answer)
Answer: C
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Multichassis Link Aggregation (MCLAG) provides node-level redundancy by grouping two physical switches together so that theyappear as a single logical switchto the rest of the network. This logical representation is critical for preventing Spanning Tree Protocol (STP) from blocking redundant uplinks from downstream client switches.
To achieve this "single switch" appearance, the MCLAG peer switches synchronize their STP state andshare the same Bridge ID, which consists of a synchronized bridge MAC address and the same bridge priority. As shown in the exhibits for Core-1 and Core-2, both switches are configured with aBridge MAC of
02090f000701and aPriority of 20480. Because they possess identical identification parameters, each physical switch in the peer group locally recognizes itself as part of the root bridge entity for the MSTP region.
This behavior is intentional and is a fundamental characteristic of MCLAG design in FortiSwitchOS. It ensures that any downstream device, such as Access-1, receives BPDUs with the same bridge ID from both Core-1 and Core-2, thereby treating them as a single high-availability neighbor rather than two separate devices. Option A is incorrect as FortiGate typically does not participate in STP calculations. Option B is incorrect because this "duplicate" root behavior is the expected sign of acorrectlyfunctioning MCLAG control plane. Option D is incorrect as STP remains active to prevent loops elsewhere in the fabric; it is merely logically simplified for the MCLAG domain.
NEW QUESTION # 97
Which statement about 802.1X security profiles using MAC-based authentication mode is true?
Answer: A
Explanation:
Pag 232, FortiSwitch_7.2_Study_Guide-Online "However, if you want to authenticate each device behind a port, and optionally, grant each device a different access level based on the credentials provided, then MAC- based is required." According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink Guide (FortiOS 7.6), FortiSwitch supports two primary modes for 802.1X authentication:port-basedandMAC-based.
In802.1X port-based authentication, once a single supplicant (user or device) successfully authenticates, the physical port is transitioned to an "authorized" state, allowing all traffic from any device connected to that port (e.g., through a hub or unmanaged switch) to pass through. This is summarized by Option D, which is incorrect for MAC-based mode.
In contrast,802.1X MAC-based authentication(Option B) treats each device's MAC address as a distinct session. The switch maintains a table of authenticated MAC addresses for each port and applies security policies to each one individually. This granular approach allows the FortiSwitch to grantdifferent access levelsto different devices on the same physical port. For example, a laptop might be assigned to a corporate VLAN with a specific Dynamic Access Control List (DACL), while an IP phone on the same port is assigned to a Voice VLAN.
Furthermore, FortiSwitchOS 7.6 documentation specifies that MAC-based mode can support up to20 devices per port. Each device must provide its own credentials (or be validated via MAC Authentication Bypass), enabling the switch to enforce specific security attributes-such as VLAN IDs, QoS marking, and ingress ACLs-tailored to each uniquely identified device. While the switch typically communicates with aRADIUS server(Option C) for these credentials, MAC-based mode's primary functional advantage is this individual session management and authorization flexibility.
NEW QUESTION # 98

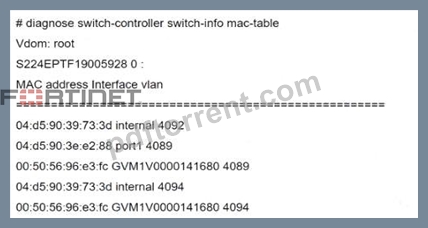

Refer to the diagnostic output:
Two entries in the exhibit show that the same MAC address has been used in two different VLANs. Which MAC address is shown in the above output?
Answer: D
Explanation:
The MAC address "00:50:56:96:e3:fc" appearing in two different VLANs (4089 and 4094) in the diagnostic output indicates it is a MAC address associated with a device that supports traffic from multiple VLANs.
Such a behavior is typical of network infrastructure devices like switches or routers, which are configured to allow traffic from various VLANs to pass through a single physical or logical interface. This is essential in network designs that utilize VLANs to segregate network traffic for different departments or use cases while using the same physical infrastructure.
References:
For more detailed information on MAC table diagnostics and VLAN configurations in FortiGate devices, refer to the official Fortinet documentation:Fortinet Product Documentation.
NEW QUESTION # 99
You are deploying a small office network with a single FortiGate and a single FortiSwitch. The office currently has moderate traffic, but the IT team expects the network to grow in the near future, adding more FortiSwitch devices and endpoints. Which FortiLink configuration should you deploy to provide the best combination of current performance and scalability for future growth? (Choose one answer)
Answer: C
Explanation:
According to theFortiGate Switch Best Practicesand theFortiSwitch 7.6 FortiLink Guide, the recommended best practice for a scalable and high-performance FortiLink deployment is to use alink aggregation group (LAG)interface, also known as an802.3ad aggregate.3 While ahardware-based switch interface (Option A)offers low latency by switching traffic directly in the ASIC, it has significant limitations regardingscalability and redundancy. Hardware switches are restricted by the number of physical ports on the Integrated Switch Fabric (ISF) and cannot be easily expanded to include additional redundant links as the network grows. Conversely,software-based switch interfaces (Option B)are processed by the system CPU, leading to higher utilization and a lack ofNPU hardware acceleration, which makes them unsuitable for high-performance or growing environments.4 By configuring FortiLink as aLAG (Option C), the administrator ensures that the network can support future growth seamlessly. A LAG interface allows for the addition of multiple physical ports to increase bandwidth between the FortiGate and the switch fabric while providing link-level redundancy.5This configuration is the default for modern FortiOS versions because it supports NPU offloading and serves as the technical prerequisite for more advanced topologies, such asMCLAG (Option D). While MCLAG is an excellent solution for high availability in multi-switch environments, it is a topology feature rather than the primary interface type used to define the FortiLink connection on the FortiGate unit itself. Therefore, starting with an aggregate (LAG) interface provides the most flexible foundation for migrating to more complex infrastructures as additional switches are added.
NEW QUESTION # 100
You need to deploy routing on a standalone FortiSwitch and want to maximize routing performance. Which type of routing is best for this deployment? (Choose one answer)
Answer: C
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6.1 Administration Guide-Standalone Mode, FortiSwitch units support two primary methods for processing Layer 3 traffic:
software-based routing and hardware-based routing. To maximize performance, the documentation specifies thatHardware-based routing (Option A)is the superior choice for high-speed environments.
The primary technical reason for this performance advantage is the use ofApplication-Specific Integrated Circuits (ASICs). In hardware-based routing, the routing table and forwarding information are programmed directly into the switch's specialized hardware silicon. This allows the FortiSwitch to perform packet lookups and forwarding decisions at "wire speed," which refers to the full throughput capacity of the physical ports.
By offloading these tasks to the ASIC, the switch minimizes latency and prevents the performance bottlenecks associated with general-purpose CPU processing.
In contrast,software-based routing(Options B and D) requires the main system CPU and kernel to process every packet, which is significantly slower and can lead to high CPU utilization during heavy traffic loads.
Option C is factually incorrect because hardware-based routing specifically avoids the kernel's software path to increase speed. Therefore, for a deployment focused on maximizing routing performance, especially in a backbone or high-density branch environment, utilizing the ASIC-driven hardware forwarding path is the recommended approach in FortiSwitchOS 7.6.
NEW QUESTION # 101
......
