NEW QUESTION # 29

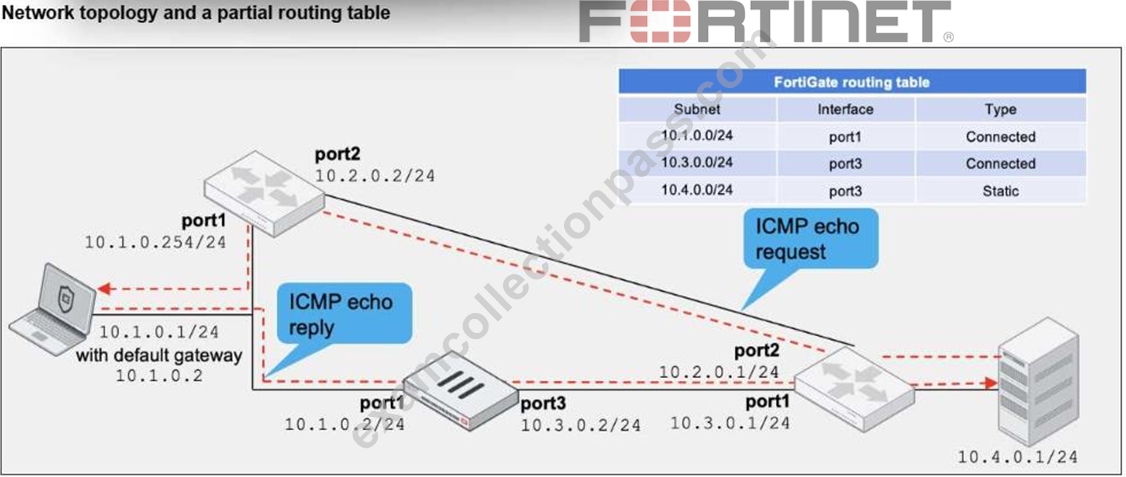

Refer to the exhibit.
A network topology and a partial routing table are shown.
FortiGate has already been configured with a firewall policy that allows all ICMP traffic to flow from port1 to port3.
Which two changes can the administrator perform to ensure the server at 10.4.0.1/24 receives the ICMP echo reply from the laptop at 10.1.0.1/24? (Choose two.)
Answer: A,C
Explanation:
The correct answers are A and C.
The study guide describes this exact asymmetric ICMP scenario. It states:
"The server sends an echo request to the PC through port2 of the local router, effectively bypassing FortiGate. When it receives the echo request, the PC responds with an echo reply through its default gateway, 10.1.0.2, which is port1 on FortiGate. Because there is no existing session, the echo reply is dropped. All subsequent echo replies are blocked." That means the current problem exists because:
the ICMP request bypasses FortiGate
the ICMP reply goes through FortiGate
FortiGate has no matching session, so it drops the reply
The study guide then shows the exact corrective option:
"Allowing asymmetric routing:"
config system settings
set asymroute enable
end
It further explains:
"After the packet passes through the FortiGate CPU, FortiGate forwards the packet using the FIB, even though there are no session matches. FortiGate forwards all subsequent echo replies using the FIB." So A is correct.
The other valid fix is to make the traffic symmetric by changing the laptop's default gateway so the reply no longer goes through FortiGate. In the exhibit, the alternate gateway is 10.1.0.254, which is the local router on the same subnet. If the laptop uses 10.1.0.254 instead of 10.1.0.2, the ICMP echo reply follows the same bypass path as the echo request, so the server receives it without involving FortiGate session validation. This makes C correct.
Why the other options are wrong:
B is wrong because this is not an RPF problem. The study guide explains RPF as a reverse path lookup used to validate whether a packet arrived on a legitimate interface, mainly for spoofing protection. The issue in this scenario is a missing session due to asymmetric routing, not a strict-versus-feasible RPF failure D is wrong because FortiGate already has the specific route 10.4.0.0/24 through port3 in the routing table shown in the exhibit, so adding a default static route to port3 is unnecessary and not the reason the echo reply is being dropped So the verified answers are: A, C.
NEW QUESTION # 30

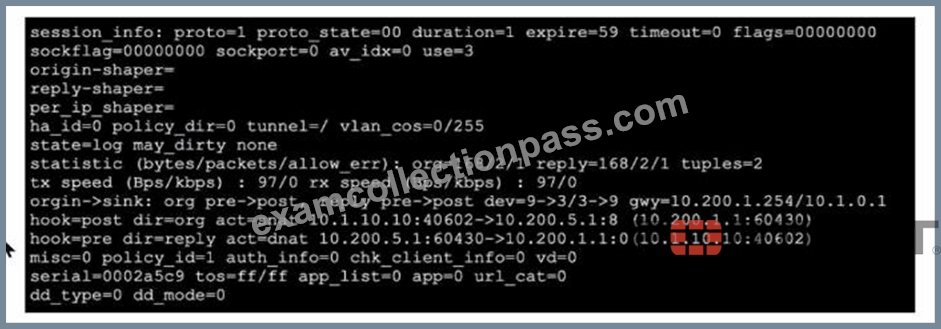

Refer to the exhibit, which shows a session entry.
Which statement about this session is true?
Answer: D
Explanation:
The session output reveals a session with proto=1 (ICMP) and the origin and reply directions show address and NAT translations. Specifically, the hook=post dir=org act=snat shows that source NAT is performed for outgoing packets, where the source 10.1.10.10:40602 is translated to 10.200.5.1:8 (likely ICMP id 8, not a TCP/UDP port). The reply direction, hook=pre dir=reply act=dnat, indicates destination NAT for incoming packets: packets incoming for 10.200.5.1:60430 are destination-NATed to 10.1.10.10:40602. The gateway (gwy) is listed as 10.200.1.254/10.1.0.1, which for outgoing traffic means that return traffic is directed to the gateway (10.200.1.254), per the NAT policy. This is confirmed by the FortiOS Session Table Guide, which explains that the returned ICMP reply will be routed out to this NAT gateway. The session statistics and logical flow (SNAT out, matching DNAT in) reinforce that reply traffic to the initiator traverses via 10.200.1.254.
References:
FortiOS Administration Guide: Session Table, NAT, and Route Interaction Fortinet Technical Note: Diagnose sys session list, Direction and NAT Analysis
NEW QUESTION # 31

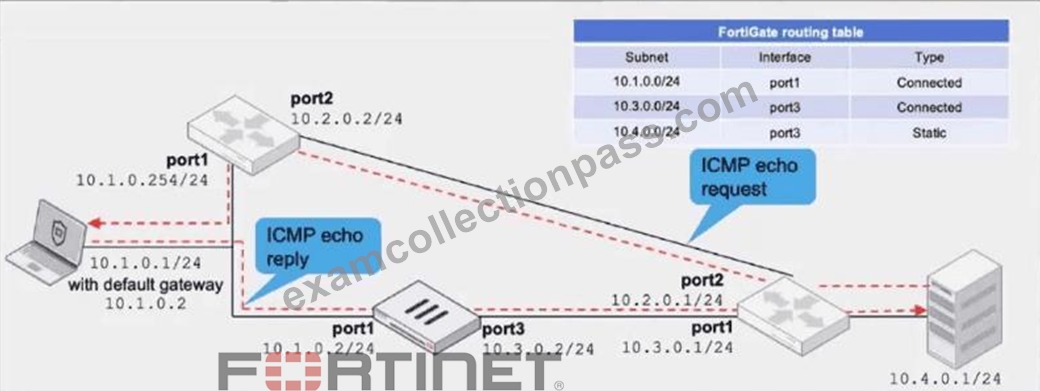

Refer to the exhibit, which a network topology and a partial routing table.
FortiGate has already been configured with a firewall policy that allows all ICMP traffic to flow from port1 to port3.
Which changes must the administrator perform to ensure the server at 10.4.0.1/24 receives the echo reply from the laptop at 10.1.0.1/24?
Answer: C
NEW QUESTION # 32

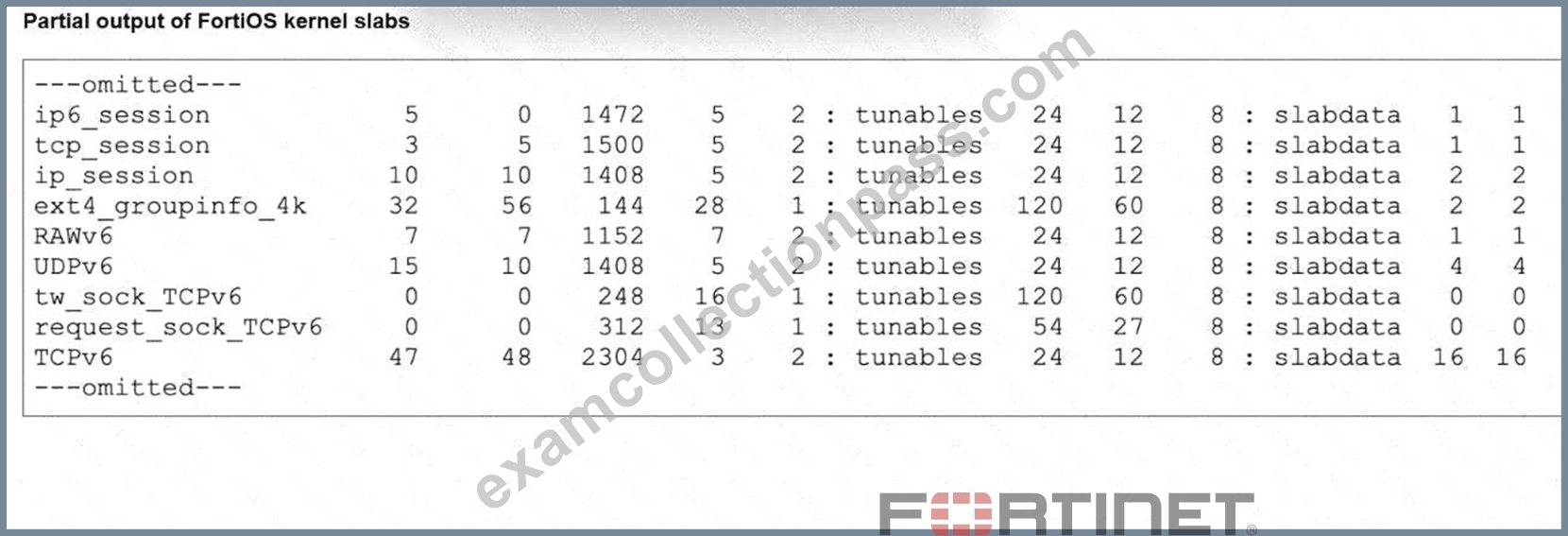

Refer to the exhibit.
The partial output of FortiOS kernel slabs is shown. Which statement about total slab size is true?
Answer: D
Explanation:
The correct answer is B .
The study guide explicitly states that slabs are used by the kernel : "The kernel memory slabs are collections of objects with a common purpose. The kernel uses them to store information in memory." It also gives the exact calculation method: "Total slab size = available objects x object size" and explains that in the diagnose hardware sysinfo slab output, the columns are active objects , available objects , and object size From the exhibit:
* tcp_session 3 5 1500 ...
* available objects = 5
* object size = 1500
So:
Total slab size = 5 × 1500 = 7500
That matches option B .
Why the other options are wrong:
* A : ip_session 10 10 1408 ... gives 10 × 1408 = 14080 , but slabs are associated with the kernel , not user space
* C : ip6_session 5 0 1472 ... gives 0 × 1472 = 0 , not 1472
* D : UDPv6 15 10 1408 ... gives 10 × 1408 = 14080 , but again slabs are associated with the kernel , not user space So the verified answer is B .
NEW QUESTION # 33

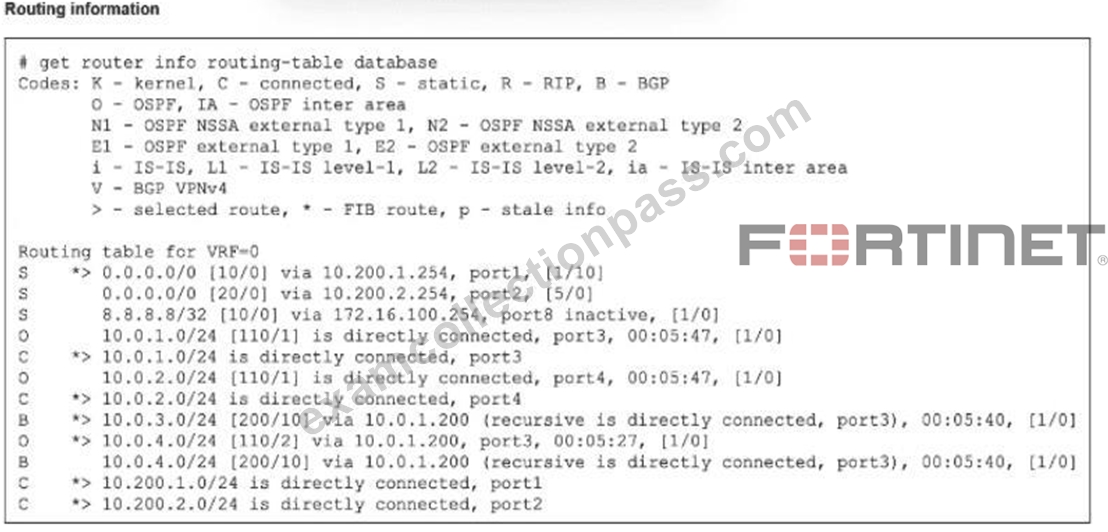

Refer to the exhibit.
The modified output of live routing kemel is shown
Which two statements about the output are (rue? (Choose two.)
Answer: A,B
Explanation:
We must analyze the flags (*, >, S, O, B) and Administrative Distances (AD) shown in the get router info routing-table database exhibit to determine the correct statements.
Analysis for Option A (The BGP route to 10.0.4.0/24 is not in the forwarding information base):
True. Look at the entry for 10.0.4.0/24.
There is an OSPF route: O *> 10.0.4.0/24 [110/2]. The * indicates it is in the FIB, and > indicates it is the selected route.
There is a BGP route: B 10.0.4.0/24 [200/10]. This line lacks the * flag.
Reason: The OSPF route has an Administrative Distance of 110. The BGP route (iBGP) has an AD of 200.
Since 110 is lower than 200, OSPF wins, and the BGP route is not installed in the Forwarding Information Base (FIB).
Analysis for Option B (The default static route through 10.200.1.254 is in the forwarding information base):
True. Look at the 0.0.0.0/0 entries.
The first entry is S *> 0.0.0.0/0 [10/0] via 10.200.1.254.
The * flag confirms this specific route is installed in the FIB.
The second static route (via 10.200.2.254) has a higher distance ([20/0]) and no * flag, so it is inactive.
Why C is False: ECMP (Equal Cost Multi-Path) requires routes to have the same cost/priority. Here, one static route has AD 10 and the other has AD 20. They are not equal, so ECMP is not performed.
Why D is False: The routing table database shows active routes, not the raw Link State Advertisement (LSA) database. You cannot determine the number of LSAs received solely from this output.
Reference:
FortiGate Security 7.6 Study Guide (Routing): "The routing table database displays all known routes... The * indicates the route is in the FIB... Lower Administrative Distance is preferred."
NEW QUESTION # 34
......
