NEW QUESTION # 10
Task 6: Configure Maintenance Order Types and work with Maintenance Orders The project team evaluates during the implementation project Maintenance Orders in SAP S/4HANA Asset Management. The following features need to be checked:
* Configure a Maintenance Order Type and create a Maintenance Order
* Create a Time Confirmation a Maintenance Order
* Prepare a Maintenance Order for Completion
* Create a Maintenance Order and save it.
Note:
Make sure that you have maintained all required customizing settings for the Maintenance Order Type.

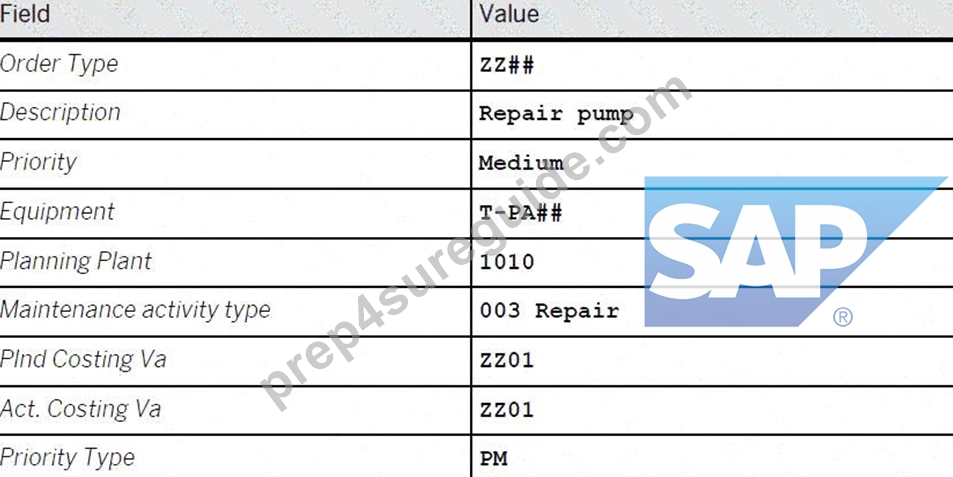

Use the following information at header level:

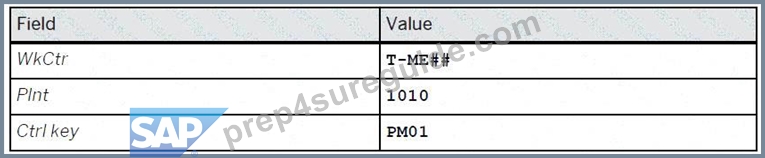

Plan a Maintenance Order Operation and use the following information:

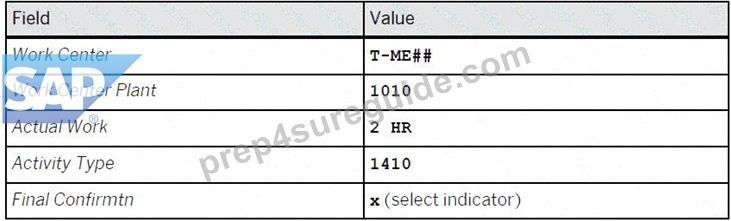

* Create a Time Confirmation for the just created Maintenance Order. Use the following information:

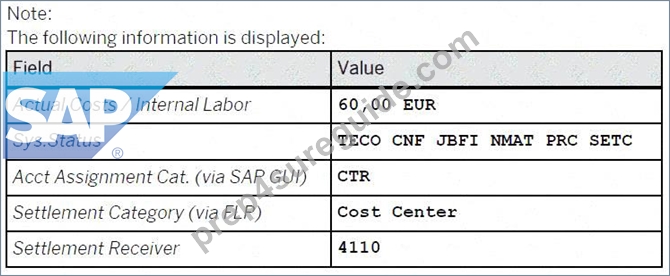

* Display the Actual Costs assigned to the just created Maintenance Order and set it to Technically Completed. Display the Settlement Rule.
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task 6 Overview
The goal of this task is to process a repair from start to finish. You will convert the "leaking pump" notification into a work order, plan the labor, record the work performed, and technically close the file.
Step 1: Create the Maintenance Order from Notification
Instead of starting from scratch, we link the order to the notification you created in Task 5.
* Access the Transaction : Use transaction code IW31 .
* Initial Screen :
* Order Type : PM01.
* Notification : Enter your notification number (e.g., 10000147).
* Press Enter .
* Header Data :
* The description "Pump is leaking" should pull in automatically.
* Main Work Center : Ensure it is T-ME48.
Explanation : By entering the notification number, SAP automatically pulls in the equipment, functional location, and problem description, ensuring "data integrity" across the maintenance process.
Step 2: Plan the Operations (Labor)
You must tell the system how much effort the repair requires.
* Go to the Operations Tab .
* Enter Planning Data :
* Work : 2.
* Unit (Un) : H (Hours).
* Number : 1 (One person).
* Duration (Dur.) : 2 / Unit : H.
* Add Enhancement Data :
* Click the Additional Data tab - > Enhancement sub-tab.
* In the Field Key box, use the search (F4) to select 0000001 (User-defined fields).
* In the first text box ( Text 1 ), type: Industrial Z48.
Explanation : Planning the work allows the system to calculate the estimated cost of the repair. The
"Enhancement" data is used to store specific technical details (like the motor type) that aren't in the standard SAP fields.
Step 3: Release the Order
An order in "Created" (CRTD) status is just a plan. To start work, it must be "Released" (REL).
* Release : Look at the top toolbar and click the Green Flag icon .
* Verify Status : The "Sys.Status" field should now include REL.
* Save : Click the Save (floppy disk) icon.
Explanation : Releasing the order is the "Green Light" for the shop floor. It allows technicians to charge time to the job and warehouse staff to issue parts.
Step 4: Time Confirmation (Recording the Work)
Now we record that the repair is physically finished.
* Access the Transaction : Use transaction code IW41 .
* Enter Data :
* Order : Enter your order number (e.g., 4000395).
* Actual Work : 2 H.
* Check the boxes for Final Confirmation and No Remaining Work .
* Confirmation Text : Pump repaired and tested.
* Save : Click the Save icon.
Explanation : This step captures the "Actual Cost." SAP multiplies the 2 hours of labor by the hourly rate of work center T-ME48 to calculate exactly how much this repair cost the company.
Step 5: Technical Completion (TECO)
The final administrative step to close the repair file.
* Access the Transaction : Use transaction code IW32 .
* Complete Technically :
* Go to menu: Order > Functions > Complete > Complete (technically) .
* Click the Green Checkmark on the popup window.
* Save : Click the Save icon.
Explanation : TECO (Technical Completion) locks the order. It tells the system the asset is back in service and prevents any further labor or parts from being charged to this specific job.
NEW QUESTION # 11
Create a Maintenance Plan
The project team evaluates during the implementation project Maintenance Plans in SAP S/4HANA Asset Management. The following features need to be checked:
Create a Maintenance Plan
Create a Maintenance Plan and save it. Use the following information:
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task 8: Create a Maintenance Plan
The objective of this task is to create a strategy-based maintenance plan that will automatically generate work orders for your pump based on the frequencies defined in your task list.
Step 1: Access the Transaction
* Transaction Code : Enter IP42 in the command field and press Enter .
* Initial Screen :
* Maintenance Plan Category : Select Maintenance Order (or "Maintenance plan for Maintenance Order" if using the Fiori Launchpad).
* Maintenance Strategy : Enter Z48 .
* Press Enter .
Step 2: Enter Header and Maintenance Item Data
Once you are on the main creation screen, fill in the "Maintenance Item" section to define what is being maintained and how the orders should look:
* Description : Enter Regular pump maintenance Z48 .
* Equipment : Enter T-PA48 .
* Planning Plant : This should default to 1010 based on the equipment, but ensure it is correct.
* Order Type : Enter PM02 .
Explanation : By assigning Equipment T-PA48 and Order Type PM02 , you are telling SAP to generate a specific "Planned" maintenance order every time this schedule is triggered.
Step 3: Link the Task List
This step connects the plan to the specific maintenance steps (operations) you created in Task 7.
* Look for the Task List section at the bottom of the screen.
* Task List Type : Enter A (General Task List).
* Group : Enter TL-48 .
* Counter : Enter 1 .
* Press Enter to validate the connection. You should see the description "Regular Maintenance GR48" appear.
Explanation : Linking the Task List ensures that when the maintenance plan generates an order, it automatically copies the 30-minute operations you defined earlier into that order.
Step 4: Set Scheduling Parameters (Optional but Recommended)
While the table in your document focuses on the data above, typically you would click the Maintenance Plan Scheduling Parameters tab to ensure the "Scheduling Period" and "Start Date" are set. However, for the assessment, the mandatory data is what we entered in Steps 1-3.
Step 5: Save
* Click the Save (floppy disk) icon.
* Note your Maintenance Plan Number : The system will display a message at the bottom, such as
"Maintenance plan 123 saved." Write this number down , as you will need it for Task 9: Schedule a Maintenance Plan .
Task 8 is now complete! You have built the automated "brain" that will handle the recurring maintenance for your pump.
NEW QUESTION # 12
Task: 5
Configure and create a Maintenance Notification
The project team evaluates during the implementation project the Maintenance Notifications in SAP S
/4HANA Asset Management. The following features need to be checked:
* Configure and create a Maintenance Notification
* Assign catalog specific data to a Maintenance Notification
* Create a Maintenance Notification and save it. Use the following information:
* Assign the following data to the just created notification:
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task 5 Overview
The project team is evaluating Maintenance Notifications in SAP S/4HANA Asset Management. This task involves creating a notification and assigning catalog-specific data to it.
Step 1: Create the Maintenance Notification
In this step, you will record a technical problem in the system.
* Access the Transaction : Use transaction code IW21 (Create Maintenance Notification) in the SAP GUI or the corresponding Fiori app.
* Initial Screen :
* Notification Type : Enter Z1 .
* Press Enter .
* Enter General Data :
* Description : Enter Pump is leaking .
* Priority : Select High .
* Equipment : Enter T-PA48 .
* Save : Click the Save (floppy disk) icon to generate a notification number.
Explanation : Creating a notification is the first step in the maintenance process. It documents the "what" (leaking pump), the "how critical" (high priority), and the "where" (Equipment T-PA48).
Step 2: Assign Catalog Specific Data
Now you must assign technical codes to describe the damage precisely for future reporting and analysis.
* Access the Transaction : Use transaction code IW22 (Change Maintenance Notification) to open your recently created notification.
* Navigate to Item Data : Go to the Items tab or the relevant section for damage and causes.
* Enter Damage Details :
* Damage Code Group : PMP-100 .
* Damage Code : 1000 .
* Description : Leaking .
* Enter Object Part Details :
* Object Part Code Group : PMP-Z48 .
* Object Part Code : 1001 .
* Description : Inlet/Outlet .
* Enter Cause Details :
* Cause Code Group : PMP-248 .
* Cause Code : 2000 .
* Description : Material fatigue .
* Save : Click the Save icon to finalize the notification.
Explanation : Assigning catalog data categorizes the issue using standardized codes. This allows the company to run "Bad Actor" reports later to see, for example, how many pumps are failing due to "Material fatigue" versus "Operator error".
NEW QUESTION # 13
Task 11: Classify a piece of Equipment
The project team evaluates during the implementation project the classification of Technical Objects in order to use Checklists in SAP S/4HANA Asset Management. The following features need to be checked:
* Assign a class to a Technical Object
* Assign chararcteristic values to a class
* Assign class EQ11 value to Technical Object T-PA## .
* Assign a characteristic value, so that Inspection Plan Q / CL-DE-00 / 1 is automatically found during the checklist process
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task 11 Overview
This task involves classifying a piece of equipment so it can be used in the Checklist process . By assigning a specific class and characteristic values, you enable the system to automatically find the correct inspection plan when a maintenance order is created.
Step 1: Access the Equipment Master Record
To classify the equipment, you must first open its master record in "Change" mode.
* Transaction Code : Enter IE02 (Change Equipment) in the command field and press Enter .
* Equipment : Enter T-PA48 .
* Action : Press Enter to open the record.
Step 2: Assign the Class to the Equipment
Now you will link the equipment to a class that contains the required technical characteristics.
* Navigate : Click the Classification button in the top toolbar (or go to the Classes tab if available).
* Class Assignment :
* Class Type : Ensure this is set to 002 (Equipment Class).
* Class : Enter EQ11 .
* Action : Press Enter . The system will now display the characteristics associated with class EQ11 in the bottom half of the screen.
Explanation : Assigning a class is like giving the equipment a "category". Class EQ11 is specifically configured in this system to hold the data needed for checklist processing.
Step 3: Assign Characteristic Values
This is the critical step that tells the system exactly which inspection plan to use for this specific pump.
* Locate the Characteristic : In the values table, look for a characteristic related to "Inspection Plan" or
"Checklist Group."
* Enter the Value : Assign the value so that Inspection Plan CL-DE-00 / 1 is automatically found.
* Note: Typically, you will enter CL-DE-00 in the "Inspection Plan Group" field and 1 in the
"Group Counter" field.
* Action : Press Enter to validate the values.
Explanation : Characteristic values are the specific details for this asset. By entering these values, you "tag" the equipment so that whenever it is added to a maintenance order, the system knows to look for the CL-DE-
00 checklist automatically.
Step 4: Save
* Action : Click the Save (floppy disk) icon.
* Confirmation : The system should display a message at the bottom saying: "Equipment T-PA48 changed."
NEW QUESTION # 14
Task 4: Configure and create Technical Objects
The project team evaluates during the implementation project Technical Object structures in SAP S/4HANA Asset Management. The following features need to be checked:
* Configure and create Functional Locations
* Create, serialize and install Equipment
* Create Functional Location master record ZZ0##-01 and save it. Use the following information:
* Create Equipment master record EQUI-## and save it. Use the following information:
* Serialize the just created Equipment master record EQUI-## . Use the following data:
* Install Equipment EQUI-## at the Functional Location 00-01-ASS-02 .
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task 4: Configure and create Technical Objects
This task evaluates your ability to structure and manage the physical and functional hierarchy of assets in SAP S/4HANA Asset Management.
Step 1: Create Functional Location Master Record
A Functional Location represents the area at which a maintenance task is to be performed.
* Access the Transaction : Use transaction code IL01 (Create Functional Location).
* Enter Initial Data :
* Functional Location : ZZ048-01.
* Structure Indicator : ZZ48.
* Functional Location Category : T.
* Press Enter .
* Enter General Data :
* Description : Production Line Z48.
* Enter Location and Organization Data :
* Maintenance Plant : 1020.
* Cost Center : 4110.
* Planning Plant : 1020.
* Planner Group : Z48.
* Main WorkCtr : T-ME48.
* Work Center Plant : 1010.
* Save : Click the Save icon.
Explanation : By creating this record, you define a specific functional area within Plant 1020 where maintenance costs and history will be tracked for all equipment installed there.
Step 2: Create Equipment Master Record
Equipment represents an individual physical object that is maintained as an autonomous unit.
* Access the Transaction : Use transaction code IE01 (Create Equipment).
* Enter Initial Data :
* Equipment : EQUI-48.
* Equipment Category : T.
* Press Enter .
* Enter General Data :
* Description : Drive Motor GR48.
* Save : Click the Save icon.
Explanation : This step creates a master record for a physical asset-a drive motor-allowing you to track its individual lifecycle, independent of where it is currently installed.
Step 3: Serialize the Equipment
Serialization links a piece of equipment to a specific material and unique serial number for inventory management and tracking.
* Access the Transaction : Use transaction code IE02 (Change Equipment) and enter EQUI-48.
* Navigate to Serial Data : Go to the SerData (Serial Data) tab.
* Enter Serialization Data :
* Material : T-PM8000.
* Serial Number : EQUI-48.
* Save : Click the Save icon.
Explanation : Linking the motor to Material T-PM8000 enables the system to track this specific asset as a serialized part, which is essential for warehouse movements and warranty tracking.
Step 4: Install Equipment at a Functional Location
This establishes the relationship between the physical asset (Equipment) and the functional area where it is operating.
* Access the Transaction : Use transaction code IE02 (Change Equipment) for EQUI-48.
* Modify Installation Location :
* Click on the Structure tab.
* Find the FunctLoc field.
* Enter the location: 00-01-ASS-02.
* Save : Click the Save icon.
Explanation : This installation "plugs" your drive motor into the functional hierarchy at location 00-01-ASS-02. From this point forward, any maintenance performed on this motor will be automatically associated with that location's history.
NEW QUESTION # 15
......
We have always been known as the superior after sale service provider, since we all tend to take lead of the whole process after you choose our C_S43_2601 exam questions. So you have no need to trouble about our C_S43_2601 study guide, if you have any questions, we will instantly response to you. Our C_S43_2601 Training Materials will continue to pursue our passion for better performance and comprehensive service of C_S43_2601 exam.
Certified C_S43_2601 Questions: https://www.prep4sureguide.com/C_S43_2601-prep4sure-exam-guide.html
