NEW QUESTION # 14
A VOS branch has two WAN circuits. You suspect the configured transport domain mapping is wrong because one link is not building the expected SD-WAN path. Which VSM control-plane command is most useful to check local WAN circuit information, transport domains, NAT status, and local tunnel-site details?
Answer: A
Explanation:
The correct answer is A . Versa SD-WAN data-path troubleshooting documentation instructs administrators to connect to the VSM control plane with vsh connect vsmd and then use show vsm p2mp local-tunnel-sites 0 to check the status of local site objects. The example output includes the local site key, neighbor IP, site type, site name, branch ID, tenant ID, and detailed WAN link information. It also shows fields such as WAN local VRF ID, WAN local link name, circuit information, link ID, behind-NAT status, shaping rate, public and private addresses, link flags, transport domain, and SLA interval.
This command is therefore highly relevant when validating whether the local SD-WAN site has learned and built the correct WAN transport objects for overlay tunnel creation. If a circuit is mapped to the wrong transport domain or has incorrect NAT/public/private address state, the local-tunnel-site output is one of the best places to confirm it.
The other commands are useful for software version, CGNAT summary, or CPU usage, but they do not show the detailed SD-WAN local tunnel-site transport mapping.
NEW QUESTION # 15
You have deployed a group of devices in Versa Director, and the field technicians have performed the onboarding tasks onsite. One of the devices has not finished the onboarding process and does not appear in the Appliances list in Versa Director. The onboarding VPN tunnel from the device to the Controller is up.
Which two actions would help you solve this problem? (Choose two.)
Answer: C,D
Explanation:
The correct answers are A and C . If the onboarding VPN tunnel from the branch device to the Controller is up, the branch has reached at least the initial staging/control connectivity stage. Versa troubleshooting documentation explains that after a branch establishes IPsec connectivity to the Controller, the Controller sends a branch-connect notification to Versa Director. In response, Director pushes staging configuration and continues the onboarding lifecycle. If the expected later notification is not seen, the branch has not completed staging and further onboarding/debug steps are required.
The Tasks list in Versa Director is useful because device deployment and onboarding actions are executed as Director tasks. If template commit, workflow deployment, device claiming, or configuration push fails, the task output can show the error. The Unknown Devices dashboard is also relevant because a device that reaches the Controller but cannot be matched or fully associated with an expected workflow/appliance record may appear as an unknown device awaiting administrative review. The Monitor dashboard is not the best choice because the device is missing from the Appliances list and has not completed onboarding. Resource Pool is related to connector resources, not branch onboarding completion.
NEW QUESTION # 16
You configured a Versa speed-test server on a VOS device, but the client cannot start the bandwidth test. A firewall exists between the client and server. Which port must be allowed through the firewall?
Answer: C
Explanation:
The correct answer is A . Versa link-bandwidth troubleshooting documentation explains that a VOS device can be configured as a Versa speed-test client, a Versa speed-test server, or both simultaneously. After the server is configured, the client starts the test by initiating a TCP-based connection toward the speed-test server. The server listens on port 5201 . The documentation includes an explicit note that if the VOS device is behind a firewall, port 5201 must be open .
This is different from the SD-WAN overlay data path, which commonly uses UDP-based transport encapsulation, and different from internet speed-test traffic, which uses other ports depending on the specific test type. In this scenario, the question states that a Versa speed-test server was configured, so the relevant requirement is TCP 5201 reachability from the client to the server.
TCP 443 may be used for management or web access, UDP 4790 is associated with SD-WAN transport encapsulation, and UDP 53 is DNS. None of those replace TCP 5201 for Versa speed-test server operation.
NEW QUESTION # 17

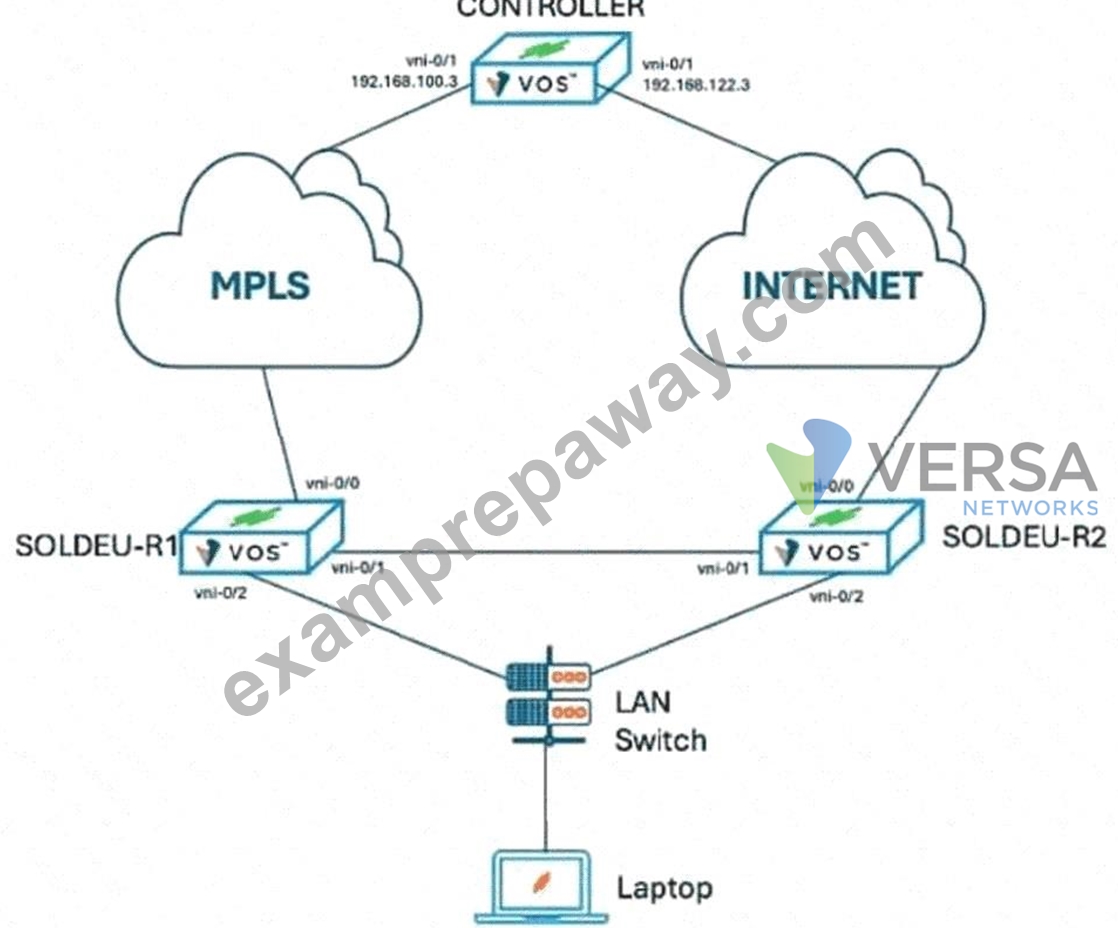

Examine the exhibit below.
You are onboarding the SOLDEU-R2 branch device using the staging script. You cannot get a Versa- Provider-Controller-VR IP address assigned, indicating that the IPsec tunnel to the corrector has not come up.
You verified that the cables have been connected to the correct ports.
What has caused this issue?
Answer: B
Explanation:

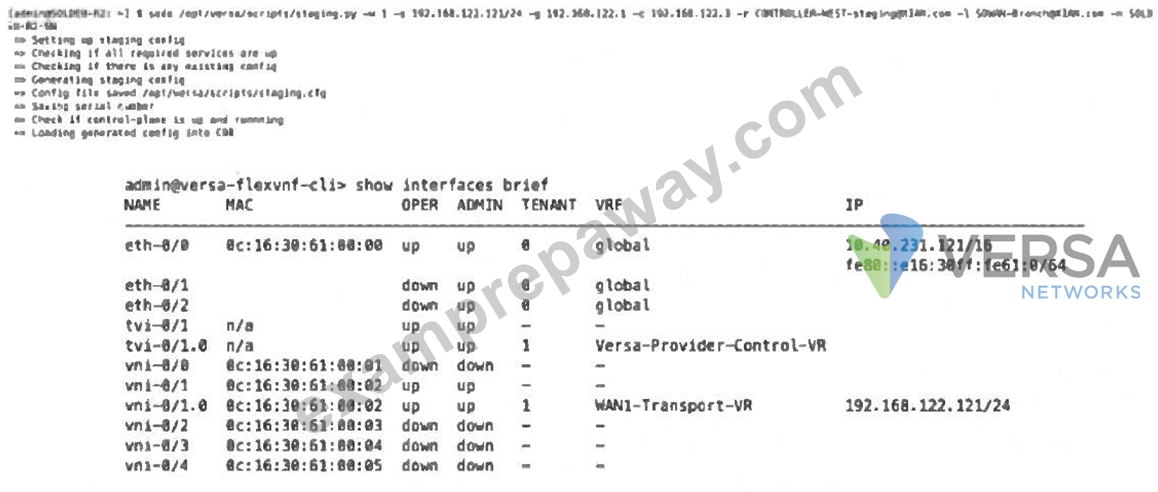

The issue is caused by specifying the incorrect WAN port in the staging script. In the exhibit, the SOLDEU- R2 branch is physically connected to the Internet cloud through vni-0/0 , while vni-0/1 is shown as the inter- device link toward SOLDEU-R1. However, the show interfaces brief output shows that the WAN IP address
192.168.122.121/24 has been assigned to vni-0/1.0 , not to the Internet-facing interface. Since the cables are confirmed to be connected correctly, the mismatch must be in the staging script interface selection, not in the cabling.
Versa documentation states that during SD-WAN staging, the branch establishes an IKE session with the Controller, and after that the Controller assigns an IP address to the branch device. Versa troubleshooting guidance also states that after transport connectivity to the Controller is established, the branch forms IKE-based IPsec connectivity, and if this succeeds, the ptvi interface toward the Controller comes up. If IKE/IPsec fails, the ptvi interface remains down. Because the staged WAN IP is placed on the wrong VNI interface, the branch cannot reach the Controller over the intended Internet transport, so the Controller tunnel does not come up.
NEW QUESTION # 18
You are asked to ensure symmetric traffic flows between two SD-WAN branches. Which feature should be enabled to achieve this objective?
Answer: B
Explanation:
Symmetric Forwarding is the correct Versa SD-WAN feature for ensuring that return traffic between SD- WAN branches follows the same SD-WAN path on which the forward traffic was received. Versa documentation for SD-WAN traffic steering describes Symmetric forwarding as the option that specifies the path for reverse-direction traffic, meaning whether traffic returning from the destination branch to the originating branch should be sent on the same path on which it arrived. It further states that enabling symmetric traffic forwarding determines the reverse path for traffic returning from the destination branch to the originating branch.
This is different from Symmetric Routing, which is a routing design goal or behavior, not the Versa SD- WAN forwarding-profile feature named in the product documentation. Equal-Cost Multipath can distribute flows across equal-cost routes, but it does not specifically guarantee that both directions of the same SD-WAN session use the same path. Packet Striping is used to split or distribute packets across multiple links for performance, not to enforce bidirectional path symmetry. Therefore, the verified Versa feature to enable is Symmetric Forwarding.
NEW QUESTION # 19
......
