Our supporter of NSE5_FSW_AD-7.6 study guide has exceeded tens of thousands around the world, which directly reflects the quality of them. Because the exam may put a heavy burden on your shoulder while our NSE5_FSW_AD-7.6 practice materials can relieve you of those troubles with time passing by. Just spent some time regularly on our NSE5_FSW_AD-7.6 Exam simulation, your possibility of getting it will be improved greatly. For your information, the passing rate of our NSE5_FSW_AD-7.6 training engine is over 98% up to now.
| Certification Vendor: | Fortinet |
|---|---|
| Exam Name: | Fortinet NSE 5 FortiSwitch 7.6 Administrator |
| Exam Number: | NSE5_FSW_AD-7.6 |
| Exam Format: | Multiple select, Multiple choice |
| Available Languages: | English |
| Certificate Validity Period: | 2 years |
| Passing Score: | 70% |
| Related Certifications: | Fortinet NSE 4 FortiGate Administrator Fortinet NSE 5 Network Security Analyst |
| Exam Price: | $200 USD (varies by region) |
| Real Exam Qty: | 30-40 |
| Exam Duration: | 70 minutes |
| Recommended Training: | FortiSwitch 7.6 Administrator Course Fortinet Network Security Expert (NSE) Training Path |
| Exam Registration: | Fortinet Training Institute Fortinet Certification Portal |
| Sample Questions: | Fortinet NSE5_FSW_AD-7.6 Sample Questions |
| Exam Way: | Online proctored or onsite via Pearson VUE testing centers |
| Pre Condition: | Recommended: Fortinet NSE 4 certification or equivalent networking knowledge |
| Official Syllabus URL: | https://www.fortinet.com/training/certification |
>> Latest NSE5_FSW_AD-7.6 Exam Discount <<
All these three NSE5_FSW_AD-7.6 exam questions formats are easy to use and compatible with all devices, operating systems, and web browsers. Just choose the best NSE5_FSW_AD-7.6 exam questions format and start Fortinet NSE5_FSW_AD-7.6 exam preparation without wasting further time. As far as the price of Fortinet NSE 5 - FortiSwitch 7.6 Administrator exam practice test questions is concerned, these exam practice test questions are being offered at a discounted price. Get benefits from NSE5_FSW_AD-7.6 Exam Questions at discounted prices and download them quickly. Best of luck in NSE5_FSW_AD-7.6 exam and career!!!
| Topic | Details |
|---|---|
| Topic 1 |
|
| Topic 2 |
|
| Topic 3 |
|
| Topic 4 |
|
NEW QUESTION # 52
You are managing FortiSwitch ports from a FortiGate device with multiple VDOMs. Which two methods can you use to assign FortiSwitch ports to VDOMs? (Choose two answers)
Answer: A,D
Explanation:
According to theFortiOS 7.6 Administration Guideand theFortiSwitch 7.6 FortiLink Guide, managing FortiSwitch units in a multi-VDOM environment allows for granular control over physical switch resources.
By default, when a FortiSwitch is discovered and authorized via FortiLink, its ports reside in the same VDOM as the FortiLink interface (typically the root or a dedicated management VDOM).
To allocate these ports to other VDOMs, administrators have two primary methods. The first method isdirect assignment(Option A). Using the FortiGate CLI or GUI, an administrator can export a specific physical port directly to a target VDOM. For example, the command set export-to <VDOM_name> under the config switch- controller managed-switch port settings physically isolates that port for use only by the specified VDOM.
This is ideal for multi-tenant scenarios where a specific physical connection must be dedicated to a single business unit.
The second method involves using aVirtual Port Pool (VPP)(Option D). This method provides a layer of virtualization for switch ports. An administrator first creates a pool (VPP) in the management VDOM and assigns physical ports to it. Then, from the tenant VDOM, an administrator can "request" a port from that specific pool. This allows for a more flexible "shared" infrastructure where ports are not permanently tethered to a single VDOM until they are claimed from the pool. Both methods ensure that traffic remains logically and physically isolated between VDOMs, supporting the security requirements of complex enterprise deployments. Options B and C are incorrect as they relate to traffic routing and device identification rather than the foundational assignment of hardware ports to virtual domains.
NEW QUESTION # 53
Which two statements about VLAN assignments on FortiSwitch ports are true? (Choose two.)
Answer: C,D
NEW QUESTION # 54

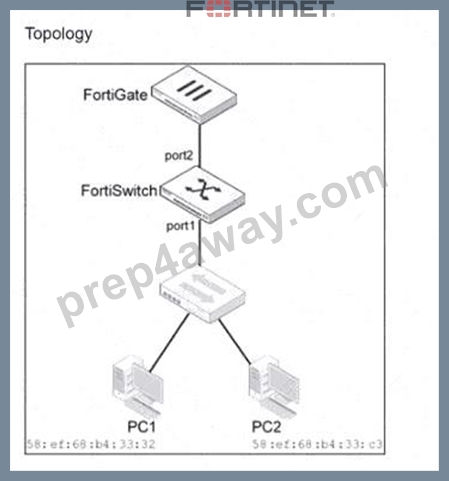

Refer to the exhibits
Traffic arriving on port2 on FortiSwitch is tagged with VLAN ID 10 and destined for PC1 connected on port1. PC1 expects to receive traffic untagged from port1 on FortiSwitch. Which two configurations can you perform on FortiSwitch to ensure PC1 receives untagged traffic on port1? (Choose two.)
Answer: A,B
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the way a FortiSwitch handles VLAN tags on egress (outgoing) traffic is governed by the port'sNative VLANand its Untagged VLAN list. When traffic for VLAN 10 arrives at port2 (the uplink) and is forwarded to port1, the switch must determine whether to strip the 802.1Q tag before transmission.
* Untagged VLAN List (Option B):The documentation explicitly states that the "untagged VLAN list" specifies VLANs for which the port will transmit frameswithout the VLAN tag. By adding VLAN ID
10 to the untagged VLANs on port1, any traffic belonging to VLAN 10 will have its tag stripped at the egress point, ensuring PC1 receives a standard untagged frame.
* Configuration Logic (Option C):In FortiSwitch management, moving a VLAN from the "Allowed" list (which typically implies tagged delivery) to the "Untagged" list on a specific interface forces the switch to perform the tag-stripping action. This effectively converts the port from a trunked behavior for that VLAN to an "access" or untagged behavior.
Regarding the incorrect options:Option A (MAC-based assignment)is used primarily foringress classification. While it can assign a device to a VLAN when it sends trafficintothe switch, the documentation notes that by default, egress packets for MAC-based VLANs still include the tag unless the untagged list is configured.Option D(Private VLANs) is a security feature for isolating traffic between ports within the same VLAN and does not address the physical tagging requirements of the endpoint.
NEW QUESTION # 55

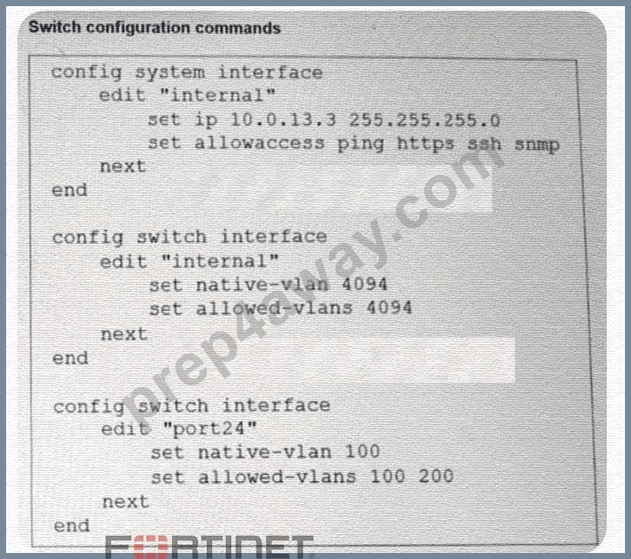

Refer to the exhibit.
Port24 is the only uplink port connected to the network where you need access to FortiSwitch management services. However, FortiSwitch is not accessible on its management interface with IP address 10.0.13.3.
Based on the configuration shown in the exhibit, which two actions should you take to fix the issue and access FortiSwitch? (Choose two answers)
Answer: A,C
Explanation:
According to theFortiSwitchOS 7.6 Administration Guide (Page 320), management traffic on a FortiSwitch is associated with a specific logical interface, which in this case is the"internal"interface. The exhibit shows that the"internal"interface is configured onVLAN 4094(both as native and allowed). This means that for any management traffic (such as HTTPS, SSH, or SNMP) to reach the switch CPU, it must be able to traverse the physical uplink on VLAN 4094.
However, the configuration forport24(the uplink) is currently restricted. It is set withnative VLAN 100and an allowed-vlans list that only includes100 and 200. Because VLAN 4094 is not included in the allowed list of port24, all frames belonging to the management VLAN (4094) are dropped by the switch's ingress/egress filters on the uplink.
To resolve this and restore management access, the administrator has two valid configuration paths based on the provided options:
* Option B:Change thenative VLAN on port24 to VLAN 4094. By making 4094 the native VLAN, untagged management traffic can traverse the port, effectively allowing the "internal" interface to communicate with the network.
* Option D:Add VLAN 4094 to the allowed VLANs on port24. This ensures that VLAN 4094 is no longer filtered out, allowing management frames to pass through the uplink while maintaining the current native VLAN for other traffic.
Option C is irrelevant as removing a working VLAN (200) does not help the management traffic. While Option A describes an alternate architectural approach (moving management into an already-allowed VLAN), Options B and D represent the direct fixes for the mismatch described in the 7.6 administration documentation.
NEW QUESTION # 56

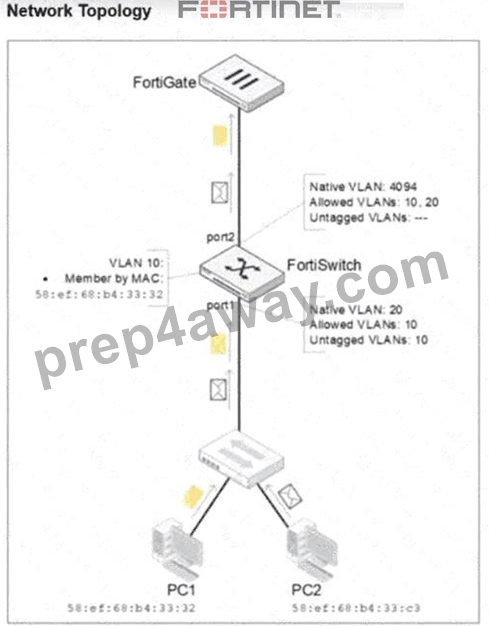

Refer to the exhibit.
PC1 and PC2 are connected to port1 on FortiSwitch. Which VLAN tags will FortiSwitch apply when forwarding PC1 and PC2 traffic out of port2? (Choose one answer)
Answer: D
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the classification of untagged traffic entering a switch port is determined by the port's hierarchy of VLAN assignment rules.
For the traffic arriving atport1:
* PC1 (MAC 58:ef:68:b4:33:32):The exhibit shows an explicitMAC-based VLAN assignmentrule for this specific MAC address, placing it intoVLAN 10. In FortiSwitchOS, dynamic assignments like MAC-based or protocol-based rules take precedence over the port's static native VLAN. Therefore, PC1's traffic is internally associated with VLAN 10.
* PC2 (MAC 58:ef:68:b4:33:c3):There is no MAC-based rule for this device. As a result, the switch falls back to the default behavior and assigns the traffic to the port'sNative VLAN, which isVLAN 20.
For the traffic exiting port2:
The egress behavior depends on the VLAN tagging configuration of the outgoing interface. On port2, the Native VLAN is 4094, and VLANs 10 and 20 are listed as Allowed VLANs. According to Fortinet documentation, any traffic belonging to an allowed VLAN that does not match the native VLAN ID of the egress port must be sent as tagged 802.1Q frames. Since neither VLAN 10 nor VLAN 20 matches the native ID of 4094, the FortiSwitch will apply a VLAN 10 tag to PC1's traffic and a VLAN 20 tag to PC2's traffic as they are forwarded to the FortiGate.
NEW QUESTION # 57
......
