| Section | Objectives |
|---|---|
| Topic 1: Network Performance Issue Identification | - Analyzing traffic flow issues - Identifying network-level performance bottlenecks |
| Topic 2: Traffic Flow and Load Balancing Troubleshooting | - Virtual server and pool troubleshooting - Load balancing behavior validation |
| Topic 3: BIG-IP Operations and Support Fundamentals | - System resource utilization analysis - Interpreting system health and statistics |
| Topic 4: Diagnostics and Root Cause Analysis | - Basic BIG-IP diagnostic workflows - Log interpretation and troubleshooting methods |
Als ein Mitglied der IT-Branche, machen Sie sich noch Sorgen um die F5 F5CAB5 IT-Zertifizierungsprüfungen? Es ist nicht so leicht, die F5 F5CAB5 IT-Zertifizierungsprüfung, die Ihre relevanten Fachkenntnisse und Fähigkeiten überprüft, zu bestehen. Für die Kandidaten, die sich zum ersten Mal an der F5 F5CAB5 IT-Zertifizierungsprüfung beteiligen, ist ein zielgerichtetes Schulungsprogramm von großer Notwendigkeit. Zertpruefung stellt den Kandidaten die zielgerichteten Programme, die Simulationsprüfung, zielgerichtete Lernhilfe und die Prüfungsfragen und Antworten, die 95% der realen Prüfung ähnlich sind, zur Verfügung. Schicken Sie doch schnell Zertpruefung in den Warenkorb.
13. Frage

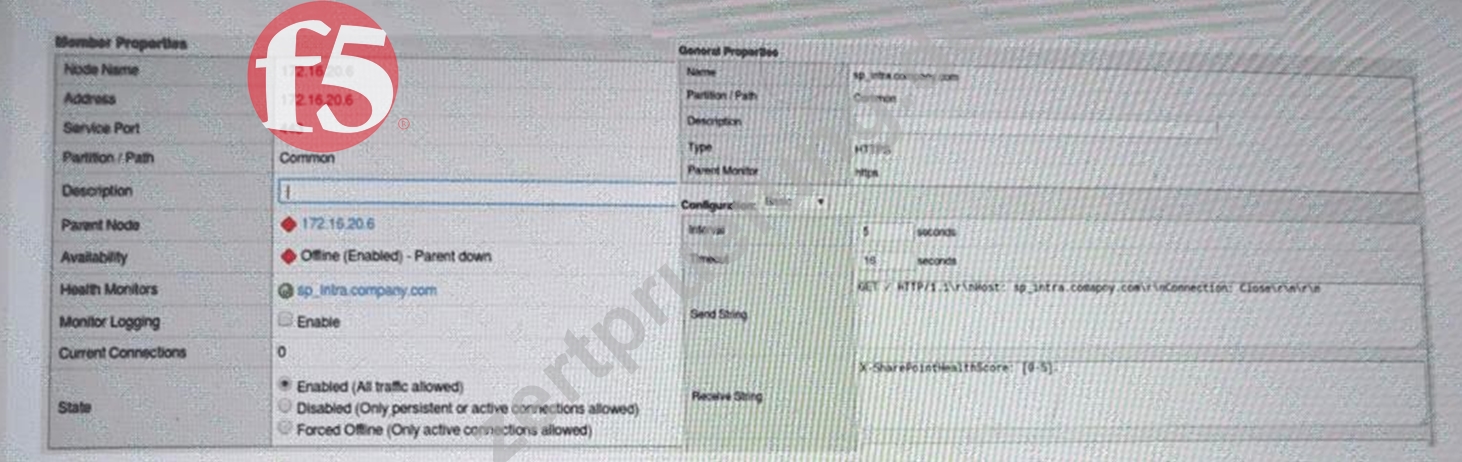

A BIG-IP Administrator notices that one of the servers that runs an application is NOT receiving any traffic. The BIG-IP Administrator examines the configuration status of the application and observes the displayed monitor configuration and affected pool member status.
What is the possible cause of this issue? (Choose one answer)
Antwort: B
Begründung:
The key clue in the exhibit is the pool member's availability showing"Offline (Enabled) ?Parent down". In BIG-IP terminology, a pool member inherits the status of itsparent node. If thenodeis marked down (for example, by a node-level monitor or a default "node is down" condition), thenall pool members using that node IPwill also be marked down and will not receive any traffic, even if the application service on the member port might be healthy.
While the HTTPS monitor configuration (send/receive strings) is displayed, the status specifically indicates anode (parent) failure, not a service-level failure. If the problem were the application not matching the receive string, you would typically see the member down due to themember's monitorfailing (and the status would reflect monitor failure details), rather than "parent down."
14. Frage
A BIG-IP device sends out the following SNMP trap:
big-ipo.f5.com - bigipExternalLinkChange Link: 1.0 is DOWN.
Where in the BIG-IP Configuration utility should the BIG-IP Administrator verify the current status of Link 1.0?
Antwort: D
Begründung:
Identifying network-level performance issues often starts with investigating hardware-level alerts.
In F5 terminology, a "Link" like "1.0" or "1.1" refers to a physical interface on the appliance. When an SNMP trap reports that a link is "DOWN," it indicates a loss of signal or an administrative shutdown of the physical port. To verify this, the administrator must navigate to Network > Interfaces > Interface List. This screen provides real-time status, showing whether the interface is
"up," "down," or "uninitialized," as well as any media speed or duplex mismatches that could be causing performance degradation. Troubleshooting this is the first step in resolving "pool member down" or "VLAN failsafe" issues, as a down interface will take down any VLANs associated with it, immediately halting all traffic flow for the services relying on that physical path.
15. Frage
A custom HTTP monitor is failing to a pool member 10.10.3.75:8080 that serves up www.example.com. A ping works to the pool member address. The SEND string is:
GET / HTTP/1.1 \r\nHost: www.example.com\r\nConnection: Close\r\n\r\n.
Which CLI tool syntax will show whether the web server returns the correct HTTP response?
Antwort: B
Begründung:
To manually verify a health monitor's "Send String" from the BIG-IP command line, the curl utility is the preferred tool because it allows for custom header insertion.
Matching the Monitor String: The monitor string requires an HTTP/1.1 request which must include a "Host" header. Option A correctly uses the --header (or -H) flag to pass Host:
www.example.com to the specific IP and port of the pool member.
Troubleshooting Logic: If curl--header 'Host: www.example.com' 'http://10.10.3.75:8080/' returns a
"200 OK" but the BIG-IP monitor still shows "Down," the administrator should check if the Receive String in the monitor configuration matches the output provided by curl.
16. Frage

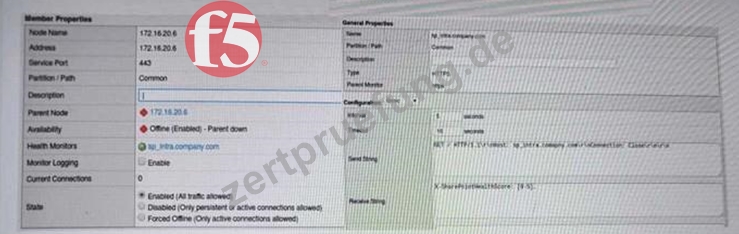

A BIG-IP Administrator notices that one of the servers that runs an application isNOTreceiving any traffic.
The BIG-IP Administrator examines the configuration status of the application and observes the displayed monitor configuration and affected pool member status.
What is the possible cause of this issue? (Choose one answer)
Antwort: C
Begründung:
The key clue in the exhibit is the pool member's availability showing"Offline (Enabled) - Parent down". In BIG-IP terminology, a pool member inherits the status of itsparent node. If thenodeis marked down (for example, by a node-level monitor or a default "node is down" condition), thenall pool members using that node IPwill also be marked down and will not receive any traffic, even if the application service on the member port might be healthy.
While the HTTPS monitor configuration (send/receive strings) is displayed, the statusspecificallyindicates anode (parent) failure, not a service-level failure. If the problem were the application not matching the receive string, you would typically see the member down due to themember's monitorfailing (and the status would reflect monitor failure details), rather than "parent down." Option D is too broad; BIG-IP can generally reach the subnet (other servers work), and this symptom points to a specific node condition. Option C is incorrect because HTTP/1.1 is commonly used for monitoring and is valid when properly formatted (especially with a Host header). Therefore, the most likely cause is that thenode health monitor is not responding, causing the node-and consequently the member-to be marked down.
17. Frage
A BIG-IP Administrator configured the following virtual server to pass traffic on all addresses and ports.
After configuration is completed, the BIG-IP Administrator notices that the virtual server is unable to pass traffic.
Plaintext
ltm virtual forwarding_any_vs {
destination 0.0.0.0:any
ip-forward
mask 255.255.255.255
profiles {
fastL4 {}
}
serverssl-use-sni disabled
source 0.0.0.0/0
translate-address disabled
translate-port disabled
}
Which part of the configuration is the cause of the issue?
Antwort: A
Begründung:
The failure of the Forwarding (IP) virtual server is caused by an incorrect Network Mask configuration for a wildcard destination.
* Wildcard Destination: The administrator intends to create a "Wildcard" Virtual Server that listens for any destination IP address (0.0.0.0).
* The Mask Conflict: A mask of 255.255.255.255 (or /32) tells the BIG-IP to look for a specific, single host address. When combined with 0.0.0.0, the system is literally looking for traffic destined for the IP
0.0.0.0, which is not a valid routable destination for standard traffic.
* Correct Configuration: To allow the virtual server to catch traffic for any IP address, the mask must be changed to 0.0.0.0 (or /0). This signifies that the system should ignore all bits of the destination address and match everything.
* Forwarding Logic: The rest of the configuration-including ip-forward (Forwarding IP type), translate-address disabled, and translate-port disabled-is correct for a BIG-IP acting as a router
/gateway.
