NEW QUESTION # 45
What is required for a virtual server to support clients whose traffic arrives on the internal VLAN and pool members whose traffic arrives on the external VLAN?
Answer: A
Explanation:
4647
Virtual Servers have a setting called VLAN and Tunnel Traffic which defines where the BIG-IP "listens" for new connections.4849 Ingress Logic: A virtual server is an entry point. It must be enab50led on the VLAN where the Client resides. If a client is on the "51Internal" VLAN, the Virtual Server must be enabled there to receive the traffic.
Egress Logic: The BIG-IP system uses the TMM Routing Table and Self-IPs to reach pool members. It does not need the Virtual Server to be "enabled" on the destination VLAN (External) to send traffic there.
Default Behavior: By default, Virtual Servers are enabled on "All VLANs." However, if restricted for security, the administrator must ensure the Virtual Server is active on the client-facing (ingress) VLAN.
NEW QUESTION # 46

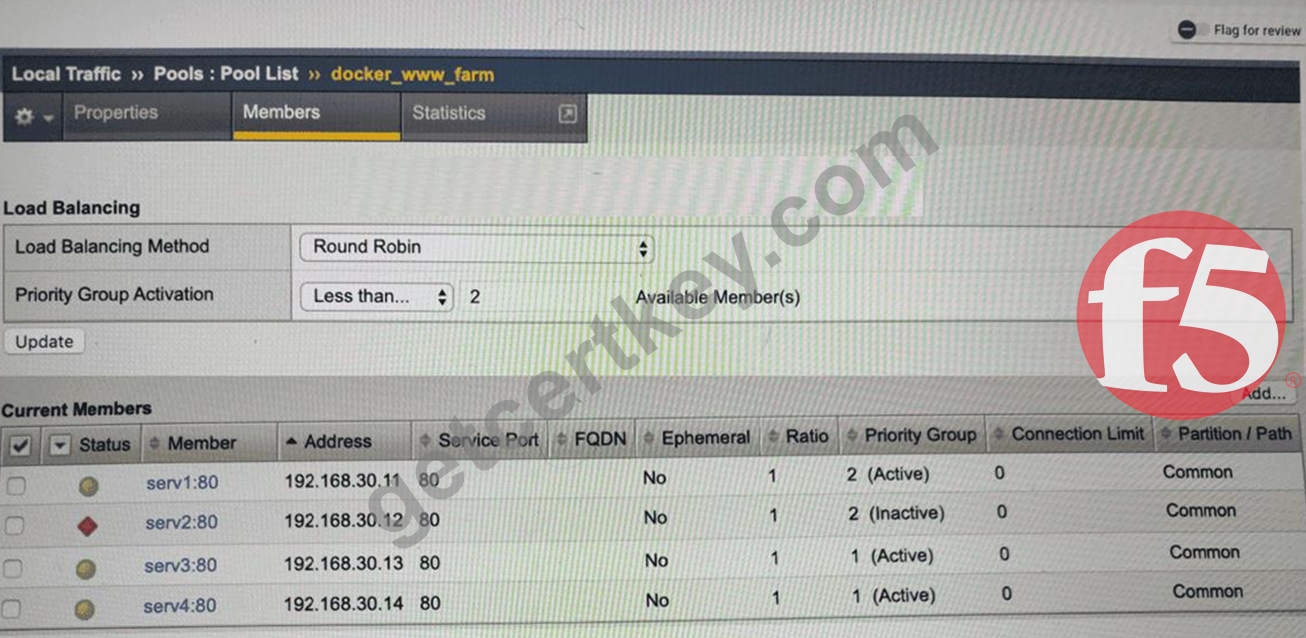

Refer to the exhibit above.
A BIG-IP pool is configured with Priority Group Activation = Less than 2 available members. The pool members have different priority groups and availability states. Which pool members are receiving traffic? (Choose one answer)
Answer: D
Explanation:
This question tests understanding of Priority Group Activation (PGA) and how BIG-IP determines which pool members are eligible to receive traffic.
Key BIG-IP Priority Group Concepts:
Higher priority group numbers = higher priority
BIG-IP will only send traffic to the highest priority group that meets the Priority Group Activation condition Lower priority groups are activated only when the condition is met Only available (green) members count toward the activation threshold Configuration from the Exhibit:
Priority Group Activation: Less than 2 available members
Pool Members and Status:
Pool Member
Priority Group
Status
serv1
2
Active (available)
serv2
2
Inactive (down)
serv3
1
Active (available)
serv4
1
Active (available)
Step-by-Step Traffic Decision:
BIG-IP first evaluates the highest priority group (Priority Group 2)
Priority Group 2 has:
serv1 โ available
serv2 โ unavailable
Total available members = 1
Activation rule is Less than 2 available members
Condition is true (1 < 2)
BIG-IP activates the next lower priority group (Priority Group 1)
Traffic is now sent to:
serv1 (Priority Group 2)
serv3 and serv4 (Priority Group 1)
Final Result:
Traffic is distributed to serv1, serv3, and serv4
Why the Other Options Are Incorrect:
A - Ignores activation of the lower priority group
B - serv4 is also active and eligible
C - serv2 is down and cannot receive traffic
Key Data Plane Concept Reinforced:
Priority Group Activation controls when lower-priority pool members are allowed to receive traffic, based strictly on the number of available members in the higher-priority group. In this case, the failure of one high-priority member caused BIG-IP to expand traffic distribution to lower-priority members to maintain availability.
NEW QUESTION # 47
A BIG-IP Administrator assigns the default HTTP health monitor to a pool that has three members listening on port 80. When the administrator connects to each pool member using the curl utility, two of the members respond with a status of 404 Not Found, while the third responds with 200 OK. What will the pool show for member availability? (Choose one answer)
Answer: A
Explanation:
In BIG-IP LTM, health monitors are used to determine the availability of pool members and directly influence traffic flow decisions in the data plane.
Key characteristics of the default HTTP monitor according to BIG-IP Administration Data Plane Concepts:
* Sends an HTTP request (typically GET /)
* Expects an HTTP response code of 200 OK
* Any response other than 200 is treated as a monitor failure
* A failed monitor causes the pool member to be marked offline (down)
In this scenario:
* Two pool members return 404 Not Found
* A 404 response indicates that the requested object was not found
* This does not meet the success criteria of the default HTTP monitor
* These two members are therefore marked offline
* One pool member returns 200 OK
* This matches the expected response
* The member is marked online
Resulting Pool Member Availability:
* 2 members: Offline
* 1 member: Online
Why the Other Options Are Incorrect:
* B - 404 responses are not considered healthy by the default HTTP monitor
* C - At least one member responds with the expected 200 OK
* D - Members returning 404 responses fail the monitor and cannot be marked online Key Data Plane Concept Reinforced:
BIG-IP health monitors make binary availability decisions based strictly on configured success criteria. For HTTP monitors, response codes matter-404 is a failure, even if the service is technically reachable.
NEW QUESTION # 48
A BIG-IP Administrator assigns the default HTTP health monitor to a pool that has three members listening on port 80. When the administrator connects to each pool member using the curl utility, two of the members respond with a status of 404 Not Found, while the third responds with 200 OK. What will the pool show for member availability? (Choose one answer)
Answer: A
Explanation:
In BIG-IP LTM, health monitors are used to determine the availability of pool members and directly influence traffic flow decisions in the data plane.
Key characteristics of the default HTTP monitor according to BIG-IP Administration Data Plane Concepts:
Sends an HTTP request (typically GET /)
Expects an HTTP response code of 200 OK
Any response other than 200 is treated as a monitor failure
A failed monitor causes the pool member to be marked offline (down)
In this scenario:
Two pool members return 404 Not Found
A 404 response indicates that the requested object was not found
This does not meet the success criteria of the default HTTP monitor
These two members are therefore marked offline
One pool member returns 200 OK
This matches the expected response
The member is marked online
Resulting Pool Member Availability:
2 members: Offline
1 member: Online
Why the Other Options Are Incorrect:
B - 404 responses are not considered healthy by the default HTTP monitor C - At least one member responds with the expected 200 OK D - Members returning 404 responses fail the monitor and cannot be marked online Key Data Plane Concept Reinforced:
BIG-IP health monitors make binary availability decisions based strictly on configured success criteria. For HTTP monitors, response codes matter-404 is a failure, even if the service is technically reachable.
NEW QUESTION # 49
Refer to the exhibit.
The BIG-IP Administrator needs toavoid overloading any of the pool members with connections when they become active. What should the BIG-IP Administrator configure to meet this requirement? (Choose one answer)
Answer: D
Explanation:
This question focuses onconnection behavior when pool members transition from down to up, which is a classic data plane consideration in BIG-IP environments.
What problem is being solved?
When a pool member:
* Recovers from a failure
* Is enabled after maintenance
* Transitions frominactivetoactive
...it can suddenly receive alarge burst of new connections, especially when using load-balancing methods such asLeast Connections. This sudden surge can overload the server.
Why Slow Ramp Time is the correct solution:
Slow Ramp Timeis a pool-level setting that:
* Gradually increases the number of connections sent to a newly available pool member
* Prevents sudden spikes in traffic
* Allows the server to warm up (application cache, JVM, DB connections, etc.) From BIG-IP Administration Data Plane Concepts:
* Slow Ramp Time controls therate at which BIG-IP increases loadto a pool member that has just become available
* During the ramp period, BIG-IP artificially increases the member's connection count, making it appear
"busier" and therefore less attractive for new connections
This directly satisfies the requirement toavoid overloading pool members when they become active.
Why the Other Options Are Incorrect:
* B. Different Ratio for each member
* Ratios controlrelative distributionunder normal operation
* They do not prevent a sudden surge when a member becomes active
* C. Action On Service Down to Reselect
* Controls persistence behavior when a member goes down
* Has no impact on connection ramp-up when a member comes back online
* D. Same Priority Group to each member
* Affects failover logic between priority groups
* Does not control connection rate or ramp-up behavior
Key Data Plane Concept Reinforced:
To protect backend servers during recovery events, BIG-IP providesSlow Ramp Time, ensuringgraceful reintroduction of trafficand preventing connection storms that can occur during high-load scenarios.
NEW QUESTION # 50
......
