The prominent benefits of HP HPE7-A06 certification exam are more career opportunities, updated skills and knowledge, recognition of expertise, and instant rise in salary and promotion in new job roles. To do this you just need to pass the HP HPE7-A06 Exam. However, to get success in the HPE7-A06 exam is not an easy task, it is a challenging HPE7-A06 exam.
| Section | Weight | Objectives |
|---|---|---|
| Performance Optimization | 6% | - Traffic management
|
| Advanced Troubleshooting | 10% | - Campus network diagnostics
|
| Network Resiliency and Virtualization | 8% | - High availability and redundancy
|
| Security and Access Control | 10% | - Threat defense and compliance
|
| Switching Technologies | 9% | - Campus switching features
|
| Authentication and Authorization | 9% | - AAA framework design
|
| Routing Technologies | 16% | - Routing troubleshooting
|
>> Certification HPE7-A06 Book Torrent <<
Aspiring HP professionals strive to excel in HP HPE7-A06 exams such as the HPE Campus Access Switching Expert Written Exam (HPE7-A06) to achieve their dream careers. However, passing the HPE7-A06 Exam can be challenging, especially with a demanding schedule that leaves little time for preparation.
NEW QUESTION # 39
Drag and Drop Question

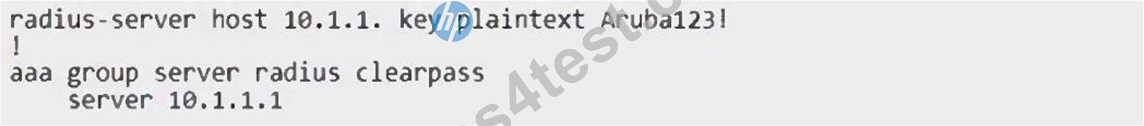

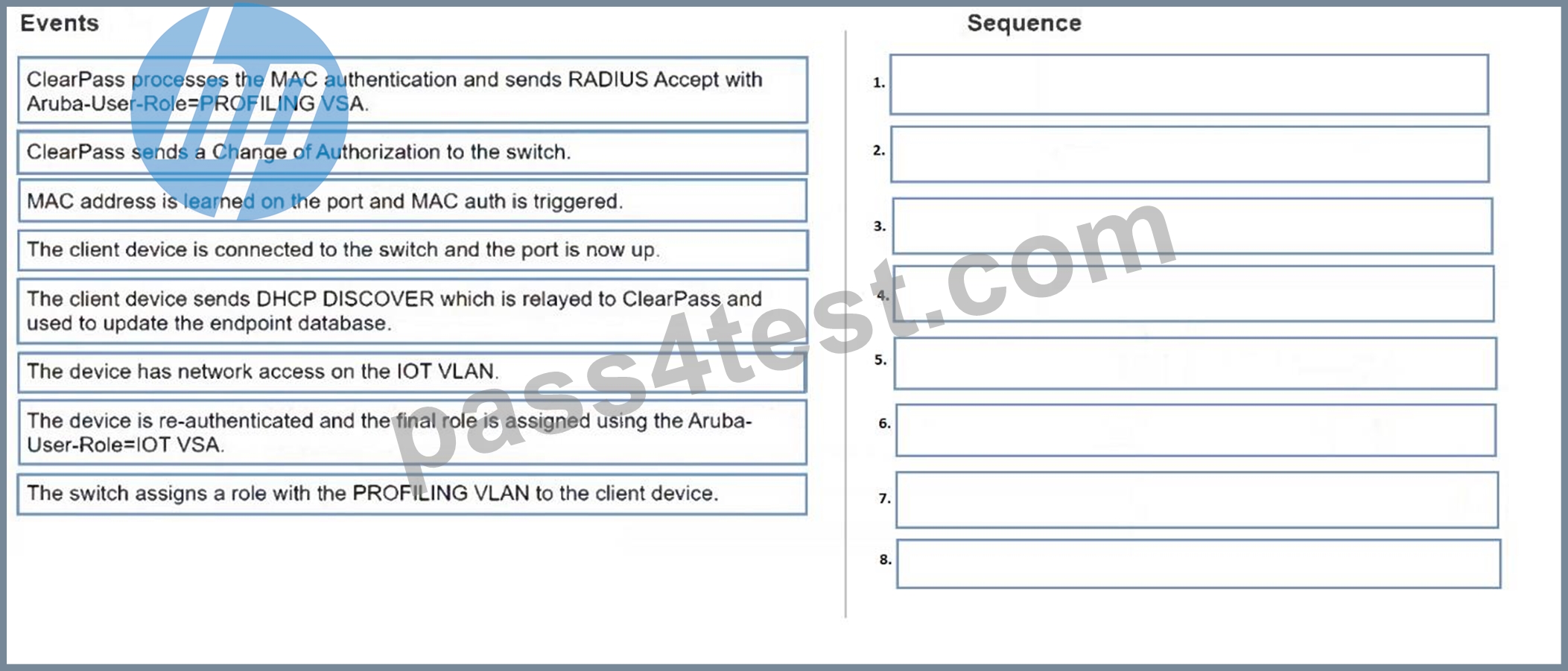

Based on the configuration below, identify the correct sequence of events for wired DHCP profiling for IoT devices with HPE Aruba Networking ClearPass.
Answer:
Explanation:
Explanation:

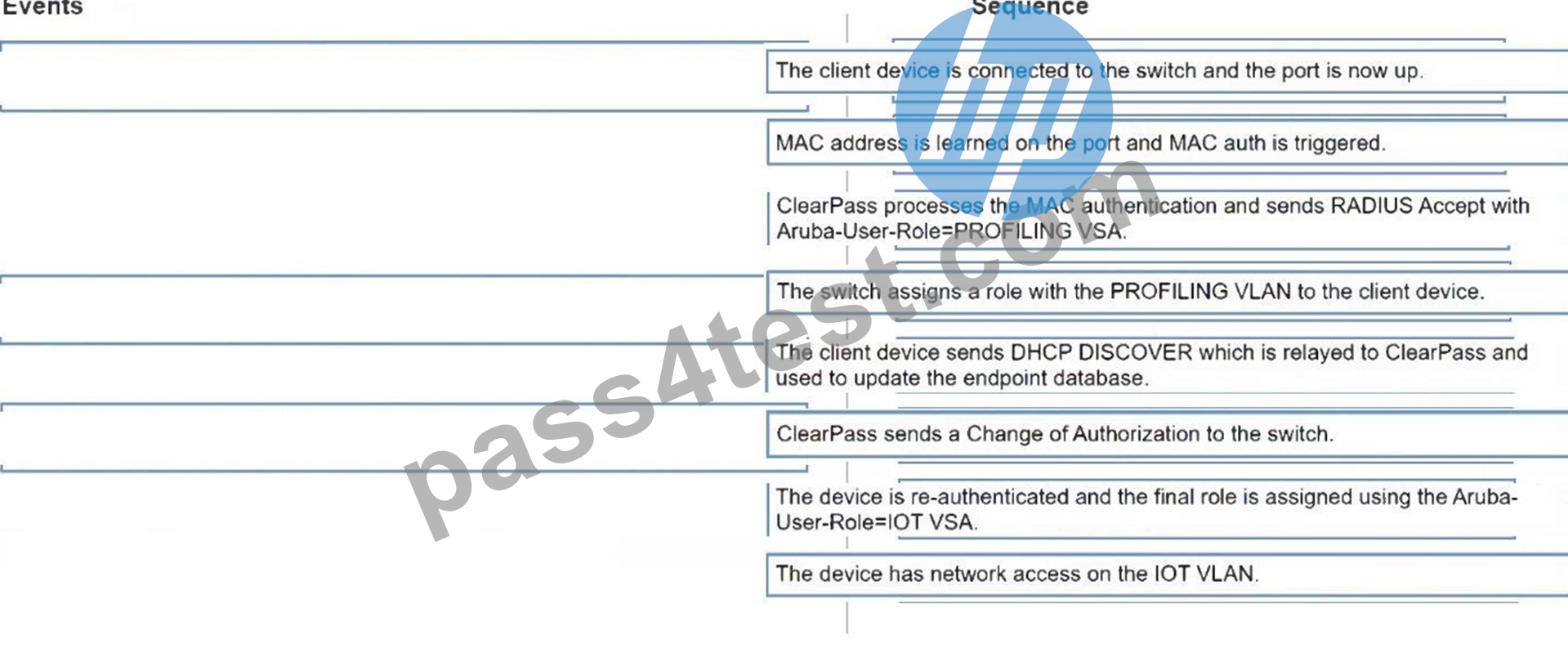

1. The client device is connected to the switch and the port is now up.
2. MAC address is learned on the port and MAC auth is triggered.
3. ClearPass processes the MAC authentication and sends RADIUS Accept with Aruba-User- Role=PROFILING VSA.
4. The switch assigns a role with the PROFILING VLAN to the client device.
5. The client device sends DHCP DISCOVER which is relayed to ClearPass and used to update the endpoint database.
6. ClearPass sends a Change of Authorization to the switch.
7. The device is re-authenticated and the final role is assigned using the Aruba-User-Role=IoT VSA.
8. The device has network access on the IoT VLAN.
The sequence starts with the device connecting and MAC authentication triggering. ClearPass provides a profiling role, the switch assigns it, then DHCP profiling occurs. ClearPass updates its endpoint database, triggers a Change of Authorization (CoA), and re-authenticates the device with the IoT role, granting final network access.
NEW QUESTION # 40
A customer tasked you with creating a new design for the IDFs in a large office building. A junior member of your staff took all of the technical requirements and produced a design to meet those requirements. You were asked to review the portion of the design below:
CUSTOMER REQUIREMENTS:
preference for stackable switches
Each closet should contain a single virtual switch.
dual 10Gbps fiber uplinks from each closet
capacity for 500 edge ports in each closet; no additional capacity required
lowest-cost AOS-CX switch that meets all requirements
PROPOSED DESIGN:
nine (9) AOS-CX 6200M (R8Q69A: Class4 PoE 4SFP+ switch (R8Q68A) HPE Aruba
Networking 6200M 46G 4SFP+ switch) in each closet
switches configured in a VSF (Virtual Switching Framework) stack, with auto-stacking enabled
uplinks configured on the first and last members of the stack
Does the proposed solution meet the technical requirements?
Answer: A
Explanation:
Nine CX 6200M access switches provide at most 9 × 48 = 432 edge ports (even fewer if it's the
46G variant), which is below the 500-port capacity requirement. All other requirements (stackable single virtual switch via VSF, dual 10G uplinks, and lowest-cost stackable CX platform) are met.
NEW QUESTION # 41

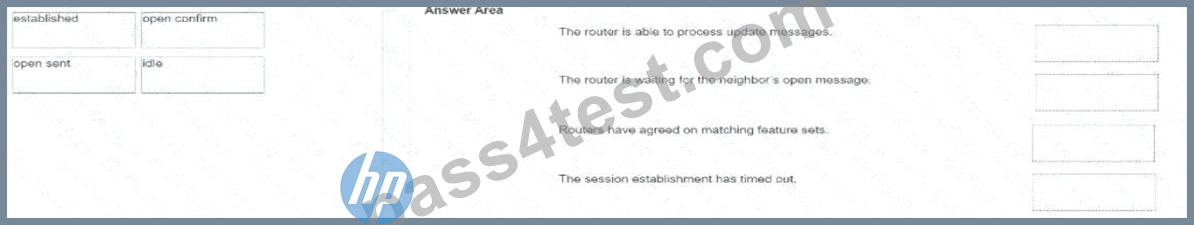

Match the BGP connection slates to the conditions thatcould have caused that state.
Answer:
Explanation:
Explanation:

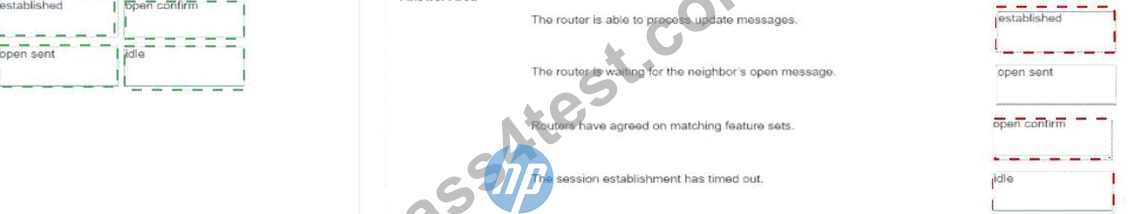

The router is able to process update messages. -->established
The router is waiting for the neighbor's open message. -->open sent
Routers have agreed on matching feature sets. -->open confirm
The session establishment has timed out. -->idle
This question requires matching BGP connection states from the BGP Finite State Machine (FSM) to descriptions of conditions that occur within or lead to those states.
* Idle:This is the initial state where BGP awaits a start event or retries after a failure. It's also the state entered upon error detection or session closure, including timeouts during connection attempts.
* Matches:"The session establishment has timed out." - A timeout during the connection process forces the BGP process back to the Idle state to potentially retry later.
* OpenSent:After a TCP connection is established, the local router sends a BGP OPEN message with its parameters (AS number, capabilities, etc.) and transitions to the OpenSent state while waiting to receive an OPEN message from its BGP neighbor.
* Matches:"The router is waiting for the neighbor's open message."
* OpenConfirm:Once the router receives an OPEN message from its neighbor and validates the parameters (e.g., matching AS, compatible capabilities), it sends a KEEPALIVE message and moves to the OpenConfirm state. It waits for a KEEPALIVE from the neighbor to confirm the session. Basic parameter checks and capability negotiations are successfully completed in this phase.
* Matches:"Routers have agreed on matching feature sets." - This agreement happens upon successful validation of the OPEN messages exchanged.
* Established:This is the final, stable state where BGP peering is successful. Both routers have accepted each other's parameters via the OPEN messages and confirmed the session with KEEPALIVEs. In this state, the routers can exchange UPDATE messages containing routing information.
* Matches:"The router is able to process update messages."
References:RFC 4271 (BGP4 specification - Section 8, Finite State Machine), BGP configuration and troubleshooting guides for AOS-CX. This relates to the "Routing" (16%) and "Troubleshooting" (10%) objectives.
NEW QUESTION # 42
A customer requires multiple VLANs on an HPE campus network. Which configuration is essential on the switch interfaces connected to other switches to ensure VLAN traffic passes through?
Answer: A
NEW QUESTION # 43
For enhanced port security in an HPE network, which two configurations can prevent unauthorized devices from gaining access?
Answer: C,D
NEW QUESTION # 44
......
We know that it is hard to stay and study for the HPE Campus Access Switching Expert Written Exam (HPE7-A06) exam dumps in one place for a long time. Therefore, you have the option to use HPE Campus Access Switching Expert Written Exam (HPE7-A06) PDF questions anywhere and anytime. Pass4Test HPE Campus Access Switching Expert Written Exam (HPE7-A06) dumps are designed according to the HP HPE7-A06 Certification Exam standard and have hundreds of questions similar to the actual HPE Campus Access Switching Expert Written Exam (HPE7-A06) exam. Pass4Test HPE Campus Access Switching Expert Written Exam (HPE7-A06) web-based practice exam software also works without installation.
