| Section | Objectives |
|---|---|
| Cloud Foundation Architecture and Design | - VMware Cloud Foundation (VCF) architecture components - Design principles for scalable SDDC environments |
| Networking Architecture in VMware Cloud Foundation | - NSX networking fundamentals and overlay architecture - vSphere Distributed Switch configuration and design - Routing, BGP, and dynamic routing integration |
| NSX-T Data Center Integration | - Security policies and micro-segmentation - Logical switching and routing constructs - Edge services and gateway configuration |
| Troubleshooting and Optimization | - Common VCF networking issues and resolution methods - Performance tuning and monitoring of NSX networks |
| VCF Deployment and Operational Networking | - Lifecycle management networking considerations - Network pool configuration and workload domain networking |
VMware인증 3V0-25.25시험을 어떻게 패스할가 고민그만하고ITDumpsKR의VMware 인증3V0-25.25시험대비 덤프를 데려가 주세요.가격이 착한데 비해 너무나 훌륭한 덤프품질과 높은 적중율, ITDumpsKR가 아닌 다른곳에서 찾아볼수 없는 혜택입니다.
질문 # 44
An administrator is troubleshooting BGP flapping in a VMware Cloud Foundation (VCF) 9 environment. A Tier-0 Gateway is running in Active/Active mode with two Edge nodes. BFD is enabled on the eBGP sessions to the upstream routers. Each Edge node uses its own uplink IP for BGP. After some network maintenance, one BGP session starts flapping every few minutes. The other BGP sessions stay stable. On the affected Edge node, the command get bfd-sessions shows:
* State: Down
* Diag: Detect Time Expired
Symptoms:
* The upstream router also shows the BFD session as Down with control Detection Time Expired.
* There are no interface errors, no packet loss for normal traffic, and clearing the BFD session temporarily brings it back up - but it flaps again after few minutes.
What is the root cause?
정답：C
설명：
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In aVMware Cloud Foundation (VCF)environment, particularly with the high-performance requirements of North-South routing,BGPandBFD (Bidirectional Forwarding Detection)are used in tandem to ensure rapid failure detection. A common but subtle issue in fresh or modified environments is anMTU (Maximum Transmission Unit) mismatchon the physical or virtual uplinks.
When BGP establishes a neighborship, it initially exchanges small keepalive packets. These small packets easily pass through interfaces even if there is an MTU mismatch (e.g., the Edge is set to 9000 bytes but a physical switch in the path is limited to 1500 bytes). However, once the BGP state reaches "Established," the routers begin exchanging full routing tables. TheseBGP Updatepackets are often large and will be fragmented or dropped if they exceed the MTU of any hop in the path.
The symptom described-where the session is stable for a few minutes (during the initial handshake) and then flaps-is the hallmark of an MTU issue. The "Detect Time Expired" diagnostic in BFD occurs because the BGP hold timer expires when it fails to receive the large update packets, or the BFD packets themselves are delayed/lost due to the congestion caused by retrying large, failed transmissions. According to VMware NSX troubleshooting documentation, if pings (small packets) succeed but the BGP session fails specifically when traffic load or route counts increase, the MTU should be the first setting verified.
VCF 9.0 and 5.x designs mandate consistent MTU settings (typically9000 MTUfor the overlay and at least
1500+for the uplinks) across the entire path, including the virtual switch (VDS), the Edge VM vNICs, and the physical ToR switches. A mismatch here prevents the completion of the BGP state machine's full synchronization, leading to the cyclic "flapping" observed by the administrator.
질문 # 45

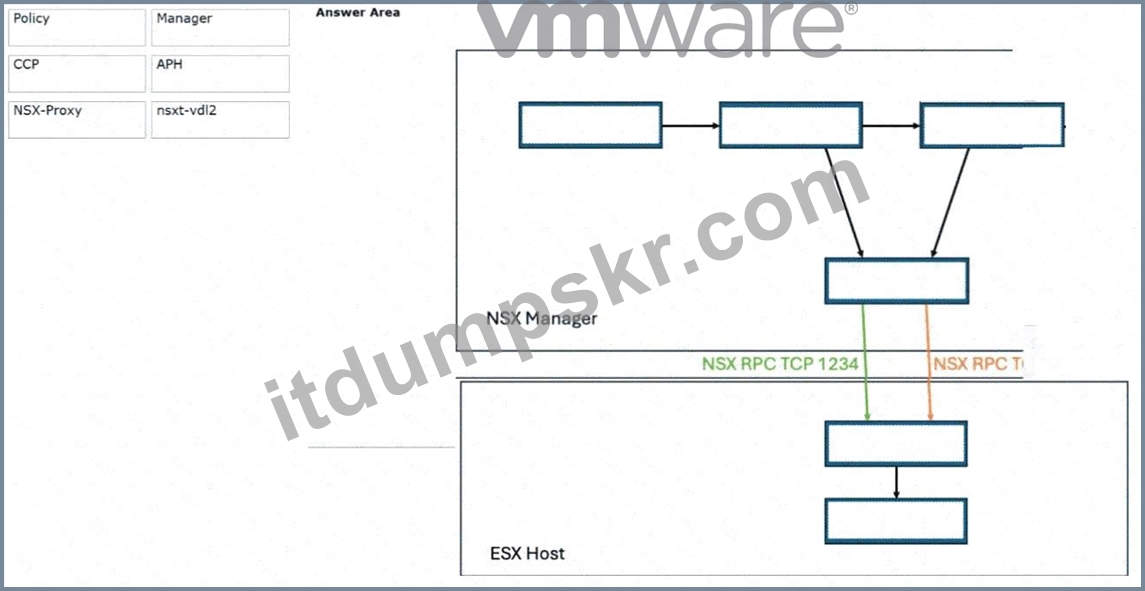

An administrator is creating NSX segments in an environment. The NSX segment on an ESX Host is not realized. To troubleshoot the issue, the administrator needs to track the communication of components in the environment.
Drag and drop the component to the appropriate location in the diagram to track the path from desired state to completed state.
정답：
설명：
Explanation:

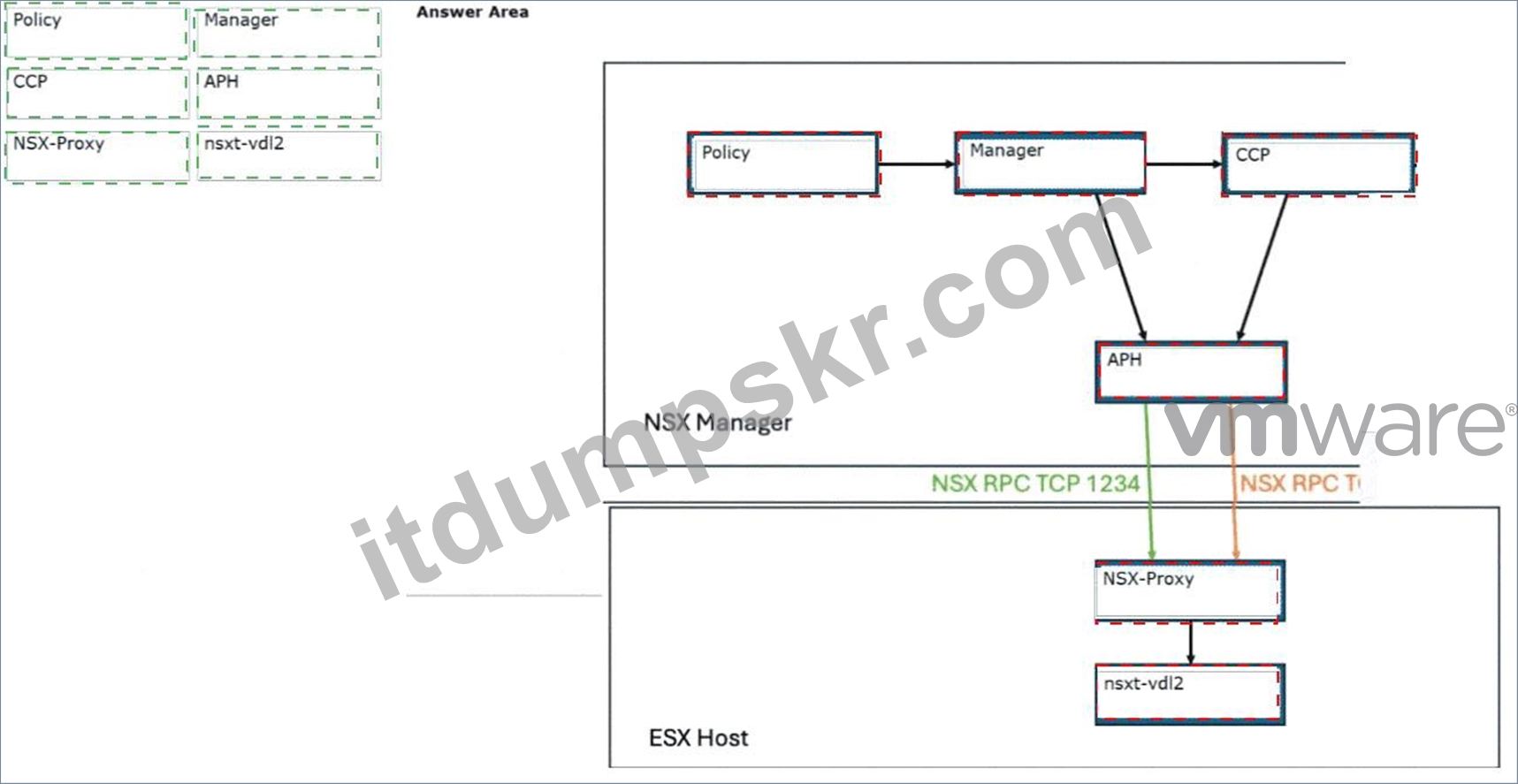

Answer Area Placement:
* NSX Manager Top-Left Box:Policy
* NSX Manager Top-Middle Box:Manager
* NSX Manager Top-Right Box:CCP (Central Control Plane)
* NSX Manager Bottom Box:APH (Asynchronous Proxy Handler)
* ESXi Host Top Box:NSX-Proxy
* ESXi Host Bottom Box:nsxt-vdl2
InVMware Cloud Foundation (VCF)and NSX architectures, the realization of a logical object (like a segment) involves a multi-step communication flow across different management and control plane layers.
The Management Plane (NSX Manager)
* Policy:The entry point where the "Desired State" is defined by the user or automation.
* Manager:Receives the policy, validates it, and stores it in the management database.
* CCP (Central Control Plane):Processes the logical configuration and computes the actual instructions needed for the data plane.
* APH (Asynchronous Proxy Handler):Acts as a broker on the NSX Manager, responsible for pushing these instructions down to the transport nodes viaNSX RPC TCP 1234(Management) andNSX RPC TCP 1235(Control).
The Local Control Plane (ESXi Host)
* NSX-Proxy:A local agent on the ESXi host that maintains a persistent connection to the APH. It receives the instructions and ensures the "Local Control Plane" state matches the "Central Control Plane" intent.
* nsxt-vdl2:The final component in the chain. It interacts directly with the ESXi kernel modules to program the Virtual Distributed Switch (VDS) and realize the segment on the host. Once this step is finished, the segment moves to the"Completed State"and is ready for use.
질문 # 46
A large multinational corporation is seeking proposals for the modernization of a Private Cloud environment.
The proposed solution must meet the following requirements:
* Support multiple data centers located in different geographic regions.
* Provide a secure and scalable solution that ensures seamless connectivity between data centers and different departments.
Which three NSX features or capabilities must be included in the proposed solution? (Choose three.)
정답：A,C,F
설명：
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In a modern VMware Cloud Foundation (VCF) architecture, particularly when addressing the needs of a multinational corporation with geographically dispersed data centers, the solution must prioritize multi- tenancy, security, and consistent delivery. The integration ofNSXwithin VCF provides these core pillars.
First, theNSX Edgeis a foundational requirement for any multi-site or modern cloud environment. It serves as the bridge between the virtual overlay network and the physical world. In a multi-region deployment, NSX Edges facilitate North-South traffic and are essential for supporting features like Global Server Load Balancing (GSLB) or site-to-site connectivity. Without the Edge, the software-defined data center (SDDC) cannot communicate with external networks or peer via BGP with physical routers.
Second,vDefend(formerly known as NSX Security) provides the advanced security framework required for a
"secure and scalable" environment. This includes Distributed Firewalling (DFW), Distributed IDS/IPS, and Malware Prevention. For a corporation with different departments, vDefend allows for micro-segmentation, ensuring that a security breach in one department's segment cannot move laterally to another. This is critical for meeting compliance and isolation requirements across global regions.
Third, theVirtual Private Cloud (VPC)model is the cornerstone of the latest VCF 9.0 and 5.x architectures.
It enables the "scalable solution" for different departments by providing a self-service consumption model.
Each department can manage its own isolated network space, including subnets and security policies, without needing deep networking expertise or constant tickets for the central IT team. This abstraction simplifies management across multiple data centers and allows for consistent application of policies regardless of the physical location.
While AVI Load Balancer and Centralized Network Connectivity are valuable, they are often considered add- ons or outcomes rather than the core architectural features that define the multi-tenant, secure, and geographically distributed nature of a modern VCF private cloud modernization project.
질문 # 47
An administrator is tasked to enable users to configure an individual VPC, but not create subnets. What three NSX roles would the administrator assign to allow access without the ability to create subnets? (Choose three.)
정답：A,C,E
설명：
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
With the introduction of theVirtual Private Cloud (VPC)consumption model inVCF 9.0and late 5.x releases, Role-Based Access Control (RBAC) has become more granular to support true multi-tenancy. A VPC is designed to be a self-contained "container" for a department's or user's networking resources.
To meet the specific requirement where a user can configure aspects of an individual VPC but is restricted from creating new subnets (which involves modifying the underlying network CIDR blocks and IPAM), a combination of specific roles is required.
* VPC Admin:This is the primary role for the user within their assigned VPC. It allows the user to manage the overall VPC environment, including high-level settings and monitoring. However, the VPC Admin's power is often limited by the specific quotas and policies set by the Enterprise Admin.
* Security Operator:This role allows the user to view security configurations and policies without having the permission to modify the network fabric or create new infrastructure components like subnets. It provides the "read-only" visibility into the security posture of the VPC.
* Network Operator:Similar to the Security Operator, the Network Operator role provides visibility into the networking state-such as routing tables, segment status, and connectivity-without granting the
"Write" permissions required to provision new subnets or alter the network topology.
AssigningNetwork Admin(Option B) orSecurity Admin(Option A) would grant too much privilege, as these roles typically include the ability to create, delete, and modify subnets and firewall policies at a structural level. By combining theVPC Adminrole withOperator-level roles, the administrator ensures the user has the necessary context to manage their assigned resources while strictly adhering to the restriction against creating new network subnets.
질문 # 48
An administrator must provide North/South connectivity for a VPC. The fabric exposes a distributed external VLAN across all ESX hosts. But, the only BGP peer to the core is on a VLAN only accessible on the Edge Cluster. Which design is required?
정답：A
설명：
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In aVMware Cloud Foundation (VCF)environment utilizing theVirtual Private Cloud (VPC)model, North
/South connectivity is managed by theTransit Gateway (TGW). The TGW acts as the bridge between the VPC-internal networks and the provider-level physical network.
The scenario presents a specific constraint: while an external VLAN exists across all hosts, the actual BGP peering point (the interface to the physical core routers) is restricted to theNSX Edge Cluster. In NSX terminology, when a gateway or service must be anchored to specific Edge Nodes to access physical network services-such as BGP peering, NAT, or stateful firewalls-it must be configured as aCentralizedcomponent.
ACentralized Transit Gateway(Option C) is instantiated on the Edge nodes. This allows the TGW to participate in the BGP session with the core routers on the VLAN that is only accessible to those Edges. The TGW then handles the routing for the VPC's internal segments. Traffic from the ESXi transport nodes (East- West) travels via the Geneve overlay to the Edge nodes, where it is then routed North-South by the Centralized TGW using the physical BGP peer.
Option A is incorrect because "distributed eBGP peering" would require every ESXi host to have peering capabilities, which contradicts the constraint. Option B involves EVPN, which is a significantly more complex and different architecture than what is required for standard VPC North/South access. Option D is an unnecessarily complex routing design that is not the standard VCF/VPC implementation pattern. Thus, the use of a Centralized Transit Gateway on the Edge cluster is the verified design requirement to bridge the gap between the overlay VPC and the localized BGP peering point.
질문 # 49
......
