NEW QUESTION # 50
Sealants used to resist passage of air in construction Type IV-A, shall be in accordance with which of the following standards?
Answer: D
Explanation:
ASTM C920 is the required standard for sealants used under the IBC mass timber air-sealing provision.
Option C is therefore correct. Section 703.7 applies to Type IV-A construction and requires compliant sealant or adhesive at specified interfaces involving fire-resistance-rated mass timber elements.
The sealing requirement reduces the movement of air, heat, and combustion gases into gaps that could expose additional timber surfaces and undermine the rated performance assumed by the approved design. The sealant must not merely appear to close the opening; it must be the specified product and installed within its approved joint dimensions and substrate conditions.
ASTM A36 is a structural steel material specification. ASTM E119 establishes procedures for fire testing building construction and assemblies but does not qualify elastomeric sealant products. ASTM F1667 covers driven fasteners such as nails, spikes, and staples and has no application to this sealing requirement.
Under Section 1705.20, installation is subject to periodic special inspection where the Section 703.7 sealant is applied. Inspection should occur before concealment and confirm continuity, adhesion, backing, joint depth, surface cleanliness, and compliance with the approved documents.
References/Topics: 2021 IBC Sections 703.7 and 1705.20; Type IV-A construction; ASTM C920.
NEW QUESTION # 51
Which of the following provisions for mass timber used for interior exit and elevator hoistway enclosures is true?
Answer: D
Explanation:
Option A correctly reflects the required noncombustible protection for protected Type IV-A mass timber.
Under IBC Section 602.4.1.2.1, the noncombustible protection applied to interior faces of Type IV-A mass timber must contribute the protection time determined by the applicable provisions of Section 722.7, but not less than 80 minutes .
The broader Type IV provisions are particularly important for interior exit and elevator hoistway enclosures.
In qualifying tall mass timber buildings with an occupied floor more than 75 feet above the lowest level of fire department access, mass timber interior exit and elevator hoistway enclosures are permitted up to the specified height limits only where protected in accordance with Section 602.4.1.2. For a two-hour, 120- minute-rated enclosure, at least 80 minutes must therefore come from the prescribed noncombustible protection.
Type IV-B likewise uses an 80-minute minimum for protected interior mass timber, so option B ' s 40-minute value is incorrect. Type IV-C has different exposure allowances and shaft-protection provisions, but option C does not state the controlling tall-building enclosure requirement tested here. Type IV-HT is not governed by the Type IV-A tall mass timber enclosure protection rule.
References/Topics: 2021 IBC Sections 602.4 and 602.4.1.2 through 602.4.1.2.1; Section 722.7.
NEW QUESTION # 52

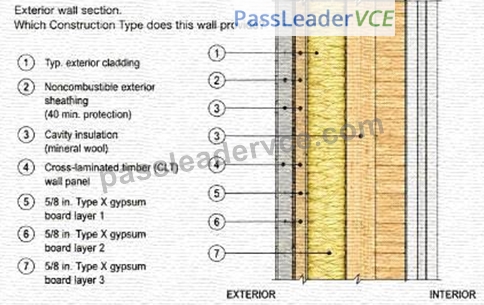

Refer to the figure by clicking on the EXHIBIT button above.
The exterior wall section shown in the Figure provides the prescribed noncombustible protection required by which Construction Type?
Answer: D
Explanation:

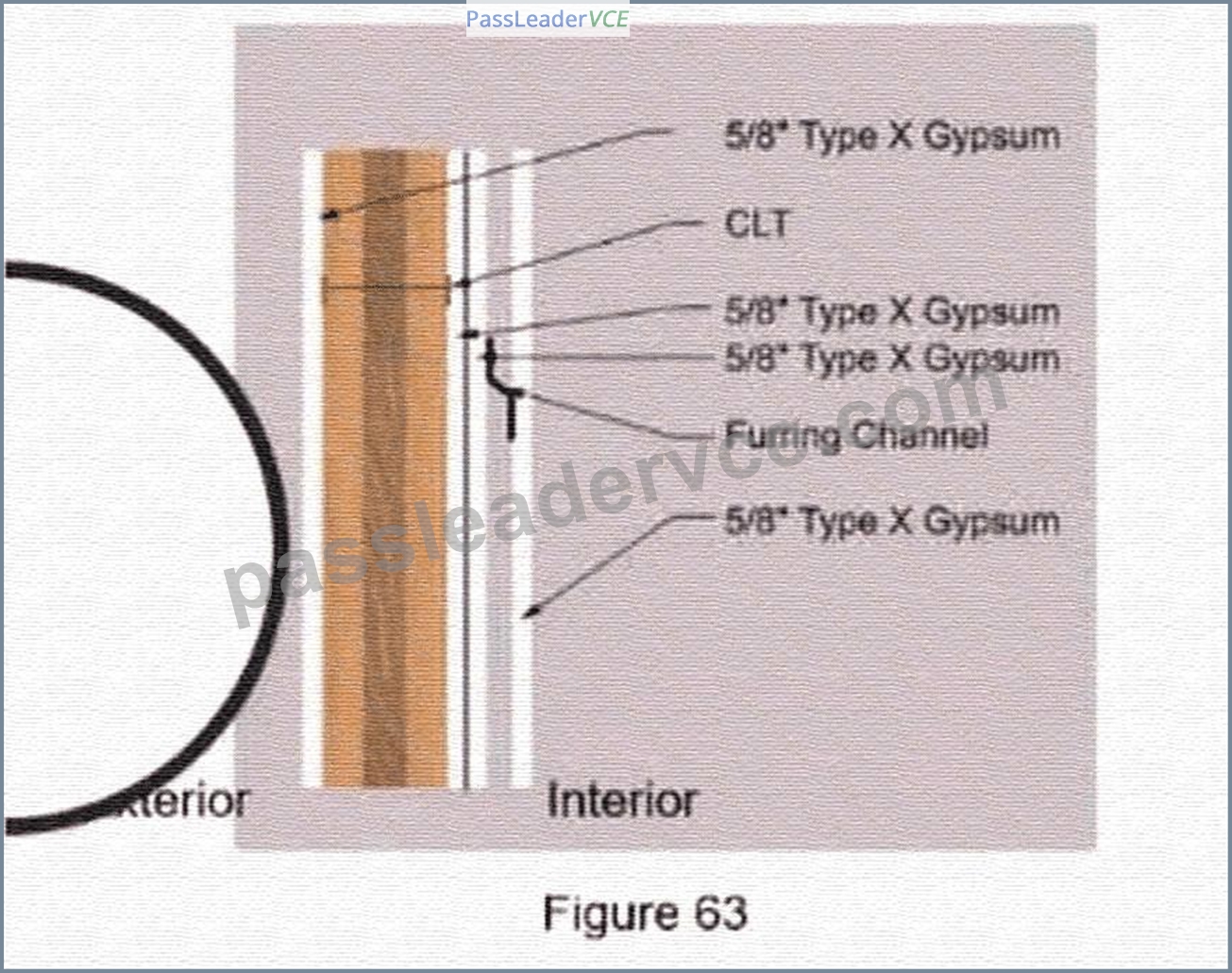

The illustrated wall corresponds to Type IV-A construction , making option A correct. The key indicator is the extensive Type X gypsum protection provided on the interior face of the CLT wall. Figure 63 shows multiple layers of 5/8-inch Type X gypsum board protecting the interior mass timber, together with the required exterior-side protection.
Type IV-A is the most comprehensively protected of the three tall mass timber construction classifications.
IBC Section 602.4.1.2 requires the interior faces of all mass timber elements , including the inside face of exterior mass timber walls, to be protected with qualifying noncombustible material. Section 602.4.1.2.1 requires the protection contribution to satisfy Table 722.7.1(1) and never be less than 80 minutes. Type IV-A exterior walls also require at least 40 minutes of noncombustible protection on the outside face.
The three interior layers shown are consistent with a heavily protected Type IV-A rated wall. By contrast, Type IV-B permits limited exposed interior mass timber, while Type IV-C expressly permits mass timber interior elements to remain unprotected. Type IV-HT operates under fundamentally different heavy-timber provisions.
References/Topics: 2021 IBC Sections 602.4.1.1, 602.4.1.2 and 602.4.1.2.1; Tables 601 and 722.7.1(1)-(2).
NEW QUESTION # 53
All of the following combustible elements may be used in mass timber buildings except:
Answer: A
Explanation:
A conventional 2 × 6 solid-sawn stud is a light-frame member and does not satisfy the minimum cross- sectional dimensions associated with mass timber or heavy-timber construction. Therefore, option A is the exception.
The IBC defines mass timber as Type IV structural elements primarily composed of solid, built-up, panelized or engineered wood products that meet the minimum cross-sectional dimensions required for Type IV construction. A nominal 2 × 6 stud is substantially smaller than those dimensions and is ordinarily classified as conventional light-frame construction. Its use might be permitted in a particular nonstructural partition or another specifically authorized application, but it is not itself a qualifying mass timber structural element.
CLT is expressly recognized as a mass timber panel product. Parallel-strand lumber is a form of structural composite lumber and can qualify where it satisfies the applicable minimum dimensions, product-standard requirements and approved structural design. Dowel-laminated timber is a built-up panelized timber product and may likewise serve as a mass timber element when its dimensions, engineering and approval satisfy the construction documents and code.
The classification depends on the completed element's dimensions and approved structural function-not merely on the fact that it is manufactured from wood.
References/Topics: 2021 IBC Chapter 2 definitions of "Mass Timber" and "Conventional Light-Frame Construction"; Sections 602.4 and 2304.11.
NEW QUESTION # 54
When Type X gypsum board is used as noncombustible protection over mass timber on the building ' s exterior walls, which of the following fasteners are permitted?
Answer: C
Explanation:
Option A reproduces one of the two permitted exterior gypsum-board fastening methods in 2021 IBC Section
722.7.2.2. Type X gypsum board used as noncombustible protection on the exterior side of mass timber walls may be attached using galvanized nails of minimum 12 gage with a 7/16-inch head and sufficient length to penetrate the mass timber at least 1 inch .
The code also permits ASTM C1002 Type S, W, or G screws, but those screws must likewise penetrate the mass timber a minimum of 1 inch . Options C and D are therefore incorrect because they specify only 3/4- inch and 7/8-inch penetration, respectively. Option B is incorrect because it substitutes 16-gage nails for the minimum 12-gage requirement.
Section 722.7.2.2 additionally requires exterior Type X gypsum-board layers to be fastened 12 inches on center each way and 6 inches on center at joints or ends. Panel-edge fasteners must be located at least 1 inch and not more than 2 inches from the edge.
These fastening details are part of the conditions necessary to claim the protection contribution in Table
722.7.1(2).
References/Topics: 2021 IBC Sections 722.7.1 and 722.7.2.2; exterior Type X gypsum-board protection.
