| Section | Weight | Objectives |
|---|---|---|
| IP Connectivity | 25% | - Configure and verify IPv4 and IPv6 static routing - Describe the purpose of first hop redundancy protocol - Interpret the components of routing table - Determine how a router makes a forwarding decision by default - Configure and verify single area OSPFv2 |
| IP Services | 10% | - Describe the use of syslog features including facilities and levels - Configure and verify inside source NAT using static and pools - Configure and verify NTP operating in a client and server mode - Configure network devices for remote access using SSH - Describe the capabilities and function of TFTP/FTP in the network - Explain the function of SNMP in network operations - Explain the forwarding per-hop behavior (PHB) for QoS such as classification, marking, queuing, congestion, policing, shaping - Explain the role of DHCP and DNS within the network - Configure and verify DHCP client and relay |
| Security Fundamentals | 15% | - Describe security password policies elements, such as management, complexity, and password alternatives (multifactor authentication, certificates, and biometrics) - Describe remote access and site-to-site VPNs - Configure and verify access control lists - Configure Layer 2 security features (DHCP snooping, dynamic ARP inspection, and port security) - Define key security concepts (threats, vulnerabilities, exploits, and mitigation techniques) - Describe security program elements (user awareness, training, and physical access control) - Describe wireless security protocols (WPA, WPA2, and WPA3) - Differentiate authentication, authorization, and accounting concepts - Configure WLAN using WPA2 PSK using the GUI - Configure device access control using local passwords |
| Network Fundamentals | 20% | - Verify IP parameters for Client OS (Windows, Mac OS, Linux) - Explain virtualization fundamentals (virtual machines) - Identify interface and cable issues (collisions, errors, mismatch) - Describe switching concepts - Compare physical interface and cabling types - Explain the role and function of network components - Configure and verify IPv4 addressing and subnetting - Compare IPv6 address types - Describe wireless principles - Configure and verify IPv6 addressing and prefix - Compare TCP to UDP - Describe the need for private IPv4 addressing - Describe characteristics of network topology architectures |
| Network Access | 20% | - Configure and verify interswitch connectivity - Describe AP and WLC management access connections (Telnet, SSH, HTTP, HTTPS, console, and TACACS+/RADIUS) - Describe the need for and basic operations of Rapid PVST+ Spanning Tree Protocol - Describe physical infrastructure connections of WLAN components (AP, WLC, access/trunk ports, and LAG) - Configure and verify (Layer 2/Layer 3) EtherChannel (LACP) - Describe Cisco Wireless Architectures and AP modes - Configure and verify Layer 2 discovery protocols (Cisco Discovery Protocol and LLDP) - Configure the components of a wireless LAN access for client connectivity using GUI only such as WLAN creation, security settings, QoS profiles, and advanced WLAN settings - Configure and verify VLANs (normal range) spanning multiple switches |
| Automation and Programmability | 10% | - Describe controller-based and software defined architectures (overlay, underlay, and fabric) - Explain how automation impacts network management - Describe characteristics of REST-based APIs (CRUD, HTTP verbs, and data encoding) - Interpret JSON encoded data - Recognize the capabilities of configuration management mechanisms Puppet, Chef, and Ansible - Compare traditional networks with controller-based networking - Compare traditional campus device management with Cisco DNA Center enabled device management |
>> 200-301 Reliable Exam Answers <<
Some candidates may considerate whether the 200-301 exam guide is profession, but it can be sure that the contents of our study materials are compiled by industry experts after them refining the contents of textbooks, they have good knowledge of exam. 200-301 test questions also has an automatic scoring function, giving you an objective rating after you take a mock exam to let you know your true level. With 200-301 Exam Guide, you only need to spend 20-30 hours to study and you can successfully pass the exam. You will no longer worry about your exam because of bad study materials. If you decide to choose and practice our 200-301 test questions, our life will be even more exciting.
NEW QUESTION # 71
Lab Simulation 30
Guidelines
This is a lab item in which tasks will be performed on virtual devices.
- Refer to the Tasks tab to view the tasks for this lab item.
- Refer to the Topology lab to access the device console(s) and perform the tasks.
- Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.
- All necessary preconfigurations have been applied.
- Do not change the enable password or hostname for any device.
- Save your configurations to NVRAM before moving to the next item.
- Click Next at the bottom of the screen to submit this lab and move to the next question.
- When Next is clicked, the lab closes and cannot be reopened.

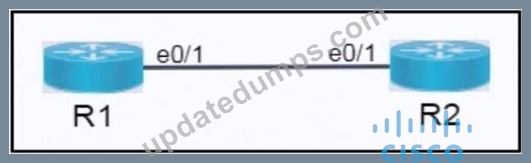

Topology
Configure IPv4 and IPv6 between the two routers.
Tasks
Reference Topology Diagram and table. Configure IPv4 and IPv6 between the two routers.
Task 1:
- Configure R1 with the first usable host IP address in the IPv4
network.
- Configure R2 with the last usable host IP address in the IPv4
network.
- Verify connectivity using ping.
Task 2:
- Do not assign the subnet router anycast address to either router.
- Configure R1 with the first usable host IP address in the IPv6
network.
- Configure R2 with the last usable host IP address in the IPv6
network.
- Verify connectivity using ping.
Answer:
Explanation:
Task 1: Configure IPv4 between R1 and R2
From the table, the IPv4 subnet is 192.168.168.192/28. This gives us 16 total IP addresses, with
14 usable host IPs in the range 192.168.168.193 to 192.168.168.206. The first usable address is
192.168.168.193, and the last usable address is 192.168.168.206.
R1 Configuration (First Usable IPv4 Address):
R1(config)# interface Ethernet0/1
R1(config-if)# ip address 192.168.168.193 255.255.255.240
R1(config-if)# no shutdown
R2 Configuration (Last Usable IPv4 Address):
R2(config)# interface Ethernet0/1
R2(config-if)# ip address 192.168.168.206 255.255.255.240
R2(config-if)# no shutdown
Verify IPv4 Connectivity:
From R1, ping R2's IP address to ensure connectivity:
R1# ping 192.168.168.206
Task 2: Configure IPv6 between R1 and R2
From the table, the IPv6 subnet is 2001:db8:12::/125. This provides 8 addresses, with the range
2001:db8:12::1 to 2001:db8:12::6 as usable addresses. The first usable address is
2001:db8:12::1, and the last usable address is 2001:db8:12::6.
R1 Configuration (First Usable IPv6 Address):
R1(config)# interface Ethernet0/1
R1(config-if)# ipv6 address 2001:db8:12::1/125
R1(config-if)# no shutdown
R2 Configuration (Last Usable IPv6 Address):
R2(config)# interface Ethernet0/1
R2(config-if)# ipv6 address 2001:db8:12::6/125
R2(config-if)# no shutdown
Verify IPv6 Connectivity:
From R1, ping R2's IPv6 address to ensure connectivity:
R1# ping ipv6 2001:db8:12::6
IPv4 Addressing: The subnet 192.168.168.192/28 provides 16 IP addresses, with the first usable being 192.168.168.193 (assigned to R1) and the last usable being 192.168.168.206 (assigned to R2).
IPv6 Addressing: The subnet 2001:db8:12::/125 provides 8 addresses, and the first usable is
2001:db8:12::1 (assigned to R1) and the last usable is 2001:db8:12::6 (assigned to R2).
Both IPv4 and IPv6 configurations are done without using the subnet router anycast address.
NEW QUESTION # 72
Which protocol does an IPv4 host use to obtain a dynamically assigned IP address?
Answer: B
Explanation:
https://www.geeksforgeeks.org/how-dhcp-server-dynamically-assigns-ip-address-to-a-host/#:~:text=DHCP%20is%20an%20abbreviation%20for,subnet%20mask%20and%20gateway%20address.
NEW QUESTION # 73
What are two recommendations for protecting network ports from being exploited when located in an office space outside of an IT closer? (Choose two.)
Answer: A,D
Explanation:
Answer B,E is correct: B. implement port-based authentication; E. shut down unused ports. The scenario should be solved by matching the described behavior to the Cisco feature that actually performs it. Cisco CCNA 200-301 v1.1 includes this topic under Network Fundamentals, so the answer must be validated against normal Cisco device behavior and the operational wording of the scenario. The key is not simply recognizing a familiar acronym; it is identifying what the feature does, where it is configured, and what result it produces. The other options are real networking terms or plausible phrases, but they operate at a different layer, solve a different problem, or do not create the outcome described. In a real network, selecting the wrong option would either leave the feature nonfunctional, create a forwarding or security gap, or send troubleshooting in the wrong direction. The selected answer is the only one that matches the stated requirement and the way Cisco switching, routing, services, security, wireless, or automation functions are expected to operate. This is why the verified answer remains the best technical choice for the question.
NEW QUESTION # 74

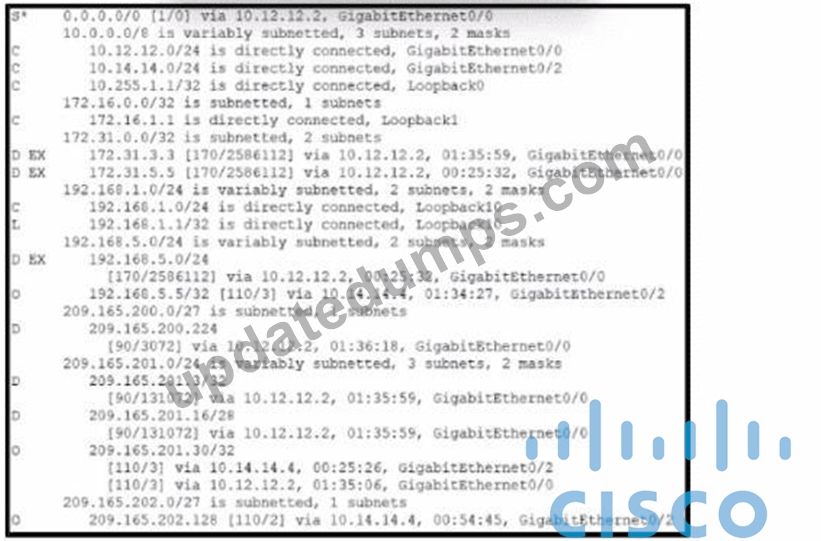

Refer to the exhibit. Four load-balancing servers are reachable through this router; however, the company is removing all static and default routes on the router.
Server 1 - 10.12.14.14
Server 2 - 192.168.4.4
Server 3 - 209.165.200.5
Server 4 - 209.165.201.26
Which server will handle all traffic after the policy changes take effect?
Answer: B
Explanation:
Server 2 - 192.168.4.4. Cisco routing logic is deterministic: a router first matches the most specific destination prefix, then uses administrative distance when competing route sources advertise the same prefix, and finally evaluates the protocol metric when multiple paths remain inside the same routing protocol. First-hop redundancy protocols add a separate default-gateway resiliency function for hosts on a LAN. The other choices in this question either point to the wrong route-selection rule, confuse a protocol metric with administrative distance, or apply a Layer 2 concept where a Layer 3 forwarding decision is required. In production, that mistake would create blackholing, asymmetric routing, or a backup path that never activates.
Cisco CCNA 200-301 v1.1 tests this because route selection is fundamental to troubleshooting reachability.
The selected answer matches the behavior Cisco routers use when forwarding traffic or maintaining gateway redundancy.
NEW QUESTION # 75

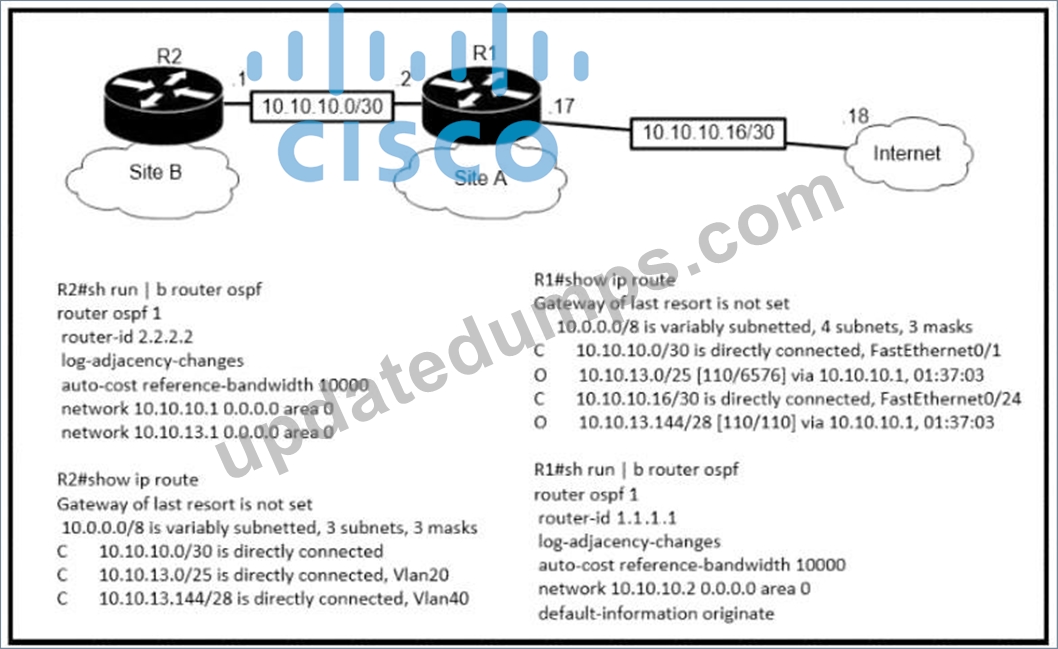

Refer to the exhibit.
The default-information originate command is configured under the R1 OSPF configuration After testing workstations on VLAN 20 at Site B cannot reach a DNS server on the Internet Which action corrects the configuration issue?
Answer: A
NEW QUESTION # 76
......
